MBP late 2011 Keyboard backlight not working

Discussion in 'MacBook Pro' started by sjors, Mar 10, 2015.

  1. sjors, Mar 10, 2015
    Last edited: Mar 10, 2015

    sjors macrumors newbie

    Joined:
    Mar 10, 2015
    #1
    I have a macbook pro with the backlight not working. I dont know if the backlight of the keyboard worked before (dont ask me why hehe)

    What I have done so far:
    SMC and VPRAM reset
    I was on max osx 10.7.5 read some problems about it, upgraded to mavericks ( had it still under my purchases at app store). No results.

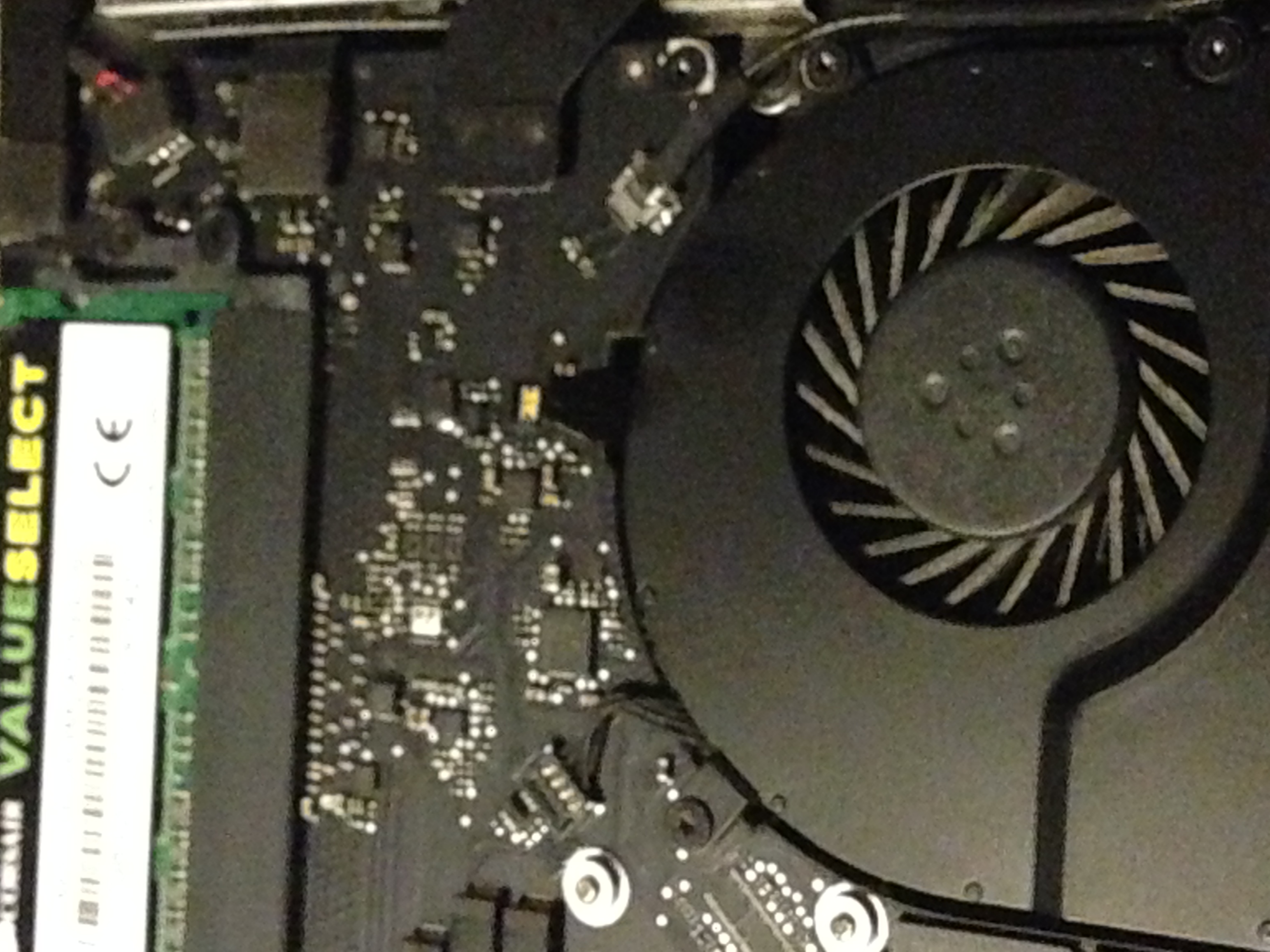

    I screwed open the backpiece and I noticed that a small cable near the vent was not attached (with the gold square on it), I opened a MBP from a close friend and his was attached. Could this be the cause that my backlight is not working? I putted a photo in the attachement.

    Hope someone can help me out, have been looking for hours.


    Attached Files:

  2. Raunien macrumors 6502

    Joined:
    Aug 3, 2011
    #2
    Yes this is connector for the backlight keyboard. You need to attach this.
