macrumors newbie
Original poster
Nov 24, 2014
Hi everyone, I could really use some help with my 2009 15” Macbook Pro (A1286). Running Mavericks.
I have had battery issues for a while. Battery was in “Replace now condition”, and my power adapter (LED) wouldn't light up, be very dim, or flicker. Sometimes it wouldn't charge unless the cord was moved in different angles or the magsafe was firmly pressed against the port.

So I bought a new battery, and it worked great but wouldn't charge. So I bought and replaced the dc-in board since there was a little damage to it (Not water damage). Still the battery wouldn't charge. So then I get a new power adapter and it wouldn't light up. So I did a SMC reset, and it charged for about 10 minutes then stopped charging. Is there anything else that I can do that I haven't tried?

Here is my battery info:

Battery Information:

Model Information:
Serial Number: W01107AW7D3BA
Manufacturer: TOP
Device Name: A1321
Pack Lot Code: 3230
PCB Lot Code: 30db
Firmware Version: ddae
Hardware Revision: dac2
Cell Revision: 2b39
Charge Information:
Charge Remaining (mAh): 915
Fully Charged: No
Charging: No
Full Charge Capacity (mAh): 7319
Health Information:
Cycle Count: 2
Condition: Normal
Battery Installed: Yes
Amperage (mA): -147
Voltage (mV): 10957

System Power Settings:

AC Power:
System Sleep Timer (Minutes): 28
Disk Sleep Timer (Minutes): 10
Display Sleep Timer (Minutes): 4
Automatic Restart on Power Loss: No
Wake on AC Change: No
Wake on Clamshell Open: Yes
Wake on LAN: Yes
Display Sleep Uses Dim: Yes
PrioritizeNetworkReachabilityOverSleep: 0
Battery Power:
System Sleep Timer (Minutes): 24
Disk Sleep Timer (Minutes): 10
Display Sleep Timer (Minutes): 5
Wake on AC Change: No
Wake on Clamshell Open: Yes
Current Power Source: Yes
Display Sleep Uses Dim: Yes
Reduce Brightness: Yes

Hardware Configuration:

UPS Installed: No

AC Charger Information:

Connected: No
Charging: No

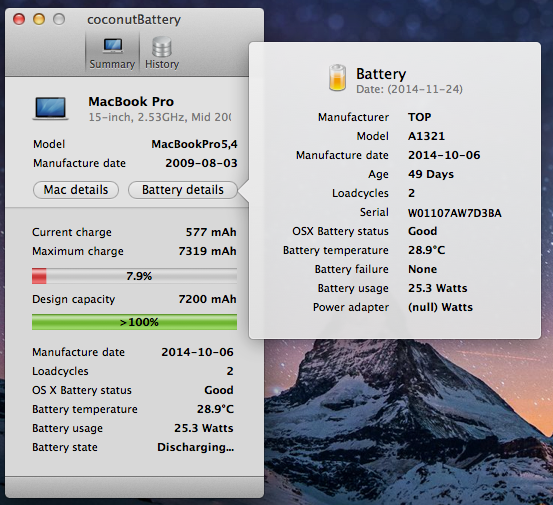

And this is CoconutBattery:


  • CB.PNG
    309.4 KB · Views: 188


macrumors P6
Jan 24, 2010
Those could be the source of your problems. Try replacing them with Apple OEM parts. MagSafe and batteries should never be replaced with third party products.
