Mid-2010 iMac. Is it normally this hot?

Discussion in 'iMac' started by ITguy2016, Nov 12, 2016.

  1. ITguy2016 Suspended

    Joined:
    May 25, 2016
    #1
    Just picked up a mid-2010 (21.5", 3.06 Core i3 processor, 4GB RAM, 500GB HD, Radeon HD 4670 256MB, seems to be a standard configuration). It's been running for a couple of hours and, for the most part, pretty much idle. Only tasks I've performed on it thus far is browsing the web. The upper back portion of the unit is pretty warm. Is this normal? It's not super hot but hotter than I would have expected given the almost idle state of the system.

  2. DeltaMac macrumors 604

    DeltaMac

    Joined:
    Jul 30, 2003
    Location:
    Delaware
    #2
    Temps, in general, rise inside (literally :D )
    Could you tell us actual temps, which can be more informative than trying to decide if the relative temps that you feel on the outside of the case are normal?
    Have you tried one of the monitor utilities that will show you the reported temps (and the speed of the fans - which might be important here)

  3. ITguy2016 thread starter Suspended

    Joined:
    May 25, 2016
    #3

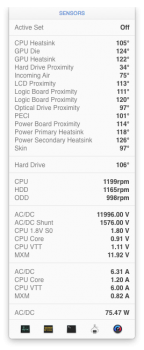

    Here is what iStat Menus reports.


    Attached Files:

  4. minimalism macrumors member

    Joined:
    Nov 28, 2013
    #4
    My mid-2010 21.5" iMac is hotter than the late-2013 iMac during operation. I think it is because of its internal structure. At one point, my 21.5" iMac's fan ran crazy loud and realised it must be that a lot of dust has accumulated inside. I opened and cleaned the internals and it now runs fine though not as hot as yours. I installed a fan controller and put it at 2000 rpm. The temperature hovers at around 44 deg C for graphics card.

  5. Dreadnought macrumors 68020

    Dreadnought

    Joined:
    Jul 22, 2002
    Location:
    Almere, The Netherlands
    #5
    They do run hot, especially when they didn't have the dust blown out yet or playing a game for several hours.
    This is also due to the screen, lower the brightness and make a hotcorner for your mouse to turn the screen off when not behind it. Changing the HD to a SSD also helps quite a lot.

    All heatgenerating components are directed to the top, the gpu has heatpipes that go to the top, the HD is located at the top, etc

  6. dexterie macrumors regular

    dexterie

    Joined:
    Sep 4, 2015
    Location:
    BE, EU
    #6
    I have that exact configuration. It does get hot at times. And I think that's the main reason why it's dying on me.
    BTW, how much did you pay for yours? I want to sell mine and I have idea how much to ask for it.

  7. ITguy2016 thread starter Suspended

    Joined:
    May 25, 2016
    #7
    I paid $250 for it including the full sized Apple keyboard and wireless Apple mouse.
    --- Post Merged, Nov 13, 2016 ---
    Thanks for everyone's feedback. I didn't think there was anything wrong with the system but I was surprised at how hot the top of the unit becomes. It's working fine and this morning I did blow it out to ensure proper air flow (I didn't observe any dust coming out of it when I did so). It does appear to be running a little cooler with the top no longer hot (or even warm). New temperatures readings (though it hasn't been on as long as it was when I took the readings last night):


    Attached Files:
