Mini DisplayPort to DVI adaptor doesn't connect to DVI cable...

Discussion in 'Mac Accessories' started by Lostanddamned, Nov 2, 2009.

  1. Lostanddamned macrumors 6502a

    Lostanddamned

    Joined:
    May 3, 2009
    Location:
    London, UK
    #1
    I bought a Mini DisplayPort to DVI adaptor with the intent of connecting my TV (with DVI-in) to my MacBook in order to use front row (and plex) for films.

    However when I got home, I found that the DVI female of the adaptor does not match up (or successfully connect) to the DVI male of the cable. :confused: Have I done something foolish, but it seems that there are pins on the male that do not have a corresponding socket?

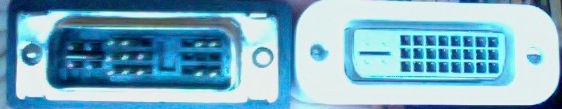

    I have attached an image to try and help out...

    Should I just give up and seek out a VGA instead?

    Thank you for your time and advice


    Attached Files:

  2. jedivulcan macrumors 6502

    Joined:
    May 15, 2007
    #2

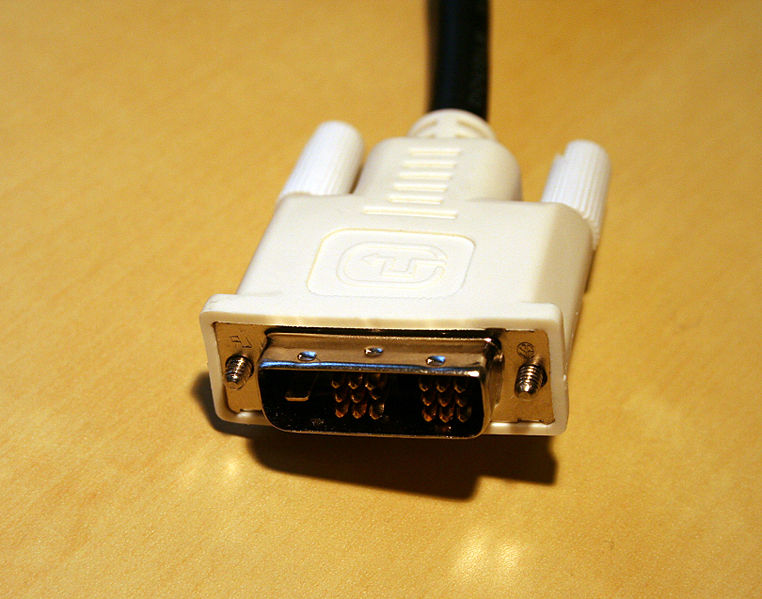

    The cable you have has analog pins. The mini displayport to DVI adapter doesn't have those pin inputs. You will need a new cable that is specifically DVI-D.

    [​IMG]

  3. Lostanddamned thread starter macrumors 6502a

    Lostanddamned

    Joined:
    May 3, 2009
    Location:
    London, UK
    #3
    Bugger.

    I think I will be taking this back, and trying to get a VGA to Mini DisplayPort.

    Thanks.
