Mini DisplayPort->VGA->Component?

Discussion in 'MacBook Pro' started by Sean7512, Apr 13, 2009.

  1. Sean7512 macrumors 6502a

    Joined:
    Jun 8, 2005
    #1
    Hey guys,

    I just bought a slingbox and am looking for a way to connect my MacBook Pro to my tv. The problem is my tv is not HD and only has component inputs. If I buy the Apple Mini DisplayPort to VGA adapter and buy this:

    http://www.amazon.com/6ft-component-video-cable-HD15/dp/B000FM3EQ0

    Would it work? Its a shame that Apple cut all their video adapters, they used to have RCA, s-video, component, dvi, and vga, now they only have dvi and vga :(

    Thanks

  2. Scarlet Fever macrumors 68040

    Scarlet Fever

    Joined:
    Jul 22, 2005
    Location:
    Bookshop!
  3. GFSarah macrumors regular

    GFSarah

    Joined:
    Jan 19, 2009
    Location:
    North Carolina
    #3
    I believe that will work. I have the mini-DisplayPort--VGA adapter and judging by the picture on Amazon, they're a match (the adapter is "female" and the Amazon connecter is "male," so that should work). I'd say that's your ticket.

  4. UltraNEO* macrumors 601

    UltraNEO*

    Joined:
    Jun 16, 2007
    Location:
    近畿日本
    #4
    Curious... How is the OP gonna get analogue Component signals from the Digital only based mini DisplayPort???

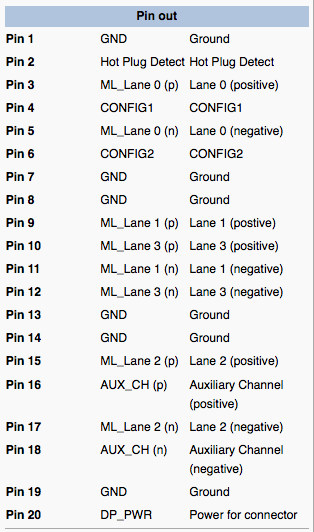

    Specs, see attachment.


    Attached Files:

  5. Sean7512 thread starter macrumors 6502a

    Joined:
    Jun 8, 2005
    #5
    I was under the impression that VGA was already an analog signal, no?

  6. dejo Moderator

    dejo

    Staff Member

    Joined:
    Sep 2, 2004
    Location:
    The Centennial State
    #6
    By using Apple's Mini DisplayPort to VGA Adapter. Like they mentioned in their OP. :)

  7. Sean7512 thread starter macrumors 6502a

    Joined:
    Jun 8, 2005
    #8
    So this should work fine then? :D The only thing that worries me is this line from the description:

    Note: This cable is NOT designed to work in anyway with a computer's input or output.

    Hopefully it will work....I will probably get it anyways and test it...

  8. Signal-11 macrumors 65816

    Signal-11

    Joined:
    Mar 23, 2008
    Location:
    2nd Star to the Right
    #9
    This isn't going to work.

    Long answer: VGA is an analogue RGBHV signal. Your TV's component video input (in all probablity) is only Y/Pb/Pr (unless you have one of those odd TVs accepts multi RGB ins). These signals are not compatible.

    What the cable on Amazon is meant to do is to take a component out (or RGB) of a video device and connect it to the VGA in of a project. Most projecters can do this because they're set up to accept component or RGB over d-sub.

    What this cable won't do is covert your VGA (RGB) signal to component (TV) video, unless your TV is set up for it and your TV in all probability, is not. The signals are similar, but sync differently.

    Short answer: No. Don't bother.
