Resolved missing a bracket?

Discussion in 'MacBook Pro' started by teezy, Jan 23, 2015.

  1. teezy, Jan 23, 2015
    Last edited: Jan 23, 2015

    teezy macrumors member

    teezy

    Joined:
    Jul 18, 2012
    Location:
    Tri-State Area, USA
    #1
    what's up, brothers/sisters.

    long story short, i bought an mbp 5,5 (13" mid '09 2.53ghz) off eBay for parts/repair for $100. appeared that only the battery and hard drive weren't included. the pics weren't that good.

    got the delivery, turns out ALL of the screws (literally every single screw; hinge, chassis, etc), the speakers + mic, hard drive cable + brackets, 2nd RAM stick, DC-in board, and the rubber feet were missing. not to mention that the hard drive actually wasn't included lol.. battery was included.. not sure if its any good though.

    anyway. i ordered screws, the speakers, 2 x 2gb RAM sticks, a DC-in board, a hard drive + cable + brackets, the rubber feet and all that... pretty much everything but the mic. don't need it. hinge screws and rubber feet came in today. still waiting for everything else.
    so.

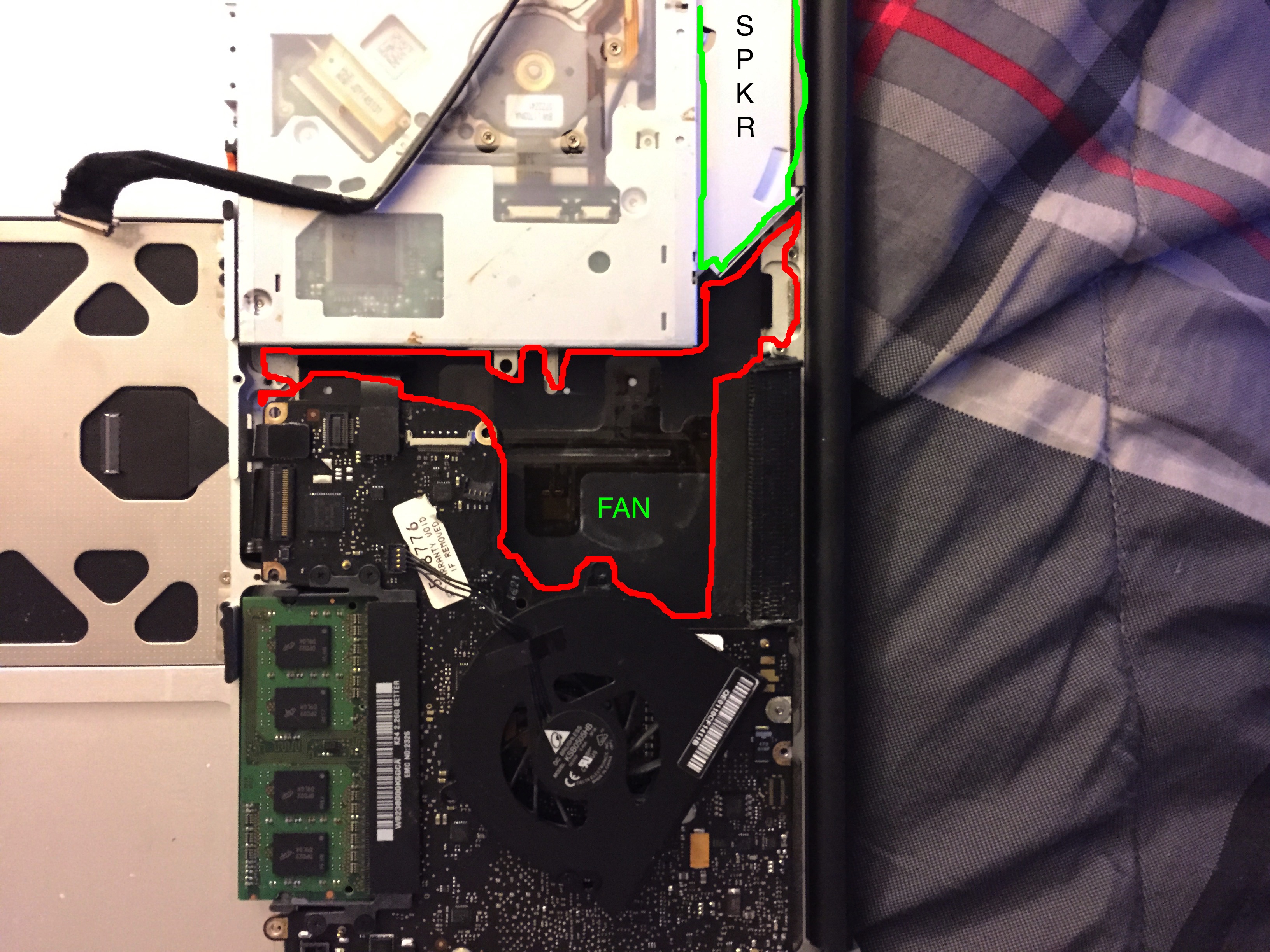

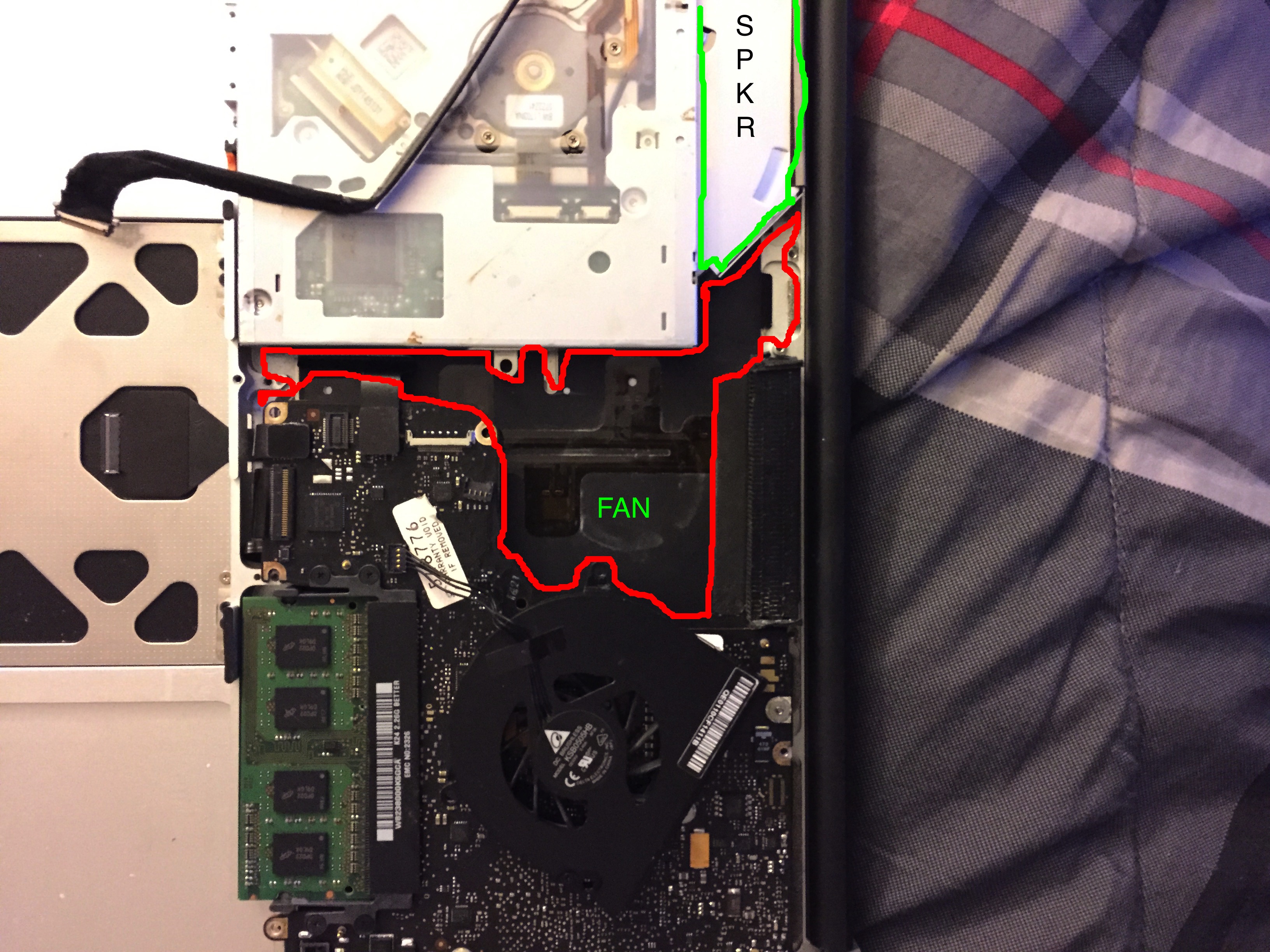

    see the attached picture, and be amazed at my wonderful tracing skills LOL.

    now... i know that the right(?) speaker lays in the green highlighted area, on the side of the superdrive, and the fan goes.. obviously right... in the red area. obviously. lol

    i'm concerned about something being missing though, and maybe i'm just tripping.

    you see in the red area, where the fan would be.. what the heck does that second screw on the fan go? and what will a screw on the superdrive (on that side) go to? isn't a bracket or something missing? lol.. i haven't taken MY macbook apart in a little while so i don't quite remember EVERY little detail. and my macbook is a 9,2 (13" mid '12 2.9ghz), i know that the setup is a bit different but not much.

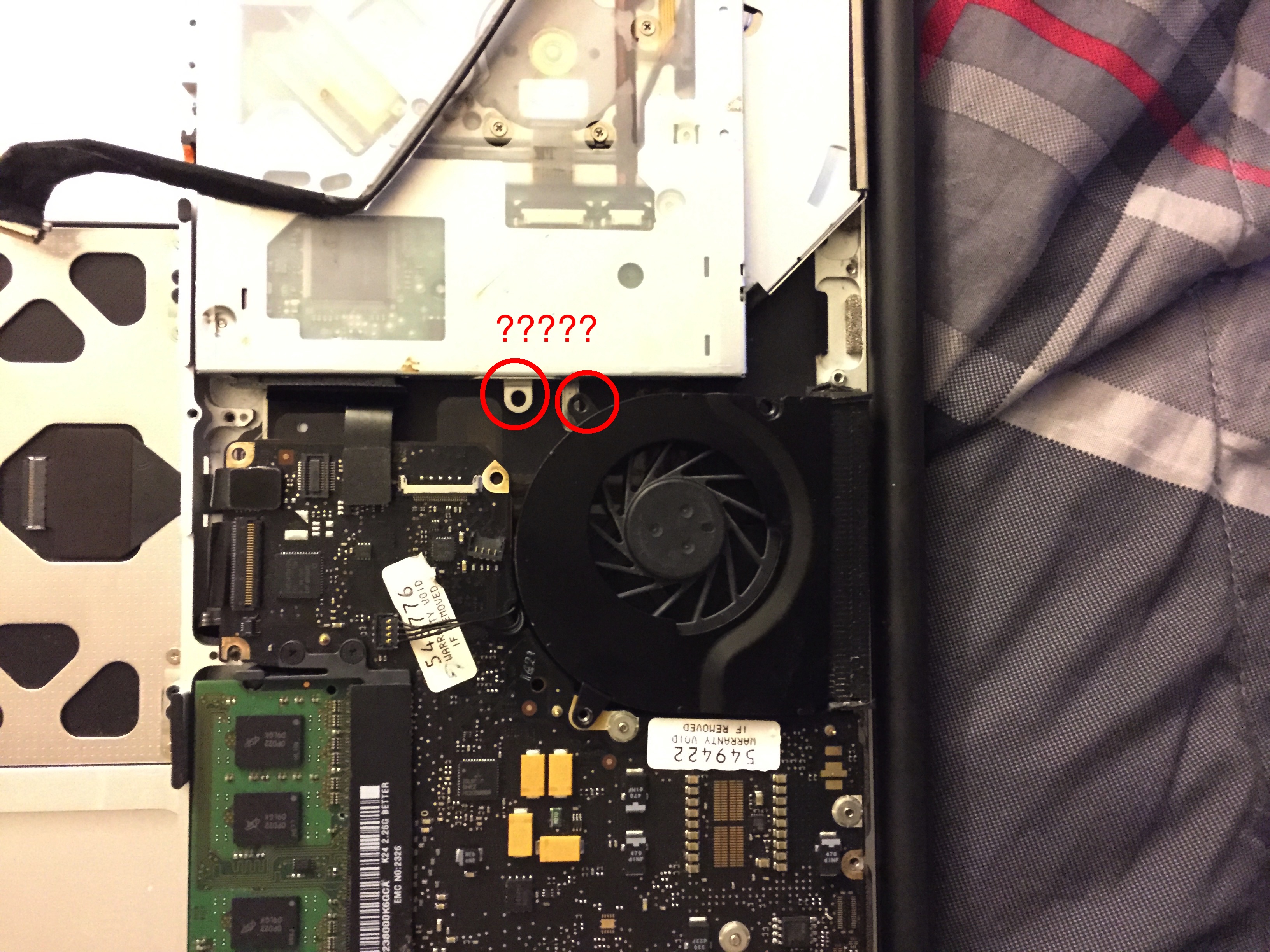

    its baffling my mind right now lol. second picture is with the fan sitting as it normally would... the screw holes circled are the ones that are to be screwed to apparently nothing. lol. please... advice!


    Attached Files:

  2. Command macrumors regular

    Command

    Joined:
    Jan 23, 2015
    Location:
    USA
    #2
    Help at all? Just a quick search... I don't have the same model. Mine's a 15".


  3. teezy thread starter macrumors member

    teezy

    Joined:
    Jul 18, 2012
    Location:
    Tri-State Area, USA
    #4
  4. bizzle macrumors 6502a

    Joined:
    Jun 29, 2008
  5. DeltaMac macrumors 604

    DeltaMac

    Joined:
    Jul 30, 2003
    Location:
    Delaware
  6. teezy thread starter macrumors member

    teezy

    Joined:
    Jul 18, 2012
    Location:
    Tri-State Area, USA
    #7
    Dang. I really wish that would've thought about PowerbookMedic before I jumped on the eBay listing! Could've saved a couple of bucks haha no big deal though.

    Thanks a million again, guys!:)
