ML or Yosemite. I need to change the graphics card ?

Discussion in 'Mac Pro' started by vincenzo79, Feb 17, 2016.

  1. vincenzo79 macrumors member

    vincenzo79

    Joined:
    Feb 17, 2016
    Location:
    Rome, Italy
    #1
    Hello.
    This is my first message. I apologize for my English is not perfect, I'm trying to improve. :). I wanted to ask you an information.
    I managed to change my iMac 17" Core 2 Duo with a Mac Pro 1.1, bought with little money.
    On this Mac Pro I've read that you can install Mountain Lion and Mavericks even if they are not officially supported, using a small program that “simulates” booting the 64-bit.
    I wanted, however understand one thing..to be able To install both Mountain Lyon or Mavericks is required, however, to also change the graphics card or can I use the one that is currently in use in the Mac Pro (GeForce 7300 GT) ?
    If I have to change which graphics card with a modest price recommended ?
    Thanks,
    Vincenzo

  2. alinux macrumors member

    alinux

    Joined:
    Jan 18, 2011
    #2
    if you want to upgrade past lion,then yes you need a better video card than 7300 GT !
    i have a mac pro 1.1 and i got a pc radeon hd 5770 and i flashed it yesterday to support efi boot. and its worth it.
    graphic card price ? that depends on your country and what you can find.
    my xfx hd 5770 1gb was 74$ (not new)

  3. vincenzo79 thread starter macrumors member

    vincenzo79

    Joined:
    Feb 17, 2016
    Location:
    Rome, Italy
    #3
    Alinux,
    many thanks for your information.
    I would like to make you other questions.
    This weekend I found a project called MacPostFactor, and many people state that it has been possible to carry out the installation of ML using the graphics card GeForce 7300 GT.
    Do you think that may be so, or no ?
    The other question I wanted to ask you regarding the monitor. My monitor only has VGA input while the video card has DVI output. If I were to buy a cable that makes the conversion (DVI to VGA) do you think that there might be problems ?
    Thanks.

  4. alinux, Feb 22, 2016
    Last edited: Feb 22, 2016

    alinux macrumors member

    alinux

    Joined:
    Jan 18, 2011
    #4
    its not worth it.. 7300GT is a very very low videocard ! its okay to use it on lion and other older os, yes you can install it,but it will run like s***. it will drag your os down.
    and about your dvi or vga,it will not make a difference. the card will work as it should be.

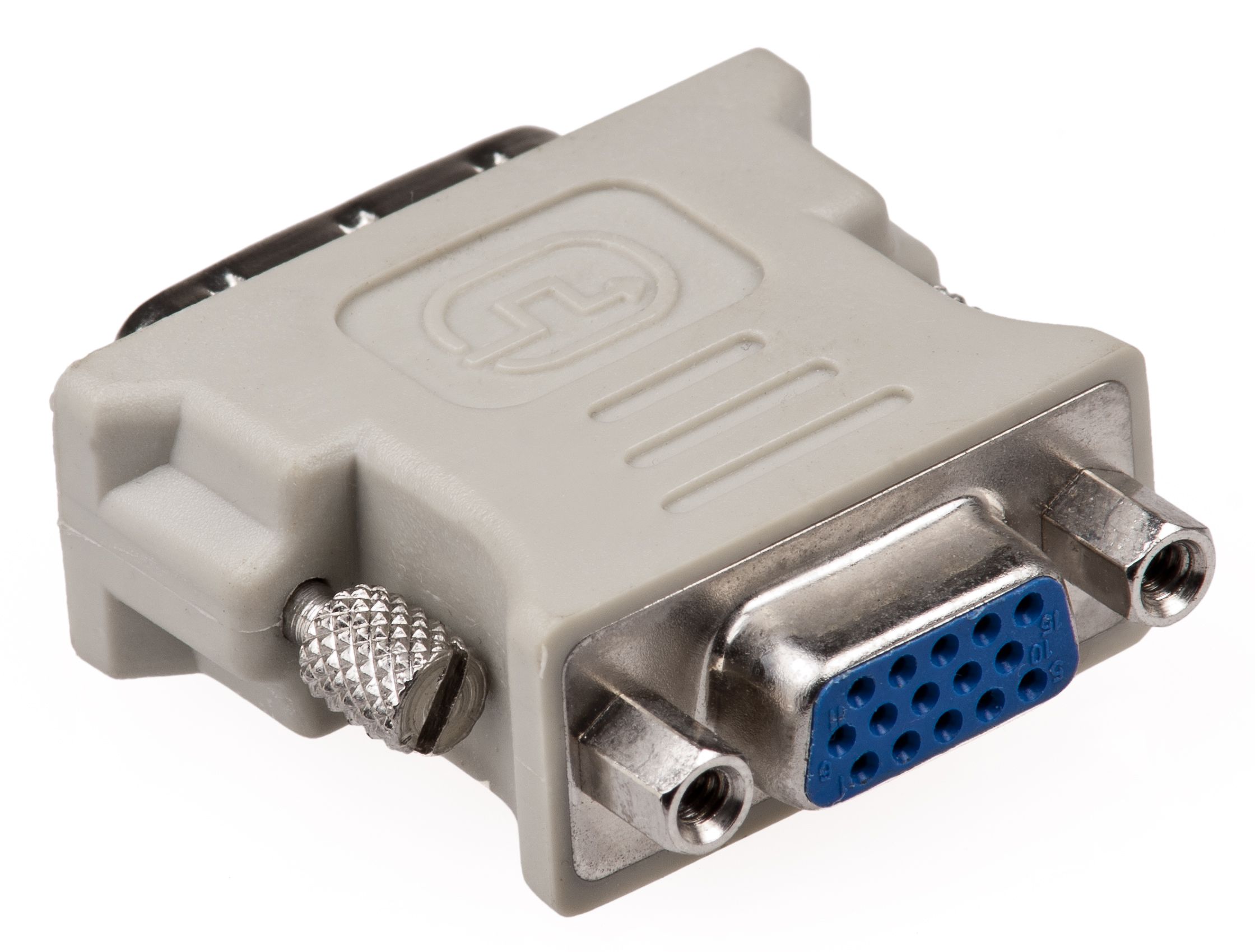

    if you want you can buy an adapter for your videocard. they are very cheap,that is if you dont have one.

    also until you have a good video card and enough ram...i suggest sticking with a supported OS
    like snow leopard,it runs great,if you have more ram like 4 gb then go for lion.

  5. vincenzo79 thread starter macrumors member

    vincenzo79

    Joined:
    Feb 17, 2016
    Location:
    Rome, Italy
    #5
    Hello,
    thanks again for your answers..
    And they should not just try to install Mountain Lion ?
    Regarding the adapter, I am very undecided whether to take an adapter to connect to the video, or if you get a cable that converts from DVI to VGA
    I wanted further clarification..But the adapter that you have indicated should not be male instead of female ?
    Thanks,
    Vincenzo

  6. CapnDavey macrumors 6502

    CapnDavey

    Joined:
    Apr 11, 2015
    #6
    It will look like dog do do I tried that on my 06 macbook pro it ran but was slow and ran like crap. What i did with my 06 mac pro I got a cheap ATI HD4870 they run 30 to 50 dollars used and flashed it from DOS on my mac pro easy.

  7. vincenzo79 thread starter macrumors member

    vincenzo79

    Joined:
    Feb 17, 2016
    Location:
    Rome, Italy
    #7
    Flashed it from DOS ?
    Do you mean that you bought a card for a regular computer and then it was used inside a MAC Pro ?
    Thanks,
    Vincenzo

  8. vincenzo79 thread starter macrumors member

    vincenzo79

    Joined:
    Feb 17, 2016
    Location:
    Rome, Italy
    #8
    Hello,
    yesterday I took the Mac Pro and I have to say that as the machine is really very, very performance despite being a Mac about 10 years ago.
    I have only one doubt now.
    Currently the graphics card is the GeForce 7300 that I found not to be compatible with 10.8. I did some research and I discovered that it is possible to change the graphics card and using a hack to install the 10.8 on the Mac old.
    What is the graphics card better be able to do this installation ?
    I also discovered that you can still install a video card for the PC even on a Mac by modifying the BIOS.
    Advice then buy a PC card and then modify it for Mac ?
    Thanks,
    Vincenzo

  9. Fl0r!an macrumors 6502a

    Joined:
    Aug 14, 2007
    #9
    A used Radoen HD 5770 is a great choice for the MacPro 1,1. Runs every OS starting with 10.6.x up to El Capitan and can easily be flashed for boot screens. Should be around 50$ on eBay.

  10. Machines, Mar 1, 2016
    Last edited: Mar 1, 2016

    Machines macrumors 6502

    Machines

    Joined:
    Jan 23, 2015
    Location:
    Fox River Valley , Illinois
    #10
    An ATI 5770 is a slam-dunk general purpose choice for a Mac Pro 1,1 modded to run OS X 10.8.x to 10.10.5 . I have not tried El Cap yet with this . It is not hard to EFI flash a PC Edition 5770 to work in a Mac .
    --- Post Merged, Mar 1, 2016 ---
    The best way to EFI flash PC Edition video cards is within a real PC running DOS . You cannot EFI flash in a computer running OS X . And it is not advisable to EFI flash using Windows . Once EFI flashed , reinstall the video card in your Mac Pro 1,1 .

  11. vincenzo79 thread starter macrumors member

    vincenzo79

    Joined:
    Feb 17, 2016
    Location:
    Rome, Italy
    #11
    Hello,
    thanks for the reply.
    Now I can see well, what to buy, because the biggest problem for me is not so much buying the card, but to find a Windows computer where I can install the adapter and do the flash of the graphics card.
    Unfortunately at home I have only Mac and so for me it is difficult.
    I have read that there is FreeDOS, but I don't know if it's the same thing.
    What do you recommend ?

  12. alinux macrumors member

    alinux

    Joined:
    Jan 18, 2011
    #12
    i flashed mine with my mac! you dont need another pc!
    just folow the guide here http://forum.netkas.org/index.php/topic,692.0.html
    also install 5770 on first slot and 7300Gt on second slot !
    you will be using 7300GT to power up your mac with it.
    when you are ready to flash and you have all files,also you prepared your rom,before you start anything make sure you write in dos "atiflash -i" so it will show you on what slot is your 5770 ! exmple: your 5770 will be on slot 0 then the flash command will be "atiflash -p 0 -f myrom.rom"

    Good luck

  13. vincenzo79 thread starter macrumors member

    vincenzo79

    Joined:
    Feb 17, 2016
    Location:
    Rome, Italy
    #13
    Hello,
    thanks for the reply.
    I am only asking you some information. No read that there are different models of the card HD 5770. I can take any or you need a specific model of that card ?
    Thanks,
    Vincenzo

  14. Fl0r!an macrumors 6502a

    Joined:
    Aug 14, 2007
    #14
    Get one with reference layout (2x DVI, 1x HDMI, 1x DisplayPort).

  15. vincenzo79 thread starter macrumors member

    vincenzo79

    Joined:
    Feb 17, 2016
    Location:
    Rome, Italy
    #15
    Thanks Fl0r!an,
    If I find some pattern I can put the link so you advise me if it is good or not ?

  16. vincenzo79 thread starter macrumors member

    vincenzo79

    Joined:
    Feb 17, 2016
    Location:
    Rome, Italy
    #16
    Hello,
    I researched on the used and I have been offered two different cards.
    The first card is a ATI HD 5770 for the PC that I have to make the conversion to MAC for 40 euro. The second adapter is an ATI HD 5870 specification for MAC (80 euro).
    From what I understand, some people say that the HD 5870 works while other people say that does not work.
    Which is the best choice according to you ?
    Thanks,
    Vincenzo

  17. r6mile macrumors 6502

    Joined:
    Feb 3, 2010
    Location:
    London, UK
    #17
    An Apple 5870 for 80 euro is quite good value I think. Is it an original Apple card, or just a PC card flashed for Mac?

  18. vincenzo79 thread starter macrumors member

    vincenzo79

    Joined:
    Feb 17, 2016
    Location:
    Rome, Italy
    #18
    The card seems to be unmounted from a Mac Pro. I believe in the version 3.1. But I wonder is it compatible with my Mac Pro 1.1 ?

  19. ActionableMango macrumors 604

    ActionableMango

    Joined:
    Sep 21, 2010
    #19
    Yes a 5870 will work in the MP 1,1.

    That price is quite low though, especially if it's a genuine Apple card removed from a Mac Pro. Probably it is a flashed PC 5870. A picture would of the actual item would clear that up.

  20. vincenzo79 thread starter macrumors member

    vincenzo79

    Joined:
    Feb 17, 2016
    Location:
    Rome, Italy
    #20
    Hello to all,
    I thank all the people that they are giving me support.

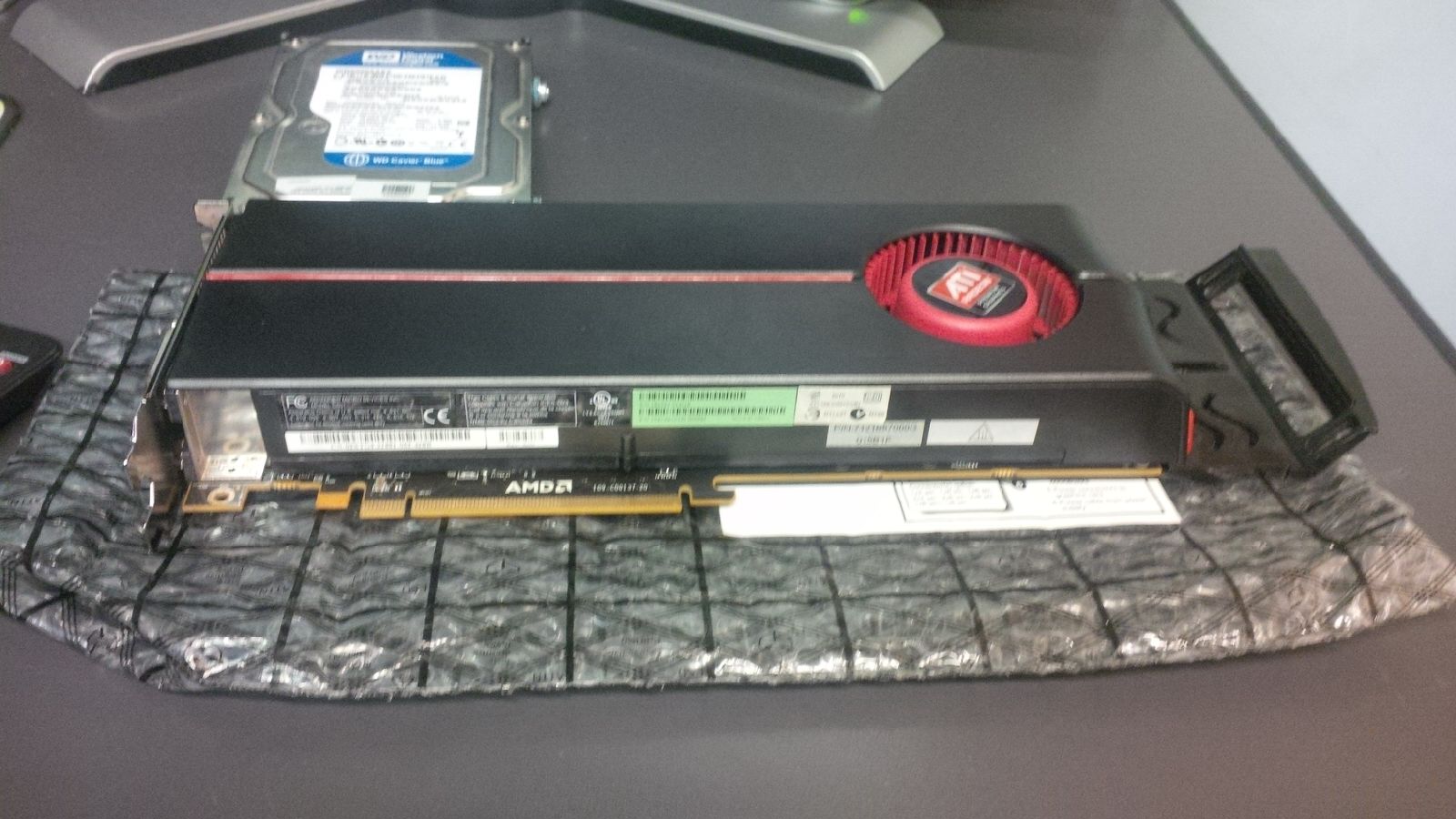

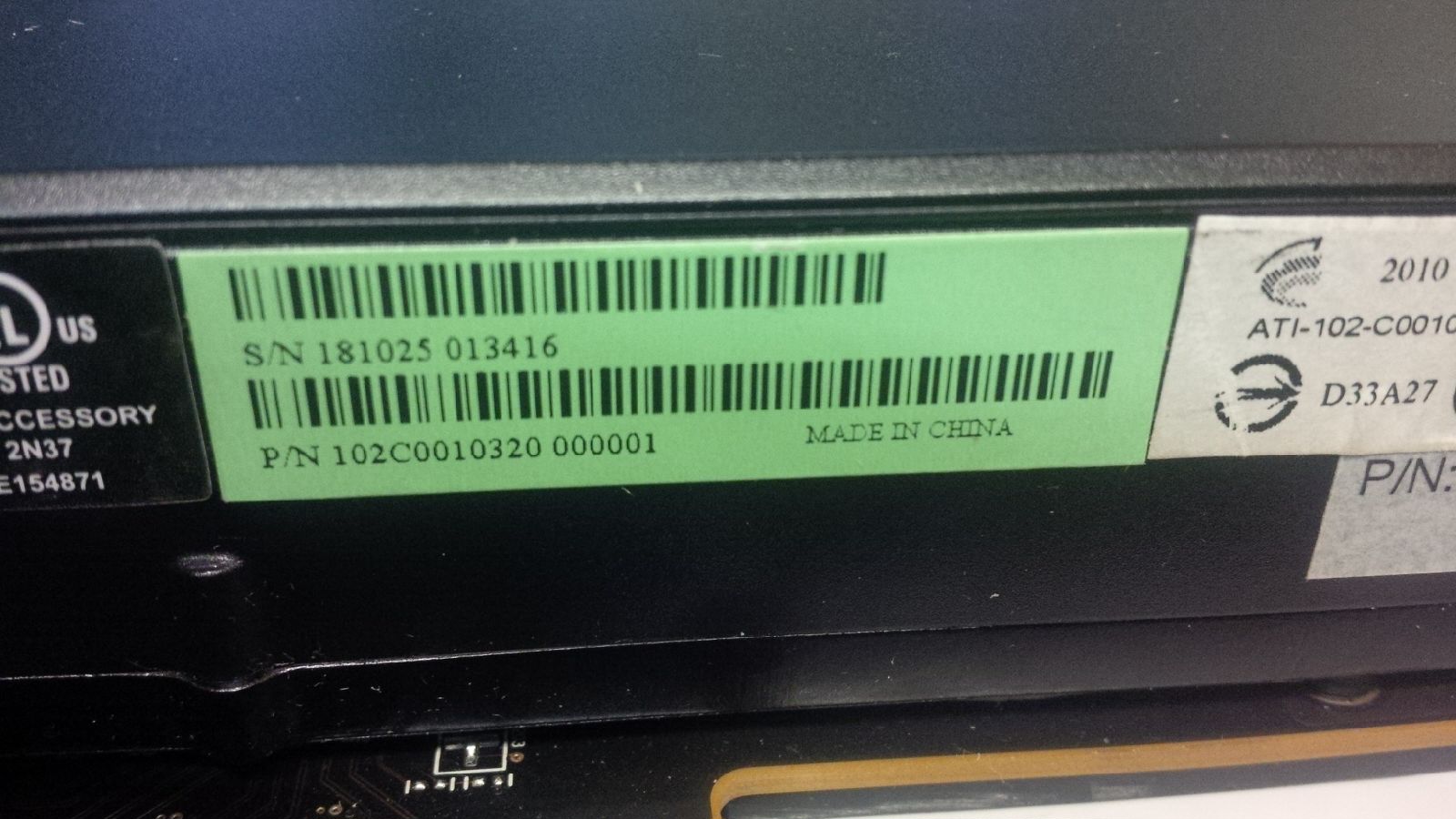

    Below I have inserted the images related to your graphics card.
    From what I've read on the internet seems to be compatible with the Mac Pro in my possession.
    What do you think ?


    Attached Files:

  21. r6mile macrumors 6502

    Joined:
    Feb 3, 2010
    Location:
    London, UK
    #21
    That looks like a genuine Apple card. If so, a great deal at €80! Is it from a private individual, or from a retailer?

  22. vincenzo79 thread starter macrumors member

    vincenzo79

    Joined:
    Feb 17, 2016
    Location:
    Rome, Italy
  23. Fl0r!an macrumors 6502a

    Joined:
    Aug 14, 2007
    #23
    Pretty sure it's a flashed card for that price. Which connectors does it have? 2x miniDisplayPort and DVI? Or 2x DVI, DisplayPort and HDMI?

  24. Machines macrumors 6502

    Machines

    Joined:
    Jan 23, 2015
    Location:
    Fox River Valley , Illinois
    #24
    This is definitely not a Mac Edition card - the card support guide looks like it is for a Dell workstation .

  25. vincenzo79 thread starter macrumors member

    vincenzo79

    Joined:
    Feb 17, 2016
    Location:
    Rome, Italy
