Xbfryfd

macrumors newbie
Original poster
Feb 24, 2016
28
39
Hi, I was looking one night a few weeks ago about trying to modify Mac OS Sierra's InstallableMachines.plist in the installESD.dmg file. When I noticed it again this morning, I tried messing around with it again, but I still can't add anything. What I want to do is add a Mac Pro 2008 motherboard ID, which I got from browser.primatelabs.com but when I paste it in, it says the file is locked. So I click the unlock button, but it says that the file is on a read-only volume, despite the fact that when I right-click and get info, I have read/write privileges for the file. So I turned off SIP, thinking that that was the culprit, but I still can't edit the file. Then I copied it to my desktop and edited it from there, but when I drag it back into the installESD.dmg, it won't copy. I would like to get any info that people have on this subject.


AmazingHenry

macrumors 65816
Jul 6, 2015
1,285
523
Central Michigan
The screenshots I'll provide are out-of-date as I'm on an old system, but it works the same in Sierra.

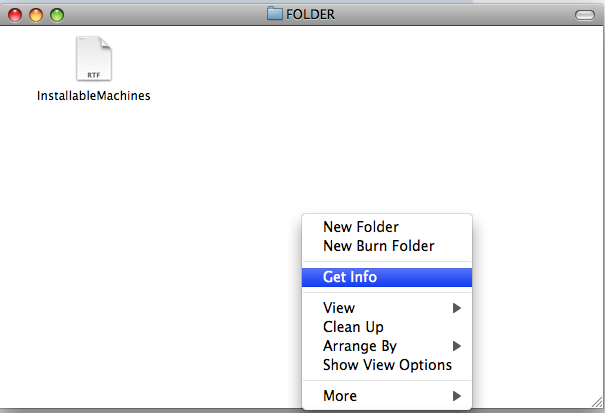

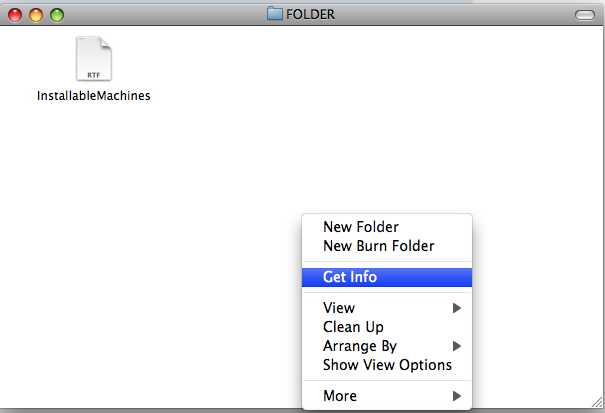

Go into the folder containing InstallableMachines.plist. Right click an empty space in the folder and choose "Get Info".
Picture 5.png

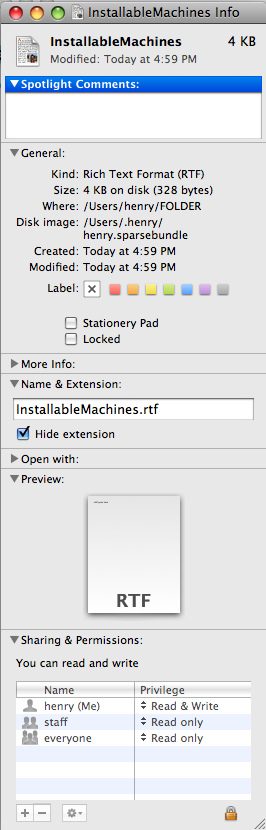

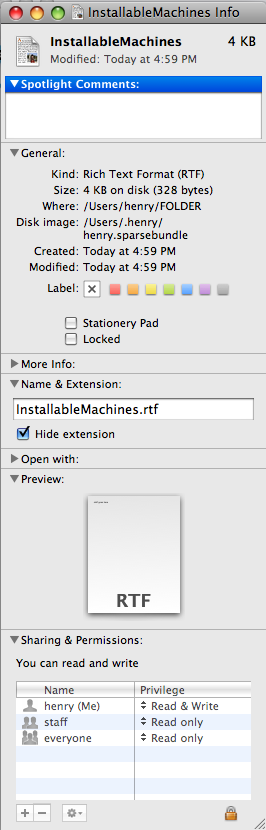

In the get into window, click the lock at the bottom (the lock may be somewhere else in Sierra):
Picture 7.png

Type your password to unlock the permissions, then give yourself read+write access.


Xbfryfd

macrumors newbie
Original poster
Feb 24, 2016
28
39
I just tried what you recommended, but it says I have read/write privileges on every level already.

Last edited:

AmazingHenry

macrumors 65816
Jul 6, 2015
1,285
523
Central Michigan
Go to the Get Info window for InstallESD.dmg. Does it say it's read-only?

If not, that's all the help I can give. :( I'm not super experienced with Sierra.


Xbfryfd

macrumors newbie
Original poster
Feb 24, 2016
28
39
Go to the Get Info window for InstallESD.dmg. Does it say it's read-only?

If not, that's all the help I can give. :( I'm not super experienced with Sierra.
Thanks for the info, but it says that I have read/write


foxlet

macrumors 6502
Aug 5, 2016
277
391
Hi, I was looking one night a few weeks ago about trying to modify Mac OS Sierra's InstallableMachines.plist in the installESD.dmg file. When I noticed it again this morning, I tried messing around with it again, but I still can't add anything. What I want to do is add a Mac Pro 2008 motherboard ID, which I got from browser.primatelabs.com but when I paste it in, it says the file is locked. So I click the unlock button, but it says that the file is on a read-only volume, despite the fact that when I right-click and get info, I have read/write privileges for the file. So I turned off SIP, thinking that that was the culprit, but I still can't edit the file. Then I copied it to my desktop and edited it from there, but when I drag it back into the installESD.dmg, it won't copy. I would like to get any info that people have on this subject.
From experience with the macOS Installer, to modify InstallESD.dmg you'll need to make a shadowing file, as that disk image itself is read-only. Once you have made the modifications, you can rewrite it back to InstallESD, then keep that as your master image.

As taken from my macOS Sierra Legacy Installer build script:
sudo hdiutil attach -owners on /Applications/Install\ macOS\ Sierra\ Legacy.app/Contents/SharedSupport/InstallESD.dmg -shadow

hdiutil convert -format UDZO -o ~/InstallESD.dmg InstallESD.dmg -shadow


It's much easier, however, to write a skeleton InstallESD image on a flash drive or other read/write bootable medium, make your changes, then write the differences back to InstallESD.dmg, since you only have so much extra space to work with without having to create a new filesystem.

I plan to do a writeup similar to the APFS one on the methods of making custom PowerPC OS X Installers, which might help with that idea.

Last edited:

Xbfryfd

macrumors newbie
Original poster
Feb 24, 2016
28
39
From experience with the macOS Installer, to modify InstallESD.dmg you'll need to make a shadowing file, as that disk image itself is read-only. Once you have made the modifications, you can rewrite it back to InstallESD, then keep that as your master image.

As taken from my macOS Sierra Legacy Installer build script:
sudo hdiutil attach -owners on /Applications/Install\ macOS\ Sierra\ Legacy.app/Contents/SharedSupport/InstallESD.dmg -shadow

hdiutil convert -format UDZO -o ~/InstallESD.dmg InstallESD.dmg -shadow


It's much easier, however, to write a skeleton InstallESD image on a flash drive or other read/write bootable medium, make your changes, then write the differences back to InstallESD.dmg, since you only have so much extra space to work with without having to create a new filesystem.

I plan to do a writeup similar to the APFS one on the methods of making custom PowerPC OS X Installers, which might help with that idea.
Wow! Thanks for all the info. I was wondering how to write a skeleton InstallESD. Do I just copy the InstallESD.dmg to a flash drive, or do I copy the InstallESD disk image?


foxlet

macrumors 6502
Aug 5, 2016
277
391
Wow! Thanks for all the info. I was wondering how to write a skeleton InstallESD. Do I just copy the InstallESD.dmg to a flash drive, or do I copy the InstallESD disk image?
To create a skeletal bootable image, you need the hidden file BaseSystem.dmg (which is inside of InstallESD.dmg). Once you mount InstallESD.dmg by opening it, you can write BaseSystem it with ASR:

sudo asr restore -source /Volumes/OS\ X\ Install\ ESD/BaseSystem.dmg -target /Volumes/TARGET erase

/Volumes/TARGET is the path to your flash drive.

If you want to copy the remaining 3.5GB or so of installation files that are part os InstallESD.dmg/Packages, you can do so with:

cp -r /Volumes/OS\ X\ Install\ ESD/Packages /Volumes/OS\ X\ Base\ System/System/Installation/Packages

Last edited:

Xbfryfd

macrumors newbie
Original poster
Feb 24, 2016
28
39
To create a skeletal bootable image, you need the hidden file BaseSystem.dmg (which is inside of InstallESD.dmg). Once you mount InstallESD.dmg by opening it, you can write BaseSystem it with ASR:

sudo asr restore -source /Volumes/OS\ X\ Install\ ESD/BaseSystem.dmg -target /Volumes/TARGET erase

/Volumes/TARGET is the path to your flash drive.

If you want to copy the remaining 3.5GB or so of installation files that are part os InstallESD.dmg/Packages, you can do so with:

cp -r /Volumes/OS\ X\ Install\ ESD/Packages /Volumes/OS\ X\ Base\ System/System/Installation/Packages
I tried doing what you said, I got the hidden file disk image copied to the desktop. Then I opened terminal and copied/pasted what you wrote, changing /volumes/target to my usb drive, and I got this (first image.) then I changed /volumes/OS\X\Install\ESD/BaseSystem.dmg to the path of the disk image on my computer, and I got the same thing (second image.) So I'm not sure what to do. SierraInstall2008 is my USB drive.

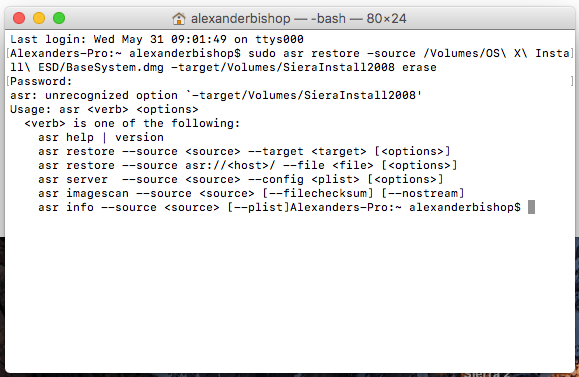

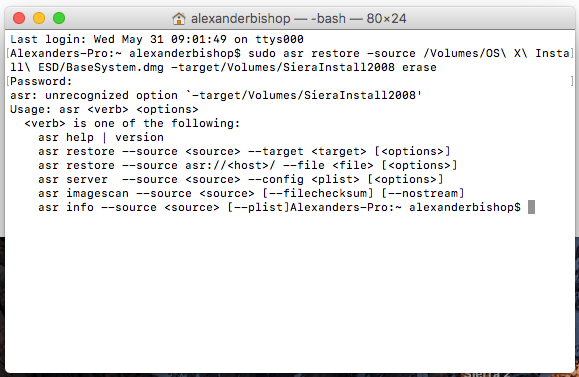

Screen Shot 2017-05-31 at 6.56.56 PM.png

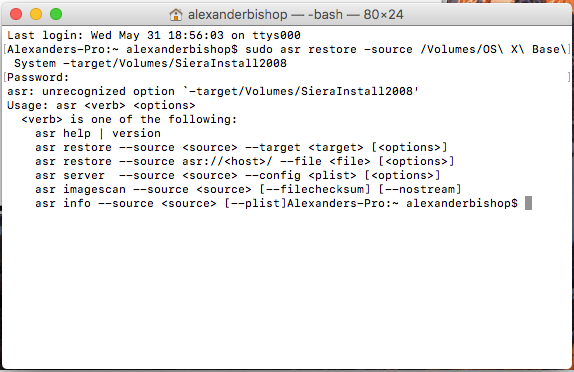

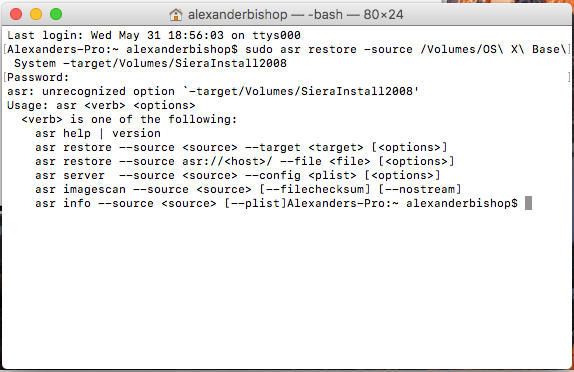

Screen Shot 2017-05-31 at 7.02.15 PM.png


foxlet

macrumors 6502
Aug 5, 2016
277
391
I tried doing what you said, I got the hidden file disk image copied to the desktop. Then I opened terminal and copied/pasted what you wrote, changing /volumes/target to my usb drive, and I got this (first image.) then I changed /volumes/OS\X\Install\ESD/BaseSystem.dmg to the path of the disk image on my computer, and I got the same thing (second image.) So I'm not sure what to do. SierraInstall2008 is my USB drive. View attachment 701729 View attachment 701730
You need to put a space between -target and the path.
