Modifying the Apple Silicone case (12.9) for gen 2

JohnCrichton

macrumors member
Original poster
Dec 27, 2014
61
28
Stockholm, Sweden
IMG_6878.JPG IMG_0398.JPG Hi everyone!

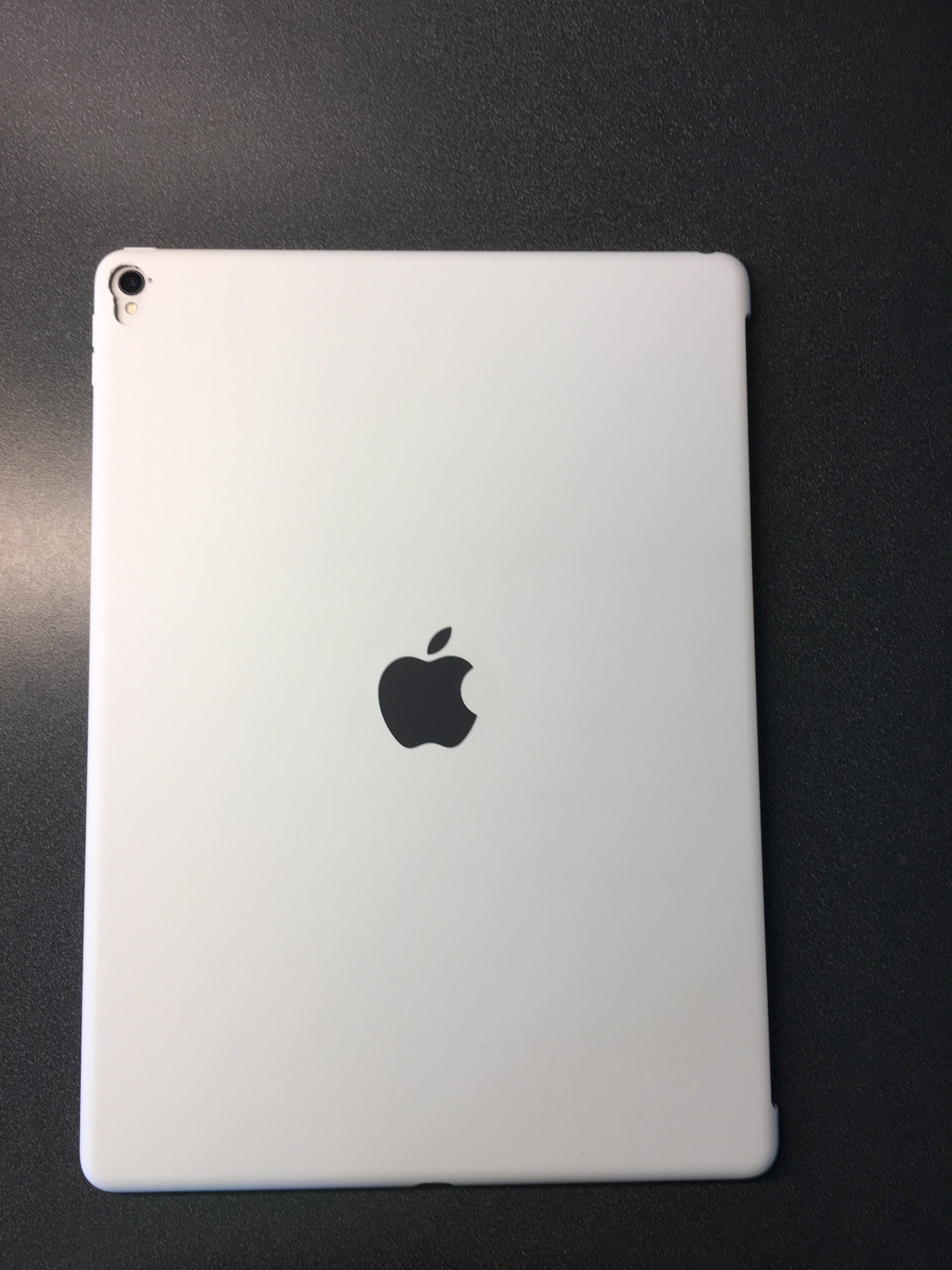

Just wanted to share my adventure of modifying the Apple Silicone case for the 12.9 inch iPad Pro. Used to own gen 1 of the iPad Pro 12.9 inch, but switched to gen 2 since I wanted 4G. Unfortunately the Apple Sillicone back cover didn't fit it perfectly. The bigger camera created like a "tent" and wouldn't allow the case to fully snap on. It also covered the flash. That bothered me a lot!

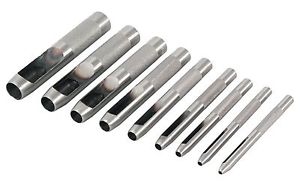

Today I bought a heavy duty hole punch set and punched though 2 new holes! For the camera (which is approximately 0.9 mm in diameter) I used a hole punch witha diameter of 1.2 mm. For the flash (that is 0.4 in diameter and approximately) I used a hole punch with 0.8 mm in diameter. Between the center of the camera and the flash there is about 0.7mm. After punching through the holes I used a regular nail file to smoothen out the area in between.

It worked out pretty well! Even though the holes aren't perfectly lined up, the camera and the flash work perfectly! No issues with the flash! And the plastic and the lining inside of the case held up pretty well!

Good luck to all of you modders!
/JC


cakebytheocean

macrumors regular
Apr 3, 2017
110
31
I have been thinking about doing something like this as well. What did you do for the microphone holes located on the top middle section?

Last edited:
  • Like
Reactions: Ipadlover29
Comment

JohnCrichton

macrumors member
Original poster
Dec 27, 2014
61
28
Stockholm, Sweden
I have been thinking about doing something like this as well. What did you do for the microphone holes located on the top middle section?
Nothing, microphones working just fine when FaceTiming!
[doublepost=1499632071][/doublepost]
And what about the 10th speaker hole? Do u care?
Not at all, sound is clear and loud

  • Like
Reactions: thadoggfather
Comment

brentsg

macrumors 68040
Oct 15, 2008
3,516
891
My old 12.9 rear case finally split at the corner, so no mod I guess.

Comment

zea

macrumors regular
Sep 29, 2014
125
59
View attachment 707702 View attachment 707703 Hi everyone!

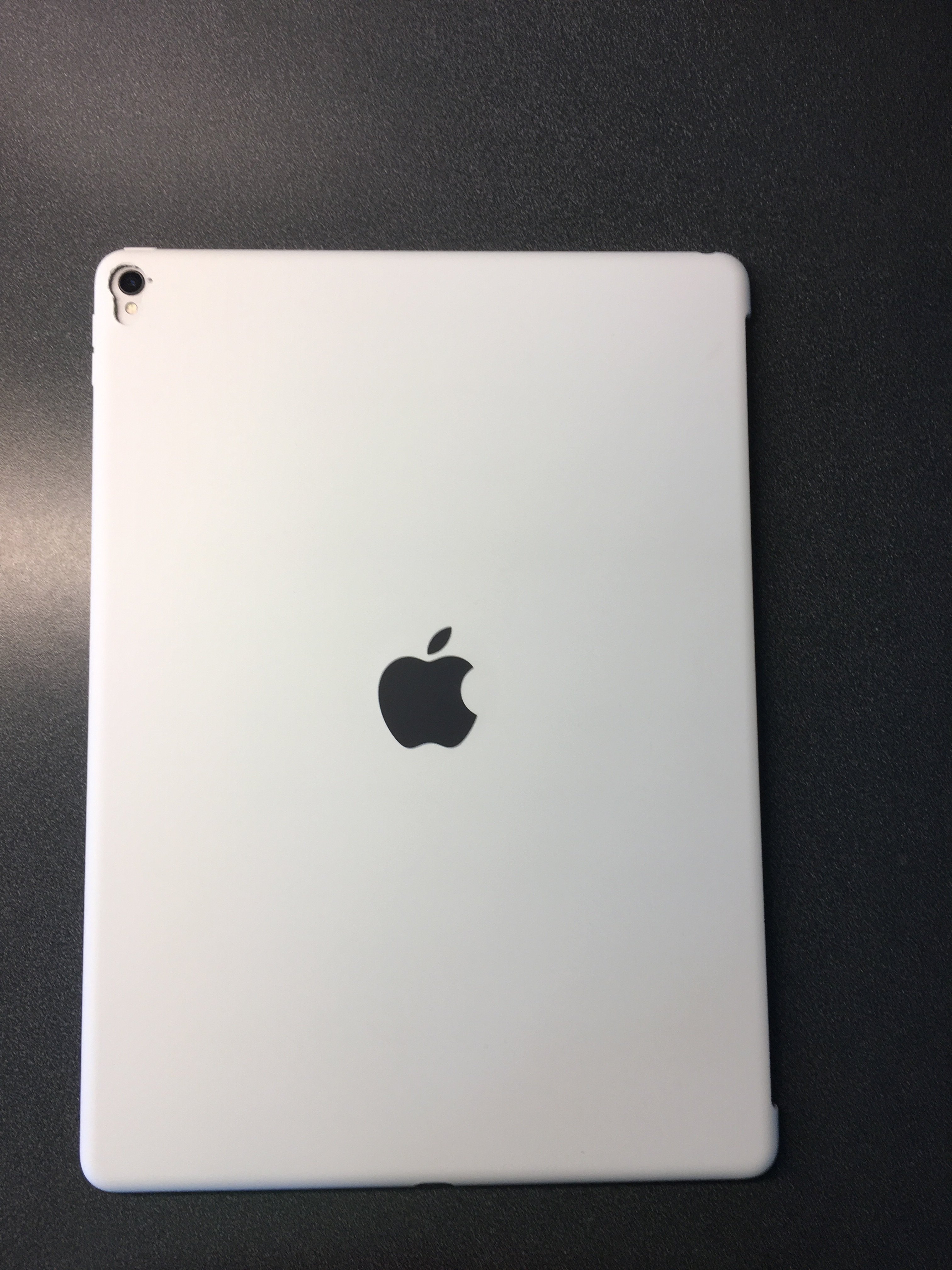

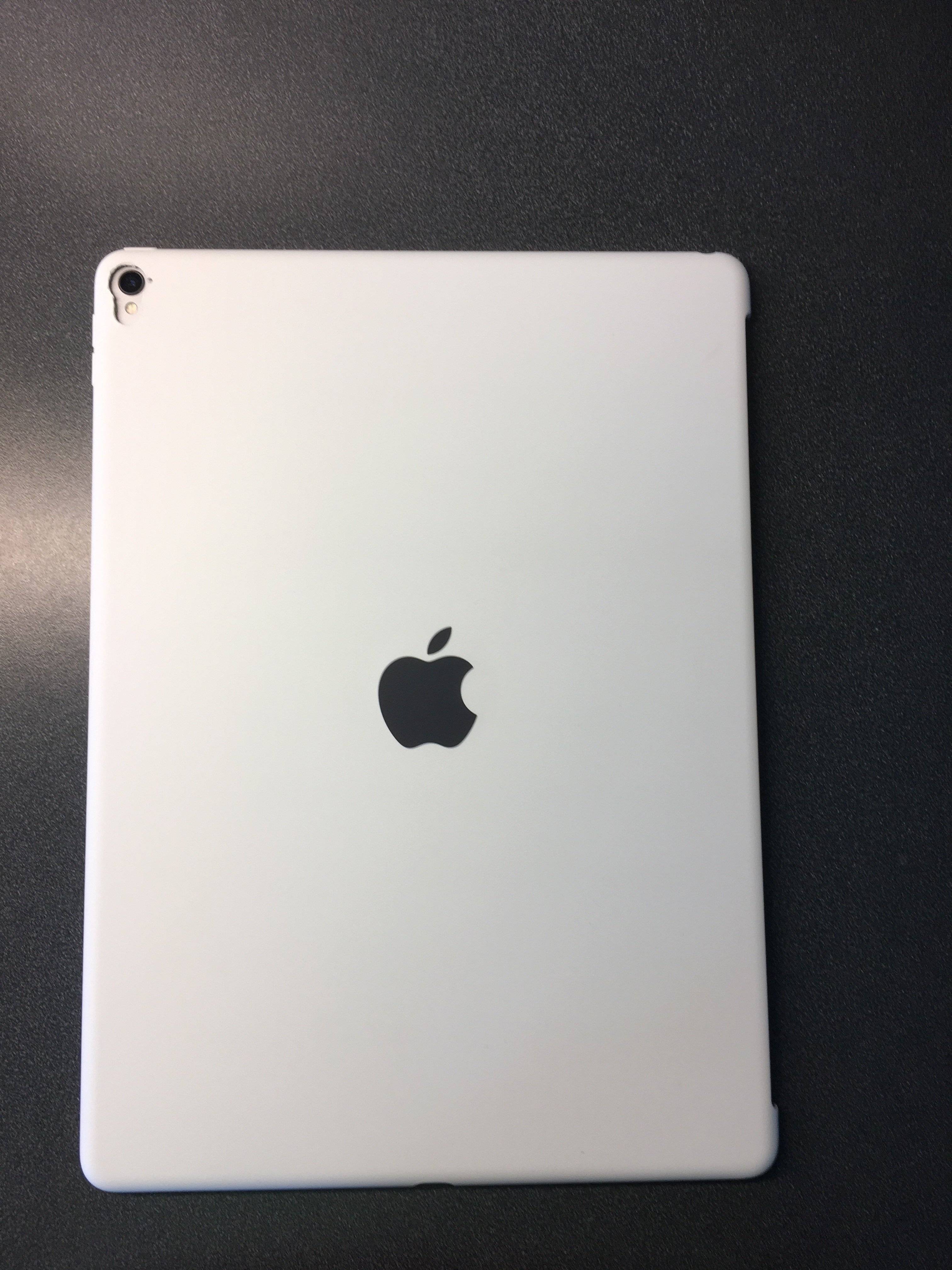

Just wanted to share my adventure of modifying the Apple Silicone case for the 12.9 inch iPad Pro. Used to own gen 1 of the iPad Pro 12.9 inch, but switched to gen 2 since I wanted 4G. Unfortunately the Apple Sillicone back cover didn't fit it perfectly. The bigger camera created like a "tent" and wouldn't allow the case to fully snap on. It also covered the flash. That bothered me a lot!

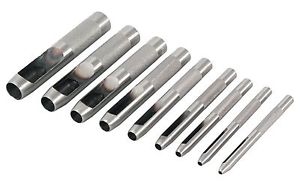

Today I bought a heavy duty hole punch set and punched though 2 new holes! For the camera (which is approximately 0.9 mm in diameter) I used a hole punch witha diameter of 1.2 mm. For the flash (that is 0.4 in diameter and approximately) I used a hole punch with 0.8 mm in diameter. Between the center of the camera and the flash there is about 0.7mm. After punching through the holes I used a regular nail file to smoothen out the area in between.

It worked out pretty well! Even though the holes aren't perfectly lined up, the camera and the flash work perfectly! No issues with the flash! And the plastic and the lining inside of the case held up pretty well!

Good luck to all of you modders!
/JC



Thanks for sharing. I'm considering doing the same thing as a temporary solution. Did the case fit without your modification? I know it'll cover up back camera, but because there's a bump now, I'm just wondering if it is still able to fit. As a temporary solution for me, I wouldn't mind not using the back camera for a while until I find a better solution.

Comment

JohnCrichton

macrumors member
Original poster
Dec 27, 2014
61
28
Stockholm, Sweden
Thanks for sharing. I'm considering doing the same thing as a temporary solution. Did the case fit without your modification? I know it'll cover up back camera, but because there's a bump now, I'm just wondering if it is still able to fit. As a temporary solution for me, I wouldn't mind not using the back camera for a while until I find a better solution.
It fits just fine, and you CAN use the camera but NOT the flash!

Comment

thadoggfather

macrumors G5
Oct 1, 2007
12,588
10,226
It fits just fine, and you CAN use the camera but NOT the flash!

Aside from flash camera isn’t obstructed at all by case?

Ordered a good shape one for 35 off eBay for gen 2

Debating modding it or just dealing with no flash if that’s main compromise and mics which is a non issue mostly
