MP 1,1-5,1 MP 5,1 installed PCI NVMe adaptor now no video display. HELP!

[Gr1f]

Hey folks,
MacPro 5,1
Mojave (latest)
Boot Rom 140.0.0.0.0
Saphire RX 580
Glotrends PCIe adapter card
1T WD Blue SN550 NVMe
2 X Samsung SA850 monitors via displayport

So I powered it down, unplugged it and shoved in the new NVMe into the top slot.

When I powered back up I got a chime but no display.

Reset PRAM, still no display

Removed NVMe adapter card, powered back up - still no display

Any ideas??



[Gr1f]

UPDATE
OK so I removed all of the HDs, 3 spinners and 2 SSDs and left the boot SSD in (DVDr connection). Booted, held breath and voila! I have a desktop!

Wonder if it's possible then that the Mac had booted to the choose start-up disk screen and I just couldn't see it?

Really regretting loosing the old video card....

I'll try adding in the NVMe card again and see what happens



[tsialex]

WD Blue SN550 is not compatible with Mac Pro, see the first post of the thread below. Change for a compatible model.

PCIe SSDs - NVMe & AHCI

This is a general info thread for blade SSDs that can be used in the Mac Pro. This is a WikiPost so anyone with the proper credentials may edit it. NVMe SSDs can be used as a boot drive in the MP5,1 and MP6,1 with the latest firmware installed (beginning with version 140.0.0.0.0 for MP5,1 and...

forums.macrumors.com



[Gr1f]

WD Blue SN550 is not compatible with Mac Pro, see the first post of the thread below. Change for a compatible model.

PCIe SSDs - NVMe & AHCI

This is a general info thread for blade SSDs that can be used in the Mac Pro. This is a WikiPost so anyone with the proper credentials may edit it. NVMe SSDs can be used as a boot drive in the MP5,1 and MP6,1 with the latest firmware installed (beginning with version 140.0.0.0.0 for MP5,1 and...

forums.macrumors.com

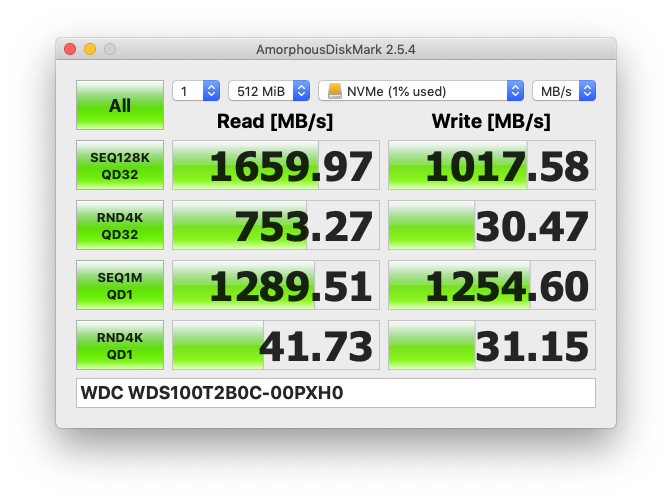

Hey @tsialex Seems to be working for me



[Gr1f]

OK so I see where it's listed as not compatible ugh...

WD Blue SN550: Western Digital in-house: NVMe, M.2 blade
Sandisk 96 layer 3D TLC / Controller DRAM less
Available in 250GB, 500GB, 1TB
PCIe 3.0 x4
Speeds: up to 2400 MB/s read, up to 1950 MB/s write (1TB)
Datasheet
Compatibility status: Issues/not compatible (don't work from cold boot/sleep issues)

I'll try installing an OS on it anyway before I send it back



[Gr1f]

OK... searching for another 1T NVMe blade I guess
