MP 1,1-5,1 MP5,1: EFI Release vs BIOS Version vs BootBlock Version Reference Table:

Added BIOS release for MP51.0083.B00. Need to find someone who saved High Sierra DP5/PB4 (17A330h), to check the BootBlock version. It's the first recent BootROM and the one that started the APFS native support.

Last edited:
  • Like
Reactions: crjackson2134 and LightBulbFun
I'm checking my dump stash and I couldn't find a BootBlock with anything between AAPLEFI1.88Z.0005.I00.1007141219 and AAPLEFI1.88Z.0005.I00.1010071430, what probably would be MP51.007F.B01 and MP51.007F.B02.

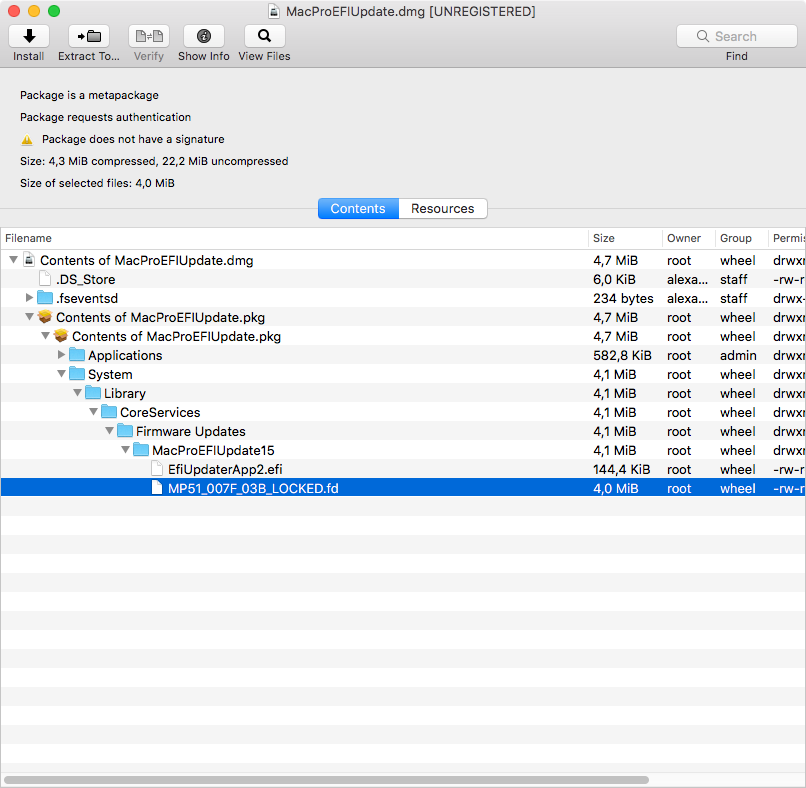

I know that MP51.007F.B01 and MP51.007F.B02 exists, a table inside EfiUpdaterApp2.efi has these (see below), but it's probably BootROMs not used in the wild or used very briefly.

EFI Version:BIOS Version:
MP51.007F.B00MP51.88Z.007F.B00.1008031144
MP51.007F.B01MP51.88Z.007F.B01.1008231310
MP51.007F.B02MP51.88Z.007F.B02.1009221128

Maybe we will never have these dumps.

Last edited:
tsialex said:
This is a tutorial to teach people who already have the intermediate files, to recreate the BootROMs with UEFITool and the generic MP51.fd. This is very specific utility and only useful if I already sent the file to you.
Click to expand...
Hi tsialex
How do I send you my dumped douple-cert firmware in order to get the intermediate files, and do you have time to help me with those - it seems you are spending an awful lot of time on all of the cMPs out there?

i can post here working efi dump for 820-2337-a. afaik this is for mp4.1.

Mortenlp said:
Hi tsialex
How do I send you my dumped douple-cert firmware in order to get the intermediate files, and do you have time to help me with those - it seems you are spending an awful lot of time on all of the cMPs out there?
Click to expand...
Sorry, I don't have time available for doing this anymore. I explained before on the thread what is needed to do a clean up, you can do it yourself.
[automerge]1574874409[/automerge]
1am0 said:
i can post here working efi dump for 820-2337-a. afaik this is for mp4.1.
Click to expand...
If it's not one of the missing EFI versions of the first post, look at the table to see if yours is not there yet, no need to.

Last edited:
  • Like
Reactions: andrewkhoo
Alex anything new in these? Both released at the end of October.

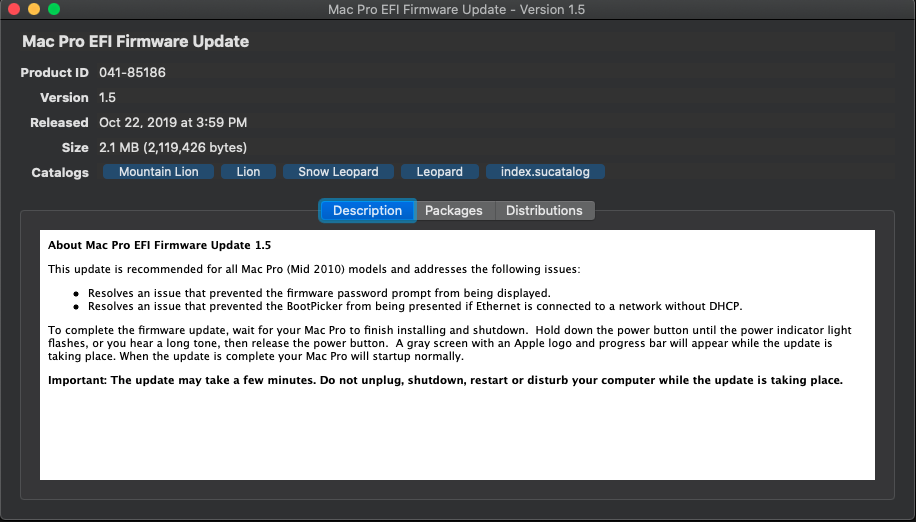

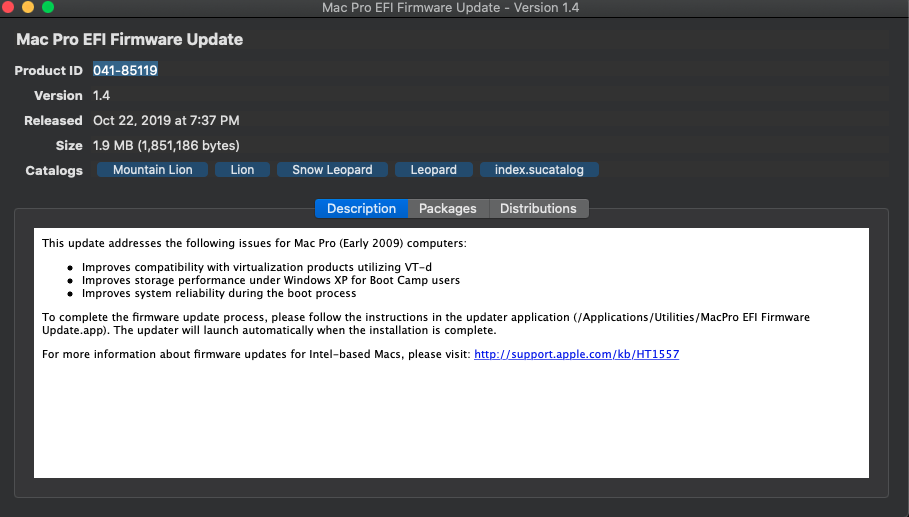

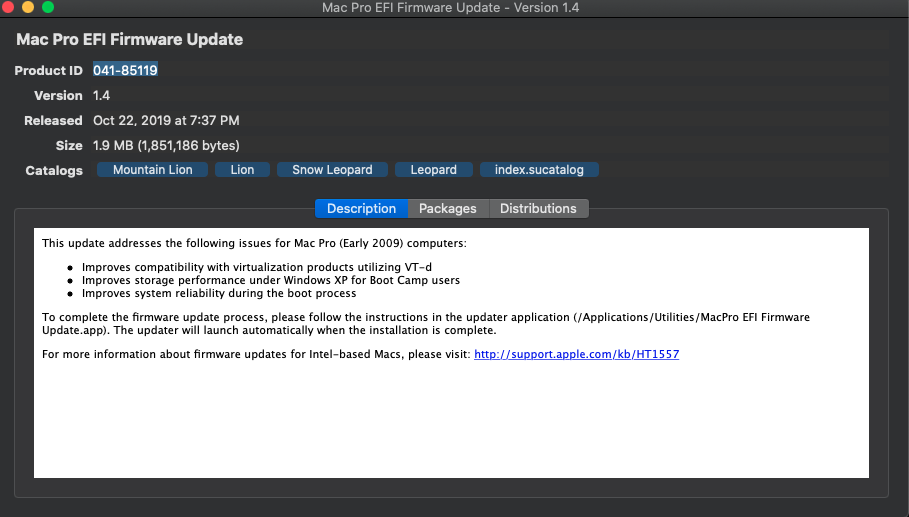

041-85119

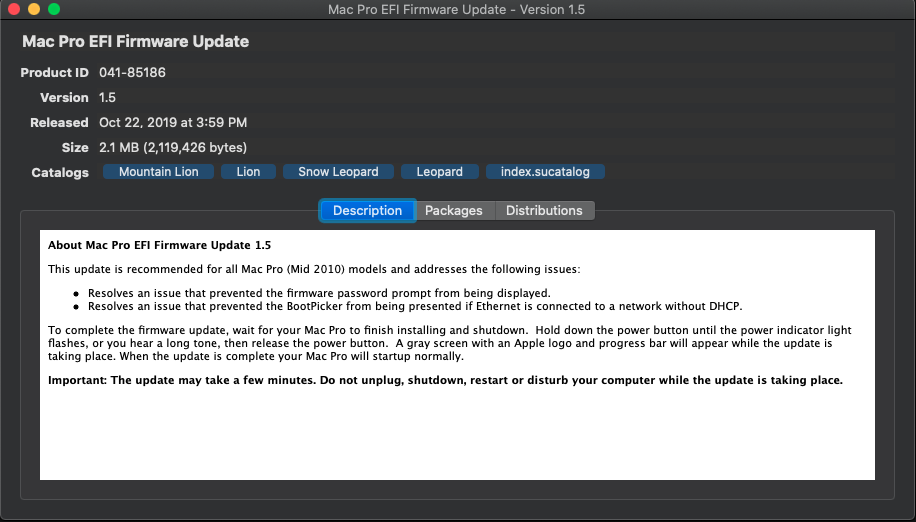

041-85186


Applied the same technique described with the 2nd post to reconstruct MM6,1 firmwares and it worked fine. MM6,1 generic image is a .scap one so you have a lot more steps to get to a binary image like the MP51.fd, but the method itself is sound and the reconstruction works fine.

Up to now, tested with MP4,1, MP5,1, MP6,1* and MM6,1*.

* generic Apple image is .scap encapsulated.

  • Like
Reactions: TheStork, crjackson2134, startergo and 1 other person
Just re-read this entire thread again. This was a fun investigation that lead to this tutorial.

Just wondering if you ever did find a dump of the 2 missing releases?

crjackson2134 said:
Just re-read this entire thread again. This was a fun investigation that lead to this tutorial.

Just wondering if you ever did find a dump of the 2 missing releases?
Click to expand...
Not yet, both existed at one point in time since efiflasher has all the data that I wrote on the table already about those two, but efiflasher miss the BootBlock versions.

Maybe someday a replacement backplane sent to a corporation somewhere back in the day appears from a dusty box with one of the two missing releases. It's more a historical curiosity and the need to have the full info than anything useful, no one will ever use two EFI versions so old and full of bugs.

  • Like
Reactions: crjackson2134
I was just re-reading "The Apple of Your EFI: Mac Firmware Security Research".
So you can force a firmware "downgrade" with the older or the same version of the firmware. If you use the firmware from the firmware update package it will only upgrade the non-nvram sections, but if you select the reconstructed firmware it will update everything just like the romtool, right?

startergo said:
I was just re-reading "The Apple of Your EFI: Mac Firmware Security Research".
So you can force a firmware "downgrade" with the older or the same version of the firmware. If you use the firmware from the firmware update package it will only upgrade the non-nvram sections, but if you select the reconstructed firmware it will update everything just like the romtool, right?
Click to expand...
Apple removed the downgrade or refresh with the same version possibility with EFI flasher long ago, it's impossible since Thunderstrike.

ROMTool only writes a full image. flashrom can map areas in the same way efiflasher does. Back in the day I did a flashrom map and used for a long time before developing the reconstruction technique.

efiflasher flashes just the EFI firmware inside the BootROM. NVRAM volume, BootBlock and MLB sector are not touched.

  • Like
Reactions: startergo
Just sharing an excerpt of a totally boring NVRAM volume that really caught my eye today, a completely new BootBlock version!

Code:
DECIMAL       HEXADECIMAL     DESCRIPTION
--------------------------------------------------------------------------------
240027        0x3A99B         BIOS version: MP41.88Z.0081.B07.0910130729
764315        0xBA99B         BIOS version: MP41.88Z.0081.B07.0910130729
1179688       0x120028        NVRAM start of the 1st VSS stream
1183321       0x120E59        NVRAM MemoryConfig type: (i)
1185687       0x121797        NVRAM SIP state, type: (w)
1186304       0x121A00        NVRAM MemoryConfig type: (g)
1188352       0x122200        NVRAM MemoryConfig type: (h)
1190400       0x122A00        NVRAM MemoryConfig type: (i)
1345189       0x1486A5        HardwareID Base_xx: 20
1345198       0x1486AE        HardwareID 11-digits SSN: redactedE1C
1345215       0x1486BF        HardwareID 3-digit HWC model: E1C
1416499       0x159D33        BIOS version: MP41.88Z.0081.B07.0910130729
4128867       0x3F0063        BootBlock version: AAPLEFI1.88Z.0004.I00.0908061259

I really wasn't expect to see that BootBlock version AAPLEFI1.88Z.0004.I00.0908061259. Looking at the dates, it's very likely that factory BootROM probably was B05 or B06, more likely the latter.

I'll add it to the first post.

  • Like
Reactions: LightBulbFun, crjackson2134, cdf and 1 other person
Hi tsialex. I'm so sorry to run into your thread. Recently, I've accidentally booted into windows. ( I'm not sure what damages I've made then)

I've been trying to search for topics and discussions, on how to look for signs whether the certs have been written only to nvram or not. but, I can only manage to go as far as installing Binwalk via homebrew. (please forgive me, I have low tech knowledge).

Can I ask you to point me into the right directions on how to and read up a little bit more? I'd wish to at least try to repair to what I've done wrong. I'm running a cMP 2009 (flashed to 5,1), High Sierra 10.13.6 and bootrom 144. (and also, it's rather odd that I couldn't find the PM button to message you privately)

andrewkhoo said:
Hi tsialex. I'm so sorry to run into your thread. Recently, I've accidentally booted into windows. ( I'm not sure what damages I've made then)

I've been trying to search for topics and discussions, on how to look for signs whether the certs have been written only to nvram or not. but, I can only manage to go as far as installing Binwalk via homebrew. (please forgive me, I have low tech knowledge).

Can I ask you to point me into the right directions on how to and read up a little bit more? I'd wish to at least try to repair to what I've done wrong. I'm running a cMP 2009 (flashed to 5,1), High Sierra 10.13.6 and bootrom 144. (and also, it's rather odd that I couldn't find the PM button to message you privately)
Click to expand...
While it's easy to confirm if your Mac Pro firmware have SecureBoot certificates inside the NVRAM volume, just run binwalk with your BootROM image dump and see if the output show any X.509 certificates inside, SecureBoot is just a red-herring.

The real problem is the NVRAM data/variables/entries not being erased anymore and the NVRAM volume part of the BootROM self destructing over the years. SecureBoot just makes this process much faster since the certificates/DBs/PKs occupy so much valuable space inside the NVRAM volume.

I've sent you a PM with instructions.

Last edited:
  • Like
Reactions: andrewkhoo
tsialex said:
While it's easy to confirm if your Mac Pro firmware have SecureBoot certificates inside the NVRAM volume, just run binwalk with your BootROM image dump and see if the output show any X.509 certificates inside, SecureBoot is just a red-herring.

The real problem is the NVRAM data/variables/entries not being erased anymore and the NVRAM volume part of the BootROM self destructing over the years. SecureBoot just makes this process much faster since the certificates/DBs/PKs occupy so much valuable space inside the NVRAM volume.

I've sent you a PM with instructions.
Click to expand...
