Multi-Router Dual Band Home Network Setup?

Discussion in 'Mac OS X Server, Xserve, and Networking' started by Mac In School, Mar 28, 2009.

  1. Mac In School macrumors 65816

    Joined:
    Jun 21, 2007
    #1

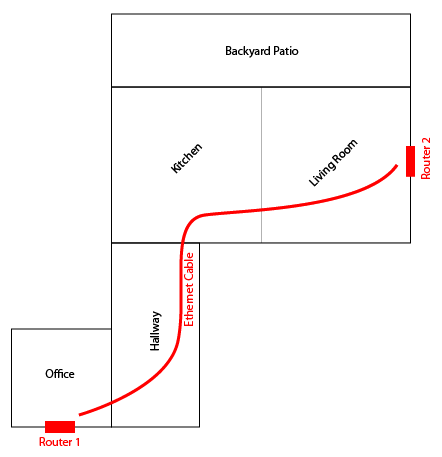

    The attached picture is a map of my current setup. I have an Airport Express in each room (Router 1 and Router 2) for the sake of plugging in devices that I'd rather have running on wired, such as computers in the office, and the AppleTV in the living room.

    In my current setup, it's configured as a dual-band network. Router 1 is set to N-only for my computers. Router 2 is set to G for the iPhones.

    The only downside is when I work on the back patio I'm too far away from the N router (Router 1) to get a connection, so I'm stuck with connecting to the slower G router (Router 2).

    Now that the new Airport Extremes have built-in dual-band capabilities, I'm intrigued... And this is where I may get lost with the terminology a bit....

    Is it possible to have two dual-band Airport Extreme routers working together? If so, would I be looking at two networks, or four? In a perfect world, I'd love to be looking at 2, so I don't have to switch when I move my laptop from my office out to the back porch. I guess they'd have to be tethered together in some way. Is this possible? Would I lose performance, like I did when I tried to use an Airport Express as an extension? Keep in mind, the two routers would be wired together. If this is possible, what tips can you give me for setting this up?

    If I'm completely barking up the wrong tree, and there's a better, more cost-effective way to go, I'm definitely willing to listen.

    Thanks.

  2. Mac In School thread starter macrumors 65816

    Joined:
    Jun 21, 2007
    #2
    Sorry. My attachment didn't show up. Trying again...


    Attached Files:

  3. illegalprelude macrumors 68000

    illegalprelude

    Joined:
    Mar 10, 2005
    Location:
    Los Angeles, California
    #3
    ahhh. Let me blow your mind. You can have just 1 network. Not 2 or 4.

    First, you want to configure your second APBS as an extantion of your network and Airport Utility will guide you on how to do that. Now, in terms of your iPhone, the purpose of the dual band is that it can broadcast 2 different signals on the same network. Except, here is the trick. Once you go to configure your APBS, do it manual on the selection that you can choose your signals, hold down option (shift on PCs) you get a ton more options now.

    Then, choose, 5GHZ N, B/G 2.4 and walla! 1 giant extended network, 2 different signal (G for the iPhones and PSP's out there) yet N for everything else.
