My Homemade iPhone 4 Dock =D

Discussion in 'iPhone Accessories' started by Mastamuffin, Jul 27, 2010.

  1. Mastamuffin macrumors member

    Joined:
    Jul 27, 2010
    #1
    Well, im new here but have been lurking since i got my iPhone 4 a few weeks ago.

    I decided to make my own dock after seeing other homemade ones. The trouble with my room is that i only have 2 outlets, and the cable for the IP4 seems to be quite short. Solution? Make my own dock at hooks onto my bed headboard.

    I originally wanted to make it out of wood, which i still might do, but i couldnt find the right tools to make it happen. So i went to a craft store and got a styrafoam block.

    The start:
    [​IMG]

    This slot is what will fit onto my headboard:
    [​IMG]

    Now to cut the slot for the phone!
    [​IMG]

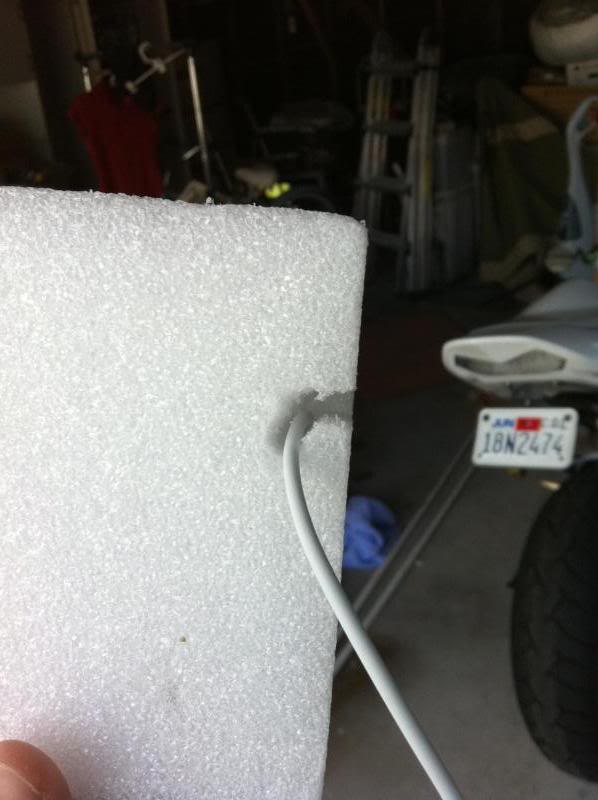

    Now i totally forgot, but i had to find a way to route the cable! Solution? Make a channel that will "lock" the cable so that it doesnt slide out:
    [​IMG]
    [​IMG]

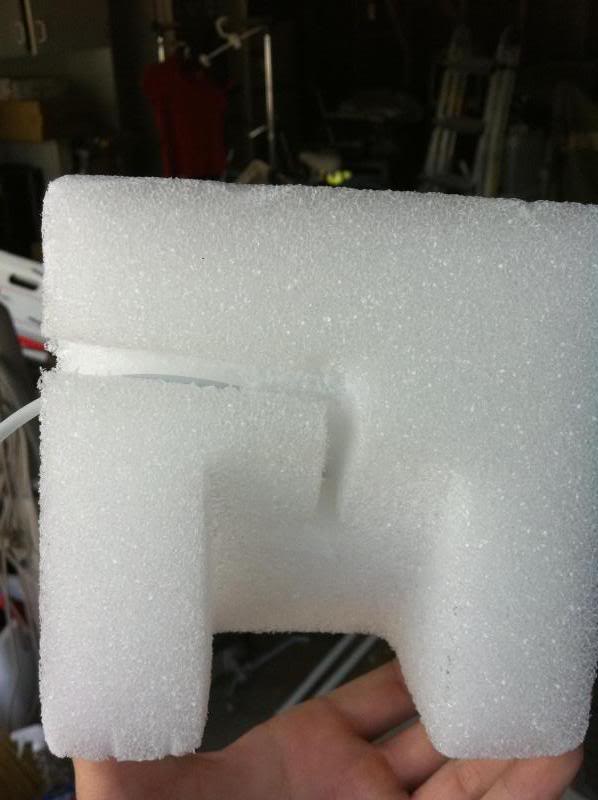

    The way i did it is i made the hole large enough to fit the USB side of the cable snugly, that way the larger part that the IP4 plugs into will not slide down the channel:
    [​IMG]

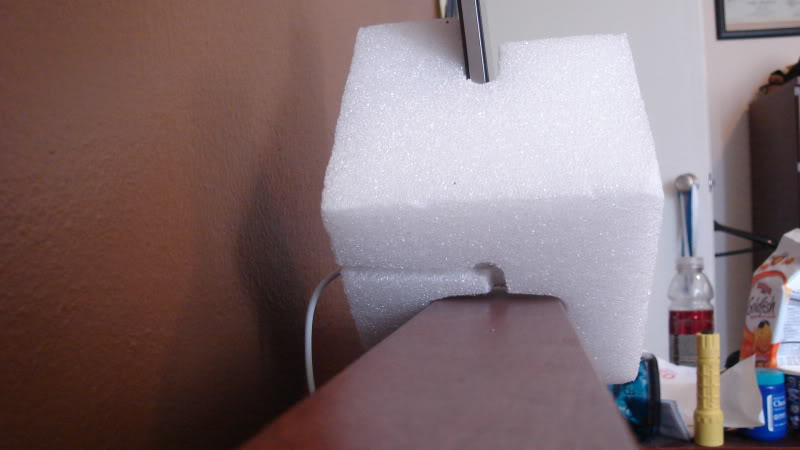

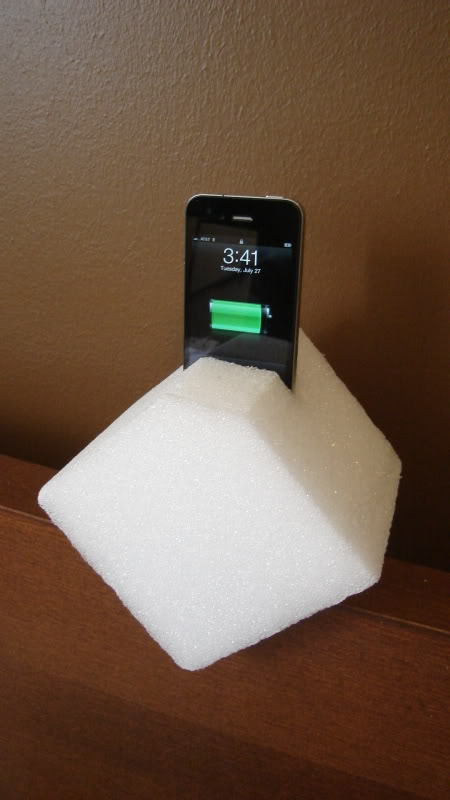

    On the headboard:
    [​IMG]
    [​IMG]

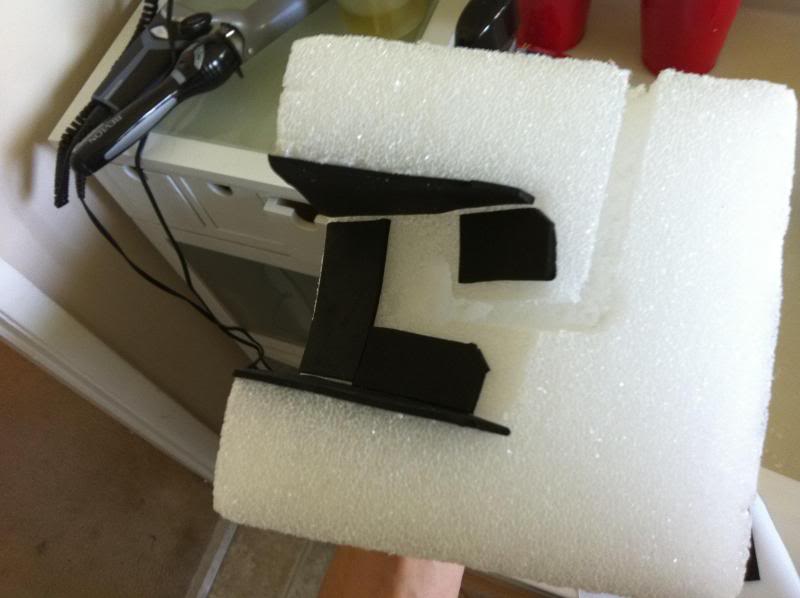

    It was a little loose, so i added these adhesive foam sticky things i cut out:
    [​IMG]


    Well thats where it stands as of right now. I eventually want to make one out of wood as a more permanent solution. For right now this one will do, i just have to be careful with it.

    Let me know what you guys think!

  2. Theclamshell macrumors 68030

    Joined:
    Mar 2, 2009
    #2
    I love mods mac related and this is one of them. Looks awesome, nice job :)

  3. reliantj macrumors 6502

    Joined:
    Sep 8, 2008
    #3
    should be more minimalistic. i like the idea, but it's just too big. maybe half the size made with some wood. painted and varnished to match your bed.

    or better yet, cut a hole into your headrest and put a dock adapter there =)

  4. CrizzoDesigns macrumors newbie

    CrizzoDesigns

    Joined:
    May 27, 2010
    Location:
    Burlington
  5. Mastamuffin thread starter macrumors member

    Joined:
    Jul 27, 2010
    #5
    Haha, i might actually make a dock that just attaches to the wall so that i can move it anywhere.

    But yea this was the first attempt so its huge. I was afraid to make the material too thin as it is quite weak.
