My Quick n' Dirty DIY iPhone 5 Charging Dock - Done!

Discussion in 'iPhone Accessories' started by inaka, Oct 7, 2012.

  1. inaka macrumors 6502

    Joined:
    Apr 26, 2010
    #1
    Got my iPhone 5 on Wednesday, and I love it.
    Flawless and such a nice bump up from the iPhone 4.

    I fully expected to use a bumper on it, but the iPhone 5 is so elegantly designed for the first time ever, I'm using the phone NAKED.

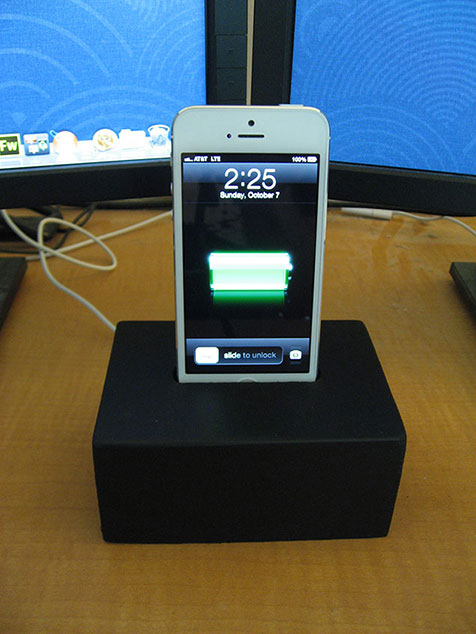

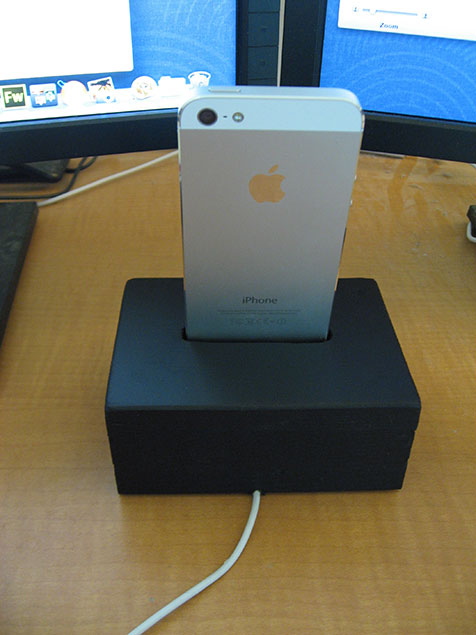

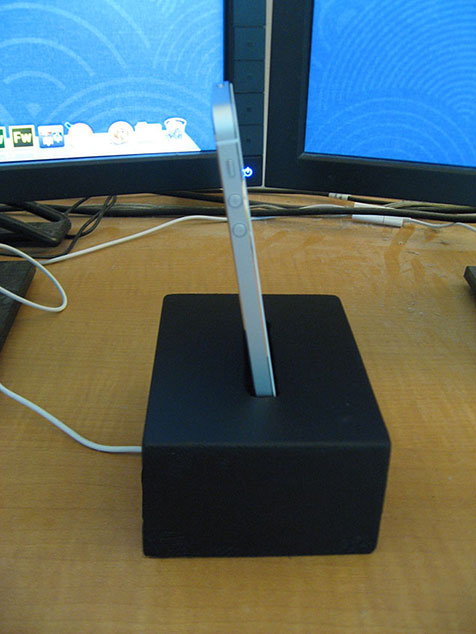

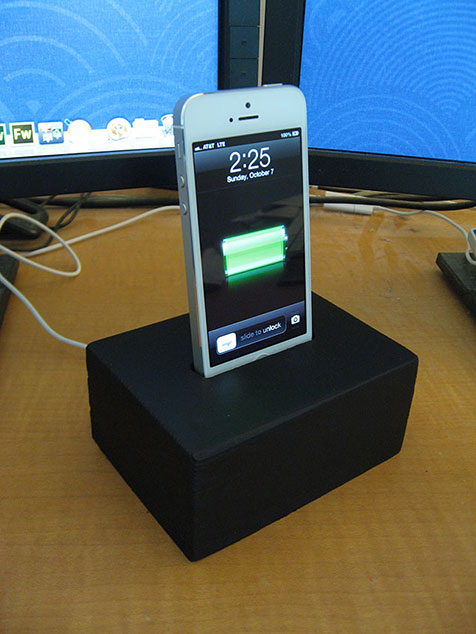

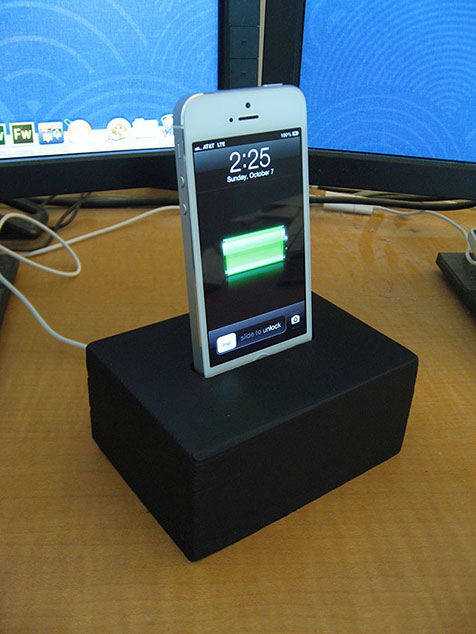

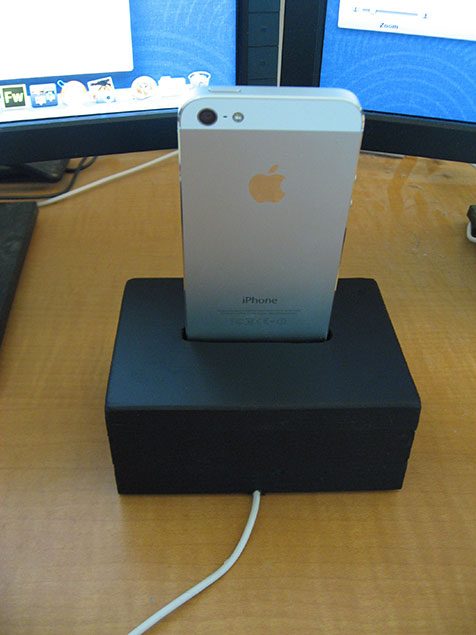

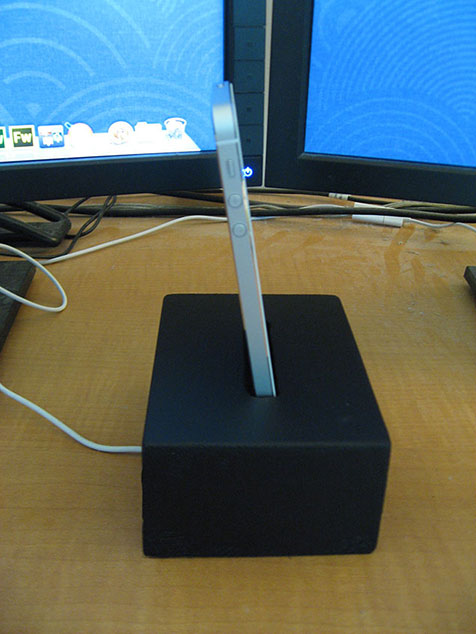

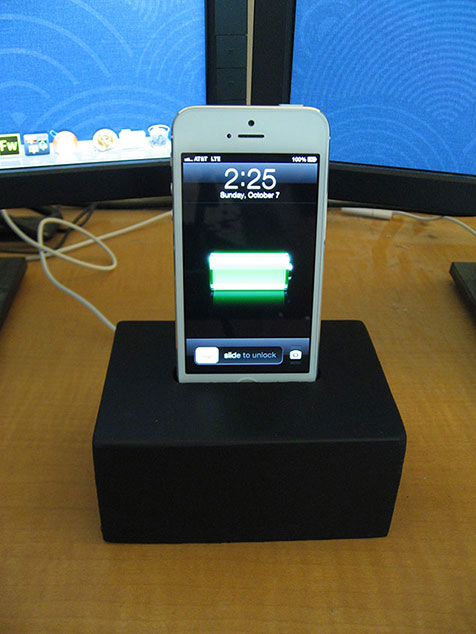

    But that means instead of sliding it on my table, I'm going to need a dock. Since Apple has no plans as of yet to make an iPhone 5 dock, I just converted the USB lightening cable into a charging dock with some crap wood, screws, sandpaper, and paint:

    [​IMG]

    [​IMG]

    [​IMG]

    [​IMG]

    I purposely made it a bit taller/deeper than most for stability, and I admit, it's kind of ugly, but hey, it does the job until a real dock is made available.

    I suck at woodworking, and it took about an hour and a half. I snapped some pics during the process is anyone is interested.

    All in all, I'm pretty happy with it until someone better comes along!


    Attached Files:

  2. Elevon macrumors regular

    Joined:
    Nov 29, 2011
    #3
    Good job you did there and very well put together!

    My iPhone 5's just lying on the table atm haha :p

  3. inaka thread starter macrumors 6502

    Joined:
    Apr 26, 2010
    #4
    Thanks!

    haha I know, I was going to just leave mine on the table too, but going naked with no case/bumper, it just didn't feel right.

  4. mr lee macrumors member

    mr lee

    Joined:
    Jul 5, 2010
    #5
    Very nicely done!! :D

    I'm assuming you really don't need the functionality of the home button on the dock correct? :confused:

  5. inaka thread starter macrumors 6502

    Joined:
    Apr 26, 2010
    #6
    Yeah, I don't need the home button in the dock.
    I can always just drill out that area if I do, but I really don't.

  6. The Afroman macrumors regular

    The Afroman

    Joined:
    Jul 20, 2009
    Location:
    Austin,Tx
    #7
    That looks nice. can you post some pictures of it with out the phone? can you pull it out without bringing the cable with you? pictures of the bottom? i guess i want to see how it;s made see if i can make one too :):eek:

  7. jeme macrumors regular

    Joined:
    Jun 12, 2009
    #8
    That looks great I would love to see construction pics. Nice job!

  8. iamartimus macrumors 6502

    Joined:
    Aug 13, 2010
    #9
    Wirelessly posted

    Nice! Please post construction pics too! #

  9. inaka, Oct 8, 2012
    Last edited: Oct 8, 2012

    inaka thread starter macrumors 6502

    Joined:
    Apr 26, 2010
    #10
    Sure, no problem.

    Here are some construction pics. Again, I really don't know wood working at all.

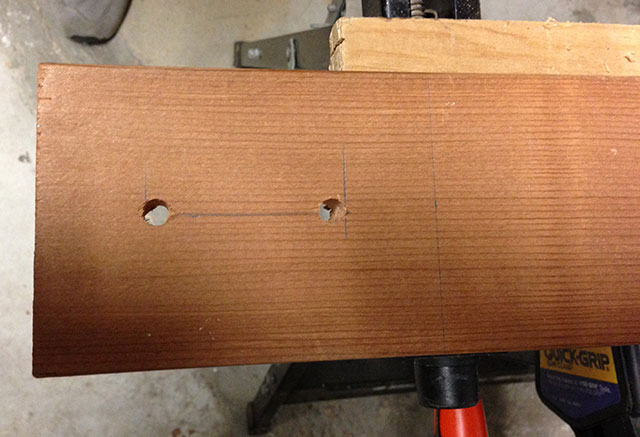

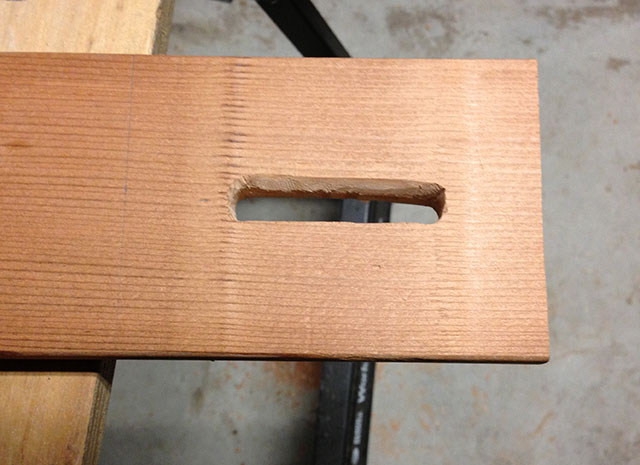

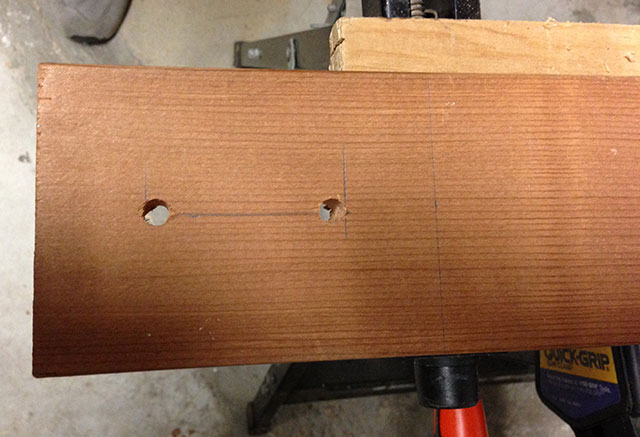

    At first I just grabbed a piece of scrap and then measured the width of the phone. Drilled a hole at each end of the scrap using a 19/64" drill bit:

    [​IMG]

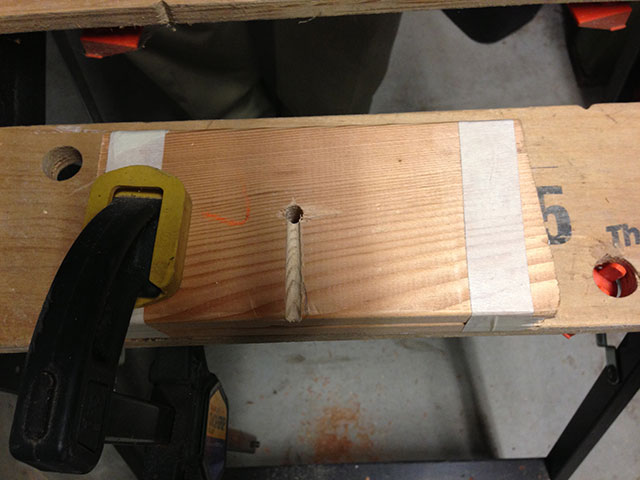

    Then just kept drilling along the line connecting the two holes.
    Then filed it down a bit with a slight bevel on one side so it leaned back.

    [​IMG]

    On the bottom I just filed a groove for the cord:
    [​IMG]

    Took two more pieces of scrap wood and taped them together.

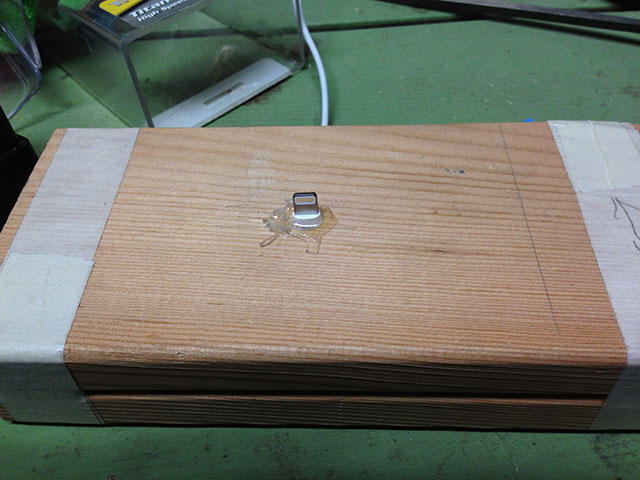

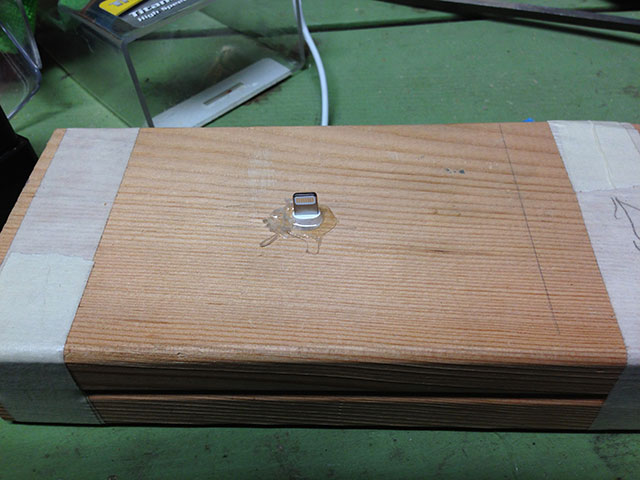

    Drilled a hole through each of them with a 5/16" drill bit for the lightening connector, and stuck it in place by filling the entire hole with a glue gun:

    [​IMG]

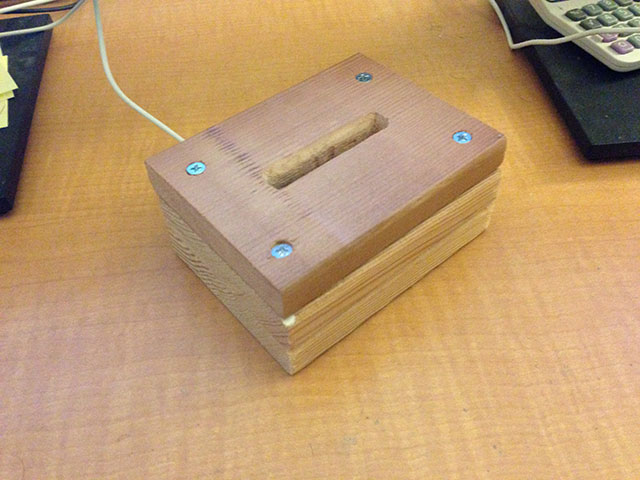

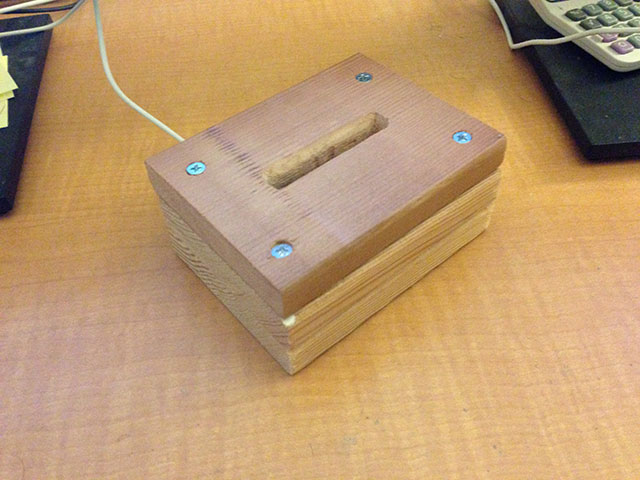

    Screwed all the pieces together in the corners and then cut off the trim:
    [​IMG]


    Attached Files:

    • 1.jpg
      File size:
      58.8 KB
      Views:
      2,562
    • 2.jpg
      File size:
      57.5 KB
      Views:
      2,559
    • 3.jpg
      File size:
      52.4 KB
      Views:
      2,536
    • 4.jpg
      File size:
      62.1 KB
      Views:
      2,547
    • 5.jpg
      File size:
      64.5 KB
      Views:
      2,551
  10. inaka thread starter macrumors 6502

    Joined:
    Apr 26, 2010
    #11

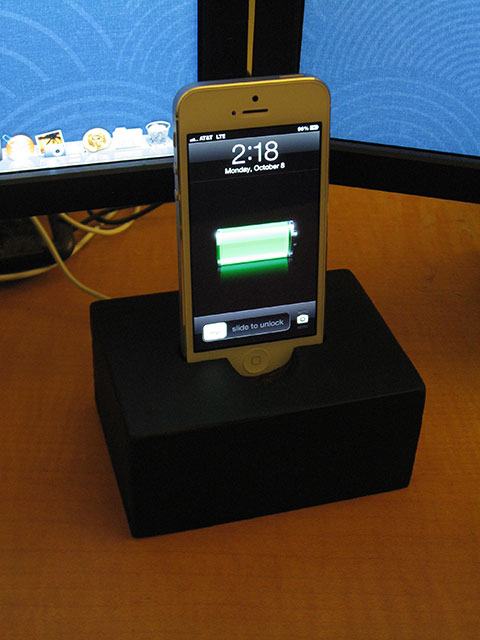

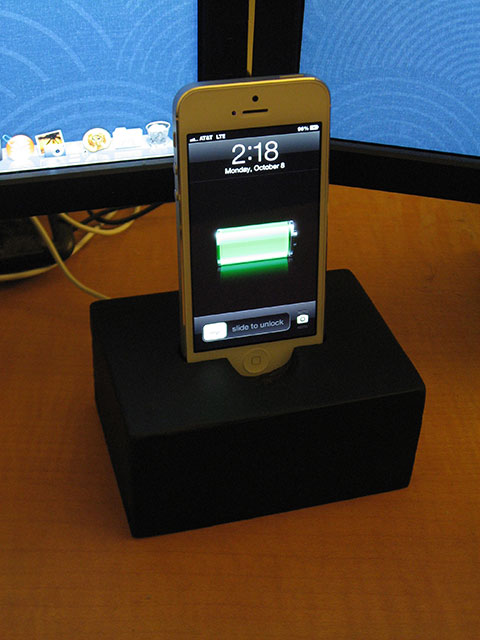

    Sanded and painted it. Then after the Saints/Chargers game tonight, thanks to the idea from this thread, just in case I used a Dremel to notch out a smooth groove for the home button just in case I want to use the phone which is locked in the dock:

    [​IMG]

    Again, it's kind of ugly, but it fits like a glove and really locks into place.
    Should hold me over for quite a few months until a better option is available.

    If anyone wants to make a similar one and has scrap wood lying around, it's a nice cheap option. Works great!


    Attached Files:

    • 7.jpg
      File size:
      51.3 KB
      Views:
      5,098
  11. The Afroman macrumors regular

    The Afroman

    Joined:
    Jul 20, 2009
    Location:
    Austin,Tx
    #12
    NIce. I like it. If the one i ordered from etsy for 12 bucks doesn't work out.. i will jump on making this.

  12. Username02 macrumors regular

    Joined:
    Jul 13, 2010
  13. inaka thread starter macrumors 6502

    Joined:
    Apr 26, 2010
  14. Jleroy macrumors regular

    Jleroy

    Joined:
    Jun 30, 2010
    Location:
    Flagstaff
    #15
    A little American ingenuity and the K.I.S.S. theory in action. Great job, I like it as well.
