Mystery Mac Pro

Discussion in 'Mac Pro' started by ojwk, Jan 20, 2015.

  1. ojwk macrumors regular

    ojwk

    Joined:
    Sep 5, 2007
    Location:
    London
    #1
    I was just given a Mac Pro by a friend who's office was being cleared out. I don't have a display lying around to hook it up to so I can't check the specs.

    It's serial number is CK7421WGZNZ and after checking online and the tag printed on the machine I thought I had a good idea of what its specifications are, 2006 2.66GHz quad Mac Pro - however looking inside it has a single length ATI card rather than the NVIDIA GeForce 7300 GT expected from the specs.

    Any idea what this ATI card could be?

    I'm guessing there could be some other changes as I can't honestly believe someone was still working on it in 2014 with just 1GB RAM??

  2. electonic macrumors member

    Joined:
    Mar 18, 2014
    #2
    ATI should be X1900XT?

    Nice Name:
    Machine Model: MacPro1,1
    Please visit our facebook page
    Name: MacPro (First model)
    ModelCode: mac_pro
    Family name: A1186
    Group1: Mac Pro
    Group2: nothing
    Generation: 1
    CPU speed: 2.66GHz
    Colour: Aluminium
    Production year: 2007
    Production week: 42 (October)
    Production number: 2192 (within this week)
    Model introduced: 2006
    Memory - flavour: DDR2-H-666
    Memory - number of slots: 8
    Memory - maximum total: 32GB
    Memory - largest module: 4GB
    Factory: CK (Cork, Ireland)

  3. resale macrumors newbie

    Joined:
    Dec 2, 2013
    Location:
    Boston
    #3
    Most cards have a sticker or other identifying marks on either the pcb or the cowl that has the model on it. Take the card out and look at the bottom.

  4. crjackson2134 macrumors 68020

    crjackson2134

    Joined:
    Mar 6, 2013
    Location:
    Charlotte, NC
    #4

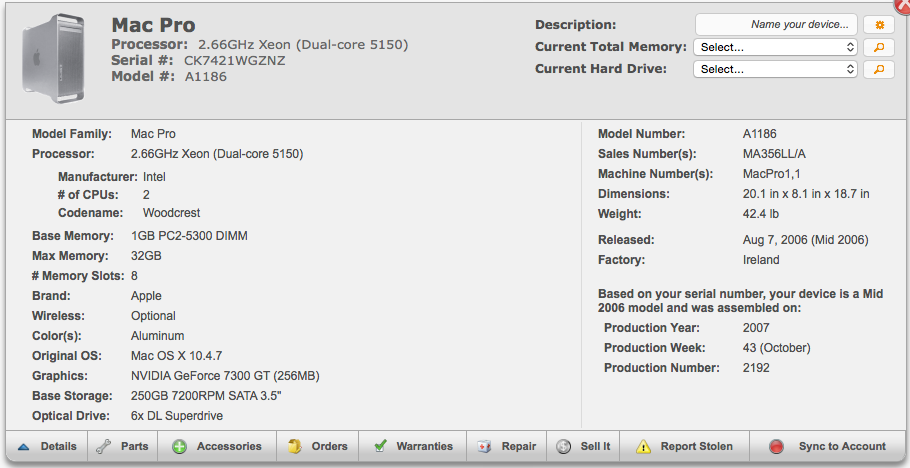

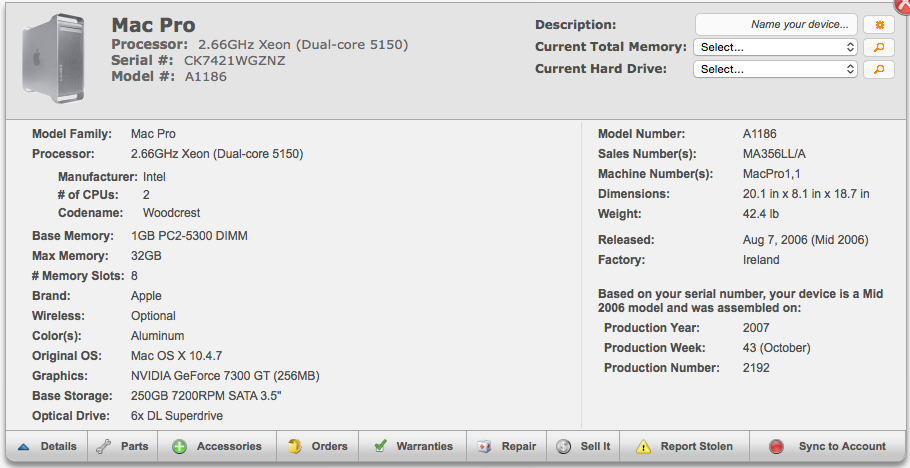

    Here you go...


    Attached Files:

  5. goMac macrumors 603

    Joined:
    Apr 15, 2004
    #5
    Could be an aftermarket X1900XT or 5770 upgrade.

  6. Peace macrumors Core

    Peace

    Joined:
    Apr 1, 2005
    Location:
    Space--The ONLY Frontier
    #6
    Makes sense. Wasn't the GeForce 7300 GT a bad video card ?

  7. flowrider macrumors 601

    flowrider

    Joined:
    Nov 23, 2012
    #7
    ^^^^The "Bad" cards were the ATI X1900XT and the HD2600XT.

    Lou

  8. goMac macrumors 603

    Joined:
    Apr 15, 2004
    #8
    Well, the X1900XT was better performing. But yes, it was also known to die frequently.
