Resolved NAS to iMac to Network - How?

NissarK

macrumors newbie
Original poster
May 26, 2018
8
3
Hi,

I have my WD MyCloud NAS drive connected to my iMac using an Ethernet cable through a Thunderbolt Ethernet Adapter to one of the iMac's Thunderbolt ports.

I have shared my iMac's Internet connection (Wired Connection / Ethernet) through Internet Sharing to the Thunderbolt Ethernet Port, so that my WD MyCloud NAS drive has Internet access. So far so good.

However, I am not able to connect to this WD MyCloud NAS drive from another computer on my network (Microsoft Surface Pro with Windows 10 Latest Build).

My iMac's ethernet connection has an IP called something like 192.168.1.XX on the network / router. The WD MyCloud NAS drive has been assigned an IP by the iMac called 192.168.2.2 and I can access my files and the dashboard by typing this in the address bar.

I did manage at some point to make it work on my old Surface Pro, but then my the computer crashed for other reasons and now I have fixed it and cannot seem to make it work again. I don't remember how I did it.

Hope you can help?

Thanks!

Br,
Nissar


NissarK

macrumors newbie
Original poster
May 26, 2018
8
3
I already have another WD MyCloud EX2 connected to my router. This one I want to attach directly to my iMac and use it as an external drive, but also be available on my network. I am doing this on purpose :)


NissarK

macrumors newbie
Original poster
May 26, 2018
8
3
A NAS is essentially an external drive, accessible via the network.
Sorry, but that makes no sense. You're adding a load of complexity where it's not required.
Hey guys,
I know about the complexity, and I understand why you might wonder. But I have my reasons. I just want to know how it is done.

One of the reasons is that I have loads of data on this WD My Cloud drive (which is my first ever NAS) that I want to "go through" and see if they are useful or no... We are talking about terabytes of photos and videos from my photography work, which I then want to sort and archive on my WD My Cloud EX2 NAS which is plugged into the router. The WD My Cloud was originally plugged to the router, and I tried this but it took ages to transfer data to the iMac over the network and then from there to the EX2. Having it connected directly to the iMac does make things go faster!

So.... All I want to know is if the setup is possible, not if it makes sense or no :)

Eventually, I'll only be using the router setup once things have been cleared up...!

Thanks!


MagicBoy

macrumors 68040
May 28, 2006
3,895
916
Manchester, UK
I don't think it can be done. If you've got performance problems look at using cabled gigabit connections if you're currently on Wi-Fi.


NissarK

macrumors newbie
Original poster
May 26, 2018
8
3
I don't think it can be done. If you've got performance problems look at using cabled gigabit connections if you're currently on Wi-Fi.
I am indeed using ONLY cable. WiFi is only used at my place for smartphones and tablets. EVERYTHING else is wired with CAT6 cables.

  • Like
Reactions: williakz

techwarrior

macrumors 65816
Jul 30, 2009
1,180
443
Colorado
Internet Connection Sharing (ICS) makes your Mac a NAT "router". The NAS has an address on a different subnet that the rest of the network, therefor, it is as inaccessible as your primary NAS is from the Internet (without sync apps designed to work through NAT).

I see no purpose for what you are attempting to do, a network storage device will be just as fast when connecting from the LAN as it will through the setup you are attempting. Just pug it in to the router an be done with it.


MagicBoy

macrumors 68040
May 28, 2006
3,895
916
Manchester, UK
Internet Connection Sharing (ICS) makes your Mac a NAT "router". The NAS has an address on a different subnet that the rest of the network, therefor, it is as inaccessible as your primary NAS is from the Internet (without sync apps designed to work through NAT).

I see no purpose for what you are attempting to do, a network storage device will be just as fast when connecting from the LAN as it will through the setup you are attempting. Just pug it in to the router an be done with it.
Exactly...

I started to type the same thing then realised I was probably wasting my keystrokes...


NissarK

macrumors newbie
Original poster
May 26, 2018
8
3
What's the purpose?
One of the reasons is that I have loads of data on this WD My Cloud drive (which is my first ever NAS) that I want to "go through" and see if they are useful or no... We are talking about terabytes of photos and videos from my photography work, which I then want to sort and archive on my WD My Cloud EX2 NAS which is plugged into the router. The WD My Cloud was originally plugged to the router, and I tried this but it took ages to transfer data to the iMac over the network and then from there to the EX2. Having it connected directly to the iMac does make things go faster!

So.... All I want to know is if the setup is possible, not if it makes sense or no :)

Eventually, I'll only be using the router setup once things have been cleared up...!
[doublepost=1527458196][/doublepost]
Exactly...

I started to type the same thing then realised I was probably wasting my keystrokes...
No need to have an attitude. I am asking since I managed to make it work at some point, so it is possible. I just don't remember how...


sevoneone

macrumors 6502
May 16, 2010
489
398
You don't want internet sharing, internet sharing turns your Mac into a router and adds NAT between the two sides of the network. You want to create a Bridge, that will let packets from one connection pass freely to the other. Try this, add the two Ethernet connections to the bridge, and your NAS should be able to talk to the rest of your network as if it was just attached to the router: https://support.apple.com/kb/PH25775?locale=en_US

The other thing you could do is take a look at why the NAS is slower when connected to the router. The probable reason is that the router only has ports capable of a 100mbps connection while your NAS, iMac and Thunderbolt to Ethernet adapter have 1000mbps (gigabit).

A couple of solves for that:

1) Replace the router with something that has gigabit LAN ports. Depending on your ISP and plan, your router could even be preventing you from reaching the broadband speed you are paying for. If you're paying for 150mbps internet and your router's ports are limited to 100mbps, no single device on your network will ever be capable of reaching the top speed.

2) Buy a gigabit switch and attach all of your LAN devices to ports on it and then attach one port to your router. Your link out to the internet will still be limited to a max of 100mbps, but your local devices will be able to communicate at gigabit speeds.


NissarK

macrumors newbie
Original poster
May 26, 2018
8
3
You don't want internet sharing, internet sharing turns your Mac into a router and adds NAT between the two sides of the network. You want to create a Bridge, that will let packets from one connection pass freely to the other. Try this, add the two Ethernet connections to the bridge, and your NAS should be able to talk to the rest of your network as if it was just attached to the router: https://support.apple.com/kb/PH25775?locale=en_US

The other thing you could do is take a look at why the NAS is slower when connected to the router. The probable reason is that the router only has ports capable of a 100mbps connection while your NAS, iMac and Thunderbolt to Ethernet adapter have 1000mbps (gigabit).

A couple of solves for that:

1) Replace the router with something that has gigabit LAN ports. Depending on your ISP and plan, your router could even be preventing you from reaching the broadband speed you are paying for. If you're paying for 150mbps internet and your router's ports are limited to 100mbps, no single device on your network will ever be capable of reaching the top speed.

2) Buy a gigabit switch and attach all of your LAN devices to ports on it and then attach one port to your router. Your link out to the internet will still be limited to a max of 100mbps, but your local devices will be able to communicate at gigabit speeds.
YOU, my friend, are a great person!

THANK YOU SO MUCH!

IT WORKED! I had tried previously tried that link from Apple you posted, but since Internet Sharing was on, I couldn't get it to work! I turned off Internet Sharing and boom.... Firing in all cylinders now!

Have a pleasant day!

  • Like
Reactions: dimme

maflynn

Moderator
Staff member
May 3, 2009
66,407
33,055
Boston
No need to have an attitude. I am asking since I managed to make it work at some point, so it is possible. I just don't remember how...
I gave you no attitude, I simply asked what was the purpose, you didn't provide it and I'm curious as to know why you want a NAS connected directly to a computer and then make it accessible to other computers


Fishticks

macrumors 6502
Sep 20, 2012
296
40
I've read this thread because I am interested in doing the same as NissarK.

To help people here understand such a need: myself I have two iMacs next to each other. Only one Ethernet plug on the wall linked to another switch that receives my NAS, alarm, and stuff and goes to my router located in a third location (next to TV with plenty of stuff plugged into it also).
I don't want to buy another switch, while I can just use a thunderbolt cable, just like NissarK. But for the time, my Thunderbolt sharing creates a secondary network, and I can't access my first network and my Nas from the 2nd iMac.
Unfortunately the help at Apple has disappeared, but I will look at removing internet sharing on the master computer (linked to ethernet) and see what happens.
https://support.apple.com/kb/PH25775?locale=en_US no more exists.

Last edited by a moderator:

NissarK

macrumors newbie
Original poster
May 26, 2018
8
3
I've read this thread because I am interested in doing the same as NissarK.

To help people here understand such a need: myself I have two iMacs next to each other. Only one Ethernet plug on the wall linked to another switch that receives my NAS, alarm, and stuff and goes to my router located in a third location (next to TV with plenty of stuff plugged into it also).
I don't want to buy another switch, while I can just use a thunderbolt cable, just like NissarK. But for the time, my Thunderbolt sharing creates a secondary network, and I can't access my first network and my Nas from the 2nd iMac.
Unfortunately the help at Apple has disappeared, but I will look at removing internet sharing on the master computer (linked to ethernet) and see what happens.
https://support.apple.com/kb/PH25775?locale=en_US no more exists.
Hi Fishticks,
I haven't tried this on a setup like your's with two iMacs, but what I have done is connected the NAS directly to my iMac and using the method described above makes the NAS drive show up on the network so I can access it from another Macbook Pro, Laptop and SmartTV.

Have you remembered to disable Internet Sharing?

Br,
NissarK

  • Like
Reactions: MagicBoy

sevoneone

macrumors 6502
May 16, 2010
489
398

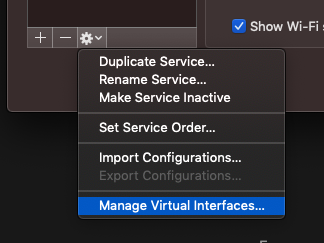

The process is still the same. Open Network Preferences and select Manage Virtual Interfaces from the additional setting dropdown.

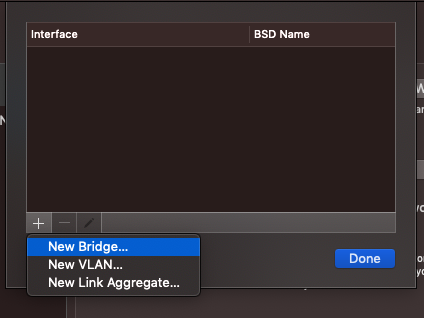

Then, add a new bridge and add your Ethernet and Thunderbolt Bridge to it.



Once you do that, both interfaces are going to disappear from the connections list and be replaced by the bridge. All the IP and other network setting for the host Mac are applied to the bridge. If you use DHCP, it should pick that up within a few moments of clicking Apply. If you manually configured any setting, you will need to apply those fresh to the bridge.

Remember, internet sharing needs to be off or you'll end up with a double NAT and a headache.

Plug in your Thunderbolt cable. The other mac should see the connection and should see DHCP from your router and connect/configure just like any directly attached device.

If you delete the bridge later, it is important to note that the individual network connections will not come back by themselves. You'll have to click the plus '+' button and add Ethernet and Thunderbolt each back on the host Mac.

  • Like
Reactions: williakz

plgrazon

macrumors newbie
Jun 3, 2020
1
0
Hi Fishticks,
I haven't tried this on a setup like your's with two iMacs, but what I have done is connected the NAS directly to my iMac and using the method described above makes the NAS drive show up on the network so I can access it from another Macbook Pro, Laptop and SmartTV.

Have you remembered to disable Internet Sharing?

Br,
NissarK
Hi NissarK,

I’m on the same boat but unfortunately the links on the apple forums are gone. I’m really sorry if I sound really noob but would this work with wifi? Because of the pandemic I needed to move out and the current place that I’m currently in doesn’t allow me to have my own router. Currently I have the nas plugged into my mac and it works. It’s just that I want it to be available to my other devices. I hope you can direct me in the right direction.
