Nearly destroyed iPhone SE project

Discussion in 'iPhone' started by ThunderMasterMind, May 12, 2017.

  1. ThunderMasterMind, May 12, 2017
    Last edited: May 14, 2017

    ThunderMasterMind macrumors 6502a

    ThunderMasterMind

    Joined:
    Apr 29, 2016
    #1
    This is a topic for the challenge of making this nearly destroyed iPhone SE a fully functional phone again, for a small cost too.
    This was my neighbor's phone which was severely damaged after a hit when the phone was in his pocket. The phone was extremely bent, but after bending it back, it seemed to be ok. The guy showed me the phone in class and said he was selling it for $2 since it was supposedly broken beyond repair. I figured that it worked perfectly fine, so I offered to take it after he showed me. I didn't have $2, but I did have a standard wall charger adaptor he wanted so I just traded with him since I have plenty of chargers. I plugged it into my computer to see if it functioned and it did, the computer recognized it easily. I got home, grabbed some tools, a broken yet functional display and replaced the demolished display with a functional one and booted it up. Now I have a poor condition functional iPhone SE for next to nothing and any issues it has, will be easy to fix and fun to fix since I love repairing small devices.

    iPhone SE
    Space grey
    16GB
    AT&T

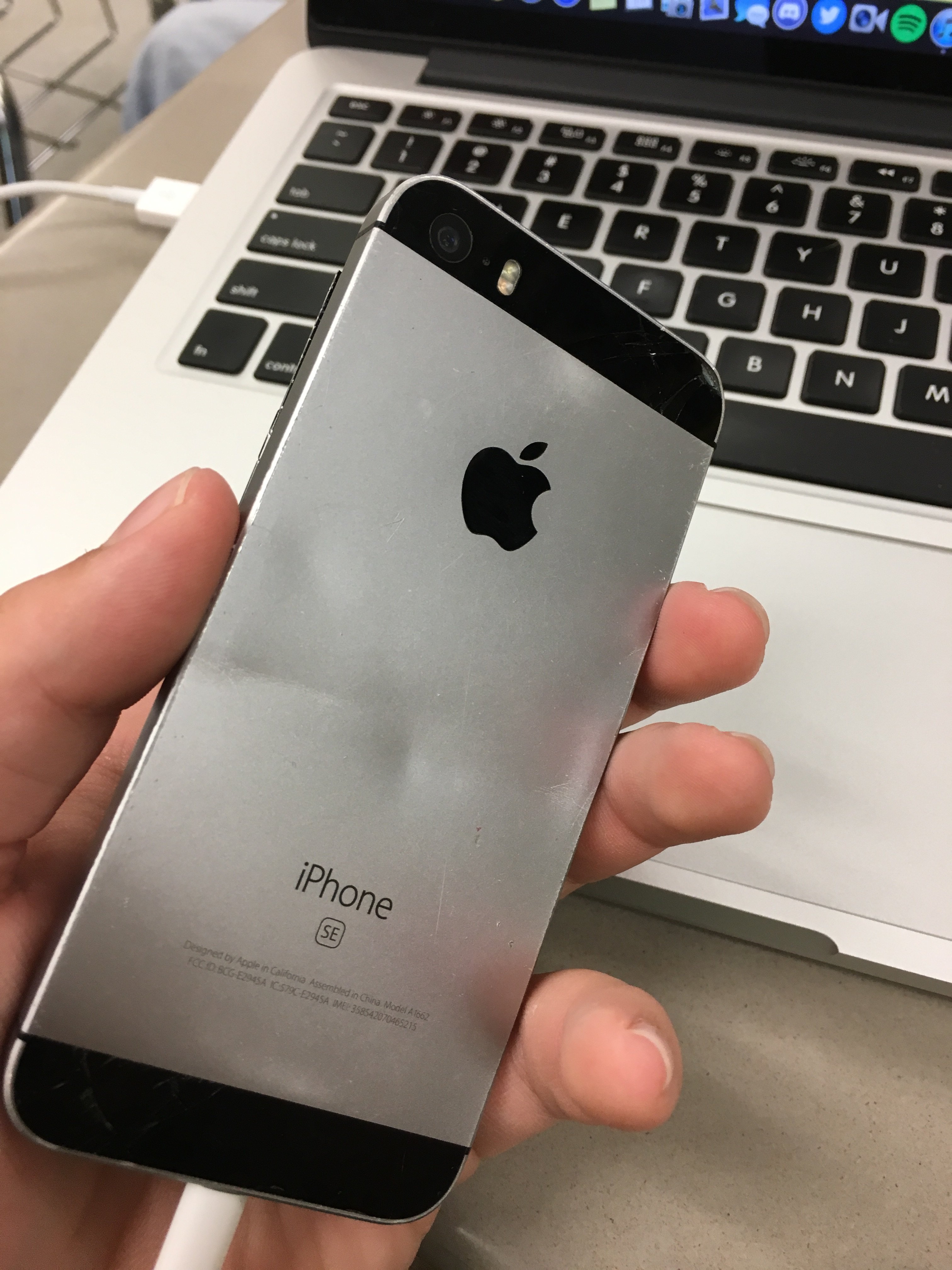

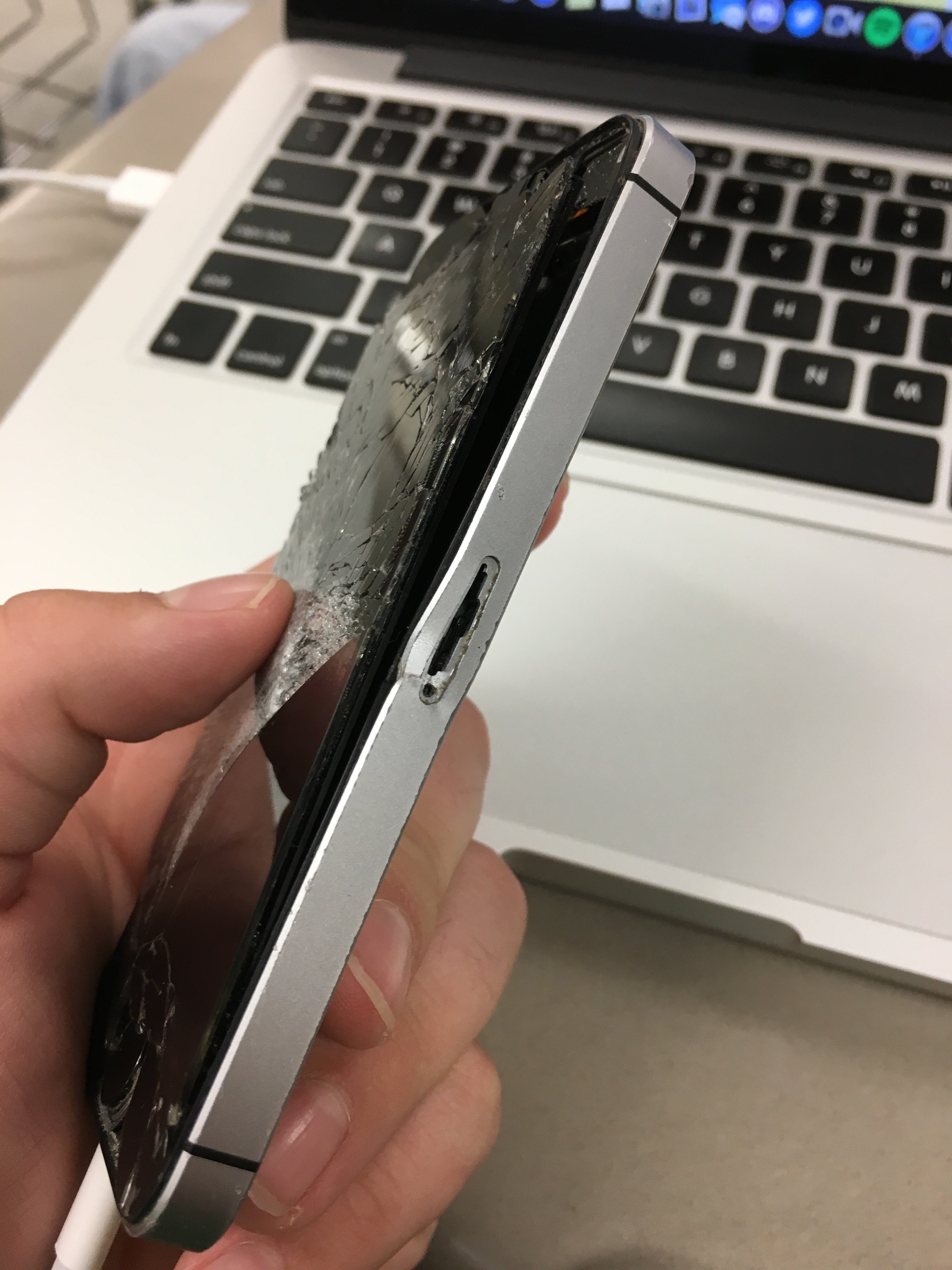

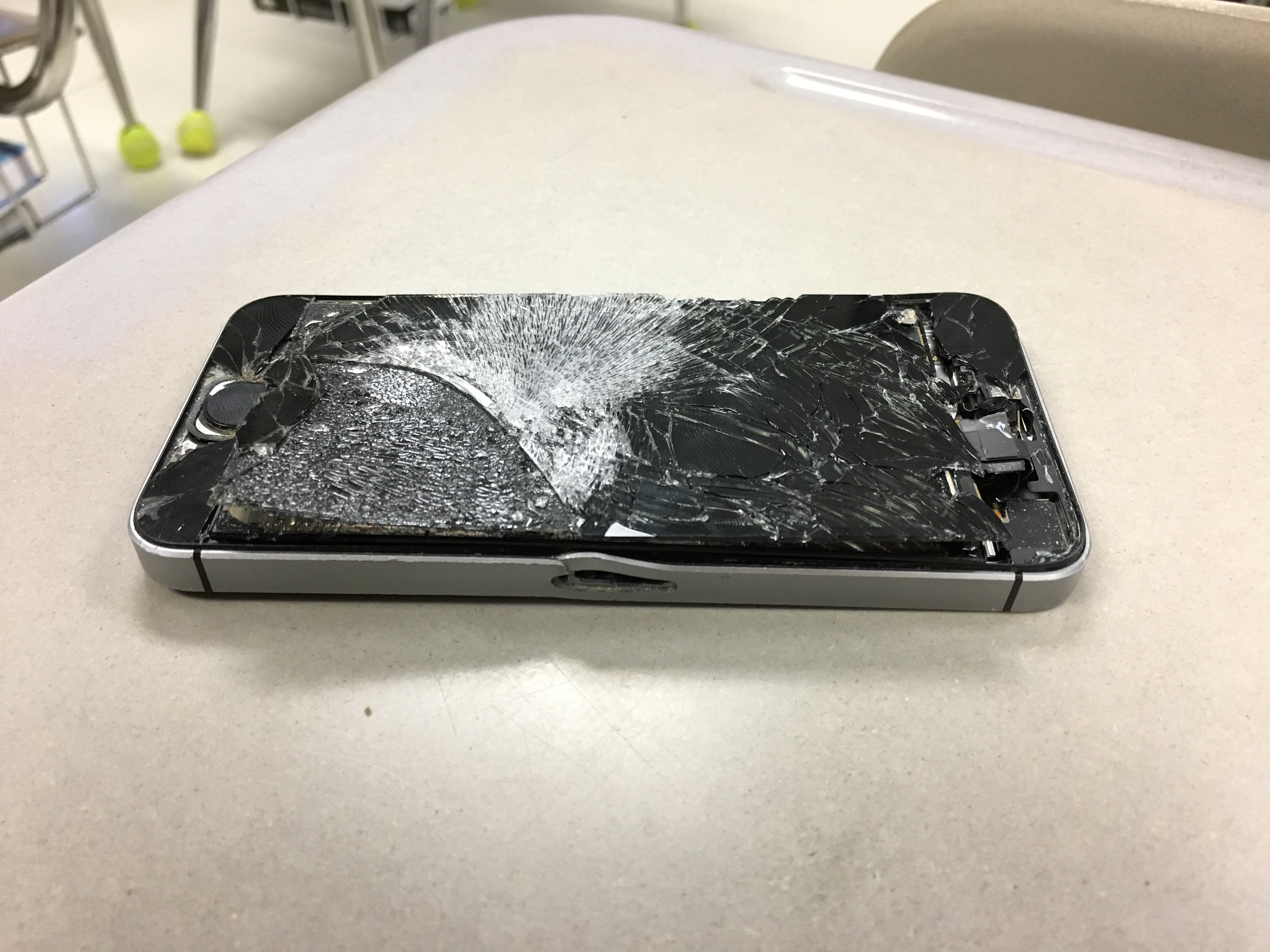

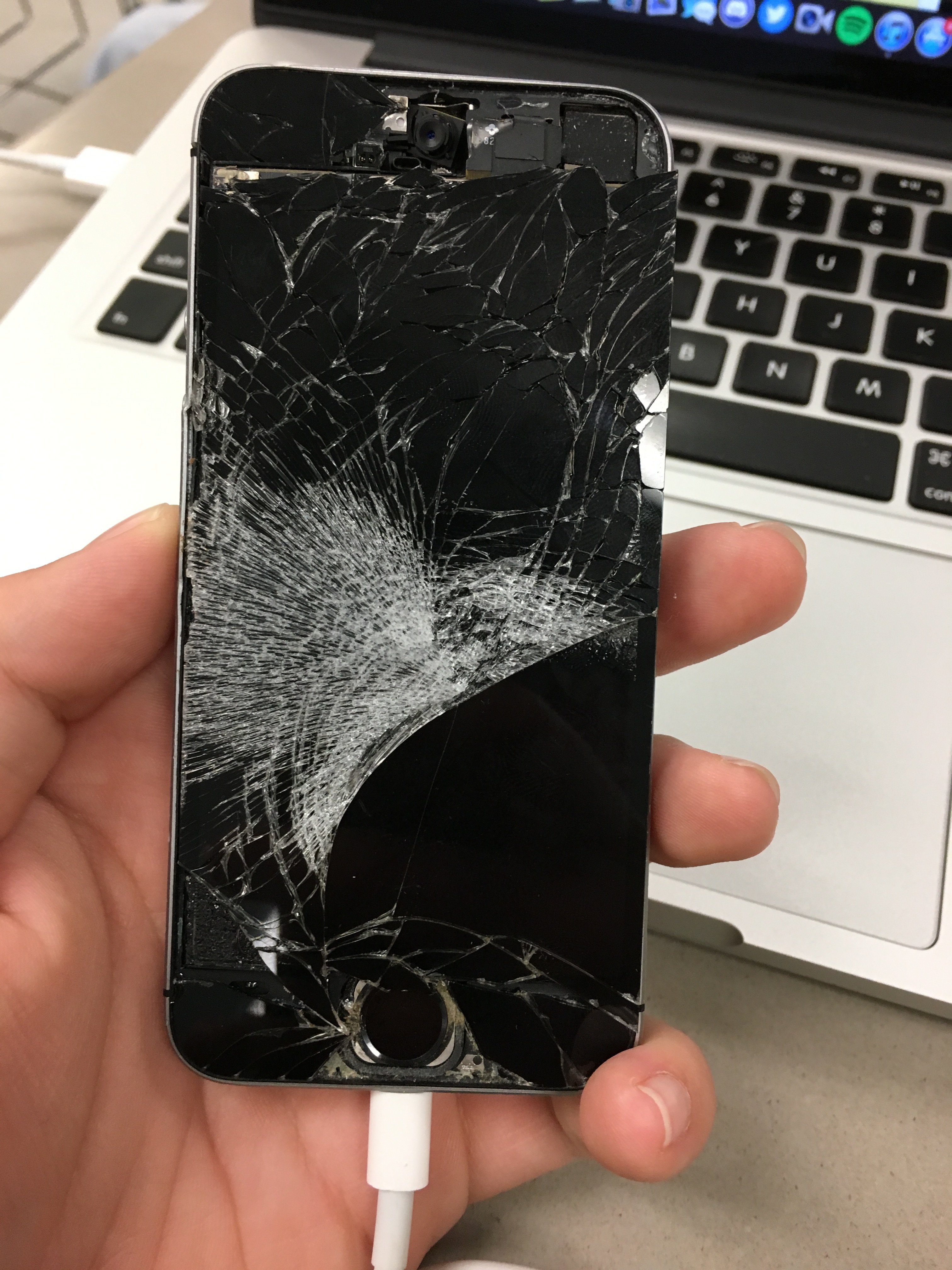

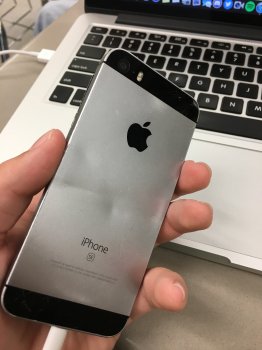

    When I got it:

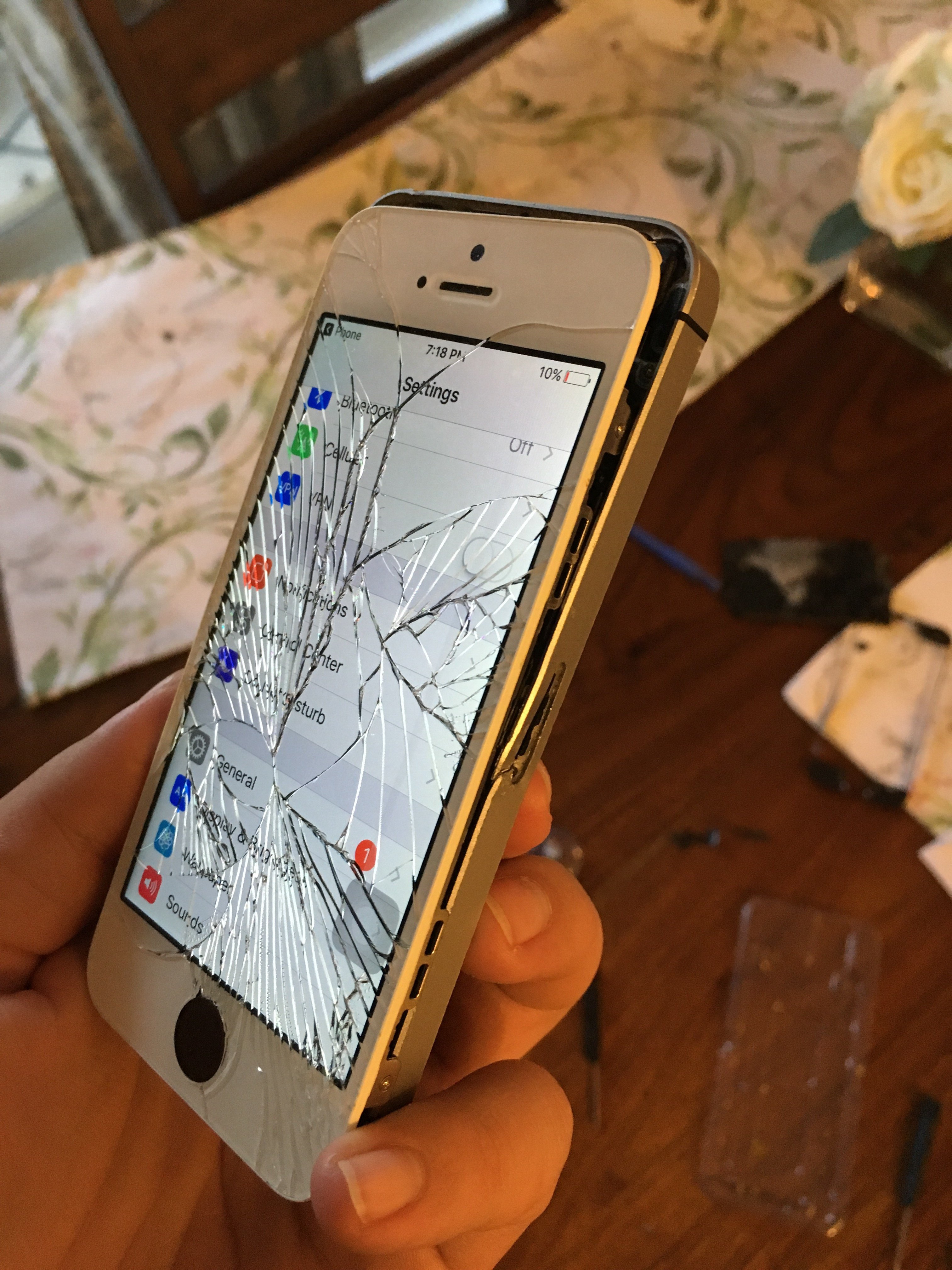

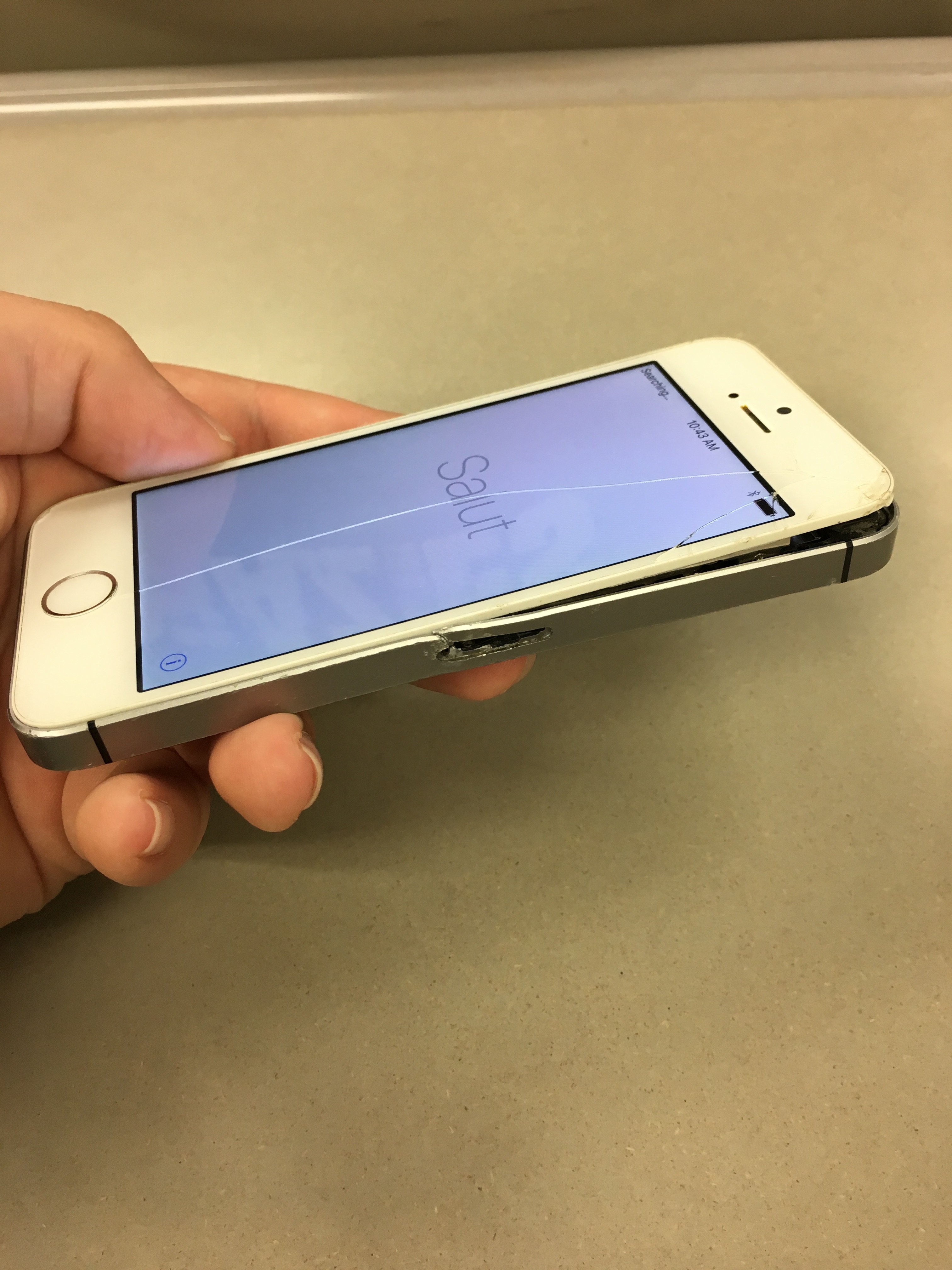

    When I put a functional display on it:


  2. QueenTyrone macrumors 6502a

    QueenTyrone

    Joined:
    Sep 21, 2016
    #2
    You can buy a new logic board + matching touch Id sensor and a new screen for about 250. Seems like it's just blown from whatever damage it had taken, my guess is that you will need to do a gut job on the se, try to straighten out the chasis and then go in and replace parts to sync with iTunes. Please tell me you got this thing for free

  3. ThunderMasterMind thread starter macrumors 6502a

    ThunderMasterMind

    Joined:
    Apr 29, 2016
    #3
    Basically I did kinda it for free. I traded a cube wall charger adaptor for it. Which you can get just about anywhere these days.

    The original TouchID sensor looks fine and should work perfectly, but I think there is some bad connections somewhere, probably ripped ribbon cables that aren't working anymore. It's almost fully functional. Cameras, microphones, speakers, vibration motor, buttons, wifi, Bluetooth, all that works. I don't know so much about the cellular radio/antenna.

  4. Applejuiced macrumors Westmere

    Applejuiced

    Joined:
    Apr 16, 2008
    Location:
    At the iPhone hacks section.
    #4
    Why would you bother?
    You will waste more money and time buying replacement parts than a brand new SE.
    There was some deals for $100-180 for 16GB SE phones recently.

  5. ThunderMasterMind thread starter macrumors 6502a

    ThunderMasterMind

    Joined:
    Apr 29, 2016
    #5
    I just wanted somthing to tinker with. If I gut it and check everything seeing if everything is functional, then All I really need is a $30 broken SE from eBay and I can make this phone nearly perfect using the frame and display from the broken eBay buy.

    Also I just got setup to start, this may be disregarded.

  6. Applejuiced macrumors Westmere

    Applejuiced

    Joined:
    Apr 16, 2008
    Location:
    At the iPhone hacks section.
    #6
    $30 broken SE with all the functional parts you need?
    I dont know, sounds like you will be tinkering with it for a while :D

  7. ThunderMasterMind, May 12, 2017
    Last edited: May 12, 2017

    ThunderMasterMind thread starter macrumors 6502a

    ThunderMasterMind

    Joined:
    Apr 29, 2016
    #7
    No, that's not what I meant. The model I have is nearly fully functional, so all I need is a frame and a display for it. When I get home today, I'm going to strip it down a little further to see what the deal is with the home button, and see what else may be fragile or faulty. If anything, this just becomes a parts unit if I need the parts for future things. Being since I got this thing for nearly nothing, if it falls through, who cares. I'm not dumb, if there's more damage to the phone I didn't see initially, then I won't buy a frame and just forget about it.

  8. QueenTyrone macrumors 6502a

    QueenTyrone

    Joined:
    Sep 21, 2016
    #8
    Have you taken it apart yet and inspected everything? Sounds like a fun project Imo. You could try to have apple take a look at it and tell you what all needs to be replaced.

  9. Indian Devil macrumors regular

    Joined:
    Mar 3, 2014
    #9
    Those must be locked with some carrier?


    If not I am interested, I will jump on iPhone SE at around $200.

  10. maxjohnson2, May 12, 2017
    Last edited: May 12, 2017

    maxjohnson2 macrumors regular

    Joined:
    Mar 24, 2017
    #10
    Boost Mobile (and Virgin Mobile) been selling new iPhone SE for very good prices lately, you can buy one then pay for it to be unlocked. Although I heard some people have issues with their credit card being rejected and getting to work on Sprint, since Sprint will put an unpaid bill status on it if you don't use it on Boost first. I have one and it work fine with AT&T and T-Mo after unlock.

  11. Applejuiced macrumors Westmere

    Applejuiced

    Joined:
    Apr 16, 2008
    Location:
    At the iPhone hacks section.
    #11
    Yes, I bought one that was locked to Sprint/Boost a few months back. Had to pay $30 to factory unlock it but worked out good in the end.

  12. Indian Devil macrumors regular

    Joined:
    Mar 3, 2014
    #12
    From where did you unlock it?

  13. Applejuiced macrumors Westmere

    Applejuiced

    Joined:
    Apr 16, 2008
    Location:
    At the iPhone hacks section.
    #13
    I used swiftunlocks but there's a bunch of unlocking services. There's some on ebay too.
    Prices may vary.

  14. ThunderMasterMind thread starter macrumors 6502a

    ThunderMasterMind

    Joined:
    Apr 29, 2016
    #14

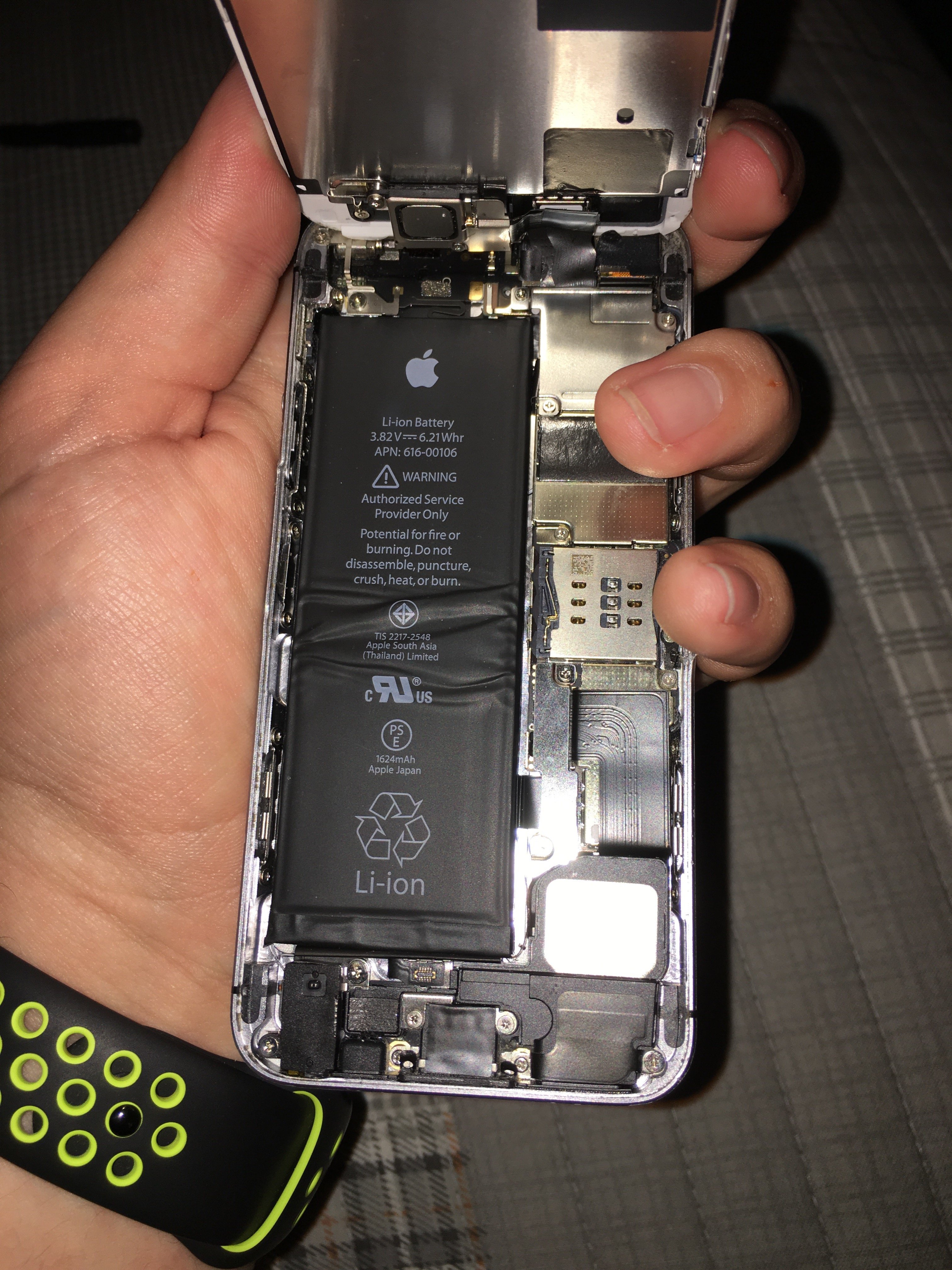

    I finally gutted the SE and took a look at what is broken or not. What I found is that the cellular radio/antenna is broken, the TouchID connector is broken along with the half working charging port, and to add to the list, the battery which tore when I pulled the adhesive tabs out from behind it. It started leaking something I could smell, so I disposed of it. Everything else on this phone is operational, so I don't need much of anything for it. I can pick up a faulty/locked unit off of eBay for a quick buck and get pretty much all I need to make this a nice functional phone.
    It may seem ridiculous, but it's a fun project that really won't cost much of anything. I have plenty of time to tinker with it too.

    Here is an easy to read list of parts:

    • Cellular radio and/or antenna
    • headphone/lightning ports/Touch ID connector(This is all one piece)
    • Battery
    • Frame and display

  15. MC6800 macrumors 6502

    Joined:
    Jun 29, 2016
    #15
    I'd be concerned about where that battery was disposed-- no one wants it ending up in a landfill, leaking back into the water supply. Check out:

    http://www.call2recycle.org/

  16. ThunderMasterMind thread starter macrumors 6502a

    ThunderMasterMind

    Joined:
    Apr 29, 2016
    #16
    Taken care of. ;)

  17. MC6800 macrumors 6502

    Joined:
    Jun 29, 2016
  18. G.McGilli macrumors regular

    Joined:
    Oct 19, 2015
    #18
    What did it get hit with in the guys pocket? Someone swing a sledgehammer at him?!?!?

    Anyways - I would have bought it too. I love gadgets, broken or not. Fixing's fun!

  19. ThunderMasterMind thread starter macrumors 6502a

    ThunderMasterMind

    Joined:
    Apr 29, 2016
    #19
    I still don't have a full explanation of what happened. He told me that even he doesn't exactly know what happened.

  20. jimbo1mcm macrumors 68000

    Joined:
    Mar 21, 2010
    #20
    Well done. Keep expanding your knowledge. Thanks for sharing with us.

  21. macduke Suspended

    macduke

    Joined:
    Jun 27, 2007
    Location:
    Central U.S.
    #21
    Being a drunk college kid is what happened, lol.
