Need help connecting Dell U2711 to 2016 MBP

Discussion in 'MacBook Pro' started by Pyali, Nov 19, 2016.

  1. Pyali macrumors member

    Joined:
    Jul 22, 2016
    #1
    I have a 2016 non Touchbar 13" MBP and im trying to get the dell to display 1440p but it stuck on 1080p. Ive tried a dvi to hdmi cable, a hdmi cable (to hdmi), and hdmi cable with a hdmi to display port adapter but that just didnt output anything. All the others have 1080p max resolution.

    Im using the apple multiport hdmi/usb 3/usb c to TB3 adapter. What do I need to make this work?

  2. Precursor macrumors 6502a

    Precursor

    Joined:
    Sep 29, 2015
    Location:
    Istanbul
    #2
    Could be the HDMI cable
    I get 1440p @60Hz with my 12" Macbook using Apple's multiport adapter and the HDMI cable also from Apple online store with no problems.

  3. Pyali thread starter macrumors member

    Joined:
    Jul 22, 2016
  4. Precursor, Nov 19, 2016
    Last edited: Nov 20, 2016

    Precursor macrumors 6502a

    Precursor

    Joined:
    Sep 29, 2015
    Location:
    Istanbul
    #4
    Did it download the driver the first time you plugged in the multiport adapter?

  5. Pyali thread starter macrumors member

    Joined:
    Jul 22, 2016
    #5
    Yep the driver is installed. I think it may be an issue of the hdmi not being 1440p compatible, what combination of cables/adapters would make it work? Im using a dell U2711.

  6. NoisyCat macrumors newbie

    Joined:
    May 31, 2010
    #6
    u2711 doesn't support 1440p on HDMI, only on DisplayPort or dual link DVI.

  7. Hyloba, Nov 20, 2016
    Last edited: Nov 20, 2016

    Hyloba macrumors 6502

    Joined:
    Sep 30, 2014
    #7
    Is that the same for the Dell U2515H I have? At the moment I am using it at 60Hz but 2048x1152 resolution with HDMI. I always thought my laptop couldn't do 1440p at 60Hz, but that's incorrect then? I would need a displayport cable or adapter for the new MBP then?
    --- Post Merged, Nov 20, 2016 ---
    Some interesting news, I asked a friend who has the same monitor as I do (Dell U2515H, capable of outputting 1440p resolution), and he is using the monitor at max resolution and at 60Hz through HDMI. So I guess for this model, you won't need a minidisplayport adapter. However he has a gaming laptop, so I don't know if this will work with a MBP.
    Why is all this stuff so confusing...

  8. Pyali thread starter macrumors member

    Joined:
    Jul 22, 2016
    #8
    So it works with my DVI-D cable (to my windows machine), but doesnt work with my dvi-d to hdmi cable. So its fair to assume it wouldnt work with a dvi-d to hdmi adapter either? Ill need a display port to hdmi?

  9. zhenya macrumors 603

    zhenya

    Joined:
    Jan 6, 2005
    #9
    I would use a usb-c to displayport cable and leave HDMI out of it.

  10. JohnnyGo macrumors 6502a

    Joined:
    Sep 9, 2009
    #10
    +1

  11. Hyloba macrumors 6502

    Joined:
    Sep 30, 2014
    #11
    I would love to use that cable, but 45€ is a little steep for a single cable with one use.

  12. MacUser2525 macrumors 68000

    MacUser2525

    Joined:
    Mar 17, 2007
    Location:
    Canada
    #12
    Depends on how bad you want to see that monitor, used most likely every day, have a display on it. Now just having the proper ports on the machine to begin with to forgo this foolishness is another story...

  13. Pencilnink macrumors member

    Pencilnink

    Joined:
    Oct 5, 2016
    #13
  14. Pyali thread starter macrumors member

    Joined:
    Jul 22, 2016
    #14
    I ordered the usb-c to displayport cable for a cool $70 AUD :confused: ill let you guys know how it goes when it arrives

  15. Pyali thread starter macrumors member

    Joined:
    Jul 22, 2016
    #15
    UPDATE: The usb-c to displayport cable came today and the external display is being shown at 1440p native res under the displays window... but its black lol. Its functioning in every way except nothing is being shown on the monitor. Ive tried resetting NVRAM, SMC and trying different ports but no luck. Anything else?

  16. Pencilnink macrumors member

    Pencilnink

    Joined:
    Oct 5, 2016
    #16
    What brand is the cable, as I'm guessing the cable may be bad.

  17. Pyali thread starter macrumors member

    Joined:
    Jul 22, 2016
    #17
    "STARTECH USB-C to DisplayPort Adapter Cable - 1m (3 ft.) - 4K at 60 Hz" found here

  18. Pencilnink macrumors member

    Pencilnink

    Joined:
    Oct 5, 2016
    #18

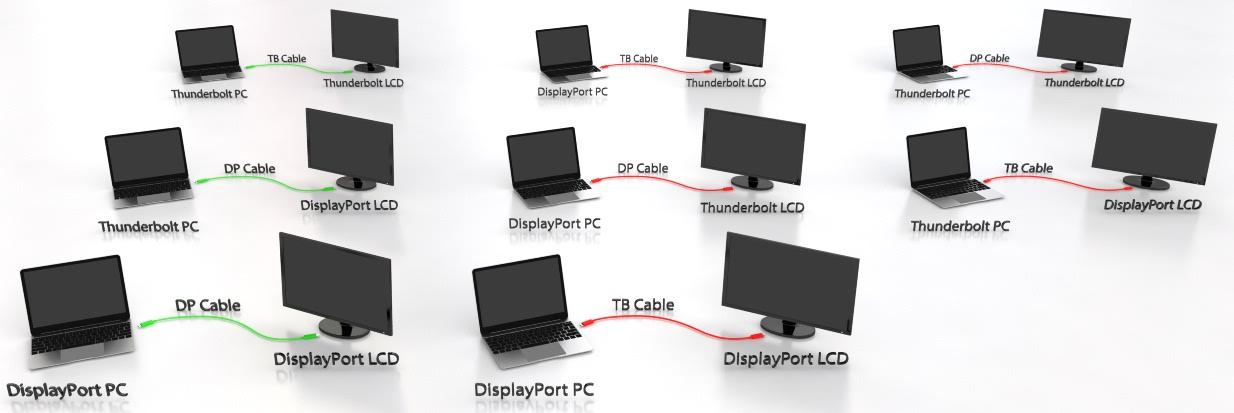

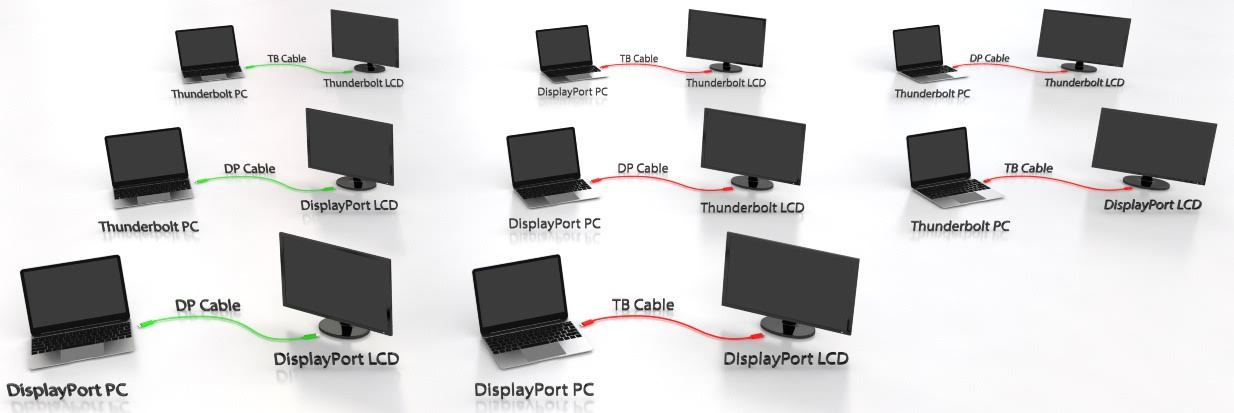

    Looks like it ticks all the boxes for compatibility. Even this diagram shows a cable like that should work, so I would try to exchange the cable.


    Attached Files:

  19. Pyali thread starter macrumors member

    Joined:
    Jul 22, 2016
    #19
    Thanks for the help, I guess I'll get a refund and order a replacement :'( got half a mind to yolo and get a 5k lol

  20. Pencilnink macrumors member

    Pencilnink

    Joined:
    Oct 5, 2016
    #20
    After what we've initially spent on these machines, those pale in comparison lol.

  21. murdoc2k macrumors newbie

    Joined:
    Oct 23, 2009
    #21
    I'm having the same issue with my Dell U2711 on my 2016 Macbook Pro. I did not know that HDMI will not work above 1080p. I'm disappointed because the graphics and texts on its native resolution is razor sharp compared to 1080p scaling and I paid good money 5 years ago to get this monitor.

    I've tried this with 2 dongles to get HDMI: Dodocool USB-C hub with VGA and HDMI, and the famous Hyperdrive Thunderbolt 3 USB-C dongle for Macbook Pro. Both of them capable of displaying 4K at 30Hz. Both of them were unable to push Dell U2711 past 1080p.

    When I purchased the startech USB-C to DisplayPort cable and plugged it into my hyperdrive's Thunderbolt 3 port, native resolution was achieved!

    The only problem now is that I lose the ability to charge my laptop when I plug it in as Dell U2711 is not a USB-C/Thunderbolt 3 monitor.

    I guess I will have to stick with HDMI until my next monitor :(

    If anyone has an alternative suggestion, please let me know. Thanks in advance.
