Need Help Identifying Chips on an iMac G5

Discussion in 'iMac' started by Jonny Quick, Sep 25, 2011.

  1. Jonny Quick macrumors newbie

    Joined:
    Sep 25, 2011
    #1
    Greetings All.

    I'm a reasonably experienced PC repairman that has been hired to determine what is wrong with an iMac G5. I've disassembled it and have found several problems, and need to make a report to my customer. To this end, I need to be able to describe what the 3 large chips on the Logic Board of the G5 are. I assume the chip with the large copper heat pipes and fan is the "CPU", but do not know if that is the correct terminolgoy for an iMac.

    Also, the other 2 chips. One has a rectangular heat sink that is visible when the viewscreen is removed, and the other is square and can only be seen after the logic board is removed.

    I'll attach a photo. Thanks in advance.

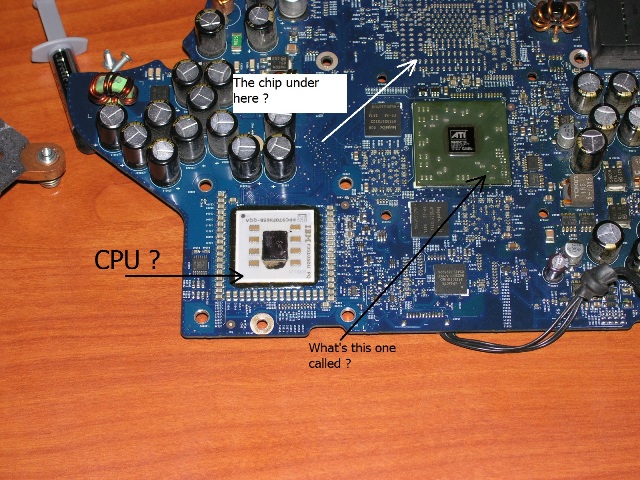

    iMac Chips2.jpg

  2. Intell macrumors P6

    Intell

    Joined:
    Jan 24, 2010
    Location:
    Inside
    #2
    CPU or processor are the correct terms for Macs CPU's. The ATI chip is the GPU or video chip. The other one is probably the north bridge equivalent chip. One thing to check on the iMac's board and power supply are bad capacitors. Those are notorious for failing in G5 iMacs.
