need help identifying electronic part, Macbook black 2.4 GHz logic board

Discussion in 'MacBook' started by shawnus, Mar 17, 2010.

  1. shawnus macrumors newbie

    Joined:
    Mar 17, 2010
    #1
    [​IMG]

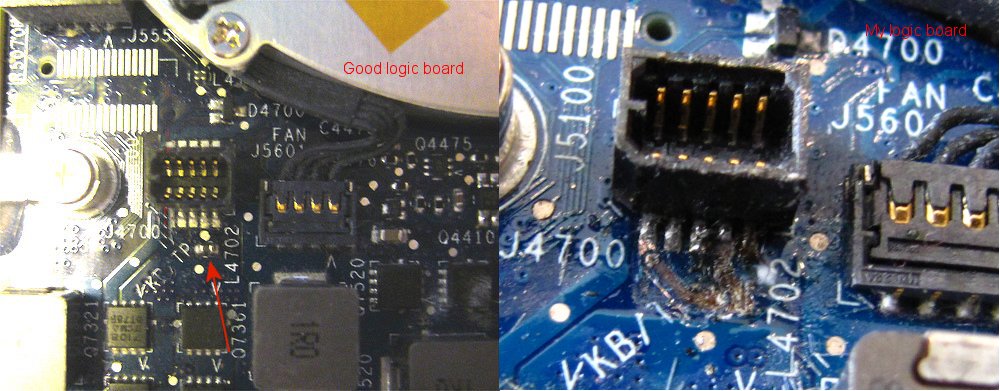

    Anyone have the knowledge or access to the schematics to identify the bit pointed to by the arrow (see picture)? I suspect its a resistor, but I don't know. I'm looking to identify what it is and the details (ohm rating, etc) so I can have an electrician assist me with soldering. I'm not keen to send it all the way for expensive repairs when I know this is the only problem with the logic board.

    Thanks for your help.

    Shawn

  2. miles01110 macrumors Core

    miles01110

    Joined:
    Jul 24, 2006
    Location:
    The Ivory Tower (I'm not coming down)
    #2
    Even if you can find the part, it appears that you've ruined the pads that the component sits on making any repair attempt more or less pointless. That's a pretty bad picture, so I can't really tell.

  3. shawnus thread starter macrumors newbie

    Joined:
    Mar 17, 2010
    #3
    I know it appears bad, but it looks worse than it really is. All the circuit lines are still active, I've checked, and it can be salvaged with soldering. I just need to know what the bit is.

    Thanks!

  4. miles01110 macrumors Core

    miles01110

    Joined:
    Jul 24, 2006
    Location:
    The Ivory Tower (I'm not coming down)
    #4
    Do you have the good logic board on hand to test as well? You could easily check if it's a resistor or a cap if you did. That's probably a long shot though :p

  5. shawnus thread starter macrumors newbie

    Joined:
    Mar 17, 2010
    #5
    sadly, the "good" logic board picture was scalped from the internet. Anyone know what this bit is?

    I do have other identical bits on the logic board that I could test- I do have an ohm/voltage meter...

    Thanks!

  6. maddmac macrumors newbie

    Joined:
    Jan 9, 2011
    #6
    What board # is it?

    I have schematics for my macbook 2.0 ghz c2d my board# (820-1889-A) it looks similar but not exact. I got my schematics from notebookschematics.com
    $10.50 Good Luck

  7. balamw Moderator

    balamw

    Staff Member

    Joined:
    Aug 16, 2005
    Location:
    New England
    #7
    The nearby KB/TP markings are interesting. Sounds like keyboard test point. Would be amusing if it was a short (a.k.a. "zero ohm resistor").

    B
