Need help identifying random Mac mini part

Discussion in 'Mac mini' started by stooie3000, Jan 23, 2015.

  1. stooie3000 macrumors newbie

    Joined:
    Feb 24, 2014
    #1
    Hi guys, I recently sold a 2009 Mac mini on eBay but when the buyer received it, it didn't power on. He returned it, I opened it up and the internals were, to say the least, a disaster. The logic board was loose because the metal lugs that it screws in to had stripped out of the plastic casing, the GPU heat sink was hanging half off, and there was what I think is a connector just rattling around loose in the casing. It appears to have been dropped in the post.

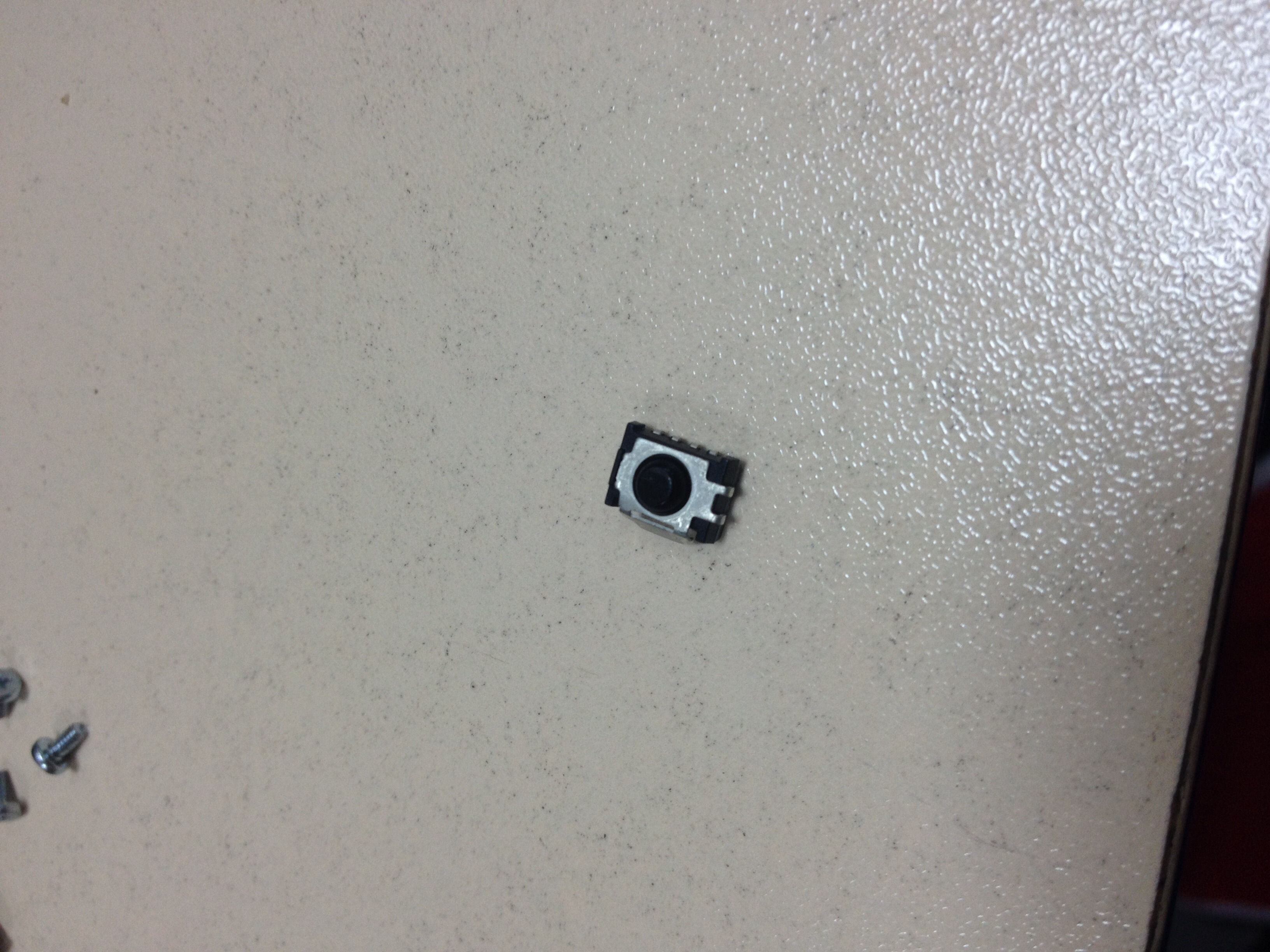

    I've had a good look over the logic board and it seems to be intact. I'm hoping I can fix it, but I can't find where this little piece of plastic has come from! If anyone has any ideas I would be very grateful. It's mostly plastic, with a metal frame around it. I can't tell if it's structural or part of the circuitry.

    Kind regards,

    Stu


    Attached Files:

  2. paulrbeers macrumors 68040

    Joined:
    Dec 17, 2009
    #2
    Looks like your IR sensor....

    https://d3nevzfk7ii3be.cloudfront.net/igi/1Q6kBoHMSuoCEvgK.huge


    https://www.ifixit.com/Guide/Mac+mini+Model+A1283+IR+Board+&+Cable+Replacement/1061

    I broke the IR sensor on one of my 2012 Mini's (got a little carried away) and it works just fine. Just can't use it for MediaCenter duties (at least not with IR)....

  3. stooie3000 thread starter macrumors newbie

    Joined:
    Feb 24, 2014
    #3
    Thanks!

    That's it, thanks! I can live without the IR sensor. I'm just praying that the logic board is otherwise OK, and I just need to reattach everything.

    Thanks again,

    Stu
