Need help MacBook Pro (13-inch, Early 2011) dead

Discussion in 'MacBook Pro' started by saksh5, Sep 21, 2013.

  1. saksh5, Sep 21, 2013
    Last edited: Sep 21, 2013

    saksh5 macrumors newbie

    Joined:
    Sep 21, 2013
    #1
    Hi i have a MacBook Pro (13-inch, Early 2011),

    when i try to switch it on

    1: the sleep light blinks once
    2: the cpu fan starts and stops in 5 seconds
    3: no screen
    4: no boot up
    5: no startup chime

    when i connect it to the charger

    1: the sleep light blinks after small intervals
    2: the cpu fan starts and stops in 5 seconds and at regular intervals
    3: no screen
    4: no boot up
    5: no startup chime

    what do i do about it? any suggestions i should try on, actually there is no apple care anywhere near, its about 650 kms away.

    I have uploaded it on youtube : you can see it here but i dont know if i should put up my link.

    ----------
    http://www.youtube.com/watch?v=rx_qzyAedJs

    on multimeter it gives me a voltage of 28

  2. saksh5 thread starter macrumors newbie

    Joined:
    Sep 21, 2013
    #4
    hi i tried the smc reset, didnt work,
    and also i changed both the RAM chips, still didnt work, any other thing which can be done, because im really really worried. It is my source of livelihood.

    can something else be done?????

  3. itegypt macrumors 6502

    itegypt

    Joined:
    Aug 6, 2011
    Location:
    US/Q8
    #5
    Can you try another charger? If it isn't a water damage...etc you may take it to :apple: or a local repair shop and have them check it for you.

  4. saksh5 thread starter macrumors newbie

    Joined:
    Sep 21, 2013
    #6

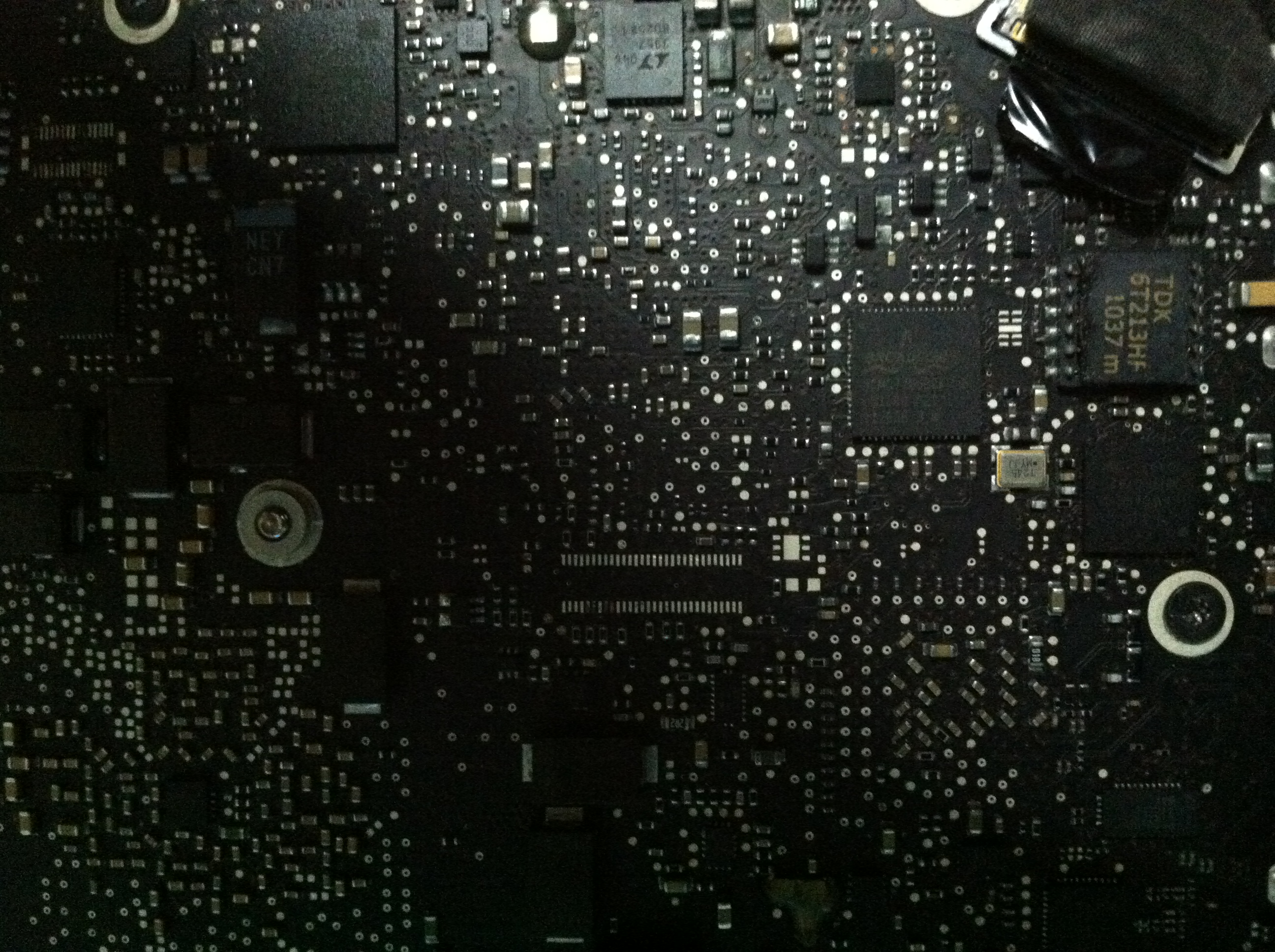

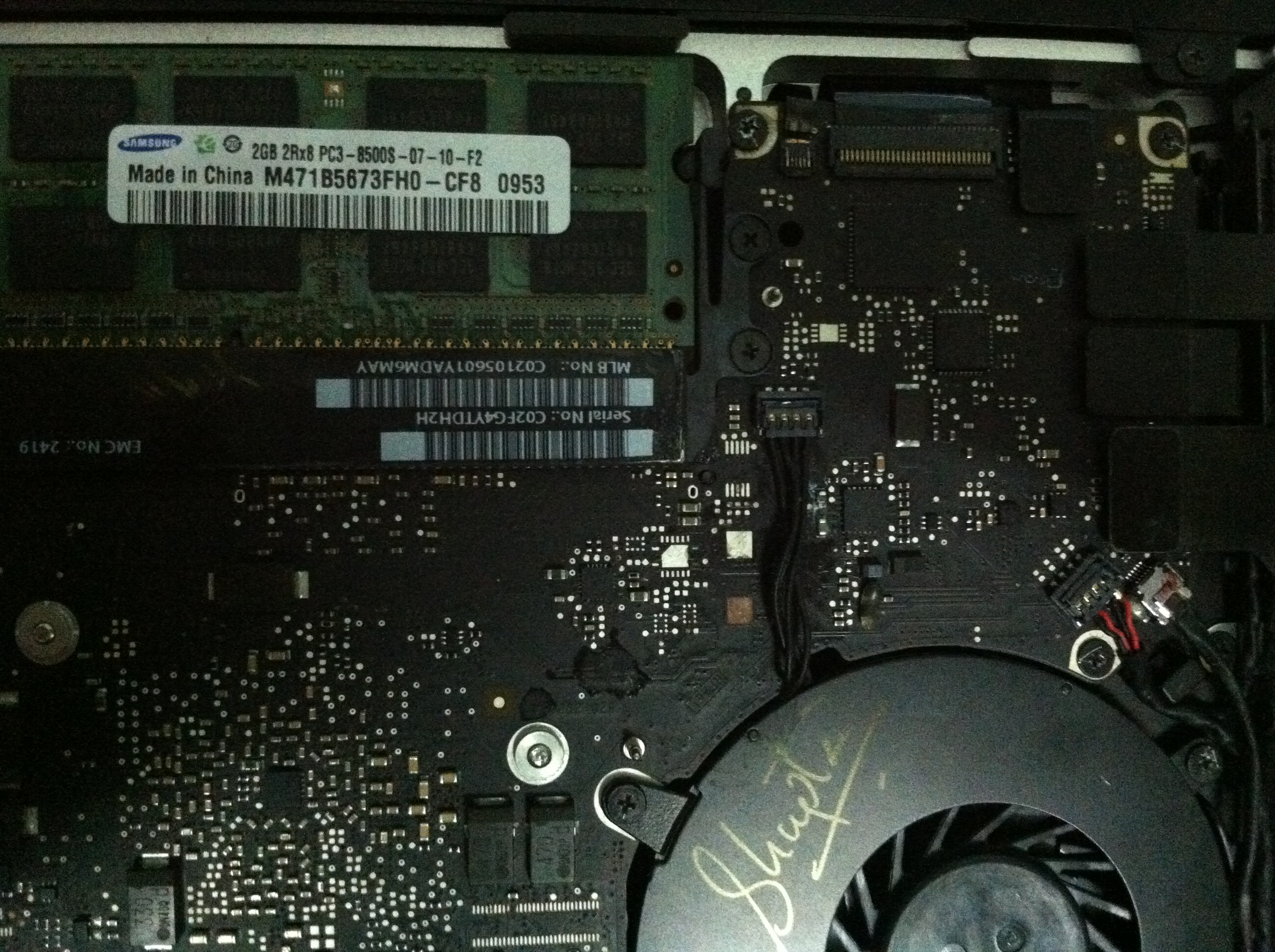

    Heres whats corroded

    i see this part corroded and the other one


    Attached Files:

  5. saksh5, Sep 21, 2013
    Last edited: Sep 21, 2013

    saksh5 thread starter macrumors newbie

    Joined:
    Sep 21, 2013
    #7
    seems to be water damaged and the first one when earthed shows a voltage of 13.1
    battery Pins 3-6 Also Give 12.8 V without magsafe and even with magsafe.

    some other updates:

    1: battery has been charged completely
    2: another thread opened by username jimanz11 yesterday has a similar problem, i taking cue from his pic have uploaded my readings here as well. (my readings are written in white) and taken after attaching magsafe
    3: the white fuse near the battery conecter shows 0.5 ohms
    4: magsafe board shows 0,17.3,3.35,17.3,0 readings
    5: magsafe brown fuse shows 0 ohms


    If anyone can help please do
