need help on vpn (10.5)

Discussion in 'Mac OS X Server, Xserve, and Networking' started by zayjay, Dec 15, 2008.

  1. zayjay macrumors member


    Jul 24, 2008
    I have my sever running 10.5.5 at home, with vpn configured L2TP,
    when i'm in the local network, i can connect to the vpn by entering the
    server address as XXXX.local or the local 192 ... ip address.

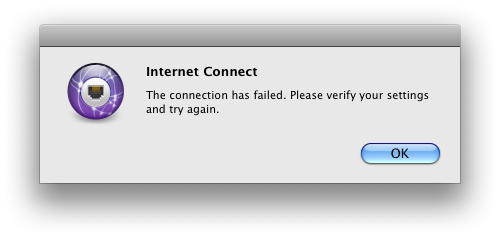

    but when i try to connect it by entering the domain name(, it keeps telling me: "The connection has failed, please check your settings..."

    but my domain name, website etc. they are all working, can somebody help me with this? if i can't connect the vpn by the domain name, then there's meaning for doing the vpn thing......

    Thank you guys very much....

    Attached Files:

  2. wrldwzrd89 macrumors G5


    Jun 6, 2003
    Solon, OH
    This is probably because Macs on your local network cannot resolve the domain name, since they don't know who to talk to to find it. If the domain name works when outside your home network, that would confirm my suspicion. In any case, there are two ways to fix this.

    1. Add an entry to the hosts file for each Mac on the local network, pointing the domain name to the local network IP address.
    2. If your server Mac happens to have DNS running, point the other Macs to it as a DNS server.
  3. zayjay thread starter macrumors member


    Jul 24, 2008
    I'm sorry, I think I didn't make myself clear,
    in my office, it still gives me the same problem.
    connection failed to the domain name.
    is there anything more about the domain i should setup on the server?
  4. zarathustra macrumors 6502a


    Jul 16, 2002
    Philadelphia, PA
    Maybe these are moot points:

    1) Is the OSX server used as the DHCP server, or do you use a router?
    2) Did you open the appropriate ports?
    3) Is your ISP doing something sneaky?

    If you do have a router that distributes your local IP addresses, you need to make sure that the OSX server IP address is static, and then designate it to be in the DMZ - if you want it to be outside the router's firewall. If not, you need to set up the appropriate port triggers or forwards.
