Need help with an iMac its an older 17" model....

Discussion in 'Mac Basics and Help' started by CLUELESSPCUSER, Feb 3, 2010.

  1. CLUELESSPCUSER macrumors newbie

    Joined:
    Feb 3, 2010
    #1
    I just picked up a used iMac and turned it on and to my astonishment it came with a Windows OS Windows XP Pro.......I know this system BUT I was expecting Mac......I got this iMac for photography use.......can anyone help me out here???? I have the iMac OS X software disk 1 and 2......Thanks in advance!

  2. flopticalcube macrumors G4

    flopticalcube

    Joined:
    Sep 7, 2006
    Location:
    In the velcro closure of America's Hat
    #2
    Press the option key when it boots up. It may have OSX installed on another partition.

  3. CLUELESSPCUSER thread starter macrumors newbie

    Joined:
    Feb 3, 2010
    #3
    Thanks....do I hold the "options" button or at what time do I push it?

    Ok ......I held it down and it did come up to a screen where you only had one choice which was windows.....soooooooo I loaded the Mac OS X disc one and it started the load.....we will see what happens......stay tuned....

  4. angemon89 macrumors 68000

    angemon89

    Joined:
    Feb 5, 2008
    Location:
    The place where Apple designs stuff
    #4
    You will need to install OSX. By the sound of it you're probably doing that now. Let us know how it works out.

  5. CLUELESSPCUSER thread starter macrumors newbie

    Joined:
    Feb 3, 2010
    #5
    ok..........heres what I got now........I have a screen up that says "Select a Destination" and below it says "Select a destination volume to install the Mac OS X software" Well..........there is NOTHING to select below.....Hmmmmmm help! :eek:

  6. flopticalcube macrumors G4

    flopticalcube

    Joined:
    Sep 7, 2006
    Location:
    In the velcro closure of America's Hat
    #6
    Go to the menu and choose Disk Utility. In Disk Utility, you can format the hard drive.

  7. jdmlight macrumors regular

    Joined:
    Jul 15, 2007
    Location:
    Chicagoland Suburbs
    #7
    Since it sounds like you've never done this before:
    • Once you've got Disk Utility open as described above, click on your hard drive in the left column.
    • Click the "Partition" tab.
    • Create however many partitions you want.
    • One of your partitions should be Mac OS Extended (Journaled) (this will be where you install OS X)
    • Don't forget to click "Options..." and change the partition map to GUID or Apple Partition Map depending on whether this is an Intel or a PowerPC iMac. (GUID=Intel, Apple Partition Map=PowerPC, see How to Identify Your iMac)

  8. CLUELESSPCUSER thread starter macrumors newbie

    Joined:
    Feb 3, 2010
    #8
    ok I am there......this is what I see....

    on the left of the box I see 4 icons......
    the top icon says 152.7 GB Maxtor 6l160M0 media
    just below that a little to the right (kinda like a sub menu) the icon looks the same and says disk0s1
    below that the same type of icon and says 4.7 GB Pioneer DVD-RW DVR-K05
    then below that a little to the right I see Mac OS X Install Disc 1

    I dont see an option there that says "format"........I know I am asking alot, but this is my first time with a MAC...THANKS!!!

  9. jdmlight macrumors regular

    Joined:
    Jul 15, 2007
    Location:
    Chicagoland Suburbs
    #9
    Click on that. On the right, a bunch of options will be presented. Click on the "Partition" tab near the top of the window. Then follow my instructions from my previous post.

  10. flopticalcube macrumors G4

    flopticalcube

    Joined:
    Sep 7, 2006
    Location:
    In the velcro closure of America's Hat
    #10
    You'll want to use GUID as you have an Intel iMac (since it had XP installed).

  11. CLUELESSPCUSER thread starter macrumors newbie

    Joined:
    Feb 3, 2010
    #11
    Intel Core Duo 2104 17-inch iMac (Early 2006) this is what I have....and yes I am a TOTAL ID10T when it comes to MACs.....

    So now that I have done the above....what would be my next step????

  12. jdmlight macrumors regular

    Joined:
    Jul 15, 2007
    Location:
    Chicagoland Suburbs
    #12
    You should be ready to install OS X now. Click on the "Disk Utility" menu at the top of the screen and "Quit Disk Utility". This should bring you back to your installer screen where you can select the disk you just formatted and get started!

  13. flopticalcube macrumors G4

    flopticalcube

    Joined:
    Sep 7, 2006
    Location:
    In the velcro closure of America's Hat
    #13
    Now that you have created an OSX partition, it should show up in Select a Destination panel.

  14. CLUELESSPCUSER thread starter macrumors newbie

    Joined:
    Feb 3, 2010
    #14
    ok it shows up BUT it has a red stop sign with an exclamation point in it and below it it says "Installing this software requires 15.5 GB of free space. Then below that is another stop sign and it says "You cannot install Mac OS X on this volume. Mac OS X cannot start up from this volume."

  15. CLUELESSPCUSER thread starter macrumors newbie

    Joined:
    Feb 3, 2010
    #16
    OK.......thanks for the screen prints......I am on that screen and for some odd reason I dont have the "Option" button.......just the other ones.....

  16. jdmlight macrumors regular

    Joined:
    Jul 15, 2007
    Location:
    Chicagoland Suburbs
    #17
    Are you sure you clicked on the "Partition" tab at the top (circled in red)? If you did and the "Options..." button isn't showing up that is certainly strange...

  17. CLUELESSPCUSER thread starter macrumors newbie

    Joined:
    Feb 3, 2010
    #18

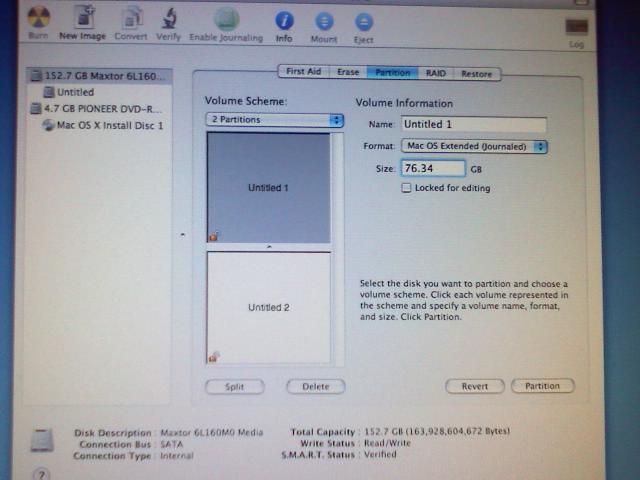

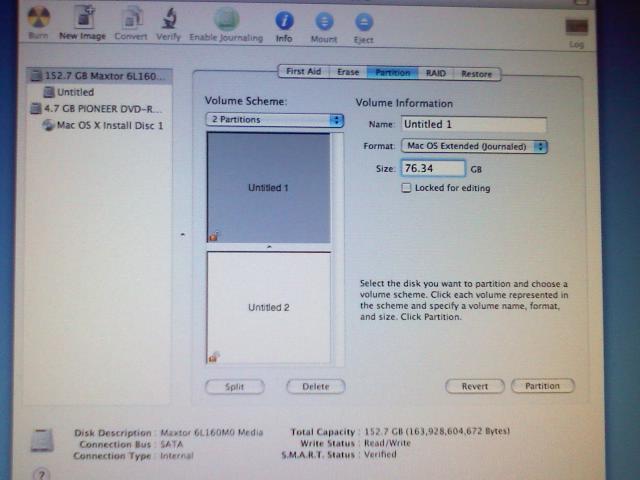

    I PROMISE I DID.........I have attached a pic......hope it helps....


    Attached Files:

  18. JediMeister macrumors 68040

    Joined:
    Oct 9, 2008
    #19
    You need to change the Volume Scheme to 1 Partition, the Options button should show up between Revert and Delete. From Options you should then be able to choose the partition scheme, which as jdmlight posted, should be GUID Partition Table. Once the format is complete, go through the installation to the last screen and you should be able to put Mac OS X back onto the iMac.
