Need technical help/explanation

Discussion in 'Digital Photography' started by kallisti, Mar 17, 2014.

  1. kallisti, Mar 17, 2014
    Last edited: Mar 17, 2014

    kallisti macrumors 65816

    kallisti

    Joined:
    Apr 22, 2003
    #1
    I was creating a "teaching" series in reply to a thread and noticed something wonky that I can't explain.

    Took 3 images at the same exposure/camera settings but with different body/lens combinations. While the exposure was identical for all settings between the photos, the histograms weren't. They were all shot outside at nearly the same time, but the light did change slightly between photos. Possible I need to repeat this indoors under controlled light. But I was a little surprised by this.

    Below are screenshots from LR5. The tint is off between the 3 examples since I was attempting to make the WB roughly equal. The histograms are roughly equal between the 3, but note the changes I had to make in the exposure slider to achieve this.

    [​IMG]

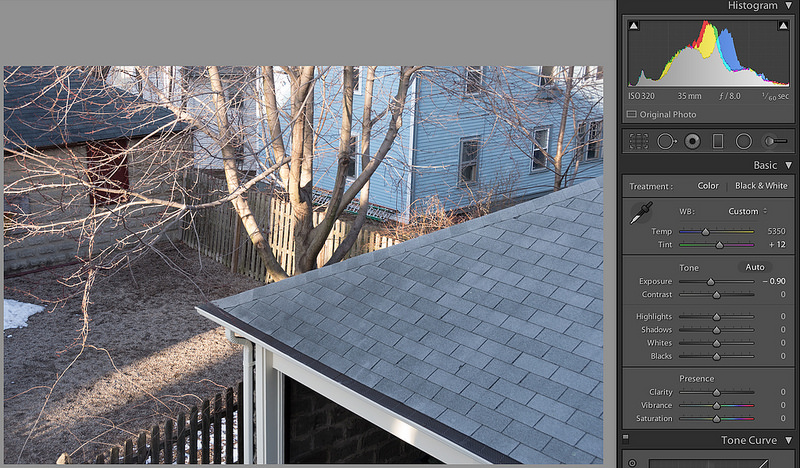

    Nikon D3100 and 18-200 lens. -0.90 stop to achieve the same histogram as the second image.

    [​IMG]

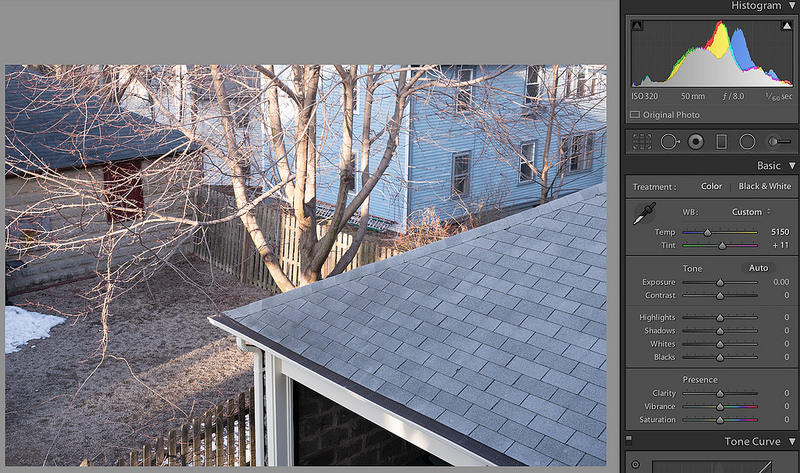

    Nikon D800 and 24-70 lens.

    [​IMG]

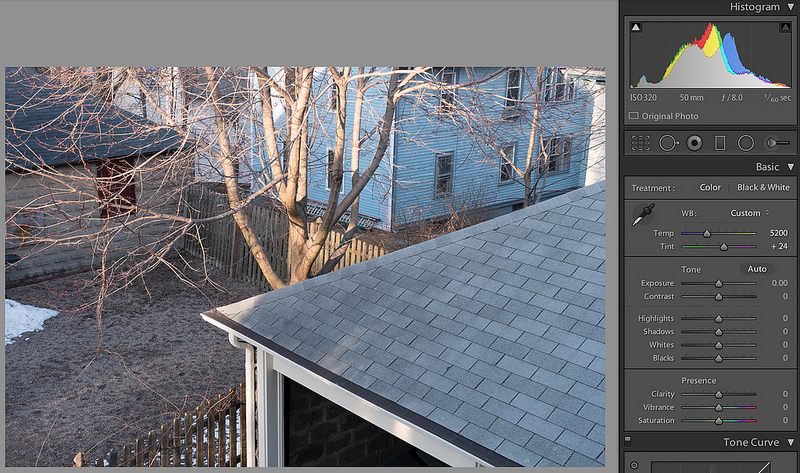

    Leica M (240) and 50mm f/1.4 lens. -0.20 stop to achieve the same histogram as the second image.

    I usually avoid "technical" posts like this. It's about the image and not pixel-peeping. But I found it weird that the D3100 and 18-200 lens produced such a radically different histogram compared to the other two (off by almost a full stop despite identical exposure settings).

    The light didn't change by *that* much between shots. Here are the first and last photos without any exposure adjustment.

    [​IMG]

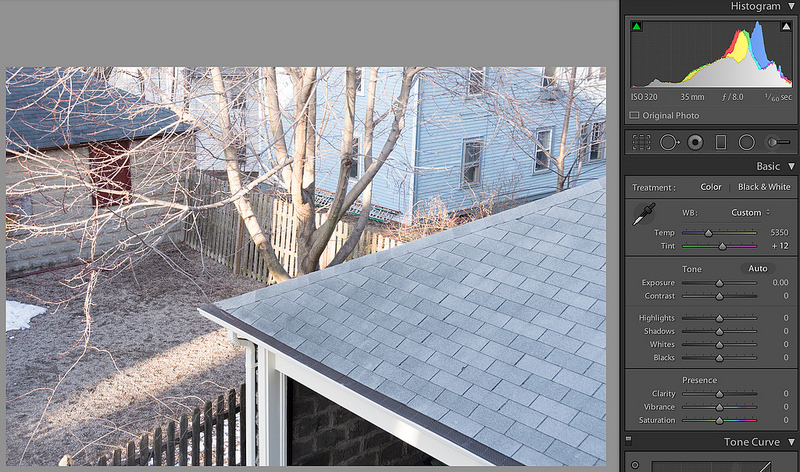

    D3100 and 18-200

    [​IMG]
    Leica M (240) and 50mm f/1.4.

    For these latter two the light was almost the same (note the shadows on the fence, though there is a swath of brighter ground different between the two).

    Am I missing something obvious? Does this reflect a difference in the quality of the lenses (my working assumption)? Body issue? Sensor issue? Something else?

  2. Phrasikleia macrumors 601

    Phrasikleia

    Joined:
    Feb 24, 2008
    Location:
    Over there------->
    #2
    Some lenses have better light transmission properties than others (known as the "T-Stop" of a lens). So it is absolutely possible to get different histograms from the same exposure settings with different lenses.

    For example, the Tokina 11-16mm f/2.8 has a T-Stop that is 1.1 stops worse than the Tokina 12-24mm f/4, which pretty much negates the benefits of the 'faster' aperture for most purposes.

  3. twitch31 macrumors regular

    Joined:
    Feb 12, 2013
    #3
    As well as T-stop, I think the difference in light on the ground and the fence are significant. At this time of day the light intensity changes (over 30 minutes say) more quickly than, say, at midday.

  4. kallisti thread starter macrumors 65816

    kallisti

    Joined:
    Apr 22, 2003
    #4
    Thanks to both of you for the quick replies. I learned something today :)

  5. needfx macrumors 68040

    needfx

    Joined:
    Aug 10, 2010
    Location:
    macrumors apparently
    #5
    :eek: Phrasikleia should start giving online seminars somewhere on MR

  6. acearchie macrumors 68040

    acearchie

    Joined:
    Jan 15, 2006
    #6
    ISO values will also not be completely the same between the cameras.

    Although they will be similar, like F-stop versus T-stop there will some variation between brands and lenses.

  7. phrehdd macrumors 68040

    phrehdd

    Joined:
    Oct 25, 2008
    #7
    As the others quickly pointed out (and rightfully so) that lenses do make a difference. As well, a good exercise would be to take one camera, shoot at different ISO values and see how the histogram looks. Chances are that there will be some differences.

    Not all default settings in cameras will be the same. This is the other side of the lens differences.

    Items such as white balance may be different, particular colour sensitivity and more can ultimately lead to different histogram variations.

    Beyond the challenge of the lenses, to get more similar histograms, you would have to calibrate your cameras that you are using to get the histograms more in line with one another.

  8. Phrasikleia macrumors 601

    Phrasikleia

    Joined:
    Feb 24, 2008
    Location:
    Over there------->
    #8
    Haha. If such a thing even existed, I'd be happy to participate. At the very least, it would be nice way to 'meet' some of the forum members here. :)

  9. tgara macrumors 6502a

    tgara

    Joined:
    Jul 17, 2012
    Location:
    Somewhere in the Delta Quadrant
    #9
    The obvious difference is that the three represent different camera/lens combinations, albeit at the same exposure settings. But you have to also remember that each camera has different electronics packages, exposure programming, and internal image processing, so one would expect differences between cameras even at the same exposure settings and using the same lens. I know I saw a big difference in histogram patterns when I upgraded from a Canon 7D to a 5D Mark III using the same lens and the same exposure settings. The two cameras process images differently. You just learn how the camera works and adjust to it.

  10. swordio777 macrumors 6502

    Joined:
    Apr 3, 2013
    Location:
    Scotland, UK
    #10
    Great replies & advice above.

    One other thing to bear in mind is the way Lightroom processes images. In lightroom 4 and 5, the default is to use the 2012 process version. Unfortunately, it's not to be trusted. The 2012 process applies recovery to your raw images by default.

    Generally I wouldn't have a problem with an app doing this as long as you could turn it off, however all the sliders remain centered at 0 so you have no idea how much recovery has been applied to a given image.

    In a situation with changeable lighting (such as the one you were shooting in), I'd always recommend to use the 2010 process version because it will treat all files exactly the same.

    You'll notice the amount of clipping increase dramatically in all images because no recovery is being applied.

    In this instance, I honestly don't think you'll see much difference between the overall brightness of the different shots. But I thought I'd mention it because it's useful to understand exactly what each part of the chain is doing to the final image (especially when you're trying to educate others).

    Hope that helps.

  11. kallisti thread starter macrumors 65816

    kallisti

    Joined:
    Apr 22, 2003
    #11
    Thanks to everyone for the very helpful replies. Greatly appreciated :)
