New Logic board same problem. HELP!!!

Discussion in 'MacBook Pro' started by ugosage, Mar 20, 2013.

  1. ugosage macrumors newbie

    Joined:
    Mar 20, 2013
    #1
    I have a MacBook Pro 15 inch 2010

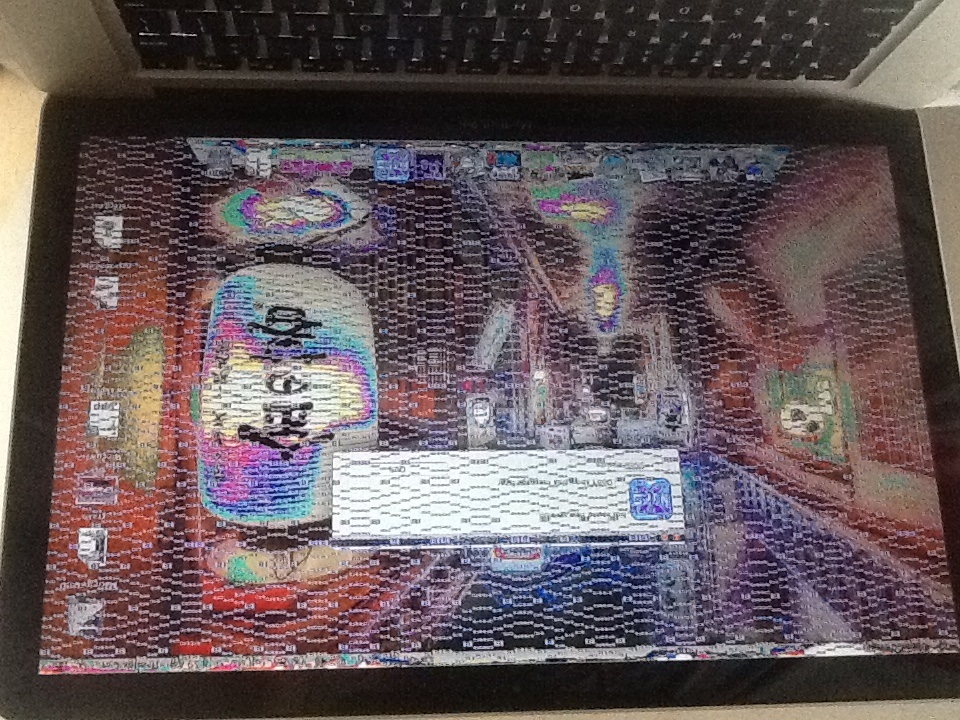

    I got the logic board and hard drive replace by apple but when I got it back the very next day I got a kernel panic error and the day after that the screen got lines in it. I was wondering if any one can read this kernel panic report for me
    THANKS

    Interval Since Last Panic Report: 19916 sec
    Panics Since Last Report: 1
    Anonymous UUID: 62C60E41-10EC-79E1-0919-7282B5C05E36

    Sat Mar 16 08:26:34 2013
    Panic(CPU 0): Unresponsive processor (this CPU did not acknowledge interrupts) TLB state:0x0
    RAX: 0x0000000000000000, RBX: 0xffffff80290ea004, RCX: 0x0000000000008a5b, RDX: 0x0000000000054820
    RSP: 0xffffff80985234a8, RBP: 0xffffff8098523590, RSI: 0x0000000000000000, RDI: 0xffffff80bc3c0548
    R8: 0xffffff80bc3b1000, R9: 0xffffff80985231d4, R10: 0x0000000000ffffff, R11: 0x0000000000000000
    R12: 0xffffff8029100004, R13: 0x0000000000000001, R14: 0xffffff8029101004, R15: 0x0000000000000000
    RFL: 0x0000000000000002, RIP: 0xffffff801becc6a0, CS: 0x0000000000000008, SS: 0x0000000000000010
    Backtrace (CPU 0), Frame : Return Address
    0xffffff808bf44f50 : 0xffffff801bebd721
    0xffffff808bf44f80 : 0xffffff801beb74c3
    0xffffff808bf44fd0 : 0xffffff801becd698
    0xffffff8098523590 : 0xffffff7f9c9549a6
    0xffffff8098523600 : 0xffffff7f9c64b81c
    0xffffff80985236a0 : 0xffffff7f9c5431f2
    0xffffff80985236d0 : 0xffffff7f9c542911
    0xffffff80985236f0 : 0xffffff7f9c543258
    0xffffff8098523730 : 0xffffff7f9c542835
    0xffffff80985237d0 : 0xffffff7f9c533aa9
    0xffffff8098523870 : 0xffffff7f9c55e1ab
    0xffffff8098523a70 : 0xffffff7f9c55f0c5
    0xffffff8098523b50 : 0xffffff7f9d6dbea6
    0xffffff8098523c20 : 0xffffff7f9d6dc037
    0xffffff8098523ce0 : 0xffffff7f9d68c22b
    0xffffff8098523d10 : 0xffffff7f9d68c141
    0xffffff8098523d30 : 0xffffff7f9d68bc9a
    0xffffff8098523d60 : 0xffffff7f9d68d279
    0xffffff8098523e90 : 0xffffff7f9d67a450
    0xffffff8098523eb0 : 0xffffff7f9d6b488a
    0xffffff8098523ed0 : 0xffffff7f9d6b49b7
    0xffffff8098523ef0 : 0xffffff801c2467a8
    0xffffff8098523f30 : 0xffffff801c2452aa
    0xffffff8098523f80 : 0xffffff801c2453d9
    0xffffff8098523fb0 : 0xffffff801beb2977
    Kernel Extensions in backtrace:
    com.apple.NVDAResman(8.1)[A26D2A3D-C06F-3A0F-BCFF-901A98C93C3D]@0xffffff7f9c4fb000->0xffffff7f9c808fff
    dependency: com.apple.iokit.IOPCIFamily(2.7.3)[1D668879-BEF8-3C58-ABFE-FAC6B3E9A292]@0xffffff7f9c466000
    dependency: com.apple.iokit.IONDRVSupport(2.3.7)[38C214C0-83C8-3594-8A4C-DC6AC3FEC163]@0xffffff7f9c4e7000
    dependency: com.apple.iokit.IOGraphicsFamily(2.3.7)[74E3E50F-E50A-3073-8C96-06F854292A91]@0xffffff7f9c4a4000
    com.apple.GeForce(8.1)[A15BB65E-3501-340F-87CB-2FD2BAD33E35]@0xffffff7f9d654000->0xffffff7f9d720fff
    dependency: com.apple.NVDAResman(8.1.0)[A26D2A3D-C06F-3A0F-BCFF-901A98C93C3D]@0xffffff7f9c4fb000
    dependency: com.apple.iokit.IONDRVSupport(2.3.7)[38C214C0-83C8-3594-8A4C-DC6AC3FEC163]@0xffffff7f9c4e7000
    dependency: com.apple.iokit.IOPCIFamily(2.7.3)[1D668879-BEF8-3C58-ABFE-FAC6B3E9A292]@0xffffff7f9c466000
    dependency: com.apple.iokit.IOGraphicsFamily(2.3.7)[74E3E50F-E50A-3073-8C96-06F854292A91]@0xffffff7f9c4a4000
    com.apple.nvidia.nv50hal(8.1)[5F021999-8B18-3BD5-9B98-90617E638A63]@0xffffff7f9c816000->0xffffff7f9cb37fff
    dependency: com.apple.NVDAResman(8.1.0)[A26D2A3D-C06F-3A0F-BCFF-901A98C93C3D]@0xffffff7f9c4fb000
    dependency: com.apple.iokit.IOPCIFamily(2.7.3)[1D668879-BEF8-3C58-ABFE-FAC6B3E9A292]@0xffffff7f9c466000

    BSD process name corresponding to current thread: kernel_task

    Mac OS version:
    12D78

    Kernel version:
    Darwin Kernel Version 12.3.0: Sun Jan 6 22:37:10 PST 2013; root:xnu-2050.22.13~1/RELEASE_X86_64
    Kernel UUID: 3EB7D8A7-C2D3-32EC-80F4-AB37D61492C6
    Kernel slide: 0x000000001bc00000
    Kernel text base: 0xffffff801be00000
    System model name: MacBookPro6,2 (Mac-F22586C8)

    System uptime in nanoseconds: 99714687378
    last loaded kext at 22363950628: com.apple.driver.AudioAUUC 1.60 (addr 0xffffff7f9d905000, size 32768)
    loaded kexts:
    at.obdev.nke.LittleSnitch 3908
    com.apple.driver.AudioAUUC 1.60
    com.apple.driver.AppleHWSensor 1.9.5d0
    com.apple.driver.AppleTyMCEDriver 1.0.2d2
    com.apple.driver.AGPM 100.12.87
    com.apple.driver.AppleMikeyHIDDriver 122
    com.apple.driver.AppleHDAHardwareConfigDriver 2.3.7fc4
    com.apple.driver.AppleHDA 2.3.7fc4
    com.apple.driver.AppleMikeyDriver 2.3.7fc4
    com.apple.driver.AppleSMCLMU 2.0.3d0
    com.apple.driver.ACPI_SMC_PlatformPlugin 1.0.0
    com.apple.iokit.IOBluetoothUSBDFU 4.1.3f3
    com.apple.iokit.BroadcomBluetoothHCIControllerUSBTransport 4.1.3f3
    com.apple.iokit.IOUserEthernet 1.0.0d1
    com.apple.iokit.IOBluetoothSerialManager 4.1.3f3
    com.apple.Dont_Steal_Mac_OS_X 7.0.0
    com.apple.filesystems.autofs 3.0
    com.apple.GeForce 8.1.0
    com.apple.driver.AppleUpstreamUserClient 3.5.10
    com.apple.driver.AppleSMCPDRC 1.0.0
    com.apple.nvidia.NVDAStartup 8.1.0
    com.apple.driver.AppleIntelHDGraphics 8.1.0
    com.apple.driver.AppleLPC 1.6.0
    com.apple.driver.AppleMuxControl 3.3.0
    com.apple.driver.AppleBacklight 170.2.5
    com.apple.driver.AppleMCCSControl 1.1.11
    com.apple.driver.ApplePolicyControl 3.3.0
    com.apple.driver.AppleIntelHDGraphicsFB 8.1.0
    com.apple.driver.SMCMotionSensor 3.0.3d1
    com.apple.driver.AppleUSBTCButtons 237.1
    com.apple.driver.AppleFileSystemDriver 3.0.1
    com.apple.AppleFSCompression.AppleFSCompressionTypeDataless 1.0.0d1
    com.apple.AppleFSCompression.AppleFSCompressionTypeZlib 1.0.0d1
    com.apple.BootCache 34
    com.apple.driver.AppleUSBCardReader 3.1.7
    com.apple.driver.AppleUSBTCKeyEventDriver 237.1
    com.apple.driver.AppleUSBTCKeyboard 237.1
    com.apple.driver.AppleIRController 320.15
    com.apple.iokit.SCSITaskUserClient 3.5.5
    com.apple.driver.XsanFilter 404
    com.apple.iokit.IOAHCIBlockStorage 2.3.1
    com.apple.driver.AirPort.Brcm4331 614.20.16
    com.apple.driver.AppleFWOHCI 4.9.6
    com.apple.driver.AppleAHCIPort 2.5.1
    com.apple.driver.AppleUSBHub 5.5.5
    com.apple.iokit.AppleBCM5701Ethernet 3.6.0b1
    com.apple.driver.AppleUSBEHCI 5.5.0
    com.apple.driver.AppleUSBUHCI 5.2.5
    com.apple.driver.AppleSmartBatteryManager 161.0.0
    com.apple.driver.AppleRTC 1.5
    com.apple.driver.AppleACPIButtons 1.7
    com.apple.driver.AppleEFINVRAM 1.7
    com.apple.driver.AppleHPET 1.8
    com.apple.driver.AppleSMBIOS 1.9
    com.apple.driver.AppleACPIEC 1.7
    com.apple.driver.AppleAPIC 1.6
    com.apple.driver.AppleIntelCPUPowerManagementClient 196.0.0
    com.apple.nke.applicationfirewall 4.0.39
    com.apple.security.quarantine 2
    com.apple.driver.AppleIntelCPUPowerManagement 196.0.0
    com.apple.driver.DspFuncLib 2.3.7fc4
    com.apple.iokit.IOAudioFamily 1.8.9fc11
    com.apple.kext.OSvKernDSPLib 1.6
    com.apple.driver.AppleHDAController 2.3.7fc4
    com.apple.iokit.IOHDAFamily 2.3.7fc4
    com.apple.driver.IOPlatformPluginLegacy 1.0.0
    com.apple.iokit.AppleBluetoothHCIControllerUSBTransport 4.1.3f3
    com.apple.iokit.IOFireWireIP 2.2.5
    com.apple.iokit.IOSurface 86.0.4
    com.apple.iokit.IOSerialFamily 10.0.6
    com.apple.iokit.IOBluetoothFamily 4.1.3f3
    com.apple.driver.AppleSMBusPCI 1.0.11d0
    com.apple.kext.triggers 1.0
    com.apple.nvidia.nv50hal 8.1.0
    com.apple.NVDAResman 8.1.0
    com.apple.driver.IOPlatformPluginFamily 5.3.0d51
    com.apple.driver.AppleBacklightExpert 1.0.4
    com.apple.driver.AppleSMBusController 1.0.11d0
    com.apple.driver.AppleGraphicsControl 3.3.0
    com.apple.iokit.IONDRVSupport 2.3.7
    com.apple.iokit.IOGraphicsFamily 2.3.7
    com.apple.driver.AppleSMC 3.1.4d2
    com.apple.iokit.IOSCSIBlockCommandsDevice 3.5.5
    com.apple.iokit.IOUSBMassStorageClass 3.5.1
    com.apple.driver.AppleUSBMultitouch 237.3
    com.apple.iokit.IOUSBHIDDriver 5.2.5
    com.apple.driver.AppleUSBMergeNub 5.5.5
    com.apple.driver.AppleUSBComposite 5.2.5
    com.apple.iokit.IOSCSIMultimediaCommandsDevice 3.5.5
    com.apple.iokit.IOBDStorageFamily 1.7
    com.apple.iokit.IODVDStorageFamily 1.7.1
    com.apple.iokit.IOCDStorageFamily 1.7.1
    com.apple.iokit.IOAHCISerialATAPI 2.5.1
    com.apple.iokit.IOSCSIArchitectureModelFamily 3.5.5
    com.apple.iokit.IO80211Family 522.4
    com.apple.iokit.IOFireWireFamily 4.5.5
    com.apple.iokit.IOAHCIFamily 2.3.1
    com.apple.iokit.IOUSBUserClient 5.5.5
    com.apple.iokit.IOEthernetAVBController 1.0.2b1
    com.apple.iokit.IONetworkingFamily 3.0
    com.apple.iokit.IOUSBFamily 5.5.5
    com.apple.iokit.IOHIDFamily 1.8.1
    com.apple.driver.AppleEFIRuntime 1.7
    com.apple.iokit.IOSMBusFamily 1.1
    com.apple.security.sandbox 220.2
    com.apple.kext.AppleMatch 1.0.0d1
    com.apple.security.TMSafetyNet 7
    com.apple.driver.DiskImages 345
    com.apple.iokit.IOStorageFamily 1.8
    com.apple.driver.AppleKeyStore 28.21
    com.apple.driver.AppleACPIPlatform 1.7
    com.apple.iokit.IOPCIFamily 2.7.3
    com.apple.iokit.IOACPIFamily 1.4
    com.apple.kec.corecrypto 1.0
    Panic(CPU 1): Unresponsive processor (this CPU did not acknowledge interrupts) TLB state:0x0
    RAX: 0x0000000000000006, RBX: 0xffffff8027692000, RCX: 0x0000000000000000, RDX: 0x0000000000000000
    RSP: 0xffffff80984cbe90, RBP: 0xffffff80984cbed0, RSI: 0x0000000000000000, RDI: 0x0000000000000000
    R8: 0xffffff8091fad078, R9: 0xffffffffffffffff, R10: 0x00000000ffffffff, R11: 0x00000000ffffff80
    R12: 0x00000000276ac9ad, R13: 0xffffff80276c5500, R14: 0xffffff8027680180, R15: 0x0000000000000000
    RFL: 0x0000000000000082, RIP: 0xffffff801becc6a2, CS: 0x0000000000000008, SS: 0x0000000000000000
    Backtrace (CPU 1), Frame : Return Address
    0xffffff8092042f50 : 0xffffff801bebd721
    0xffffff8092042f80 : 0xffffff801beb74c3
    0xffffff8092042fd0 : 0xffffff801becd698
    0xffffff80984cbed0 : 0xffffff7f9cd71ee7
    0xffffff80984cbf00 : 0xffffff7f9cd70589
    0xffffff80984cbf20 : 0xffffff801c24934a
    0xffffff80984cbf60 : 0xffffff801be3dcfe
    0xffffff80984cbfb0 : 0xffffff801beb2977
    Kernel Extensions in backtrace:
    com.apple.iokit.IOUSBFamily(5.5.5)[A276B40E-978D-3623-93D3-8621B3CEECFC]@0xffffff7f9cd50000->0xffffff7f9cdabfff
    dependency: com.apple.iokit.IOPCIFamily(2.7.3)[1D668879-BEF8-3C58-ABFE-FAC6B3E9A292]@0xffffff7f9c466000

    BSD process name corresponding to current thread: kernel_task
    panic(cpu 2 caller 0xffffff801be9dddb): "TLB invalidation IPI timeout: " "CPU(s) failed to respond to interrupts, unresponsive CPU bitmap: 0x3, NMIPI acks: orig: 0x0, now: 0x2"@/SourceCache/xnu/xnu-2050.22.13/osfmk/x86_64/pmap.c:2337
    Backtrace (CPU 2), Frame : Return Address
    0xffffff8097b3b9d0 : 0xffffff801be1d626
    0xffffff8097b3ba40 : 0xffffff801be9dddb
    0xffffff8097b3bac0 : 0xffffff801bea25f0
    0xffffff8097b3bb80 : 0xffffff801bea2e25
    0xffffff8097b3bbd0 : 0xffffff801be66abc
    0xffffff8097b3bcc0 : 0xffffff801be6cce2
    0xffffff8097b3bdc0 : 0xffffff801be1a50b
    0xffffff8097b3be50 : 0xffffff801be4fa80
    0xffffff8097b3be80 : 0xffffff801be20aed
    0xffffff8097b3beb0 : 0xffffff801be10448
    0xffffff8097b3bf00 : 0xffffff801be1961b
    0xffffff8097b3bf70 : 0xffffff801bea5dd6
    0xffffff8097b3bfb0 : 0xffffff801becdd43

    BSD process name corresponding to current thread: System Preferenc
    Model: MacBookPro6,2, BootROM MBP61.0057.B0F, 2 processors, Intel Core i7, 2.66 GHz, 4 GB, SMC 1.58f17
    Graphics: Intel HD Graphics, Intel HD Graphics, Built-In, 288 MB
    Graphics: NVIDIA GeForce GT 330M, NVIDIA GeForce GT 330M, PCIe, 512 MB
    Memory Module: BANK 0/DIMM0, 2 GB, DDR3, 1067 MHz, 0x802C, 0x31364A53463235363634485A2D3147314631
    Memory Module: BANK 1/DIMM0, 2 GB, DDR3, 1067 MHz, 0x802C, 0x31364A53463235363634485A2D3147314631
    AirPort: spairport_wireless_card_type_airport_extreme (0x14E4, 0x93), Broadcom BCM43xx 1.0 (5.106.98.100.16)
    Bluetooth: Version 4.1.3f3 11349, 2 service, 18 devices, 1 incoming serial ports
    Serial ATA Device: TOSHIBA MK5065GSXF, 500.11 GB
    Serial ATA Device: MAT****ADVD-R UJ-898
    USB Device: hub_device, 0x0424 (SMSC), 0x2514, 0xfa100000 / 2
    USB Device: Internal Memory Card Reader, apple_vendor_id, 0x8403, 0xfa130000 / 5
    USB Device: BRCM2070 Hub, 0x0a5c (Broadcom Corp.), 0x4500, 0xfa110000 / 4
    USB Device: Bluetooth USB Host Controller, apple_vendor_id, 0x8218, 0xfa113000 / 8
    USB Device: Apple Internal Keyboard / Trackpad, apple_vendor_id, 0x0236, 0xfa120000 / 3
    USB Device: hub_device, 0x0424 (SMSC), 0x2514, 0xfd100000 / 2
    USB Device: Built-in iSight, apple_vendor_id, 0x8507, 0xfd110000 / 4
    USB Device: IR Receiver, apple_vendor_id, 0x8242, 0xfd120000 / 3


    Attached Files:

  2. Blondie :) macrumors 6502a

    Blondie :)

    Joined:
    May 12, 2010
    Location:
    Prescott, AZ
    #2
    It's probably your RAM. I had the exact same issue a while back. I'd be doing something processor/GPU intensive, and after a while the machine would freeze. My screen would look essentially the same as yours. I had the logic board replaced, but to no avail.

    Turns out it was actually bad RAM. I found this out by running memtest on my machine. Give it a go here: http://osxdaily.com/2011/05/03/memtest-mac-ram-test/

    Run the test. If your memory is bad, the test should tell you to replace the memory. Hopefully this helps.

    ----------

    Before I forget, since you have the 2010 macbook pro, you can test via the disc that came with your MBP. I believe you can do this by inserting the disc into your computer and holding "D" on startup. However, this command will test every aspect of hardware on your machine, which could take a while.

    Just another option in case memtest doesn't work. But since you've got a brand new logic board, everything else should be fine.
