New Mac! PowerBook G4 15"- Early 2005 1.67

Discussion in 'PowerPC Macs' started by gavinstubbs09, Feb 28, 2014.

  1. gavinstubbs09, Feb 28, 2014
    Last edited: Mar 1, 2014

    gavinstubbs09 macrumors 65816

    gavinstubbs09

    Joined:
    Feb 17, 2013
    Location:
    NorCal boonies ~~~by Reno sorta
    #1

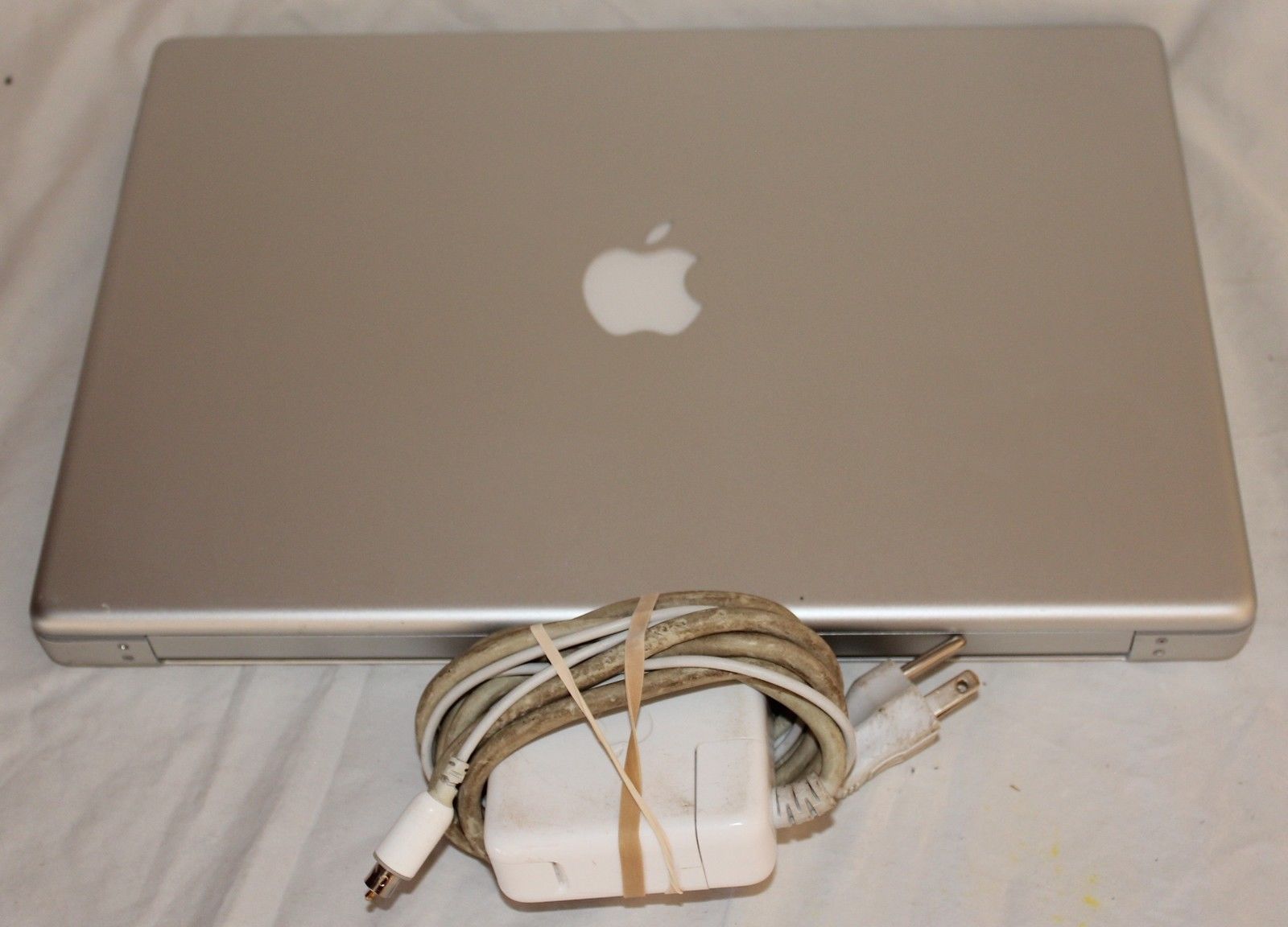

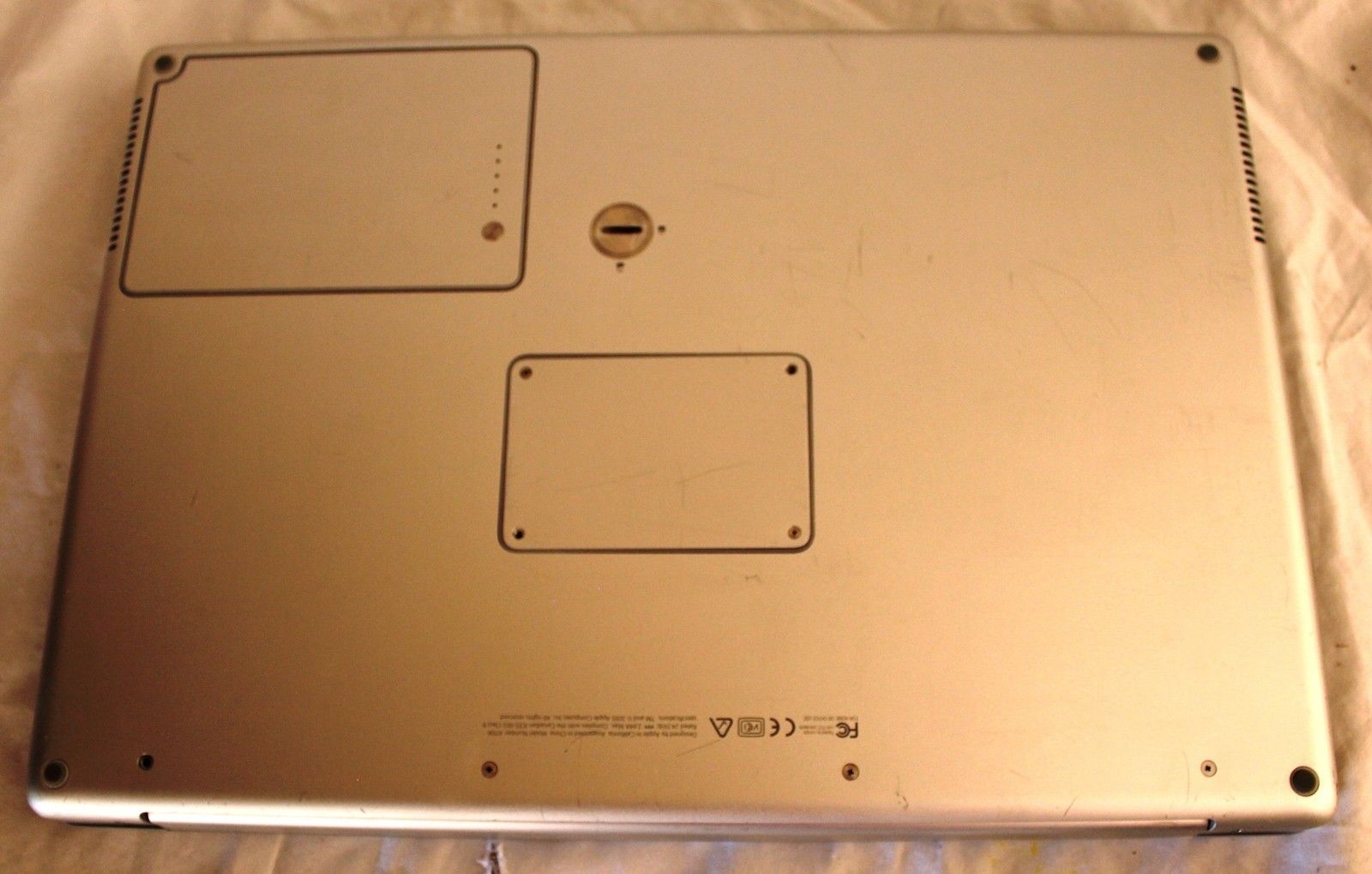

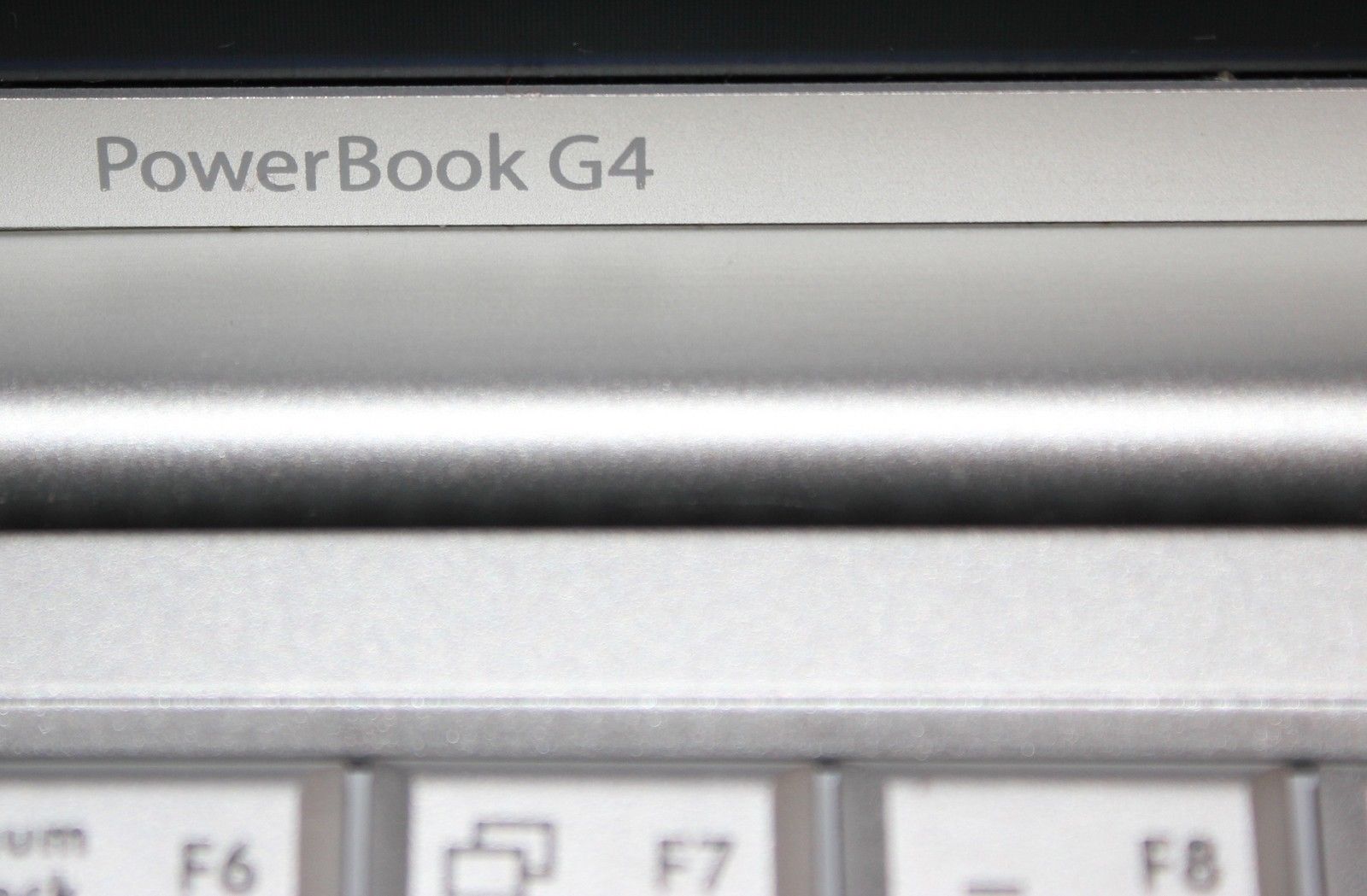

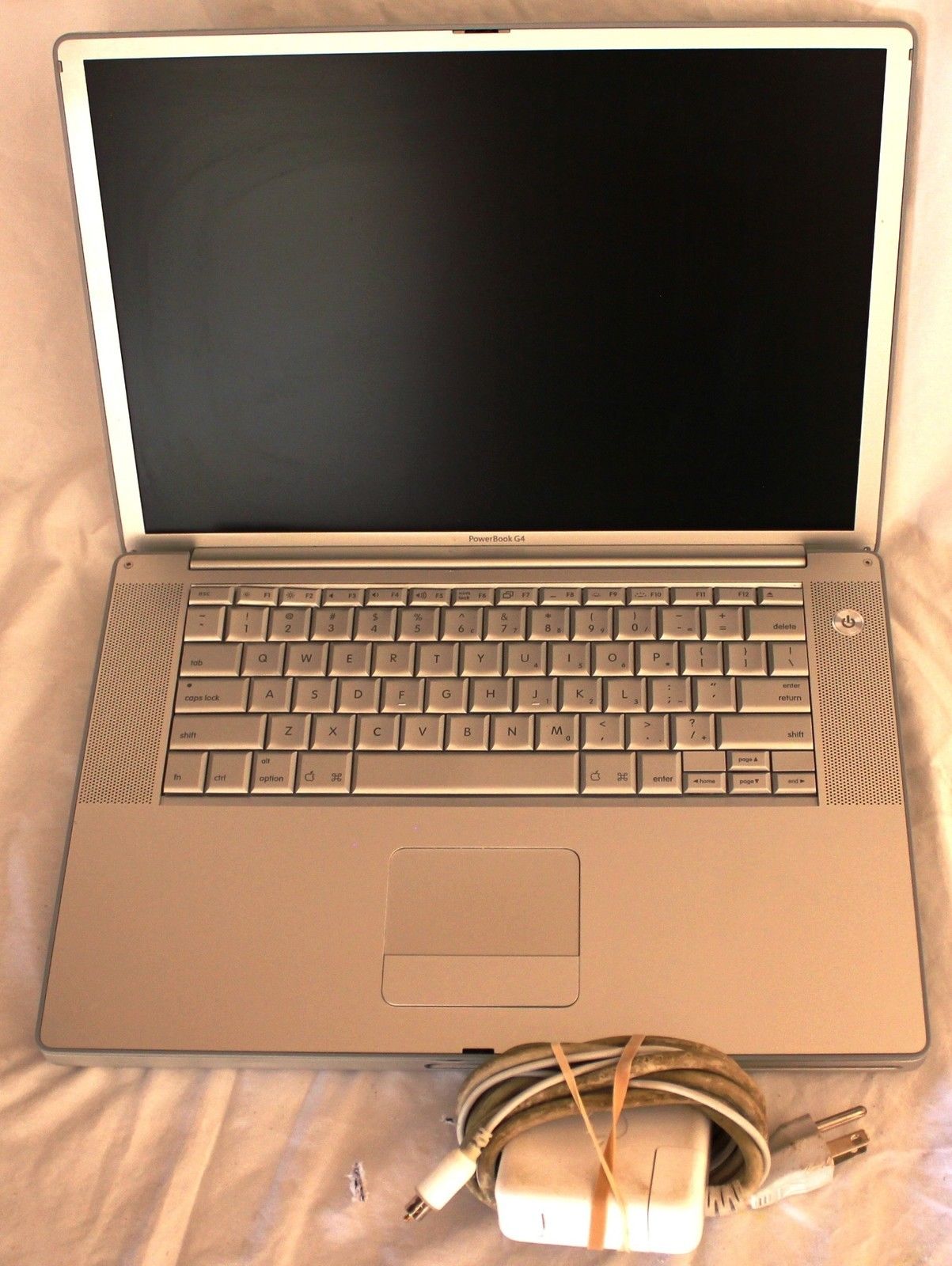

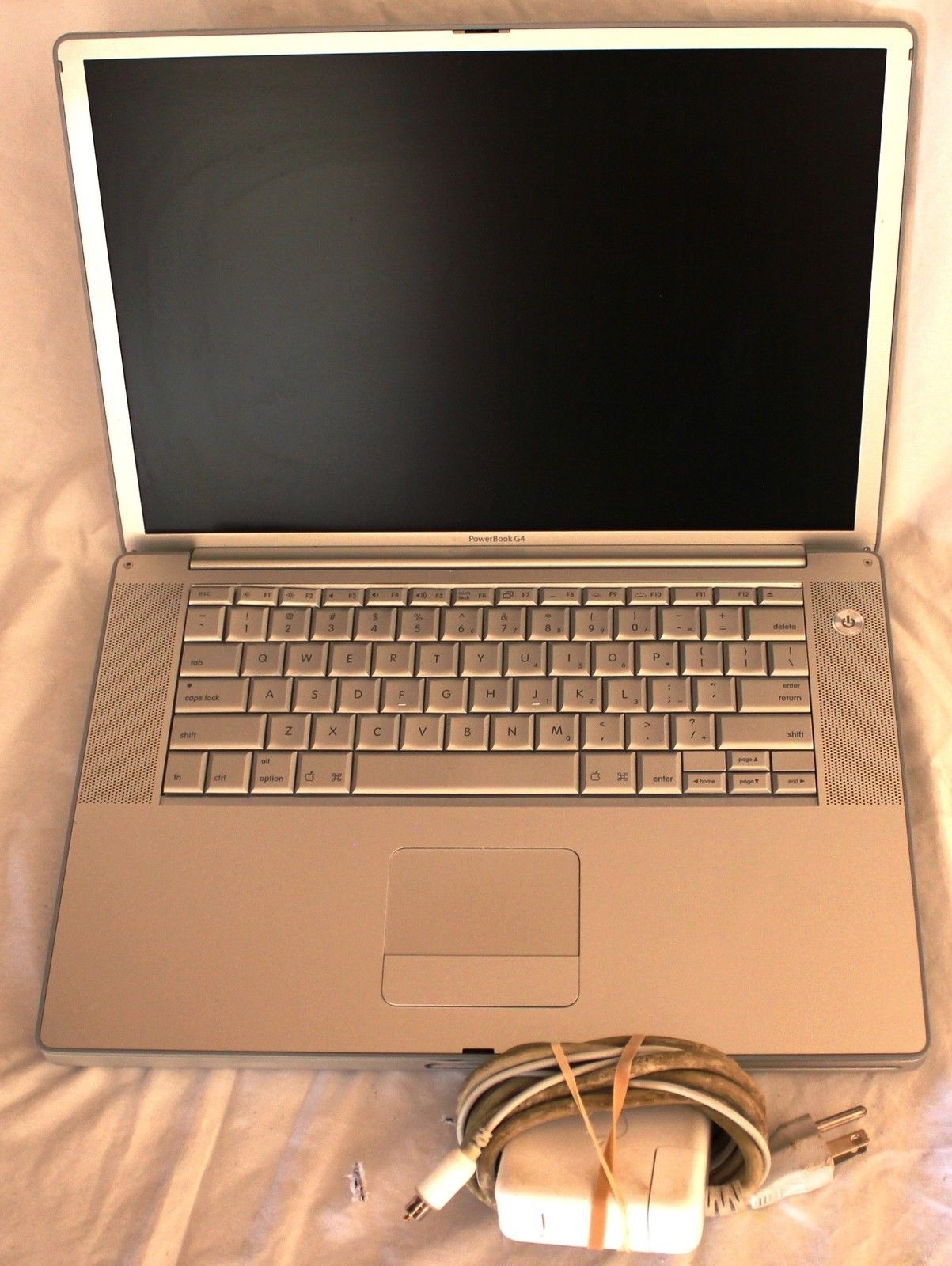

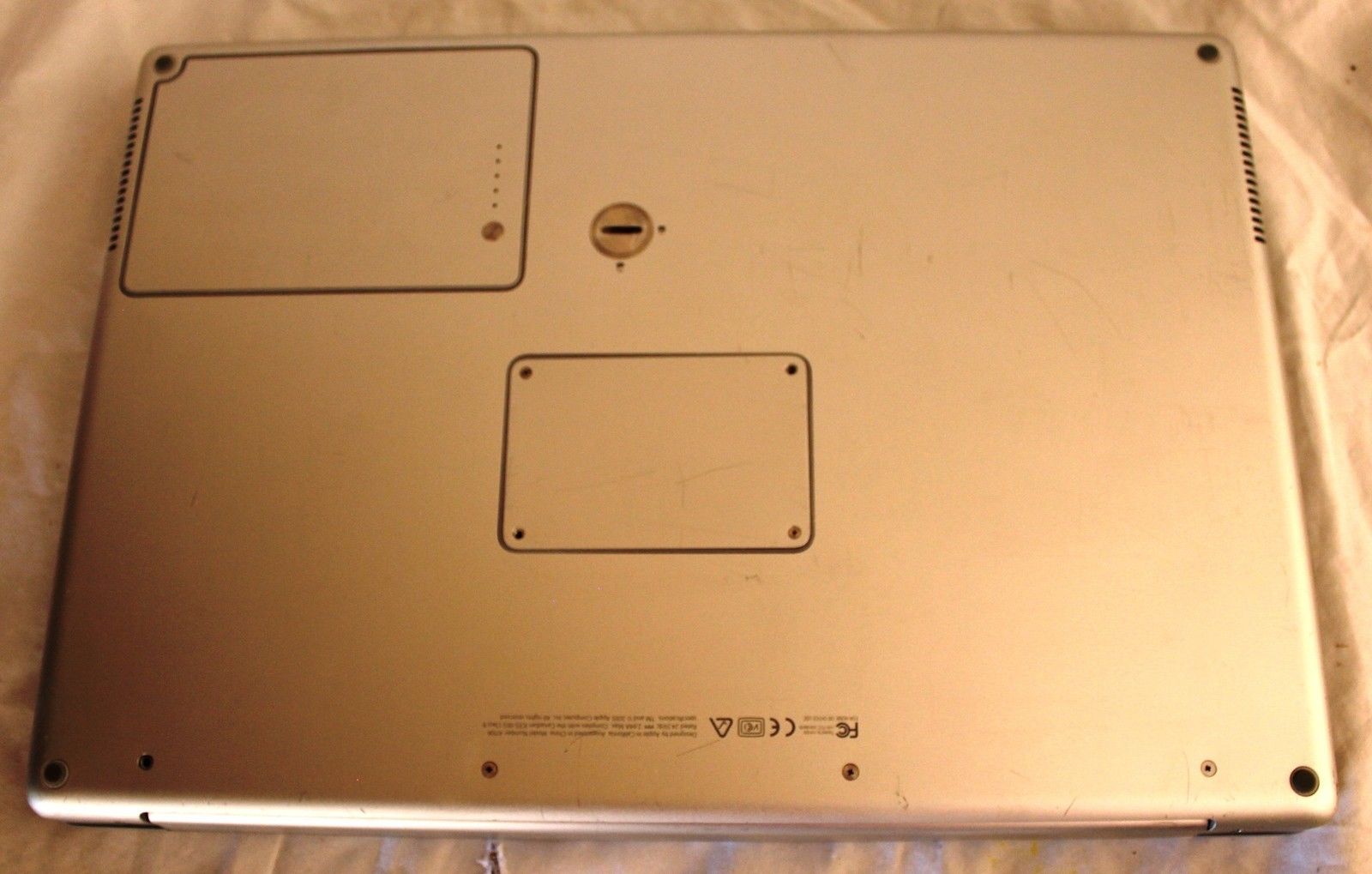

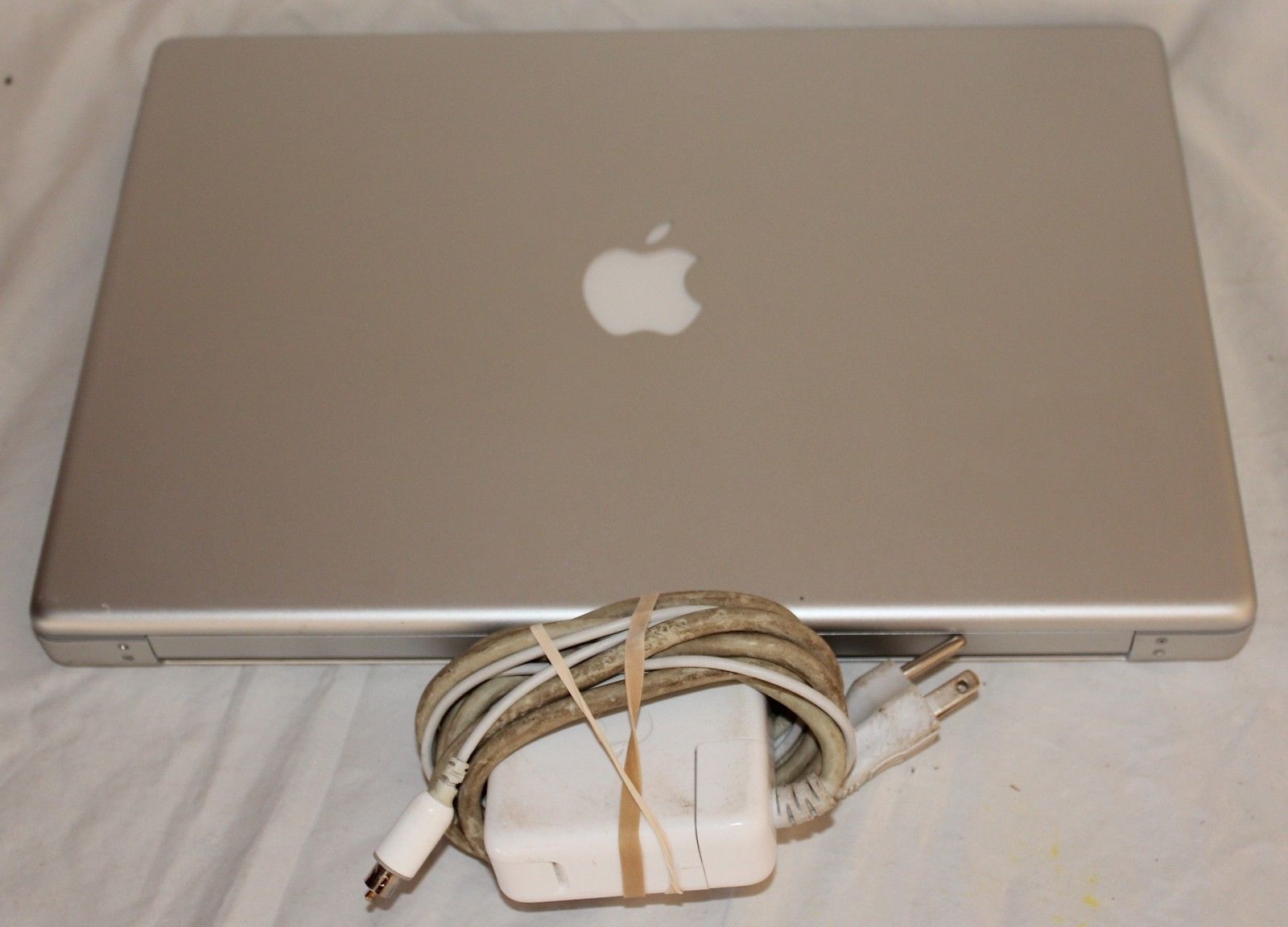

    With my sister using my MBP more than I do, and me wanting a PowerBook again I was going through ebay with a friend and came across a 15" PowerBook with the guy saying that there's no hard drive and it boots to the ? mark, so I either have to see if there is a drive in there or throw in some drive I have in the parts bin. If it's the DDR model I have 2x1GB sticks to max that out. The power adapter looks nasty but nothing a cloth can't clean :)

    No word on the serial number and I sent a message seeing if he could get it for me before it gets shipped out, but that would be luck if I came across the DLSD model!

    Ended up paying $64.94 total.

    And like Raymel, I contacted the company with the shells in hopes I can get a black one for this.

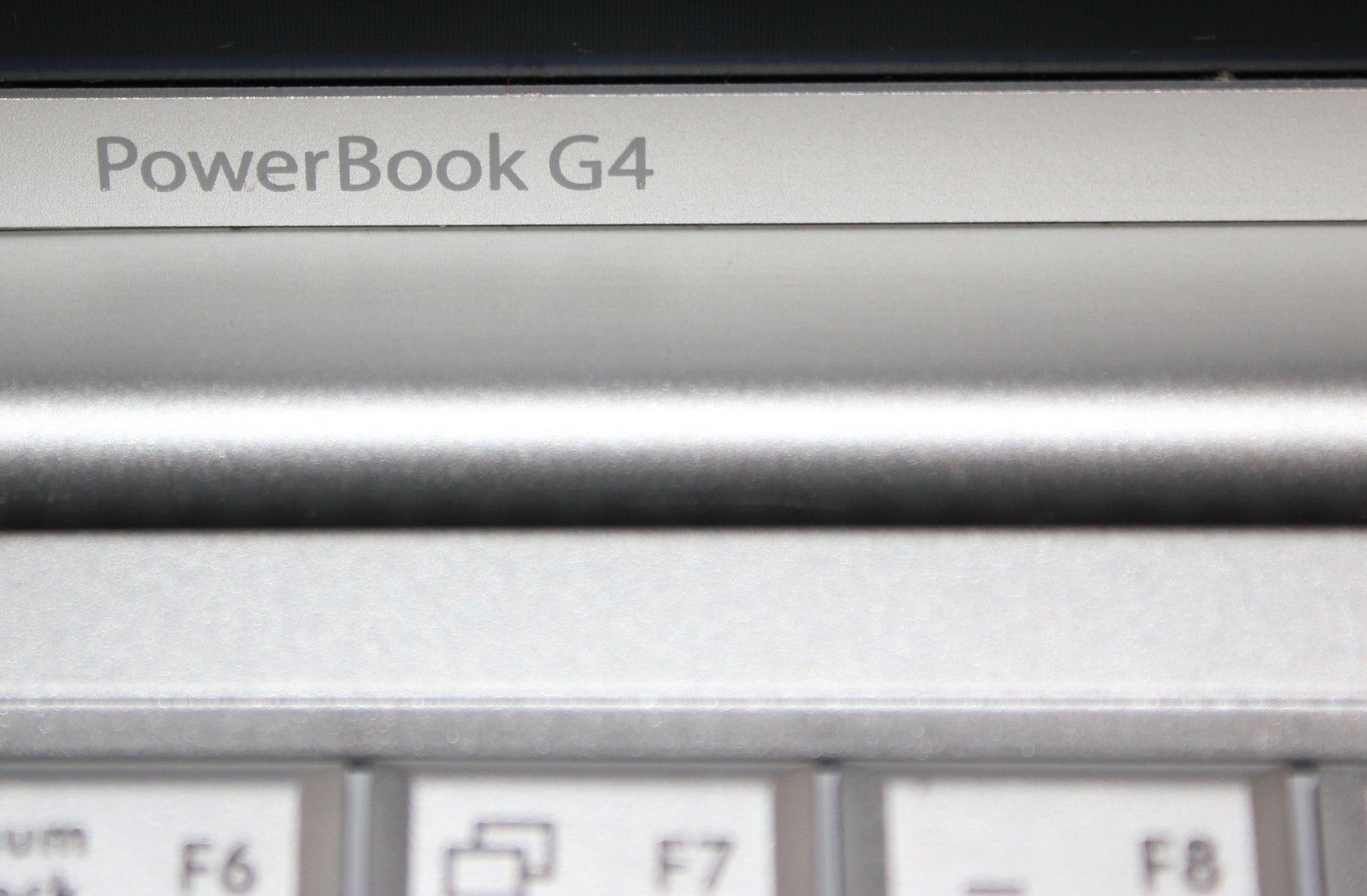

    Update! The seller was super cool and gave me the serial number. It's a Early 2005 with the 1.67GHz.


    Attached Files:

  2. noodle654 macrumors 68020

    noodle654

    Joined:
    Jun 2, 2005
    Location:
    Never Ender
    #2
    Mr. Clean magic erasers do wonders. Nice grab though!

  3. TjeuV macrumors 6502

    Joined:
    Dec 14, 2011
    Location:
    Belgium
    #3
    How I miss that keyboard though ... Sure hope you can clean that adapter because damn, it's looking nasty.

  4. AmestrisXServe macrumors 6502

    Joined:
    Feb 6, 2014
    #4
    I wouldn't fret on the dual-layer superdrive. Even if it lacks that, you can always install one, if you are that concerned over it. The Apple DL burning drives are a bit of a pain, usually slow, and prone to failure; and you would do better to buy a FW400, or FW800 burner versus the internal mechanism.

    I often run across lots of several, to dozens of PB/iBook G4 units, as 'parts/not working', and buy them, for most of the time they only lack the HDD, and it is possible for me to run them without an HDD on my Netboot network.

    If you want a valuable suggestion: Use a CF to IDE/PATA adapter with a fast 32GB, 64GB, or 128GB CF card, as an alternative to SSD modules.

    That will improve system performance, and last a jolly long time: Used IDE drives are a coin-toss, and new mechanisms above 60-80GB are often not worth the time and expense. The WD 320GB drive is still available, and is the newest, and largest HDD model that you can use in this system without a SATA bridge converter, which is hard to fit inside the system enclosure.

    Older, PATA SSDs are also expensive, and unless you want to modify one with larger NAND, the CF option is a useful alternative.

  5. Bug-Creator macrumors 6502

    Bug-Creator

    Joined:
    May 30, 2011
    Location:
    Germany
    #5
    Another option is useing a mSATA-SSD with adaptor (fits in the 2.5" no problem).

  6. Intell macrumors P6

    Intell

    Joined:
    Jan 24, 2010
    Location:
    Inside
    #6
    This is a much better option than a CompactFlash card. It'll last longer, bigger capacity, faster, and possibly cheaper.

  7. AmestrisXServe macrumors 6502

    Joined:
    Feb 6, 2014
    #7
    The reason that I do not suggest this by default, is that I have encountered problems with some ATA/SATA bridges, whereby the SATA devices are not properly recognised, or not bootable, because of some flaw in the design of the bridge host controller.

    This cost me a good deal, when I advised using them to a client at one point, as the system refused to see any drives behind the adapters.

    CF cards, are already PATA, so there is far less of a chance of this sort of problem, however, if a mSATA adapter is known to be good for boot devices on PM G3/G4 systems, then by all means, go with that option.

  8. Intell macrumors P6

    Intell

    Joined:
    Jan 24, 2010
    Location:
    Inside
    #8
    There are mainly two SATA-PATA chips on the market, the better slightly more expensive Marvell controller and the cheaper yet slightly slower Jmicron controller. Both of those work very well in PowerPC Macs without any problems. There is only one or two different mSATA to 2.5" EIDE adapters on the internet, sold on many different sites. Both of them have the same Jmicron controller in them, just oriented differently. Between the two, only one will fit in a Powerbook. Many have been used in not only my PowerPC based Macs, but others on here as well. All with great results.

  9. jrsx macrumors 65816

    jrsx

    Joined:
    Nov 2, 2013
    Location:
    Tacoma, Washington
    #9
    Great find Gavin! Black cases would look really cool on this one!

  10. AmestrisXServe macrumors 6502

    Joined:
    Feb 6, 2014
    #10

    Thank you for that: It would make some of my work a bit easier, with more peace of mind. I haven;t any idea what chipset the controllers used, on the G3/G4 conversion that I advised, but that was in 2006, and they did not work, for whatever reason. I also seem to recall that a PCI SATA card that the customer purchased, that was supposedly specified to work in Mac systems, also did not work for him.

    It made me seem like a fool, at the time, despite having done similar procedures on many other systems with success. The truth is that it cost me a good deal in terms of hours on paper, as the job was for many systems, and I couldn't ethically bill for any of it. That was around the time that I stopped doing on-site work for anyone, and was a pitiful failure of a job in my mind.

    After that, I have been wavering on this topic. I do still suggest them at times, but with the caution that the chipset may not be compatible, based on the bridgeboard. Knowing exactly what controllers to use is quite helpful, and may prove invaluable to me directly, with my own systems.

  11. Raymel macrumors newbie

    Joined:
    Feb 27, 2014
    Location:
    New England
    #11
    That's awesome; I hope they get back to you soon!

  12. OrangeSVTguy macrumors 601

    OrangeSVTguy

    Joined:
    Sep 16, 2007
    Location:
    Northeastern Ohio
    #12
    Yep :)


    Attached Files:

  13. jrsx macrumors 65816

    jrsx

    Joined:
    Nov 2, 2013
    Location:
    Tacoma, Washington
    #13
    May I ask where you acquired that adapter? :)

  14. Intell macrumors P6

    Intell

    Joined:
    Jan 24, 2010
    Location:
    Inside
    #14

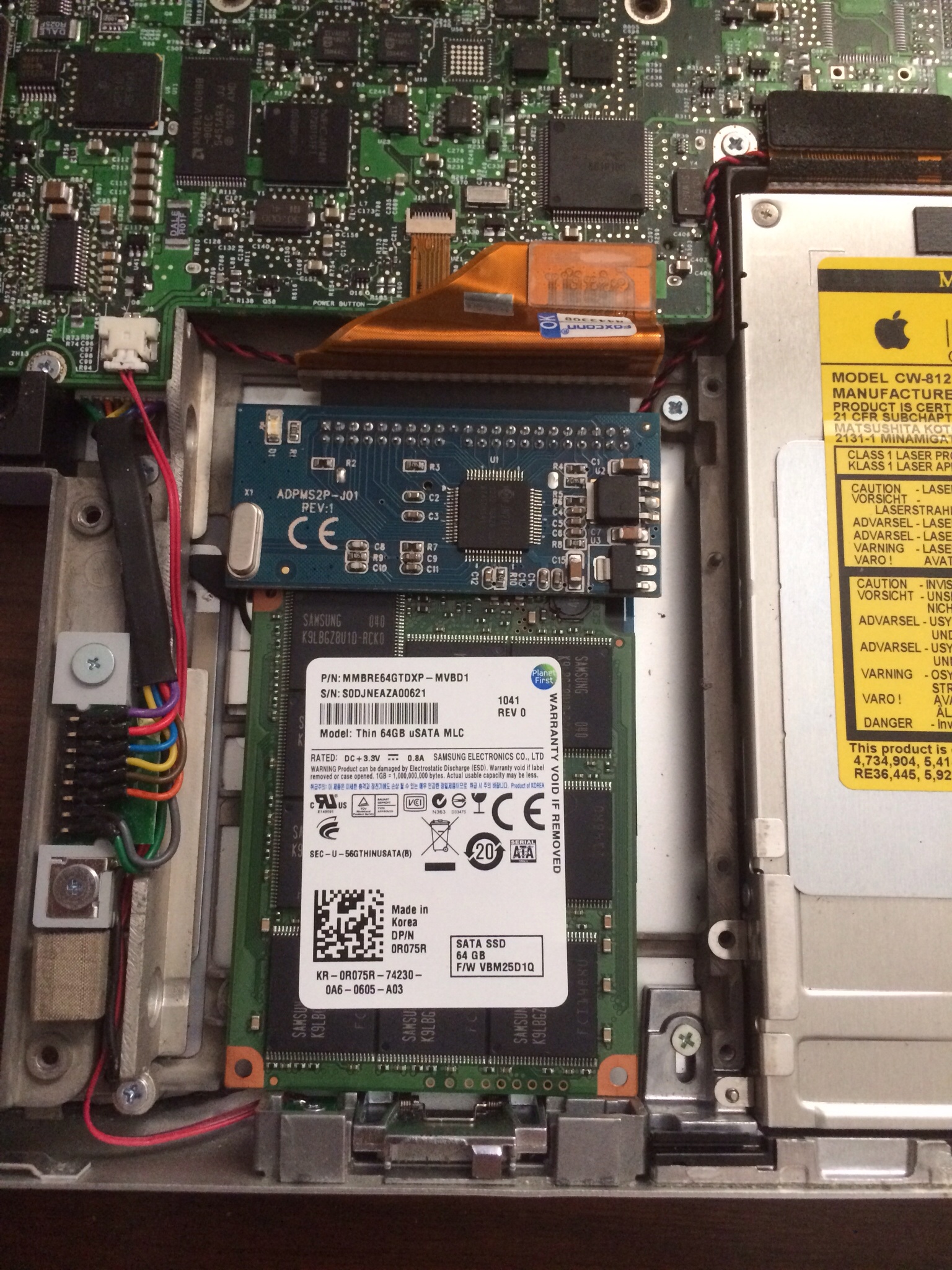

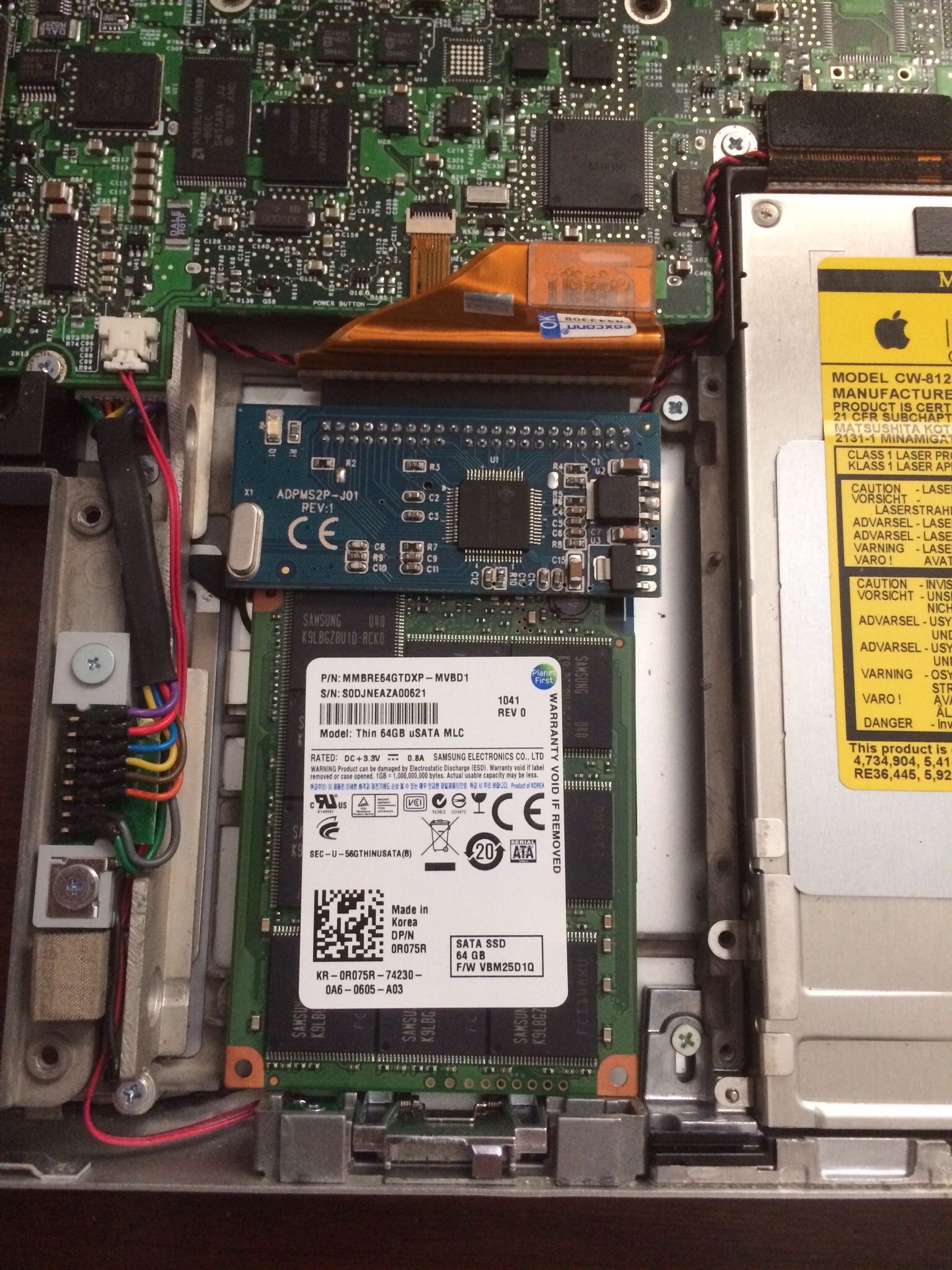

    OrangeSVTguy's is a 1.8" SATA to PATA adapter, not a mSATA to PATA.

  15. jrsx macrumors 65816

    jrsx

    Joined:
    Nov 2, 2013
    Location:
    Tacoma, Washington
    #15
    I was hoping for a specific link, I cannot find any on Amazon or eBay, but maybe I am not looking hard enough.

  16. Intell macrumors P6

    Intell

    Joined:
    Jan 24, 2010
    Location:
    Inside
    #16
    Here you go: http://www.ebay.com/itm/mSATA-SSD-t...t=US_Drive_Cables_dapters&hash=item25899a5ecd

    This is quite literally the only mSATA to PATA 2.5" adapter that will fit into Powerbooks. The same one is sold by different people, but they are all the same and about the same price of $22-$27.

  17. OrangeSVTguy macrumors 601

    OrangeSVTguy

    Joined:
    Sep 16, 2007
    Location:
    Northeastern Ohio
    #17
  18. jrsx macrumors 65816

    jrsx

    Joined:
    Nov 2, 2013
    Location:
    Tacoma, Washington
    #18
    Was that eBay as well?

  19. OrangeSVTguy macrumors 601

    OrangeSVTguy

    Joined:
    Sep 16, 2007
    Location:
    Northeastern Ohio
    #19
    Yep. I posted US sellers. Of course if you buy from china, you do cut out middle men and sometimes pay a cheaper price. I'm too impatient to wait for it to ship on the boat lol.

  20. tom vilsack macrumors 68000

    tom vilsack

    Joined:
    Nov 20, 2010
    Location:
    ladner cdn
    #20
    good price...did seller say if both ram slots work? (know issue with these 1.67GHz models)

  21. Asuriyan macrumors 6502a

    Joined:
    Feb 4, 2013
    Location:
    Indiana
    #21
    I've heard about that RAM issue. I was lucky enough to find one of the dual-layer/high-res models, which also were the first to use DDR2... does anyone know if that's something I should be worried about?

    My only other aluminum PowerBook was the 12", which had only one RAM slot, and I never had any problems with it.

    I'm loving my 'new' 15". I got it with the idea of playing games (Blizzard games, older Classic-era titles, etc) but have since decided to give it a shot as a productivity machine and installed iLife and iWork '09, Photoshop, Illustrator, etc and dug out my Wacom pad. Art as a hobby for me fell by the wayside about the same time as PowerPC... seems fitting to resurrect them at the same time. Also downloaded TenFourFox, Transmission, etc. The lack of Netflix is hurting at the moment, but I'll find a way around that.

  22. Zotaccian macrumors 6502a

    Zotaccian

    Joined:
    Apr 25, 2012
    #22
  23. gavinstubbs09 thread starter macrumors 65816

    gavinstubbs09

    Joined:
    Feb 17, 2013
    Location:
    NorCal boonies ~~~by Reno sorta
    #23
    All he had mentioned was that is would boot up the the question mark. If one of the ram slots is broken I'll be bummed, have 2GB of ram here for it!

  24. OrangeSVTguy macrumors 601

    OrangeSVTguy

    Joined:
    Sep 16, 2007
    Location:
    Northeastern Ohio
    #24
    I do believe if the lower RAM slot stopped working, a single 2GB DDR2 sodimm will work.

  25. iamMacPerson macrumors 68030

    iamMacPerson

    Joined:
    Jun 12, 2011
    Location:
    AZ/10.0.1.1
    #25
    Really? I didn't know that. I know the first MB's could read anything you put in it, but it would only utilize the first 1GB of each module.

    Question, does the A1138 1.67 suffer the same problem? Its the DLSD/Hi-Res model.
