New MBP: Who makes the panels?

R

rickeames

macrumors 6502
Original poster
Mar 12, 2008
392
71
From the marketing page:

wide-angle viewing and a color gamut usually seen only on a desktop display​

That would indicate quite a stepup from the previous generation panels, yet they aren't touting IPS in the MBP, so I'm confused. The wording sounds very "IPS-ish".

They have always said that or at least it has been used in the past. They said that about the October 2008 MBs (Alu) and those panels were trash, most of them.

IIRC Apple uses a variety of manufactures.

I'm finding the new 17" i7's screen has significantly worse color reproduction and black levels than my slightly-older 17" C2D 2.93GHz. Perhaps it's just a calibration issue though... My C2D has an LG screen and this one is a Samsung, but apparently the model numbers are the same as the previous generation.

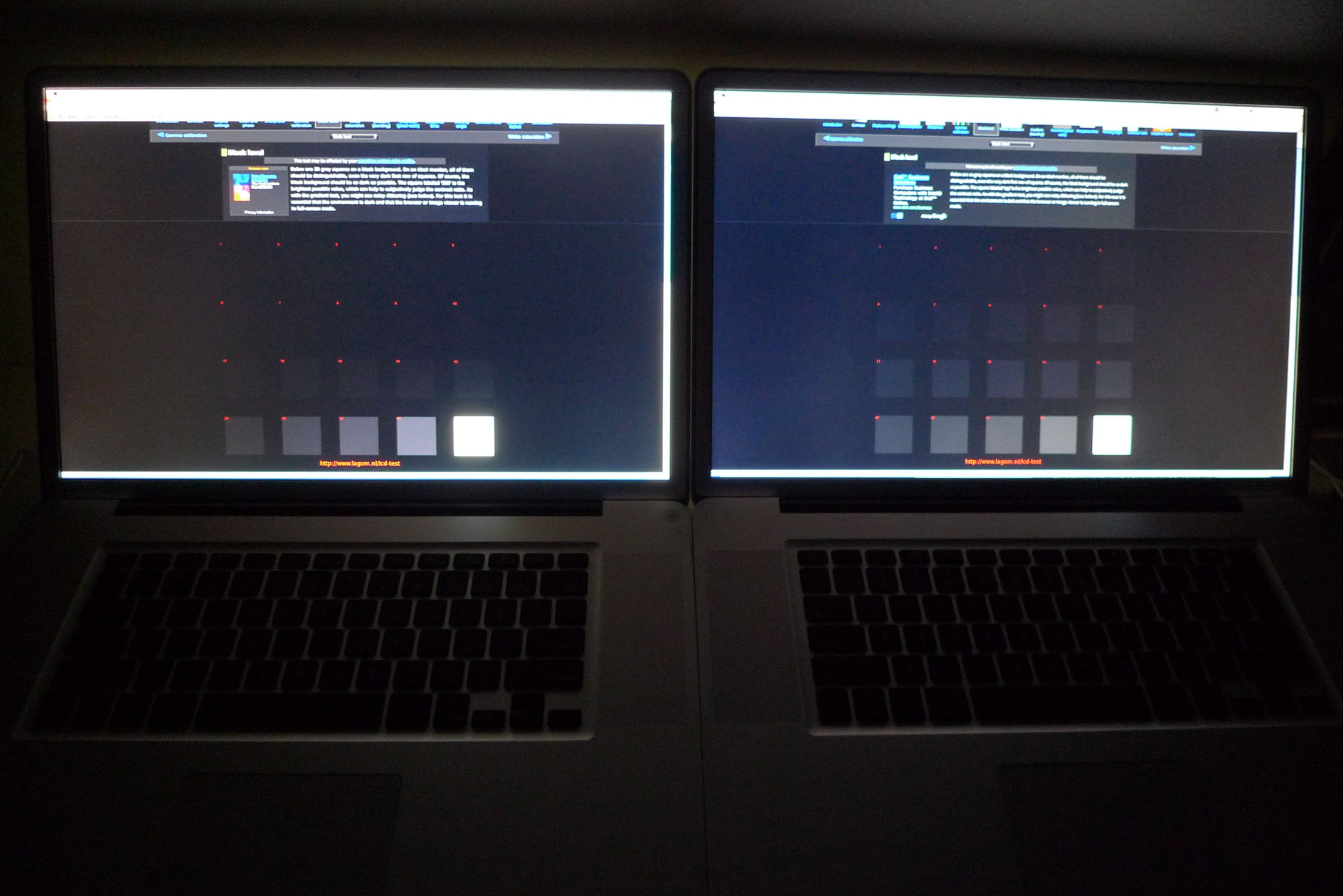

Here's a screen shot of http://www.lagom.nl/lcd-test/black.php, you'll have to forgive the poor photography and unscientific testing.

Core i7 on the left, C2D on the right.


Attachments

  • P1000109_2.jpg
    247.5 KB · Views: 477
The LG panels have always been better.

I wish Apple would ditch Samsung..

schmoe said:
I'm finding the new 17" i7's screen has significantly worse color reproduction and black levels than my slightly-older 17" C2D 2.93GHz. Perhaps it's just a calibration issue though... My C2D has an LG screen and this one is a Samsung, but apparently the model numbers are the same as the previous generation.

Here's a screen shot of http://www.lagom.nl/lcd-test/black.php, you'll have to forgive the poor photography and unscientific testing.

Core i7 on the left, C2D on the right.
Click to expand...

maybe I'm blind, but it looks like the i7 bezel on the left is white? and therefore a antiglare??? or maybe it's just the lighting

schmoe said:
Perhaps it's just a calibration issue though...
Click to expand...

Could you see if this is indeed a calibration issue, or a screen quality issue?

This is pretty important for me and if the screens are as bad as in your screenshot i guess i'll have to choose between an older macbook pro or an external display. :(

Quetsche said:
Could you see if this is indeed a calibration issue, or a screen quality issue?

This is pretty important for me and if the screens are as bad as in your screenshot i guess i'll have to choose between an older macbook pro or an external display. :(
Click to expand...

Unfortunately I don't have a hardware calibrator and couldn't figure out the built-in one =) They're the same screen as the previous 17" though so perhaps someone has already report on that... if you find anything do share!

schmoe said:
I'm finding the new 17" i7's screen has significantly worse color reproduction and black levels than my slightly-older 17" C2D 2.93GHz. Perhaps it's just a calibration issue though... My C2D has an LG screen and this one is a Samsung, but apparently the model numbers are the same as the previous generation.

Here's a screen shot of http://www.lagom.nl/lcd-test/black.php, you'll have to forgive the poor photography and unscientific testing.

Core i7 on the left, C2D on the right.
Click to expand...


I owned both previous 17" mbp and have the current i7, I find the i7 better in terms of screen quality. Because on the previous gen 17", I had to use a properly calibrated color profile for the display to look good, but right now on just the default "color profile" it looks very clean on the i7 17".

As for the LG displays, I prefer samsung as I always found the LG displays to look washed out.

Also my display is a 9CD0. What display do you have on your i7 17"?

I just did that testing on my i7 17" and the color looks similar to the 17" mbp on your right.

jjahshik32 said:
I owned both previous 17" mbp and have the current i7, I find the i7 better in terms of screen quality. Because on the previous gen 17", I had to use a properly calibrated color profile for the display to look good, but right now on just the default "color profile" it looks very clean on the i7 17".

As for the LG displays, I prefer samsung as I always found the LG displays to look washed out.

Also my display is a 9CD0. What display do you have on your i7 17"?

I just did that testing on my i7 17" and the color looks similar to the 17" mbp on your right.
Click to expand...

Display profile shows my Core i7's screen as a 9CD0 as well, ioreg says LTN170CT10.

My C2D has a 9CAD / LP171WU6-TLB1.

Its hard to quantify but the first thing I noticed was that my background image appeared more noticeably dithered on the i7. Neither one looks that great though, wish I had one of the PC laptops with IPS and/or RGB-LED to compare against.

Quetsche said:
Could you see if this is indeed a calibration issue, or a screen quality issue?

This is pretty important for me and if the screens are as bad as in your screenshot i guess i'll have to choose between an older macbook pro or an external display. :(
Click to expand...

In terms of black levels, those pictures are very overexposed. I've never seen such "grey" blacks from any recent MBP panel.

my 15" 1440 screen says the model is 00009CA4
Any other 15's wanna share there models?

schmoe said:
Display profile shows my Core i7's screen as a 9CD0 as well, ioreg says LTN170CT10.

My C2D has a 9CAD / LP171WU6-TLB1.

Its hard to quantify but the first thing I noticed was that my background image appeared more noticeably dithered on the i7. Neither one looks that great though, wish I had one of the PC laptops with IPS and/or RGB-LED to compare against.
Click to expand...



I took it with my iphone but the colors of the squares looks different to me than your i7 17".

I know for a fact that even with the same exact model display from the same vendor can turn out differently. Because I remember one time I had a specific model Samsung screen that looked washed out, then I exchanged my mbp with a new one and it too had the exact same model Samsung display panel which looked so much more vibrant.

I think the i7 17" hi res antiglare screen looks very good but I'm still waiting for someone to properly calibrate it and hopefully sharing it with us. :D

Way cool! How to find display type

man02195 said:
is that what terminal says when you enter
ioreg -lw0 | grep IODisplayEDID | sed "/[^<]*</s///" | xxd -p -r | strings -6
Click to expand...

This command is the easiest way I have ever seen to find the display type. Is there a similar command to display the Harddisk type (Apple tries to hide these especially in SSD´s) Thank you so much

elpmas said:
LG makes cheap products....I would rather have samsung anyday over LG
Click to expand...

Yes, except for it's a proven fact that the damn samsung screens are slightly dimmer, have noticeably worse color reproduction and yellow whites. There is a reason for people saying the LG panels used in the 15" mbps are superior... they've seen it, I've seen it.

That said, my new AG High-res suposedly has a Samsung panel and luckily they must have cleaned their act up a little bit as this panel is pretty awesome. Anandtech seems to think so also.. whites are white, very bright, crispy.

My 15 inch i7 HR Glossy is:
LTN154MT07
and model from Color Profile is 00009CB6

I have noticed some of the yellow ting on the bottom 1/3 of my screen. Anyone else with my screen model notice it? Is mine samsung?

does anyone know the color gamut the 15" MBP can display?

Also, im assuming its not an IPS panel since its not advertised anywhere?

Blizzardman said:
My 15 inch i7 HR Glossy is:
LTN154MT07
and model from Color Profile is 00009CB6

I have noticed some of the yellow ting on the bottom 1/3 of my screen. Anyone else with my screen model notice it? Is mine samsung?
Click to expand...

http://tinyurl.com/35hyd7z

http://www.anandtech.com/show/3669/...o-more-battery-life-tests-display-evaluated/4


unamused said:
does anyone know the color gamut the 15" MBP can display?

Also, im assuming its not an IPS panel since its not advertised anywhere?
Click to expand...

http://www.anandtech.com/show/3669/...o-more-battery-life-tests-display-evaluated/4
