Old 2009 Mac Pro - waving or drowning?

Discussion in 'Mac Pro' started by Monocle, Jan 9, 2016.

  1. Monocle macrumors member

    Monocle

    Joined:
    Jun 10, 2009
    Location:
    United Kingdom
    #1
    Dear Chaps,

    I would be most grateful if you could advise me as to whether my much-loved 2.93 Ghz Quad-Core early 2009 Mac Pro is about to shuffle off it's mortal electrical coil. In recent weeks strange things have been happening. Firstly amusing screen glitches - from the occasional flurry of horizontal lines to the pleasantly surreal melting of a patch of text (all in random places I hasten to add). I was hoping that this might be the death throes of my aged Apple fitted ATI Radeon HD 4870 512MB graphics card (ie something I could easily replace) but then other things started to occur.

    Firstly open screens would freeze and prove unable to close and this wasn't necessarily because too much was open - this again could be random. However once this occurred even 'force quit' would prove useless and things could only be remedied by the pressing and holding of the start button to shut down the entire Mac. Occasionally this freeze would be accompanied by the speeding up of the fans into hovercraft mode. This cannot be good!

    To begin with this might happen once a day but now it happens a few times throughout a day's use. However once it happens you might find yourself restarting into a few hours of undisturbed usage. More unnerving is the rarer recent occurrence (in the past week) of the Mac deciding to restart itself...sometimes successfully, sometimes into a white screen or more entertainingly into a futile cycle of useless restarts. The last time a collapse happened I forced a relaunch and got a report to Apple dialogue box featuring a ***Panic Report*** which I have a copy of should anyone know how to decipher it.

    Now I'm not against buying a new 27" iMac, although it must be said that my wife and my bank manager might be. I also note with sorrow that I would lose all the joy of opening up and cleaning the thing myself and being able to add hard drives and PCI cards etc to my hearts content. And therein lies another problem. Back in 2014 I bought a 960GB Mercury Accelsior E2 card which helped my old 2009 Mac Pro no end. It was not cheap. But I now see that this will not slot into any of the new iMacs and I assume that this will be much the same for the 12GB of RAM I eventually added? So will it be worth me buying a new iMac and - for example - a Sonnet expansion chassis to avoid losing the PCI card? I assume yes?

    So that's it chaps. Is it dying or simply pining for a new graphics card? Are other troubles always going to be looming on the horizon and therefore do I risk throwing away money by not moving on? Thanks! Nick
    --- Post Merged, Jan 9, 2016 ---
    I am by the way currently running Yosemite 10.10.5

  2. Mattww macrumors 6502

    Mattww

    Joined:
    Jan 11, 2008
    #2
    There are usually clues in the panic log if it is a hardware problem. The GPU would be most likely guess given the screen glitches you mentioned - if the AMD drivers crash completely then the machine will lock up and panic, the fans speeding up is typical as when the driver crashes the computer will always assume the worst.

    If you do go the iMac route you will probably be best of selling on the upgrades as parts to be honest and getting more iMac suitable replacements for your needs.

  3. Monocle, Jan 9, 2016
    Last edited: Jan 9, 2016

    Monocle thread starter macrumors member

    Monocle

    Joined:
    Jun 10, 2009
    Location:
    United Kingdom
    #3
    Thanks Matt. Any clearer?

    Sat Jan 9 13:13:30 2016

    *** Panic Report ***
    panic(cpu 0 caller 0xffffff800be16df2): Kernel trap at 0xffffff800bf3dc28, type 14=page fault, registers:
    CR0: 0x000000008001003b, CR2: 0x0000000000000027, CR3: 0x000000000ddc8000, CR4: 0x0000000000002660
    RAX: 0xffffff8039121020, RBX: 0xffffff8024507a00, RCX: 0xffffffffffffffff, RDX: 0xffffff8024507a50
    RSP: 0xffffff8184853d30, RBP: 0xffffff8184853dd0, RSI: 0x000000000000e000, RDI: 0xffffff8024507a18
    R8: 0xffffff802bbbfc00, R9: 0x0000000000000005, R10: 0x0000000000000000, R11: 0x0000000000000246
    R12: 0xffffff8039121000, R13: 0x0000000000000000, R14: 0xffffff8024507a18, R15: 0xffffff8024507a50
    RFL: 0x0000000000010286, RIP: 0xffffff800bf3dc28, CS: 0x0000000000000008, SS: 0x0000000000000010
    Fault CR2: 0x0000000000000027, Error code: 0x0000000000000002, Fault CPU: 0x0

    mp = 0xffffff8024507a00, phys = 0xd0dda00, prev (0x7: 0xbb13000-0xbc00000)
    vp = 0xffffff8024507a00, phys = 0x239968000, prev (0xb: 0xffd20000-0xffd50000)
    0xffffff8024506000: wwAAAOcAAAAMAQAA5QABAAsIhMAKAwEDoOCq/PYAAQALDITACgMBA6DgpvwqLCobAABAQCk2Bgxq79DwCgwAACg8is9o/Fr+Vf+V/woIAAAoPIrPqPyl/lX/1f/mAAEACwyEwAoDAQOQ4Nr89gABAA8MRMAJAwEDYODa/AIAIjAAAAAAgAAAACAwwMD1AAEACwyEwAoDAQMIDMrM5QABAA8MRMAJAwEDCAzKzOUAAQAHDITACQ8FAwAAyczlAAEADwxEwAUPBQMAAMnM5QABAA8MRMAGDwUDAACJzOUAAQAHDITAAgMBAwAAiczlAAEACwxEwAoDAQMAAIrM5QABAA8MRMAKAwEDAACKzE35kFY48k8MgP///wgaDiQIPHkkAAAABQ8AAABAqy8k+F8AAAEAAAaYbQAAeHkAAO++rd7gAAAAOPJPDIgaDiQIPXkkAAAABA4AAAAAegAAAQAABkCEAABQVAAA776t3uAAAAAIAWIkENlQDGNvbS5hcHBsZS5mbG93LWRpdmVyAAACAAAgAAAQrgkMcLMJDNDYCQzIYlAkoGYAAAEAAAaIAAAAyKGwLchGqCeItCUmiGPgJMiGVDCI7l0o4GoAAAEAAAbAdgAAAIEAAFhRAADvvq3eiAAAABjVRCeA////oOFGJwDrjSRY7Y0kGPVHJzDKRicBAAAGgFcAAHhjAAAYcQAA+HwAADiHAADgAAAATfmQVjjyTwwI5Q0kCD55JAEAAAkNAAAAwKsvJAEAAAaQYwAA4AAAAAAAAAkMAAAAAKwvJBhbAAABAAAG6AAAAEFMTAAINkAlTfmQVthnUCQ48k8MiMMNJAgQdSQAAAAICwAAACDfGAxArC8kTfmQVgAAAAcKAAAAUAAZDICsLyRN+ZBWiOgNJEguUCQArS8kTfmQVkCtLyRN+ZBWCBR1JICtLyTvvq3eTfmQVgjsDSQIFXUkwK0vJO++rd5N+ZBWOPJPDAgWdSQAAAAGBQAAAACuLyTvvq3eTfmQVggXdSQDAAADBAAAAECuLyTvvq3eIADg4gi+DgAC4uKODrbu4OBQ7uDODryw7u4ODgDpACsAsQDpALLg4Q7+DgIAMAD/ADYAzQArK+Dg7s74AAArK3LqjuAITg60uw4OCwLi4h6+Dg4LAtLqHu6xvg6g4ALi4Q4B7gsrIKAe4Bju5r6wAKDgAoJu7gsODisgoL7gDu4rIOAA6O6+C6DgAoLuvgsO4AhgGwEAIgC2BQAYgNMRAP8nADiQIwooSKGLLAhhhBCoIooMIIGDOPiigTqY44QRWAsAGAEAiiWgCwAYASCIMICDjDLgCAAYAQACDgKQFgAIIwQY4AzQFjAGgCCAEpAA4AzQFgEghDCAY0kACIAzAG0FgCCAIEoAB4BDAG0BGQCAGQAOAgAWAIgCCg4C2BYACAMOAAAA
    0xffffff8024507000: jgAAAJQAAACbAAAAitKi04KDGj94AuoAgqpgIAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAgICAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAEIDAGh8KBy0ACkAGAQIAIRMaC6jQqt+Kjyq+eALqAIK6oKAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAICAgAAAAAAAAAAAAAAAAAAAAAAB6UCSA////ADIgJysGAABIAkcMkP9FDBC+qybgUec6ICDTJ1BwUCQAkIAEAAAdgAAQAAAAABAAaHxNCTPxpwE1i6UHDAAAAREAAABoZnMAL1ZvbHVtZXMvTWFjaW50b3NoIEgvZGV2L2Rpc2szczIIICslAAAAAgABAAAAAEAAAwAAAK0uCADJMQgAAAAAIYAnuiUDAAAAQNukJjB8MyiA////3TmyAgBwUCSHMwIAUIyLMAAAAAJIAkcMkP9FDADvHSYQbgE7ID8SOYD///8AEBI5kDg/KGB6UCQAkIAEAAAdgBAAAAAAEAAAAAAQAPbGGh0eIDMT2KbnCRAAAAERAAAAaGZzAHVtZXMvTWFjSEQ6RWxlbWVudHMgMlRCAC9kZXYvZGlzazRzMu7u7u6tDgriAAAAAA7uAADu7u7uji4IDf8DDgZmEBEAAIIQAEz9DzgIjMEAAvwPOPQCAAAA
    0xffffff8024508000: kgAAAJsAAACnAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAMICAHh8FCy0ACkAGEQIAIRMaD4bTopKCgxo/eAPqAIKqoKABAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAICAgAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAABCAgBofBgctAAqABgECACETGg+G0qLTgsMaPrgCqgDCumAgAAAAAAAAAAAAAAAAAAAAAAiQICaA////AAACAAAQAAASHggAhScIAAAAACEAYLMlBAAAAECg/iVQSmkowZ7yLwA8ICcAmFAkgP///0gCRwyQ/0UMsOQcJoD///9wGOY6sCaNJlCEUCQAkIAEAAAdgAAAEACsxYwOYWs7CEtaUQYTAAABEQAAAGhmcwAvVm9sdW1lcy9XaGl6em8gRnJlZWFnZW50IDFUL2Rldi9kaXNrNXMyCJggJoD///8AABAAAAIAAADwAAAxKAkAJywJAAAAACH/////sDSwJQUAAABAwA0mwEOaJhlGTwYAmFAkgP///wCiUCRIAkcMkP9FDHDYFSZgaeU6gJl8JoD///9QjlAkAJCABAAQAAAAABAArMWMDoFSfwcrcw0HqsWMDoFSfwcJAAABEQAAAGhmcwB1bWVzL1doaURyaXbAzAAA4AAADgDuDuDuzu5OCwgLcAAA4AAAAO4O7u7e7gkIAgwgDAACAQD4P4BDEABjMCAAcfwPOGCoJgQBDAAgIARAHICDMAYMCJAG/wMOJmUAAAAA
    Backtrace (CPU 0), Frame : Return Address
    0xffffff81848539e0 : 0xffffff800bd2ad21
    0xffffff8184853a60 : 0xffffff800be16df2
    0xffffff8184853c20 : 0xffffff800be33ca3
    0xffffff8184853c40 : 0xffffff800bf3dc28
    0xffffff8184853dd0 : 0xffffff800c154627
    0xffffff8184853eb0 : 0xffffff800bf576ab
    0xffffff8184853ed0 : 0xffffff800bf41fc4
    0xffffff8184853f40 : 0xffffff800bf4c177
    0xffffff8184853f50 : 0xffffff800c24b376
    0xffffff8184853fb0 : 0xffffff800be344a6

    BSD process name corresponding to current thread: launchd

    Mac OS version:
    14F1509

    Kernel version:
    Darwin Kernel Version 14.5.0: Tue Sep 1 21:23:09 PDT 2015; root:xnu-2782.50.1~1/RELEASE_X86_64
    Kernel UUID: 06D286E3-A8A1-3BE7-A7EB-EAC6E0C69758
    Kernel slide: 0x000000000ba00000
    Kernel text base: 0xffffff800bc00000
    __HIB text base: 0xffffff800bb00000
    System model name: MacPro4,1 (Mac-F221BEC8)

    etc etc!

  4. Mattww macrumors 6502

    Mattww

    Joined:
    Jan 11, 2008
    #4
    If you post the first part of the log before it starts listing all your hardware and installed software that should be enough usually.

    I'm assuming you haven't recently added any new hardware or updated drivers for any? Also to eliminate software you are best removing your disks are booting from another drive with a fresh basic operating system. At least then if the symptoms persist you know it is hardware.

  5. Monocle, Jan 9, 2016
    Last edited: Jan 9, 2016

    Monocle thread starter macrumors member

    Monocle

    Joined:
    Jun 10, 2009
    Location:
    United Kingdom
    #5
    I've duly trimmed down the panic report as suggested! No new hardware or indeed updated drivers. Perhaps I could add to my question?

    I take your point about selling the RAM but the cost of buying - lets say - the Sonnet Echo Express is £349 here in the UK whereas the price of adding 1TB of flash storage to an ordered 27" iMac is £480. As the external expansion chassis would still have room for another PCI card in the future, wouldn't this be a better bet for future proofing?

  6. Mattww macrumors 6502

    Mattww

    Joined:
    Jan 11, 2008
    #6
    That panic log unfortunately doesn't appear to mention the AMD drivers as launchd is part of OS X and the process that spawns everything else.

    I would therefore certainly try and use another disk with a fresh OS X install as a first test (with you normal hard disks and SSD/flash all removed to eliminate them and save any further logs.

    With regards the flash storage it all really depends what software you are running, of course in an ideal world flash would be dirt cheap and we would all just store everything on it. However as long as the things that need fast disk access are stored there you can actually easily afford to keep other files elsewhere.

    The price to upgrade the internal flash storage on an iMac is crazy really and in reality even 1TB could get out grown quite during ownership. If it was me I would compromise a little on the very fast flash internally to keep funds for other options.

    Although it's not easy to do the internal flash can technically be replaced and upgrade later as these become more affordable. You can then get more affordable external SSD drives and or mechanical disks as needed. These improve with each generation so you might be surprised how close to your drive these could be.

    Speaking personally I'd be reluctant to look too much at Thunderbolt based solutions at the moment unless your specific needs require it and try and stick to USB 3, especially options where you can remove the drives and or use adaptors later as needed. Simply because although it has been fitted on Macs for a few generations now it hasn't really become totally mainstream yet so there is a large premium for what could unfortunately end up being another dead end like FireWire if the PC market don't take to it.

    Hopefully Thunderbolt 3 may change this but it is another case of great versus good enough in a technology situation (e.g USB 2 versus FireWire 400, VHS versus Betamax - if you are old enough to remember that...)

  7. Monocle thread starter macrumors member

    Monocle

    Joined:
    Jun 10, 2009
    Location:
    United Kingdom
    #7
    Old enough? I remember having only two channels on our black and white television and being collected from school to see 'Yellow Submarine' at the cinema!

    To add further confusion, should everything go pear-shaped (and I do by the way have online and external back-ups) is it going to be easier to transfer my old data into a shiny new iMac running El Capitan, if I've already shifted into the latest operating system with this old Mac Pro? I've been cautious up to this point as I believe some people have suffered (ahem) 'problems'....

  8. Mattww macrumors 6502

    Mattww

    Joined:
    Jan 11, 2008
    #8
    Ha OK! It's not always easy to guess age on forums :)

    From the build number it looks like you are on 10.10.5 Yosemite and compared to that El Capitan is like a more polished version so there aren't many pitfall to be honest - you should be able to migrate from your latest backups easily enough. You can easily check into your main applications and see if any patches were released, personally I had far, far less than with earlier OS X version upgrades.

    Most of the biggest issues will have been solved anyway with the couple of point releases already done. The biggest change is SIP which is only likely in issue if you have old hardware drivers for devices that are no longer being supplied with driver updates.

  9. BrettApple macrumors 65816

    BrettApple

    Joined:
    Apr 3, 2010
    Location:
    Heart of the midwest
    #9
    Not necessarily. Migration Assistant usually takes care of moving stuff between OS X versions pretty well. We moved an older 20" iMac that was on 10.8 ML to a new 27" 5K iMac on 10.11 El Cap and everything copied over with no trouble. Even some older Pro apps, though they needed to be reactivated, they did not need to be reinstalled.

    One last thing to check if it isn't the GPU it could also be something as simple as bad RAM. I've had bad RAM in various PCs and Macs cause crazy graphical defects and rebooting. I'd give AHT a run if you haven't already. AHT will also test the GPU and the logic board as best as it can.

  10. Monocle thread starter macrumors member

    Monocle

    Joined:
    Jun 10, 2009
    Location:
    United Kingdom
    #10
    Thanks for the additional advice. I'm more than happy to admit that I've just had to look AHT up! Stand by for the pulling of leads and running of the test. Pray for me...

  11. MacVidCards Suspended

    Joined:
    Nov 17, 2008
    Location:
    Hollywood, CA
    #11
    Set up screen sharing with another Mac and then yank the 4870 and reboot.

    If it crashes while running that way it is GPU.

    Did you ever clean out the fan on 4870? They are not maintenance free and will eventually get full of debris. If I posted pic of some of the cards we get used you would lose your lunch. Recently had a pair show up full of cat hair and smoking residue. Yucky

  12. Monocle, Jan 9, 2016
    Last edited: Jan 9, 2016

    Monocle thread starter macrumors member

    Monocle

    Joined:
    Jun 10, 2009
    Location:
    United Kingdom
    #12
    --- Post Merged, Jan 9, 2016 ---
    I do clean it out pretty regularly but it might have been three months or so since the last bash so perhaps I ought to check; particularly as garden recycling is carried past it's home. For some reason I can't get the AHT to run. In spite of holding down 'D' when starting it just opens up as normal...although for some reason the brightness control also appeared on screen! As I am wallowing somewhat I did find a old copy of Tech Tool Pro. Sadly too old to run on this machine BUT I can buy the upgrade at a discounted $39.99. I don't mind shelling out for this if it's going to help. Would it do the job?

    By the way Matt, as far as future iMac technical upgrades are concerned, anything trickier than the current easy pop out and replace system afforded by my old Mac Pro is a definite no-no!

  13. BrettApple macrumors 65816

    BrettApple

    Joined:
    Apr 3, 2010
    Location:
    Heart of the midwest
    #13
    Ah yes, Apple Hardware Test will require your original OS X install DVD. It's usually on disc 2, at least it is on my 2007 iMac and '08 MacBook. Holding D only works on newer machines or ones with the factory HDD and OS X install. Once you format it it's gone. Kind of dumb IMO but that's how it is. Newer ones can use the recovery partition or even download AHT over the internet. Or Apple Diagnostics as it's called as of mid 2013.

    If you have your original DVDs I'd give it a shot. It'll test RAM, GPU, logic board, CPU, and everything in-between.

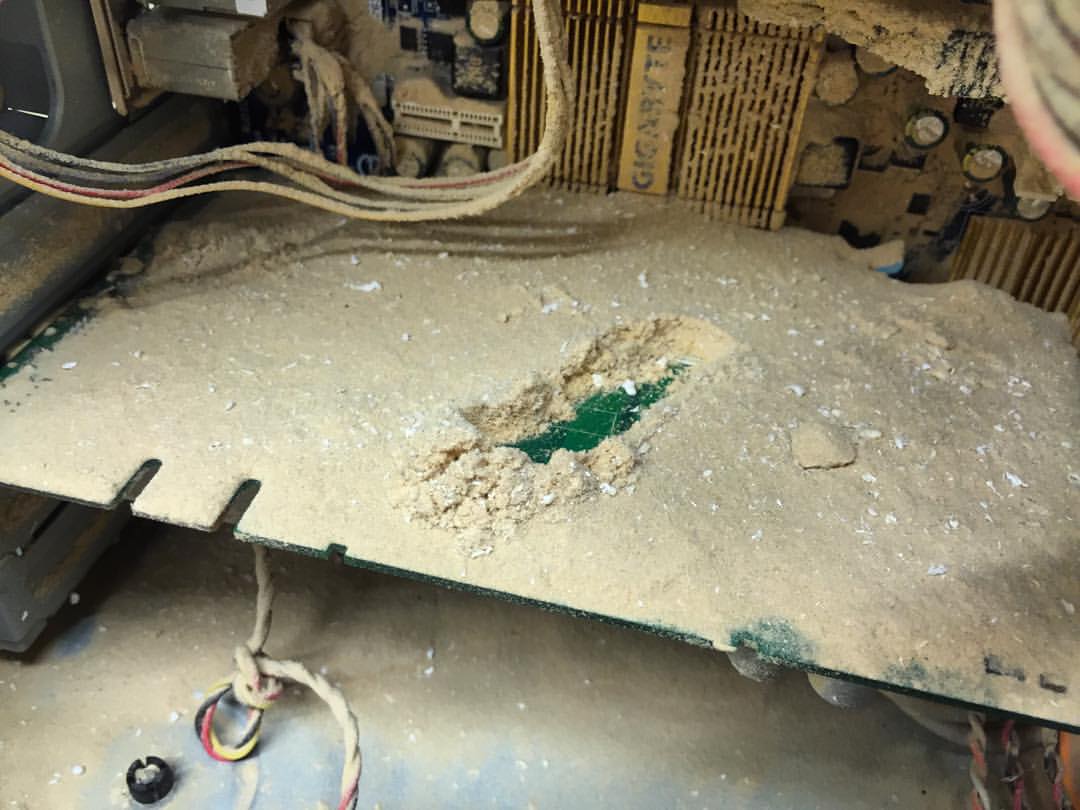

    As far as dirty video cards... Here's an Nvidia 8400 in our CNC PC. The whole PC tower was just sitting out in the open by the machine, and this is what happened over the course of a few years. Best part, it still works 100%. The only reason it survived is because the fan is on the bottom rather than the top. Ha! The CPU fan wasn't as bad as I thought it would be though. The only reason I got called out there was because the cheap rear case fan was rattling. o_O I've had my share of animal hair and smoke tar from my years in PC service and retail before going full time IT. Fun days, lots of crazy nasty stuff out there.


  14. Monocle thread starter macrumors member

    Monocle

    Joined:
    Jun 10, 2009
    Location:
    United Kingdom
    #14
    Good lord, it's created it's own mini desert and oasis! Thankfully mine has never reached such impressive Saharan levels.

    Thanks for the advice. I'll try and find the original disks but in the meantime any opinions on using that latest Tech Tool Pro as a diagnostic tool for my problems?
    --- Post Merged, Jan 9, 2016 ---
    Just nipped off to look for the original disks - not holding out much hope thus far - and the blasted thing did the automatic restart business. Another, slightly different panic perhaps..

    Sat Jan 9 22:47:50 2016

    *** Panic Report ***
    panic(cpu 7 caller 0xffffff8002816df2): Kernel trap at 0xffffff800293dc28, type 13=general protection, registers:
    CR0: 0x000000008001003b, CR2: 0x000000010c1d2000, CR3: 0x0000000003ced000, CR4: 0x0000000000002660
    RAX: 0xffffff802efb75c0, RBX: 0xffffff801ad22c00, RCX: 0x3100000009000000, RDX: 0xffffff801ad22c50
    RSP: 0xffffff8012ca3d30, RBP: 0xffffff8012ca3dd0, RSI: 0x0000000000000025, RDI: 0xffffff801ad22c18
    R8: 0x0000000000000001, R9: 0x0000000000000000, R10: 0x0000000000002000, R11: 0x0000000000000034
    R12: 0xffffff802efb75a0, R13: 0x0000000000000000, R14: 0xffffff801ad22c18, R15: 0xffffff801ad22c50
    RFL: 0x0000000000010206, RIP: 0xffffff800293dc28, CS: 0x0000000000000008, SS: 0x0000000000000010
    Fault CR2: 0x000000010c1d2000, Error code: 0x0000000000000000, Fault CPU: 0x7

    mp = 0xffffff801ad22c00, phys = 0x3959c00, prev (0x7: 0x2513000-0x2600000)
    vp = 0xffffff801ad22c00, phys = 0x2784da5a0, prev (0xb: 0xffd20000-0xffd50000)
    0xffffff801ad21000: bwAAAHQAAAB5AAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAICAgAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAADCAgBofCgstAAZABgECACETGg+G06LTgoMaP7gDqgCCqmAgAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAACAgIAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAC9kZXYvZGlzazJzMggAuxyA////AAAABAABAAAAAEAAAwAAAAAQAAA3RwIAAAAAIdByERwCAAAAAHqYHEDL6ByAvLQSAA7SGgAi0hpIAucCkP/lAlDK1BzAo+onQK3WHFAY0hoAkIAEAAAdgAAAEACsxYwOYlJ/B0pzDQeqxYwOYlJ/BwYAAAERAAAAaGZzAC9Wb2x1bWVzL1doaXp6byBEcml2L2Rldi9kaXNrMXMyAAAAAAoO7uAA4O7uvu5OjgAAAAAgBMAU/P8POASMoQAC7PA/gINRBgAA
    0xffffff801ad22000: gQAAAIoAAACVAAAAAAAAAAAAAAAAAAAAADCAgBofCgctAApABgECACETGg+G06LTgoMaP0QBMwACKQQAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAADAwAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAwMAeH4mHLgAKwAgAAAAhExoNqtMqH4qPKn9oAuoAAhoAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAiYfhyA////AAAAAgABAAAAAEAAAwAAACAhAgCUJQIAAAAAIeCBKhwBAAAAAEFqHIC34RyQabwRABjSGgAs0hpgLeYCUADmAnBI7BowrFktoEfsGlAi0hoAEBAEABAQAMiSUxpkZXZmL2RldgAAAgD/DwAAAHJIpP////9CCwAANSEDADMpAwAAAAAhPwAAAADT1hqAR+wa1qAEOQAi0hrge+8CsQIDAADAxR8AAB8CSALnApD/5QJQelcxUFwPL6B1+y4wTuwaYCzSGgDQgAQAAV2AABAAAAAAEACyOfUNhifvA4Yt7gMsDAcKAgAAAREAAABoZnMAAAAAAAAO7uAA4O7uLu4ODgAwAPDOzAAA4OLuDuDu7u4OLn4OAIIQAAD+DzgCjKEAAnDwP4CDCSB7QToBc4AAICAEsDmAKyAA/wMOAbC9AAAA
    0xffffff801ad23000: XAAAAGAAAABlAAAAAAAAAAAAAAAAAAAAACAgIAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAwgIAaHwoHLgAKgAoxAAAAABIDABAAAIAAFn0AAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAHh8JByAAAIAAAAAAAAAiAS9kZXYvZGlzazBzMgiI7BqA////AAAAAgABAAAAAEAAAwAAAGALAABb/gEABRYCAAAAACH/////AE/sGgEAAABA09YaQDbSGgAQAAAAAAIA/w8AAAAAACH/////wCy2GgIAAAAAAAAg7uD+4A8OwMwAAAAOAIIQAIAL8D+AQwkmAIEAICAEADgA
    Backtrace (CPU 7), Frame : Return Address
    0xffffff8172c2de10 : 0xffffff800272ad21
    0xffffff8172c2de90 : 0xffffff8002816df2
    0xffffff8172c2e050 : 0xffffff8002833ca3
    0xffffff8172c2e070 : 0xffffff800293dc28
    0xffffff8012ca3dd0 : 0xffffff8002b54627
    0xffffff8012ca3eb0 : 0xffffff80029576ab
    0xffffff8012ca3ed0 : 0xffffff8002941fc4
    0xffffff8012ca3f40 : 0xffffff800294c177
    0xffffff8012ca3f50 : 0xffffff8002c4b376
    0xffffff8012ca3fb0 : 0xffffff80028344a6

    BSD process name corresponding to current thread: launchd

    Mac OS version:
    14F1509

    Kernel version:
    Darwin Kernel Version 14.5.0: Tue Sep 1 21:23:09 PDT 2015; root:xnu-2782.50.1~1/RELEASE_X86_64
    Kernel UUID: 06D286E3-A8A1-3BE7-A7EB-EAC6E0C69758
    Kernel slide: 0x0000000002400000
    Kernel text base: 0xffffff8002600000
    __HIB text base: 0xffffff8002500000
    System model name: MacPro4,1 (Mac-F221BEC8)

  15. BrettApple macrumors 65816

    BrettApple

    Joined:
    Apr 3, 2010
    Location:
    Heart of the midwest
    #15
    Hmm, "panic(cpu 7 caller 0xffffff8002816df2): Kernel trap" makes me feel like it could be memory related because I've seen this type of error with some bad DIMMS before. Or again, the GPU. The hackintosh community can sometimes be helpful because they get these errors all the time with unsupported video cards that aren't working right, thus why it could be the GPU still.

    You could probably run Memtest86 on it. That would test the RAM at least without needing a disc. There are different GUI versions of it for OS X like Remember, though they haven't been updated in years. The good old Memtest86 live CD/USB should work though.

    http://www.memtest86.com/download.htm
    http://www.memtest86.com/technical.htm

    If all else fails, the 5K iMac is a mighty nice machine :)

    That being said, we use a fleet of 2009-2010 Mac Pros that I manage at work and they still do their job very well. A couple have SSDs in them and 16/32GB of RAM along with some internal RAID setups and external RAIDs running off USB 3.0 cards all used for recording multiple streams of 1080i/60 that get used for broadcast and podcast use along with running Adobe Premiere and REAPER (DAW) and Pro Tools. They have a very heavy workload during the week encoding videos and bouncing audio projects and they haven't let us down so far for 5+ years. Almost 7 on some of them soon. They'll likely be replaced next year once we get some hardware recording devices in place but they are still great machines so it's worth it to fix them if possible and if it's cost effective. If a logic board or CPU goes out though it'll probably be retired at that point.

  16. AidenShaw macrumors P6

    AidenShaw

    Joined:
    Feb 8, 2003
    Location:
    The Peninsula
  17. Monocle, Jan 10, 2016
    Last edited: Jan 10, 2016

    Monocle thread starter macrumors member

    Monocle

    Joined:
    Jun 10, 2009
    Location:
    United Kingdom
    #17
    At the darkest of hours all encouragement is gratefully received. Much obliged.

    In the meantime am still looking for the blasted start-up disks. Needless to say another mad moment has just occurred...

    Sun Jan 10 12:25:22 2016

    *** Panic Report ***
    panic(cpu 2 caller 0xffffff800976b3df): "Invalid queue element linkage for 0xffffff8033d0bfd8: next 0xffffff8033d2afd8 next->prev 0xff2e4688fff3d2bb prev 0xffffff8021e93598 prev->next 0xffffff8033d0bfd8"@/SourceCache/xnu/xnu-2782.50.1/osfmk/kern/queue.h:137
    Backtrace (CPU 2), Frame : Return Address
    0xffffff81816fb4b0 : 0xffffff800972ad21
    0xffffff81816fb530 : 0xffffff800976b3df
    0xffffff81816fb570 : 0xffffff80097679a3
    0xffffff81816fb660 : 0xffffff80097b554e
    0xffffff81816fb690 : 0xffffff8009946824
    0xffffff81816fb710 : 0xffffff80099463da
    0xffffff81816fb760 : 0xffffff80099460c4
    0xffffff81816fb790 : 0xffffff800993f75e
    0xffffff81816fb820 : 0xffffff8009b31462
    0xffffff81816fb930 : 0xffffff8009b3ce1a
    0xffffff81816fbb00 : 0xffffff800993a3a8
    0xffffff81816fbbe0 : 0xffffff8009939b45
    0xffffff81816fbd10 : 0xffffff800994d085
    0xffffff81816fbd60 : 0xffffff800995cc0b
    0xffffff81816fbf50 : 0xffffff8009c4b376
    0xffffff81816fbfb0 : 0xffffff80098344a6

    BSD process name corresponding to current thread: mds_stores

    Mac OS version:
    14F1509

    Kernel version:
    Darwin Kernel Version 14.5.0: Tue Sep 1 21:23:09 PDT 2015; root:xnu-2782.50.1~1/RELEASE_X86_64
    Kernel UUID: 06D286E3-A8A1-3BE7-A7EB-EAC6E0C69758
    Kernel slide: 0x0000000009400000
    Kernel text base: 0xffffff8009600000
    __HIB text base: 0xffffff8009500000

    etc etc

  18. VAGDesign macrumors 6502

    VAGDesign

    Joined:
    Feb 1, 2014
    Location:
    Greece
    #18
    I would check the CPU temperature and would remove and re-apply thermal paste. Just to be sure the CPU or it's backplate isn't the problem. Also remove all RAM and leave only the original that came with to make sure there is no DIMM problem.

    Also check the battery on the motherboard if it's working ok or needs replacement.

    I wish you luck!

  19. Monocle thread starter macrumors member

    Monocle

    Joined:
    Jun 10, 2009
    Location:
    United Kingdom
    #19

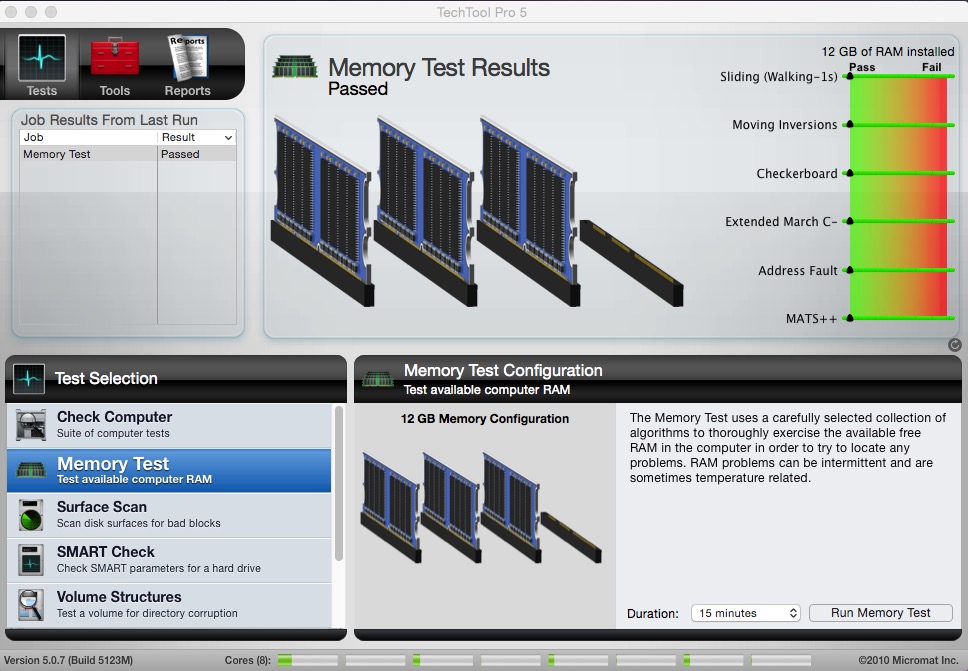

    Managed to get my old Tech Tool Pro to run tests on my three ram modules and according to that, everything is okay. Which isn't, I suppose, what I wanted to hear?
    --- Post Merged, Jan 10, 2016 ---
    I really appreciate the advice VAG and am flattered by your faith in my technical ability. But sadly it runs no further than curry paste and the ability to turn things off and on. Adding and removing ram sticks and hard drives is really as far as it goes. And of course my dear old Mac Pro does make those tasks extraordinarily easy for an idiot like myself!

  20. Mattww macrumors 6502

    Mattww

    Joined:
    Jan 11, 2008
    #20
    You can easily check temperatures and fan speeds with software like iStat or Monity.

    Just remember to check figures are in Centigrade or Fahrenheit before making comparisons with others!

  21. VAGDesign macrumors 6502

    VAGDesign

    Joined:
    Feb 1, 2014
    Location:
    Greece
    #21
    Have faith and patience :)

    I recommend using MacFansControl to monitor the temps and see this video here to check how easy/hard it is to apply paste or upgrade CPUs.


    Cheers!

  22. Monocle, Jan 10, 2016
    Last edited: Jan 10, 2016

    Monocle thread starter macrumors member

    Monocle

    Joined:
    Jun 10, 2009
    Location:
    United Kingdom
    #22
    Hmm, lots to think about. I did just watch the above video with my dear wife looking over my shoulder. I believe the phrase she used was 'Absolutely not'. One has to bear in mind that my house barely contains screwdrivers let alone a proper workspace. In fact the Mac Pro is adjacent to piles of antique books. The damage I could wreak would be wonderful to behold...

    One further note that might help the sleuths amongst you. Whereas I can suffer various shutdowns just opening webpages Outlook and Aperture, my son seems to be able to play his 'League of Legends ' online without so much as a judder or interruption! Why on earth should that be the case?

    Interestingly I just went onto the Monity app webpage. Every 4 seconds or so, each time the small inset image on their page changes, my fans audibly speed up.

  23. Monocle, Jan 11, 2016
    Last edited: Jan 11, 2016

    Monocle thread starter macrumors member

    Monocle

    Joined:
    Jun 10, 2009
    Location:
    United Kingdom
    #23
    Gave the Mac Pro a thorough clean today. Thankfully it wasn't too bad in there but sadly the problems have cropped up at the usual intervals today. Went searching for my start-up discs to run the AHT but still can't find them. I seem to have every other disc on the planet though. Even those belonging to my G4 iMac are all present and correct! I've even been in the loft to look in my pristine Mac Pro box to seek them out but no luck. One curious new thing did just happen though. I'd had my Microsoft Outlook open to check emails many times through throughout day but when I just went to open it again it opened with the 'Welcome to Office for Mac' greetings panel! I promptly closed down the Mac, restarted, and we were back as normal with all my emails. Does this point to anything it demonstrably can't be?

  24. MacVidCards Suspended

    Joined:
    Nov 17, 2008
    Location:
    Hollywood, CA
    #24
    That issue could be permissions or bad drive.

    It really is very easy to narrow this down to software vs. hardware. (I already told you how to eliminate GPU as issue)

    Create or use a different start-up disc. Could be fresh install on a spare HD or just firewire in from another Mac. If using different startup drive fixes it, no hardware issue, just software.

    Does your son boot WIndows to run LOL? If so, you already have your answer.

  25. Monocle thread starter macrumors member

    Monocle

    Joined:
    Jun 10, 2009
    Location:
    United Kingdom
    #25
    I wish it was! He actually uses the Mac version of LOL so no hope there. My problem is finding any friends who have Macs. I am a bit of a lone voice in the wilderness here! I do however have the AHT disc from my ancient iMac but I rather thought I should refrain from using that....


Share This Page
