Older Mac Pro.. adding SSD?

Discussion in 'Mac Pro' started by itsjustmeee, Jan 26, 2018.

  1. itsjustmeee macrumors 6502a

    Joined:
    Dec 28, 2008
    #1
  2. h9826790 macrumors G5

    h9826790

    Joined:
    Apr 3, 2014
    Location:
    Hong Kong
    #2
    IMO, they are all more or less the same. Go for the cheapest one is fine.

    I have a $500 Samsung 1TB 840 Evo, and a $30 DMG 120GB SSD. I can't notice any difference between them in real world.

    A more expensive one may have better life span, better CS, better warranty, etc. But usually won't really work better or faster on the Mac.

    Anyway, the 850 Pro should fit your Mac (same as any other SATA SSD).

  3. itsjustmeee, Jan 26, 2018
    Last edited: Jan 26, 2018

    itsjustmeee thread starter macrumors 6502a

    Joined:
    Dec 28, 2008
    #3
    So will the Samsung 850 evo fit in one of the internal sata drives in my '08 mac pro? I'm guessing I will need something like this?

    https://www.amazon.com/Sled-Pro-200...1516997349&sr=8-6&keywords=drive+sled+mac+pro

  4. judino28 macrumors member

    Joined:
    Jul 29, 2008
    #4
    This: http://a.co/cLVFfgB is what I use for my SSD. Any 2.5 SSD should work with this adapter in a cMP.

    There is also this: http://a.co/3Br3IwE which seems to be the same thing, just a little cheaper.

    Since the cMP is limited to SATA 2.0, I can't imagine any noticeable difference between SSDs in terms of speed since they will all be bottlenecked by the interface.

  5. h9826790 macrumors G5

    h9826790

    Joined:
    Apr 3, 2014
    Location:
    Hong Kong
    #5
    Yes, the 850 Evo is one of the known good option.

    It doesn't really need adaptor, but you can use it.

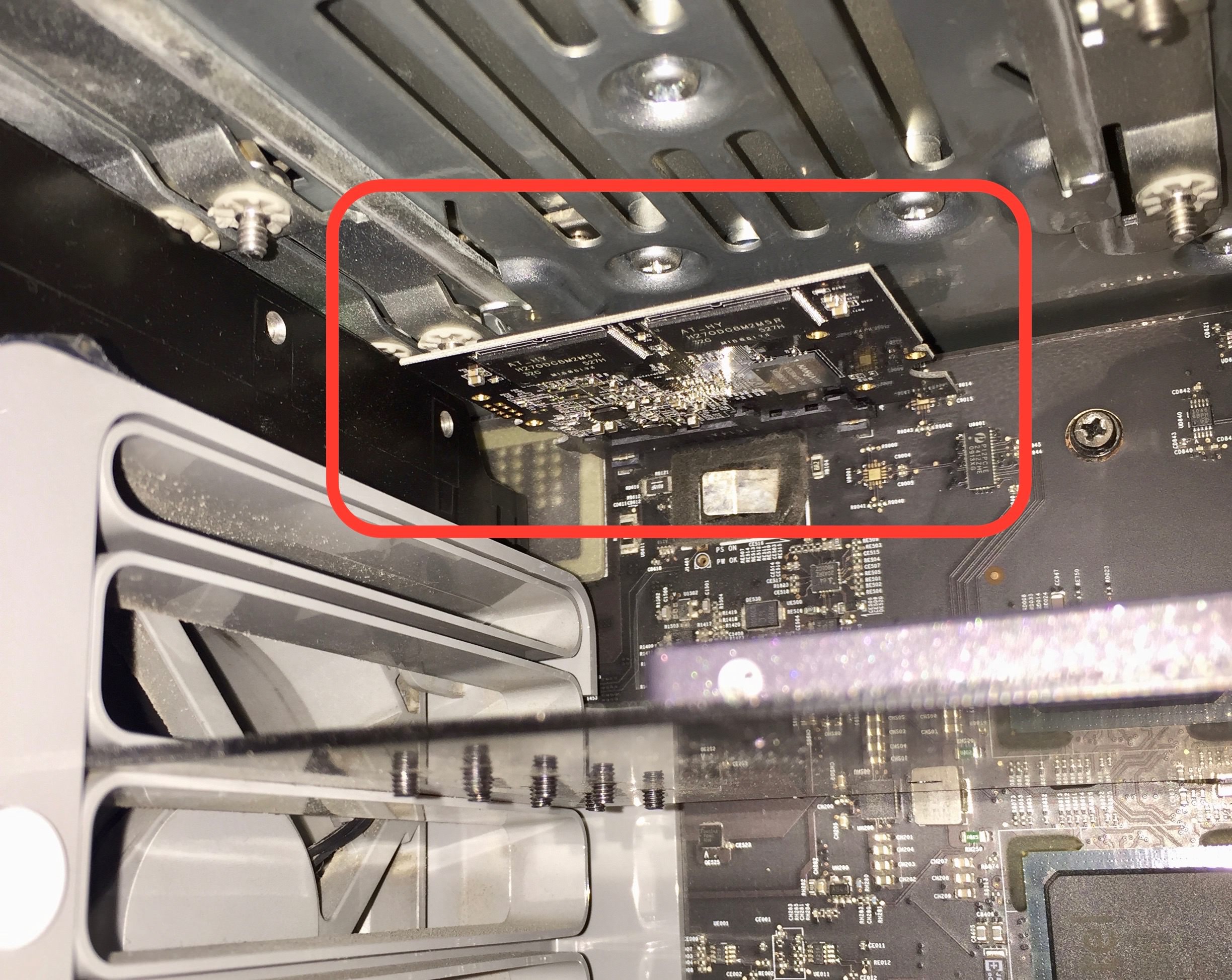

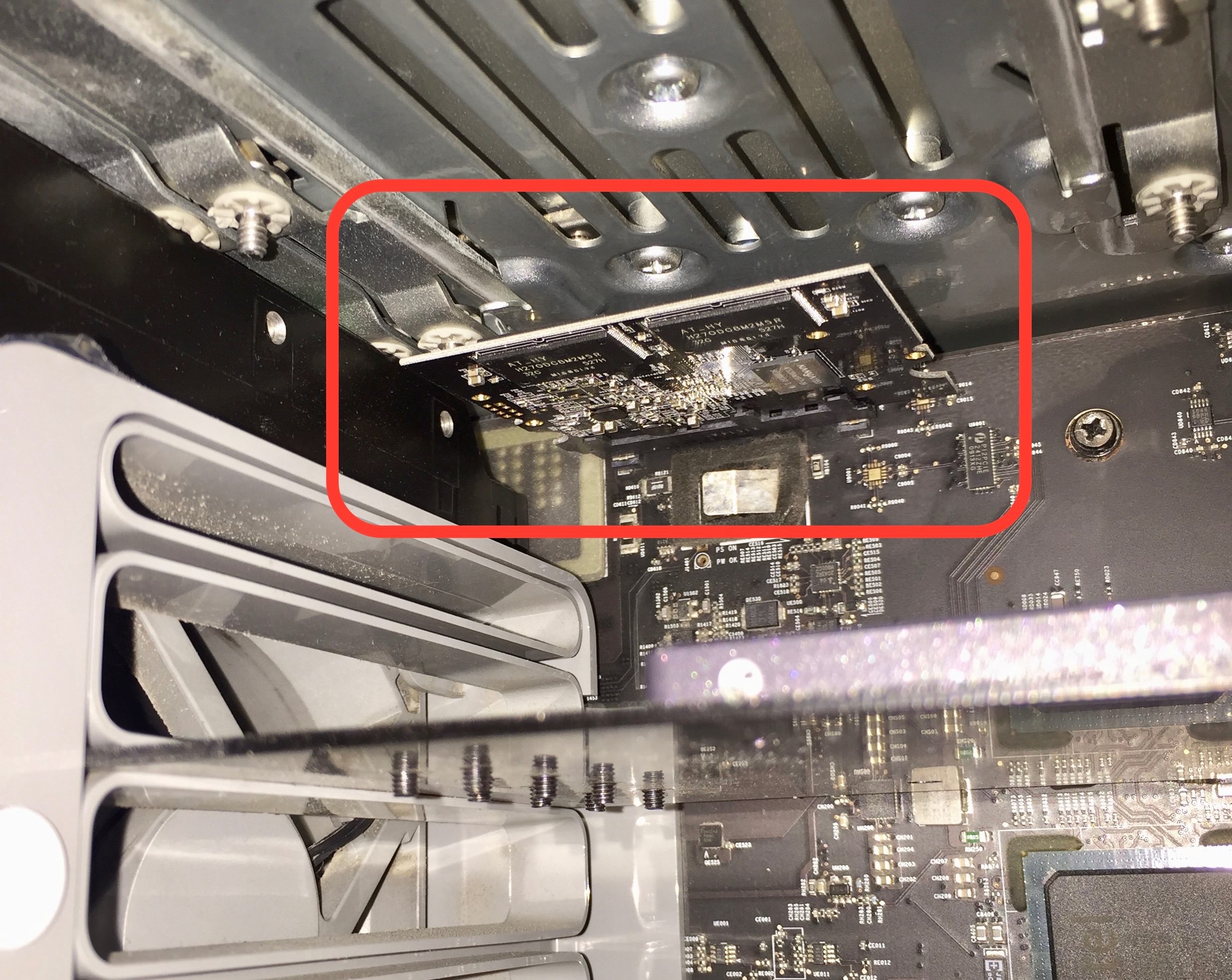

    I actually remove the case and directly plug in the SSD. The SATA port is strong enough to hold it.
    SSD SATA port.jpg

    In fact, you don't even need to remove the case, the SATA port can still hold it without any issue. My friend's SSD is like that for few years already. But the SSD will looks like can't hold horizontally, so, I personally remove the case.

    Some users may prefer to keep the case, and have some kind of support to the SSD, a simple rubber band can do this job very well. As long as the SSD lie on the rubber band, it won't cause any stress to the SATA port anymore.

    Of course, if you prefer to have an adaptor, you can buy one. But you don't really "need" it.

  6. bsbeamer macrumors 68020

    Joined:
    Sep 19, 2012
    #6
    Take a look at these if you still have the bracket/sled for 3.5" drives for 2008 MacPro:
    https://www.amazon.com/dp/B01M366L82
    https://www.amazon.com/dp/B01EBHFS0O

    Personally prefer the drive to be directly connected to the port vs. a go-between device, but people have had success with Icy Dock and AdaptaDrive (listed above). I would avoid the "Pro Sled 2" at that price.

  7. jbarley macrumors 68040

    jbarley

    Joined:
    Jul 1, 2006
    Location:
    Vancouver Island
    #7

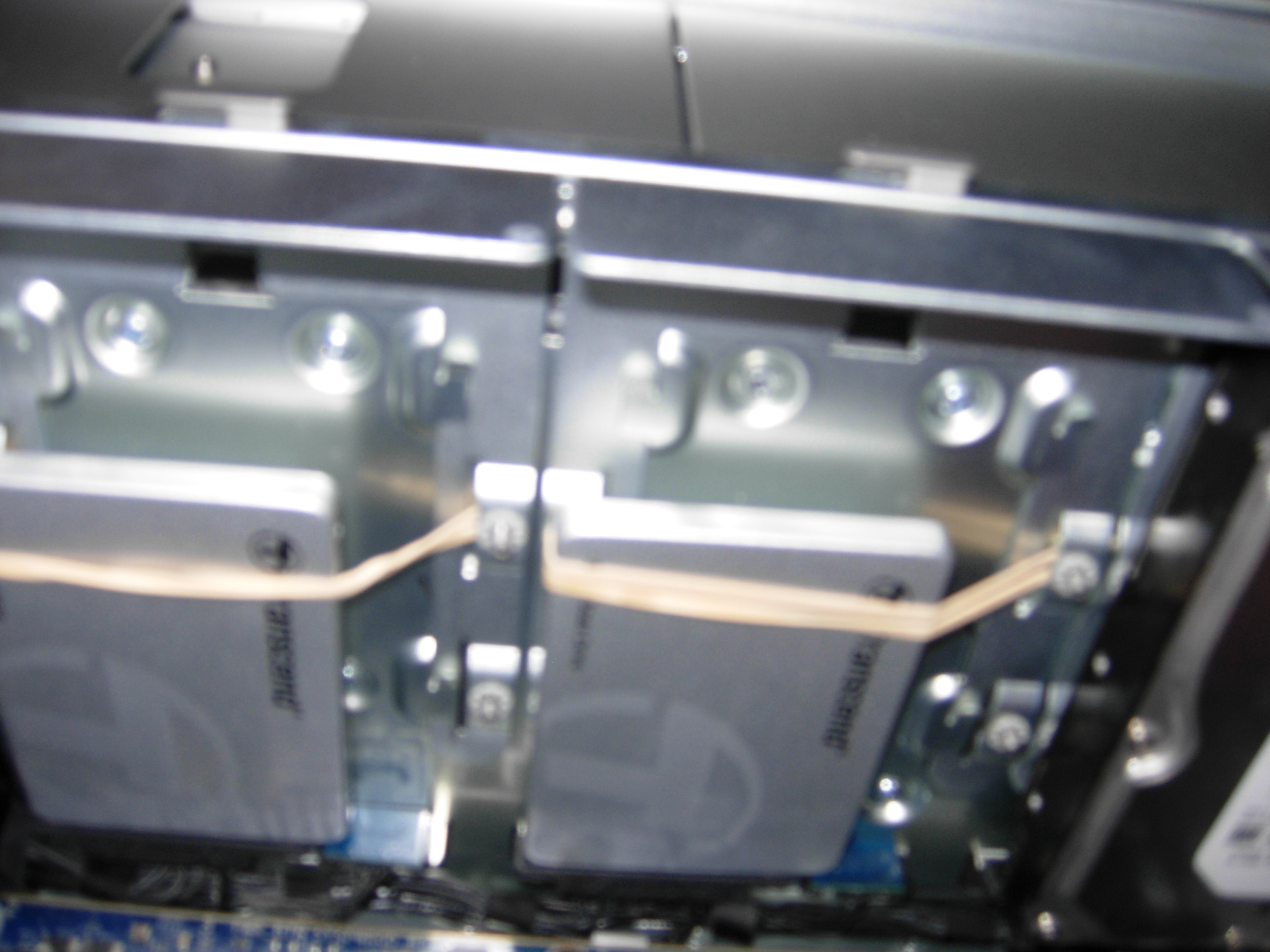

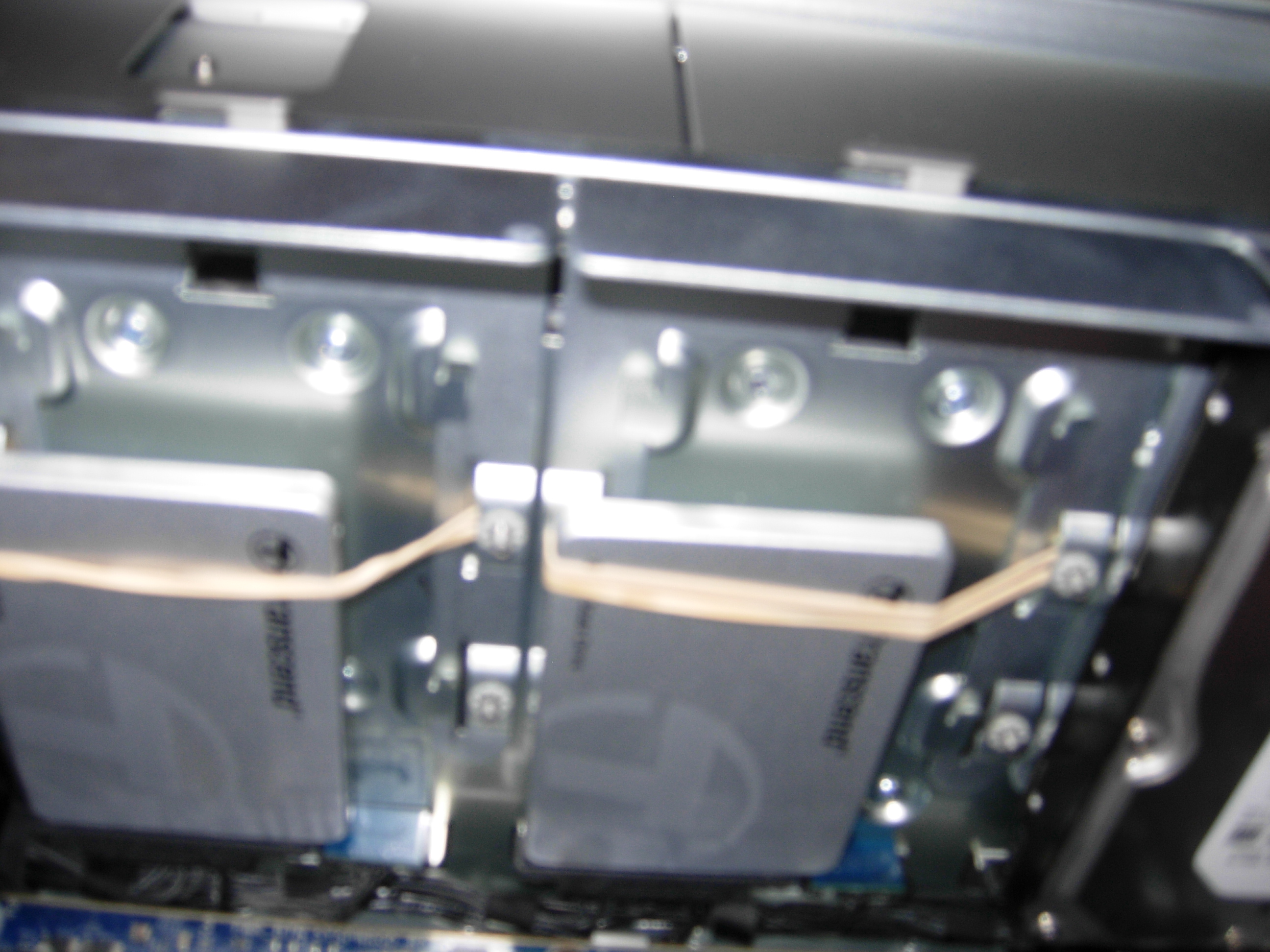

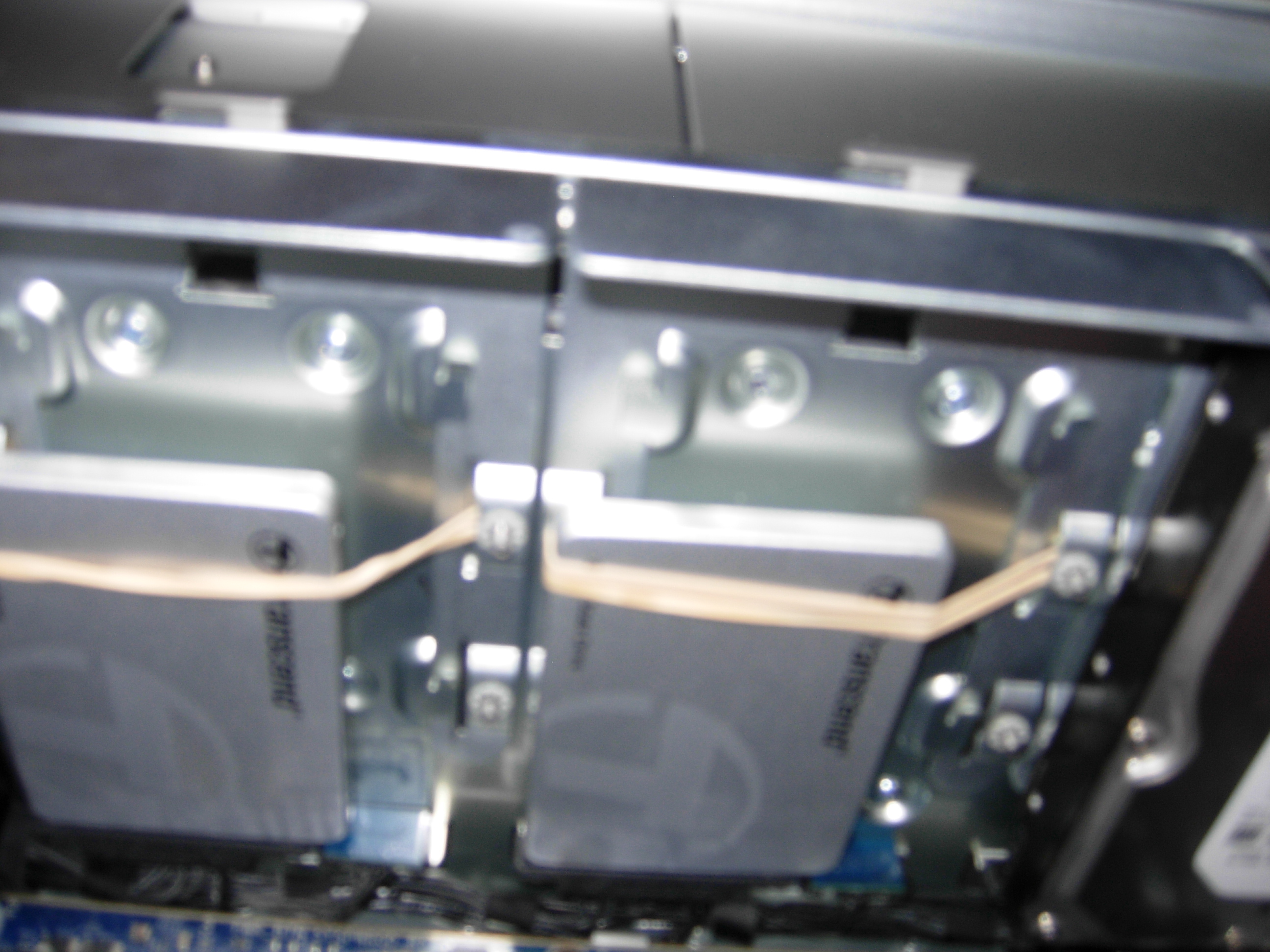

    Or you can leave the case on, not void the warranty and support the rear end with a rubber band like so...

  8. AidenShaw macrumors P6

    AidenShaw

    Joined:
    Feb 8, 2003
    Location:
    The Peninsula
    #8
    I'd never put a rubber band inside a computer - at least not long term.

    Haven't you seen how old rubber bands dry out and get stiff and brittle?

    I'd use nylon tie wraps (they don't need to be tight - just to support most of the weight).

  9. itsjustmeee thread starter macrumors 6502a

    Joined:
    Dec 28, 2008
    #9
    Thanks so much for the info. The 850 Evo looks like the way to go. I might just spring for this anyway (even though it seems pricey)...

    https://www.amazon.com/Sled-Pro-200...1516997349&sr=8-6&keywords=drive+sled+mac+pro

    so I'll have two sleds. That way I can replace one of my work drives for another 850 at a later date.

  10. Darmok N Jalad macrumors 68000

    Darmok N Jalad

    Joined:
    Sep 26, 2017
    Location:
    Tanagra
    #10
    I just used some double-sided tape and stick it to the sled, the type used to hold pictures to the wall. Gives a little more piece of mind and will keep the drive from becoming dislodged in an accidental bump.

    As for the brand of drive, just get one that's well reviewed. Due to the limitations of the chipset of a 2008 Mac Pro, you'll never see the peak throughput of the SSD without a PCIe adapter. However, you will still see a substantial speed improvement by going to SSD.

  11. AidenShaw macrumors P6

    AidenShaw

    Joined:
    Feb 8, 2003
    Location:
    The Peninsula
    #11
    I have quite a few EVOs (several dozen) - almost no problems. (One had one bad block during infancy - a year later no issues.)

    If you're looking at system/application drives - just ignore the sequential bandwidth tests like Black Magic.

    System/application performance is mostly affected by small random reads and writes - and any SSD on any interface will be much faster than a spinner that has to move its heads.

    AND MAKE SURE THAT TRIM IS ENABLED. AND MAKE SURE THAT TRIM IS ENABLED. (repeat forever)

  12. Darmok N Jalad macrumors 68000

    Darmok N Jalad

    Joined:
    Sep 26, 2017
    Location:
    Tanagra
    #12
    Thanks for this. I have wrongly assumed that newer versions of MacOS enabled it by default. It does not do so on third party drives!

  13. AidenShaw macrumors P6

    AidenShaw

    Joined:
    Feb 8, 2003
    Location:
    The Peninsula
    #13
    If you've been running without TRIM enabled, be sure to run the utility to force TRIM on free space.

    The exact commands depend on your OSX version (e.g. http://hints.macworld.com/article.php?story=20120114214648388 ).

  14. h9826790 macrumors G5

    h9826790

    Joined:
    Apr 3, 2014
    Location:
    Hong Kong
    #14
    It just allow you to turn on TRIM, but not natively turn on for 3rd party SSD.

  15. AidenShaw macrumors P6

    AidenShaw

    Joined:
    Feb 8, 2003
    Location:
    The Peninsula
    #15

    Apple's proprietary mindset in action yet again.

    Other operating systems simply check to see if the drive reports "TRIM is supported", and it simply works regardless of the drive vendor or any action by the user.

  16. SamirPD macrumors member

    Joined:
    Feb 9, 2018
    Location:
    HSV CHI
    #16
    Since you're using ProTools, you probably don't have time to mess around with the computer while working, so I'd go with the Samsung EVO since it is a very reliable drive as well as some sort of sled or adapter for it to just make sure nothing goes wrong.

    And do make sure that TRIM is enabled. Should be smooth sailing from here.

  17. MarkC426 macrumors 6502a

    Joined:
    May 14, 2008
    Location:
    UK
    #17
    Some of these threads really make me chuckle sometimes.....:D
    You pay thousands for a macpro and then a couple hundred more for an ssd drive, but don’t pay another 20 quid for a proper mount.
    Personally I always use OWC drive sleds (£20 gbp)......:p

  18. SamirPD macrumors member

    Joined:
    Feb 9, 2018
    Location:
    HSV CHI
    #18
    There's a bit of value hunting in doing it yourself so what one person values another doesn't. Otherwise, with as expensive as these machines are new, why not just let Apple do the whole thing and bill you? :p
