Opening a Core Solo Mini. Never again!

Discussion in 'Mac mini' started by Hugh, Feb 12, 2010.

  1. Hugh macrumors 6502a

    Hugh

    Joined:
    Feb 9, 2003
    Location:
    Erie, PA
    #1
    Okay I shouldn't post this but I had to. I just took my Mac Mini Core Solo apart to fix a dead hard drive. That was not easy! I watched the video that OWC has on their site.

    He makes it look so easy, cracking the thing open wasn't a joy. I had a hard time getting the putty knife in and the credit card in between the inter and outer casing. I ended up scratching the inter casing a bit and nicked the outer in two spots.

    Then taking those screws out wasn't a joy. Too tight turn and not much room space to work in on getting those out. Not mention getting those little babies back in. I has to skip a screw just because I couldn't get back in. Too tight for me to get the screw lined up with the hole to screw.

    When it came to replacing the hard drive, that was easy except taking the foam off the old drive and putting it back on the new drive. What is this do? In the video this foam had to be put on the new drive. Either buy by its self or glued back on. What kind of glue should've used if the foam wouldn't stick to the new drive?

    Okay hard drive replaced...DONE. Now the hard part, putting the drive block back in the case. The damn Airport cable/antenna in the way from the drive block back in and still be able to put it back on it's post. This drove me bonkers trying to figuring out what the problem was. I figure it out but the video was no help to me on that. It just seem that it went into the right place for him...

    Then there those screws again like I said earlier. I had to leave one out because hole was too big to line up the screw. Me and my roommate thing they might has assembled wrong from the factory. Because in the video he says the long screw is front right. When I took mine part the big screw was the left back..... Anyways I gave up on that screw and hope it will not hurt any thing. :eek:


    I've read about you people saying that they take their Mini apart 6 times or 8 times with no trouble. I guess I'm not one of those lucky ones.


    Just as a side note I had a person who is totally blind helping me! :D

    Hugh

  2. flopticalcube macrumors G4

    flopticalcube

    Joined:
    Sep 7, 2006
    Location:
    In the velcro closure of America's Hat
    #2
    The more you do it, the easier it gets, both for you and the mini.

  3. GoCubsGo macrumors Nehalem

    GoCubsGo

    Joined:
    Feb 19, 2005
    #4
    I opened mine and it wasn't so bad. The first putty knife was too thick so I bought a thinner one. Patience and a steady hand is key.

  4. tamasvarga67 macrumors regular

    Joined:
    Sep 29, 2007
    #5
    I opened mine - upgraded the HDD and RAM - without any problems just printed and followed the iFixit tutorial.

  5. Gav2k macrumors G3

    Gav2k

    Joined:
    Jul 24, 2009
    #6
    The core solo was the first intel based mini. Also had a socket based CPU so you could upgrade to a core duo.

  6. Hugh thread starter macrumors 6502a

    Hugh

    Joined:
    Feb 9, 2003
    Location:
    Erie, PA
    #7
    Upgrading Core Solo

    You know after a year I had the thing I thought i was going to upgrade the processor in it, because it is socketed. But after going though all that just to replace a hard drive and I don't think I will be doing the processor upgrade. :eek:

    Although I must say the video did make it look like that replacing the DVD-ROM drive is real easy. That is if you can open the Mini in the first place. LOL

    Hugh

  7. fhall1 macrumors 68040

    fhall1

    Joined:
    Dec 18, 2007
    Location:
    (Central) NY State of mind
    #8
    I've had mine open 4 times....relatively easy and no scratches....did you sharpen the putty knife like Apple recommends?

  8. Hugh thread starter macrumors 6502a

    Hugh

    Joined:
    Feb 9, 2003
    Location:
    Erie, PA
    #9
    Sharpen putty knife

    No I didn't. I didn't know that Apple recommends that the putty Knife to be sharpen. If I knew it had to be sharpen, I would have bought the sharp version of the putty knife I bought. :/

    Hugh

  9. KeriJane macrumors 6502a

    KeriJane

    Joined:
    Sep 26, 2009
    Location:
    ЧИКАГО!
    #10
    Hello.

    That little piece of foam is an important air deflector that makes sure the airflow through the Mini cools everything as intended. if it's missing, air can bypass its usual route.

    If the glue loses its stickyness, a dab of rubber cement seems closest to the original adhesive.

    So far as the screws, you probably want to use a magnetized #1 phillips screwdriver to get them in place.

    Mac Mini repair- a test of dexterity and patience! ;)

    Have Fun,
    Keri

  10. scottness macrumors 65816

    scottness

    Joined:
    Mar 18, 2009
    Location:
    Room 101
    #11
    How difficult is that? I've got an old core solo that I use for winXP. Opened it up once to upgrade the ram... Couldn't believe it was as difficult as it was.

  11. Choctaw macrumors 6502

    Choctaw

    Joined:
    Apr 8, 2008
    #12
    Would not choose a blind helper for this undertaking

    Wow.......that statement says a mouth full.........

  12. ibglowin macrumors regular

    Joined:
    Jul 1, 2005
    #13
    No such thing as a Core Solo......

    Its a Core Duo.

    And they are a piece of cake to open unless you have two left thumbs.....

  13. scottness macrumors 65816

    scottness

    Joined:
    Mar 18, 2009
    Location:
    Room 101
    #14
    The first Intel Minis were Core Solos. Trust me. I have one.

  14. OllyW Moderator

    OllyW

    Staff Member

    Joined:
    Oct 11, 2005
    Location:
    The Black Country, England
    #15
    Mac mini newbies. :p

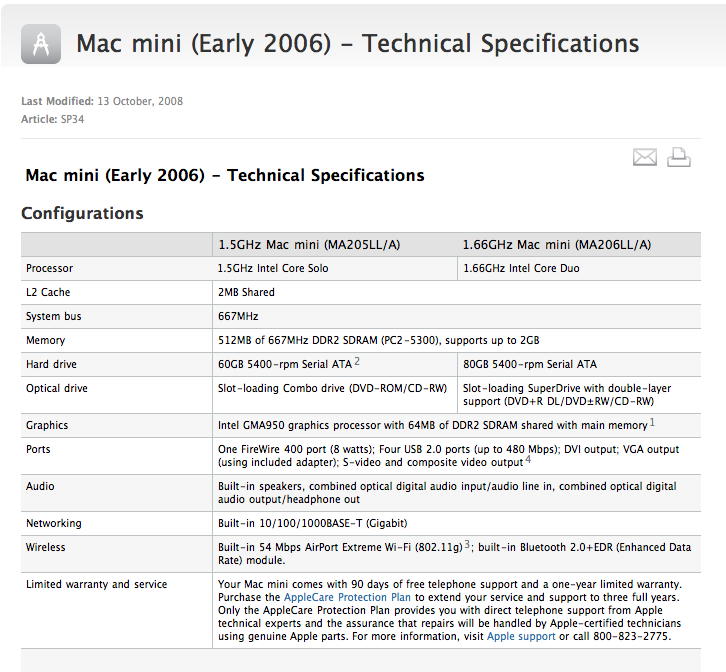

    Screen shot 2010-02-15 at 01.42.48.png

  15. hfg macrumors 68040

    hfg

    Joined:
    Dec 1, 2006
    Location:
    Cedar Rapids, IA. USA
    #16
    use a pizza cutter to open the case

    I find a small rotary (3" disk) pizza cutter works better than the putty knife for opening the Mac Mini case without damage.

    -howard

  16. WardC macrumors 68030

    WardC

    Joined:
    Oct 17, 2007
    Location:
    Fort Worth, TX
    #17
    The first Mac Minis were actually Core Solo 1.5GHz before the Core Duo Mini came out, and then the Core 2 Duo Minis came out with the 1.83GHz models. Before the first Core Solo minis were the G4 Minis.

    Here is one of the Core Solo Minis on Amazon:

    http://www.amazon.com/Apple-MA205LL-Intel-Drive-DVD-ROM/dp/B000EPWDTC


    1.5 GHz Intel Core Solo processor with 167 MHz system bus
    512 MB DDR2 SDRAM (expandable to 2 GB), 60 GB hard drive, and slot-loading Combo Drive (DVD-ROM/CD-RW)
    One FireWire 400 port; four USB 2.0 ports

  17. pastrychef macrumors 601

    pastrychef

    Joined:
    Sep 15, 2006
    Location:
    New York City, NY
    #18
    I had a heckuva time taking apart my Mac mini the first time I tried, too. But it has gotten easier over time. I guess things get "loose" the more times you take it apart.

    In regards to upgrading the CPU, it's not hard. Just be careful with the nylon thingys holding the heatsink in place. When I upgraded my CPU, I broke two of them. Now, I have nuts and bolts holding the heatsink in place.

  18. Time Clock macrumors member

    Joined:
    Mar 5, 2004
    Location:
    Hemet, CA
    #19
    I agree 101% with this. Using a pizza cutter made opening up my Mini a piece of cake.

  19. rprebel macrumors 6502

    rprebel

    Joined:
    Aug 22, 2010
    Location:
    Where the bluebonnets bloom
    #20
    Thanks for that, I don't remember reading that in the guides I found. You may have just saved me a lot of work.

    I thought the putty knife was easy enough, but I may try this when I do the processor.

  20. pastrychef macrumors 601

    pastrychef

    Joined:
    Sep 15, 2006
    Location:
    New York City, NY
    #21
    As long as you have some spare nuts and bolts around that fit in the holes, it's not a problem. In retrospect, I should've just used nuts and bolts for all four mounting holes.

  21. Time Clock macrumors member

    Joined:
    Mar 5, 2004
    Location:
    Hemet, CA
    #22
    To be honest, I didn't have a putty knife when I upgraded my Mini, but even if I had the putty knife option, a pizza knife sounded safer to me, so I went that route. I have to say that there are some pretty creative ways to open the old Mini.

  22. rprebel macrumors 6502

    rprebel

    Joined:
    Aug 22, 2010
    Location:
    Where the bluebonnets bloom
    #23
    Whatever works, right? I just love the look on people's faces when I say "I can do that, but I'll need a business card and a putty knife." Okay, I've only gotten to say that twice, but it was priceless both times.:D:D

  23. Time Clock macrumors member

    Joined:
    Mar 5, 2004
    Location:
    Hemet, CA
    #24
    I can imagine what their faces would be like... probably like my sisters' faces when they saw me sticking the pizza cutter in my computer to perform "surgery":D

  24. MacHamster68 macrumors 68040

    MacHamster68

    Joined:
    Sep 17, 2009
    #25
    not only to core duo, the core 2 duo too still the same socket up to 3ghz ;)

    so cheap way if you buy a 1.5 core solo pick up a 2ghz or even higher core 2 duo cpu cheap at ebay (and fit it in that little bugger )

    btw i am just looking into that because one of my mentally challenged mates (windows user ) :D wants to have such a nice little mac mini afer seeing my G4 mini ,but wants windows on it , so i thought about getting him a 1.5ghz core solo how good are they really , ok i mean more ram is a must as the 512 mb are just not much especially with shared graphics , i know my MSI wind with 1.6 single core atom runs quiet good , but is it comparable
    i mean in generall websurfing and youtube @480p and such things , will the mini 1.5ghz core solo good enough or should i better go straight ahead and transplant the 3.0 ghz core 2 duo out of his dell pc (socket LGA 775) never had a intel pc since the p4 always AMD powered :)
