Orico USB 3 Card not working

Discussion in 'Mac Pro' started by enny001, Mar 19, 2017.

  1. enny001 macrumors member

    Joined:
    Apr 30, 2013
    #1
    Hi guys i have Orico USB 3 Card with 4 usb ports for mac that come with power connection manual say that the card does not need extra power but its not working. I am looking to power the ccard with free HD bay will this cable work in my case

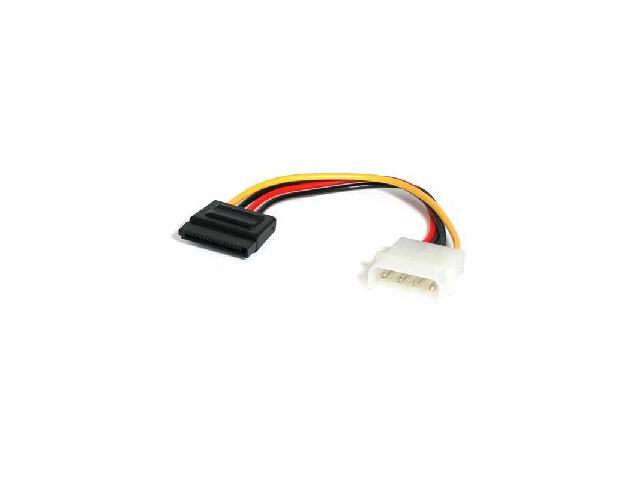

    6" 4 Pin Molex to SATA Power Cable Adapter SATAPOWADAP

    Thanks

    And can you recomend cheap mac pro 2009 usb 3 card


    --- Post Merged, Mar 19, 2017 ---
    I am ruining el capitan


    Attached Files:

  2. pastrychef macrumors 601

    pastrychef

    Joined:
    Sep 15, 2006
    Location:
    New York City, NY
  3. bax2003 macrumors 6502a

    bax2003

    Joined:
    Dec 25, 2011
    Location:
    Belgrade, Serbia
    #3
    Test it in a PC and if its working fine there, look for problem on your Mac - slot or some driver leftovers (CalDigit for example).

  4. h9826790 macrumors 604

    h9826790

    Joined:
    Apr 3, 2014
    Location:
    Hong Kong
    #4
    I may have that card (PME-4U?), it need power. Only the 2 ports card that can run without extra power.

    The picture is not very clear, but doesn't looks like the correct one to me. The cable require a STAT port that same as the one that on the HDD / SSD (can see the golden pins).

    The card should run flawlessly once you prosper it properly.

  5. enny001 thread starter macrumors member

    Joined:
    Apr 30, 2013
    #5
    Hi guys card works fine i was using it in my pc with power cable but i think i might need power and no drivers wore used before on my mac for any usb 3.0 what about this cable.

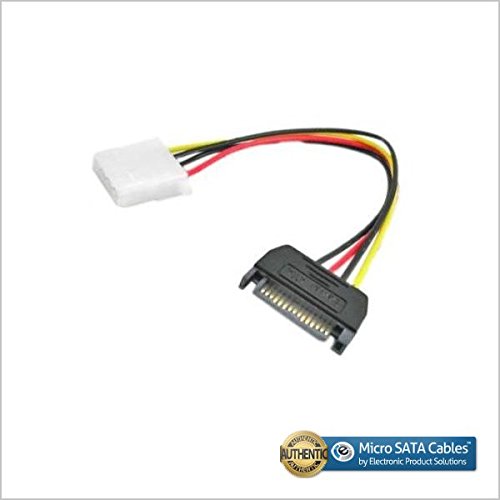

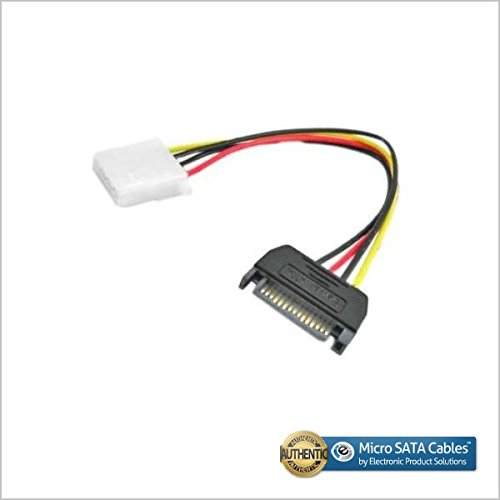

    15 Pin SATA Male to 4 Pin Female Power Cable


    Attached Files:

  6. h9826790 macrumors 604

    h9826790

    Joined:
    Apr 3, 2014
    Location:
    Hong Kong
    #6
    The SATA port on this cable looks good to me, but you have to cut the plastic latch by yourself, otherwise it can't fit in the logic board's SATA port.

    Couldn't remember what the other side looks like (the Molex side), but you have the card on hand, so it can't go wrong.

    And no driver required for this card.

  7. enny001 thread starter macrumors member

    Joined:
    Apr 30, 2013
    #7
    yeah no luch i biut the cable but when i tun on my usb 3 hub with ssd inside it nothing show up on mac

  8. h9826790 macrumors 604

    h9826790

    Joined:
    Apr 3, 2014
    Location:
    Hong Kong
    #8
    You can check system info if the card is working. If yes, check the cable.

  9. enny001 thread starter macrumors member

    Joined:
    Apr 30, 2013
    #9
    hm i i am seeing it in usb buss tree and i put my mac to sleep wake mac up and it was showing but after removing the ssd from orico bay and putting it back in powering it on it shows nothing on desktop i wonder if i should just buy new one without power cable

  10. h9826790, Mar 19, 2017
    Last edited: Mar 20, 2017

    h9826790 macrumors 604

    h9826790

    Joined:
    Apr 3, 2014
    Location:
    Hong Kong
    #10
    In my own experience, that's nothing to do with the card (in fact, change to KT-4004 make situation worse). I had similar issue before (also from an Orico enclosure). I still can't figure out 100% the reason. But the fix is simple, connect the enclosure via a USB 3.0 hub (in my case, that's a Ocico hub as well). Then the connection suddenly become 100% stable.

  11. pastrychef macrumors 601

    pastrychef

    Joined:
    Sep 15, 2006
    Location:
    New York City, NY
  12. JoSch macrumors regular

    Joined:
    Feb 22, 2013
    #12
    I used a Y-cable on one of the molex in the optical drive bay (3,1 still has them). Then from the Y-cable, I used an one meter long extension cord to the USB card.

  13. enny001 thread starter macrumors member

    Joined:
    Apr 30, 2013
    #13
    Hi guys thanks for all the help i have used this program i dont know the name of it it used by hackintosh community where you drag drivers in to and apparently it installs it for you before that it did bunch of things to my mac like full file access ect i think i will reformat my mac and do clean install and see if that will recognize the card. I used GenericUSBXHCI_1.2.7.drivers and one from orico but i am not sure how to install them there is a file that look like a box but when i click on it it just say chose a program to use where do you drop it which folder its not auto install

    Thanks guys

  14. h9826790 macrumors 604

    h9826790

    Joined:
    Apr 3, 2014
    Location:
    Hong Kong
    #14
    If you really have the correct "for Mac" card, should be no driver required under El Capitan.

  15. enny001 thread starter macrumors member

    Joined:
    Apr 30, 2013
    #15

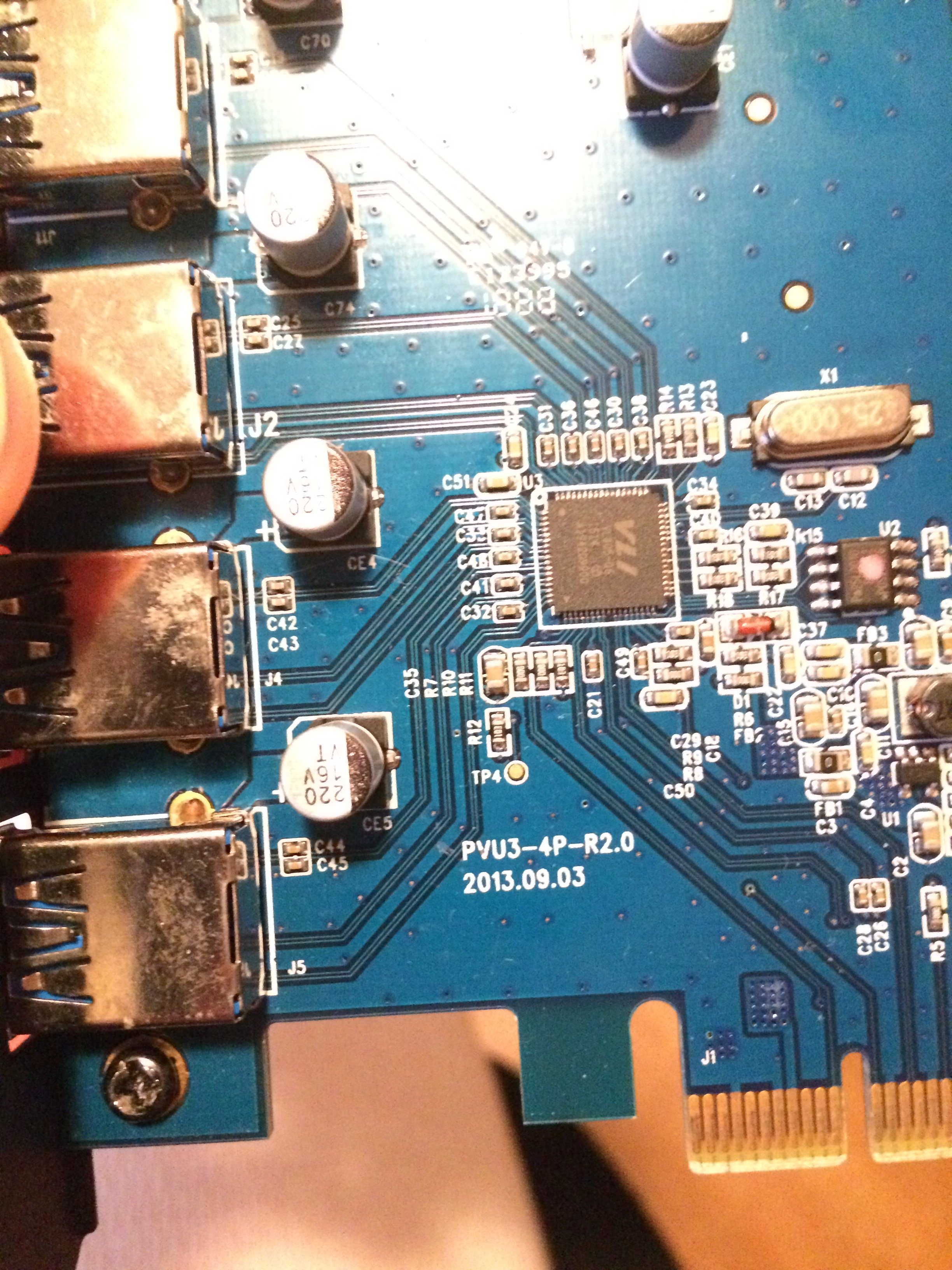

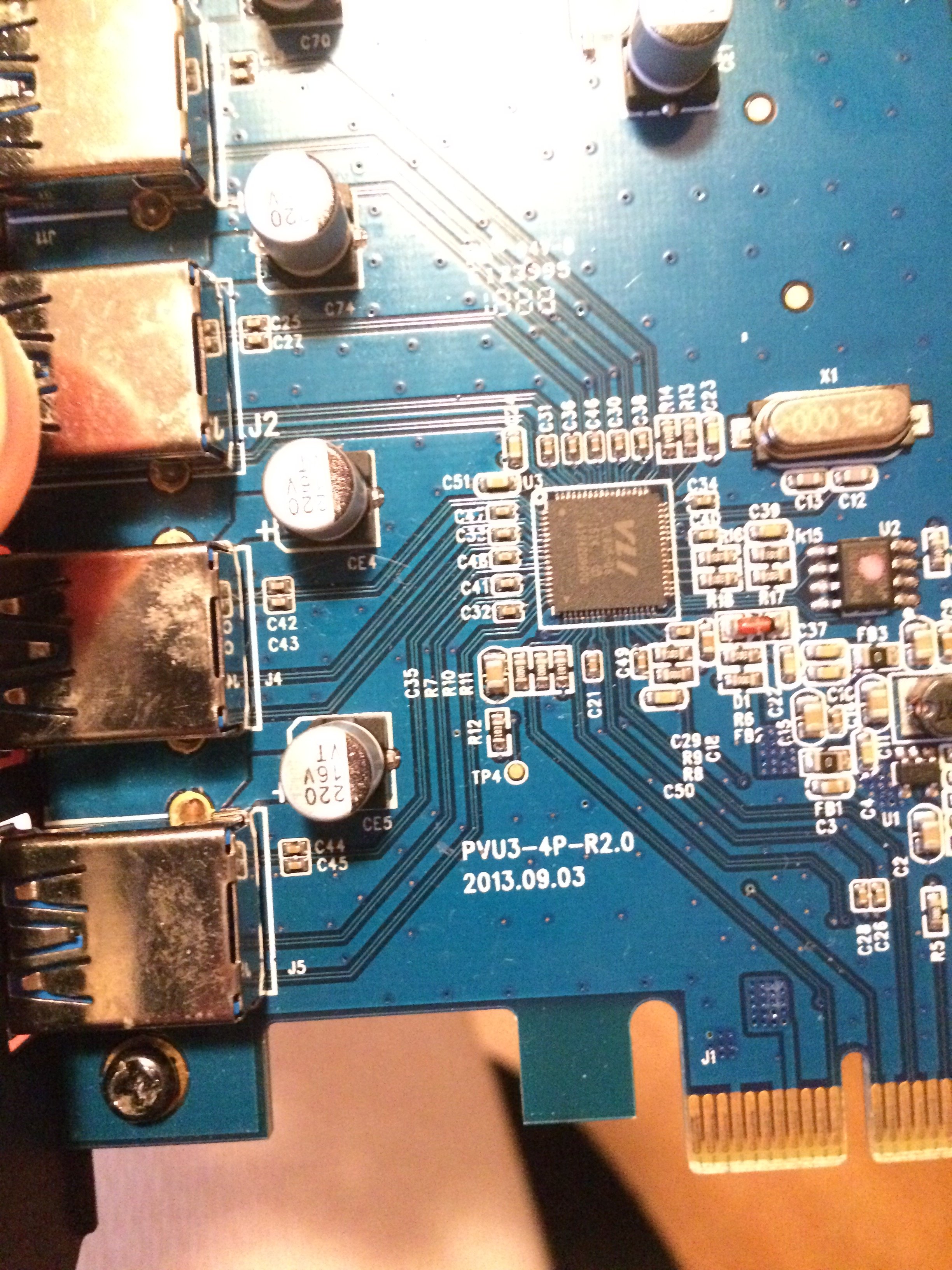

    Hi guys this is the card i have PVU3-4P-R2.0

    **** i don't think its supported. now i remember Me as morth i bought mac one but returned that one and got pc

    Supported SystemWindows 10 / 8 / 7 / Vista / XP

    http://orico.cc/goods.php?id=4785
    --- Post Merged, Mar 20, 2017 ---
    Thanks guys for all your help.

    PS can you recommend a card just 2 usb 3 ports for my mac under El Capitan

    I am looking at
    Inateck Inateck 4 Ports PCI-E to Interface USB 3.0 Expansion Card for Mac Pro


    Attached Files:

  16. pastrychef macrumors 601

    pastrychef

    Joined:
    Sep 15, 2006
    Location:
    New York City, NY
    #16
    That looks like it's a VIA controller. As far as I know, it's not supported by macOS.

    That driver you found may make it work... But I don't know how good that driver is or if it causes problems with anything else.

    You are probably much better off going with an FL1100 based card that doesn't need any hacked drivers.

  17. ActionableMango macrumors 604

    ActionableMango

    Joined:
    Sep 21, 2010
    #17
    See the USB link in my signature.
