OS X Kernel - "Restart Needed" Message

Discussion in 'macOS' started by Marvin1379, May 14, 2009.

  1. Marvin1379 macrumors 6502

    Joined:
    Jun 25, 2007
    Location:
    New York
    #1
    So i updated to 10.5.7 the other day and it took a few restarts to get it going, but all is well now.

    i was just tooling around on my computer with several programs open as i usually do (safari looking at gmail, ical, mail, itunes, ichat, weatherdock, TM error logger), then all of a sudden a grey dim starts at the top of the screen and swipes all the way to the bottom then the following message appears: "You need to restart your computer. Hold down the power button for several seconds or press the Restart button."

    Anyone else have this issue with 10.5.7? what did it mean if you had it in the past?

    I'm running a mid 2007 MBP 2.4 SR, with stock 2GB RAM, stock 160GB hard drive, 2 Western Digital external hard drives, one USB for Times Machine and a FW800 for iTunes media.

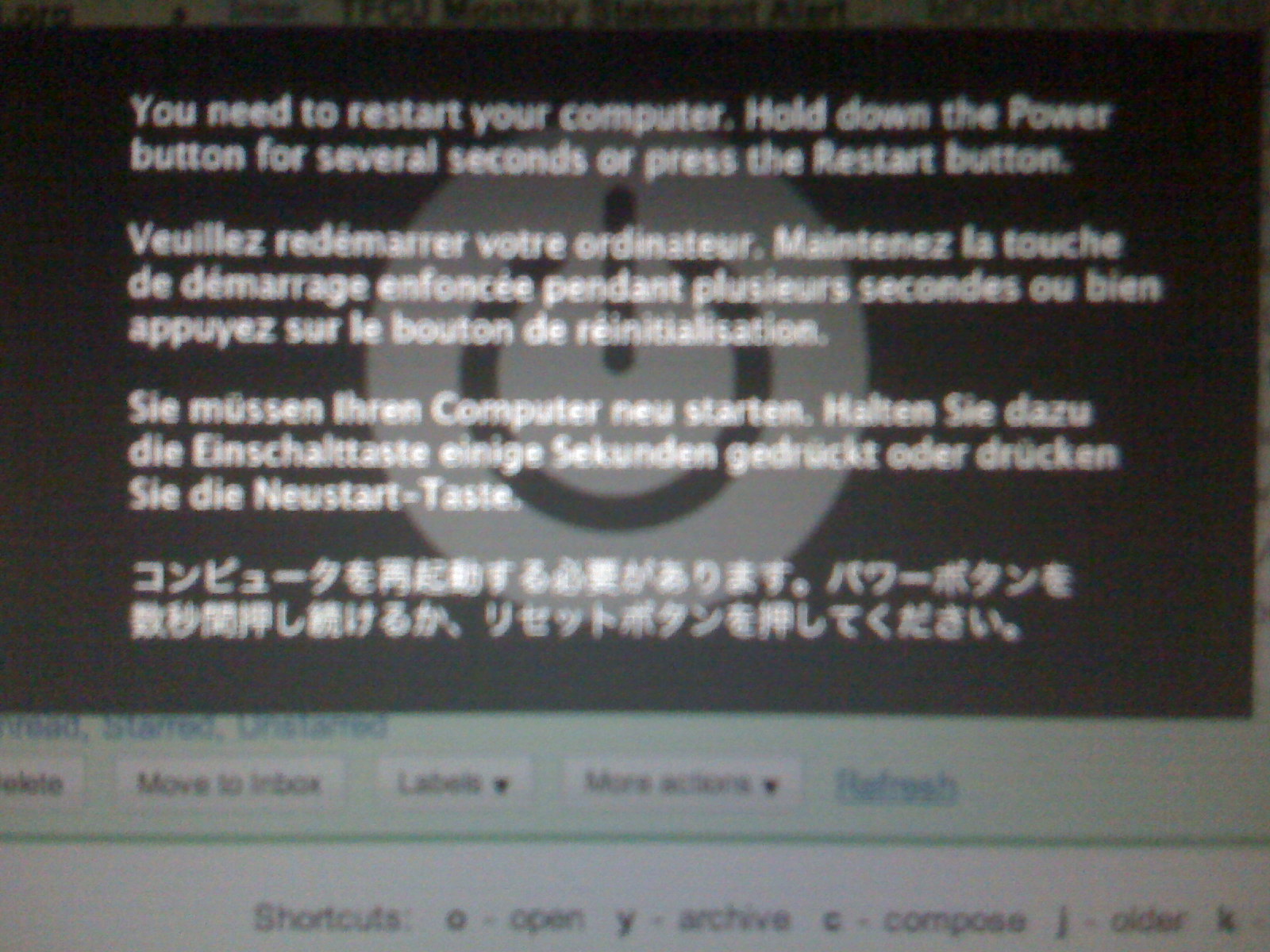

    See the attached pic. Sorry its so grainy (i took it with my iPhone). :rolleyes:


    Attached Files:

  2. J the Ninja macrumors 68000

    Joined:
    Jul 14, 2008
    #2
    You have just experienced a kernel panic

    You can get the log file following the instructions here:

    http://support.apple.com/kb/HT2546

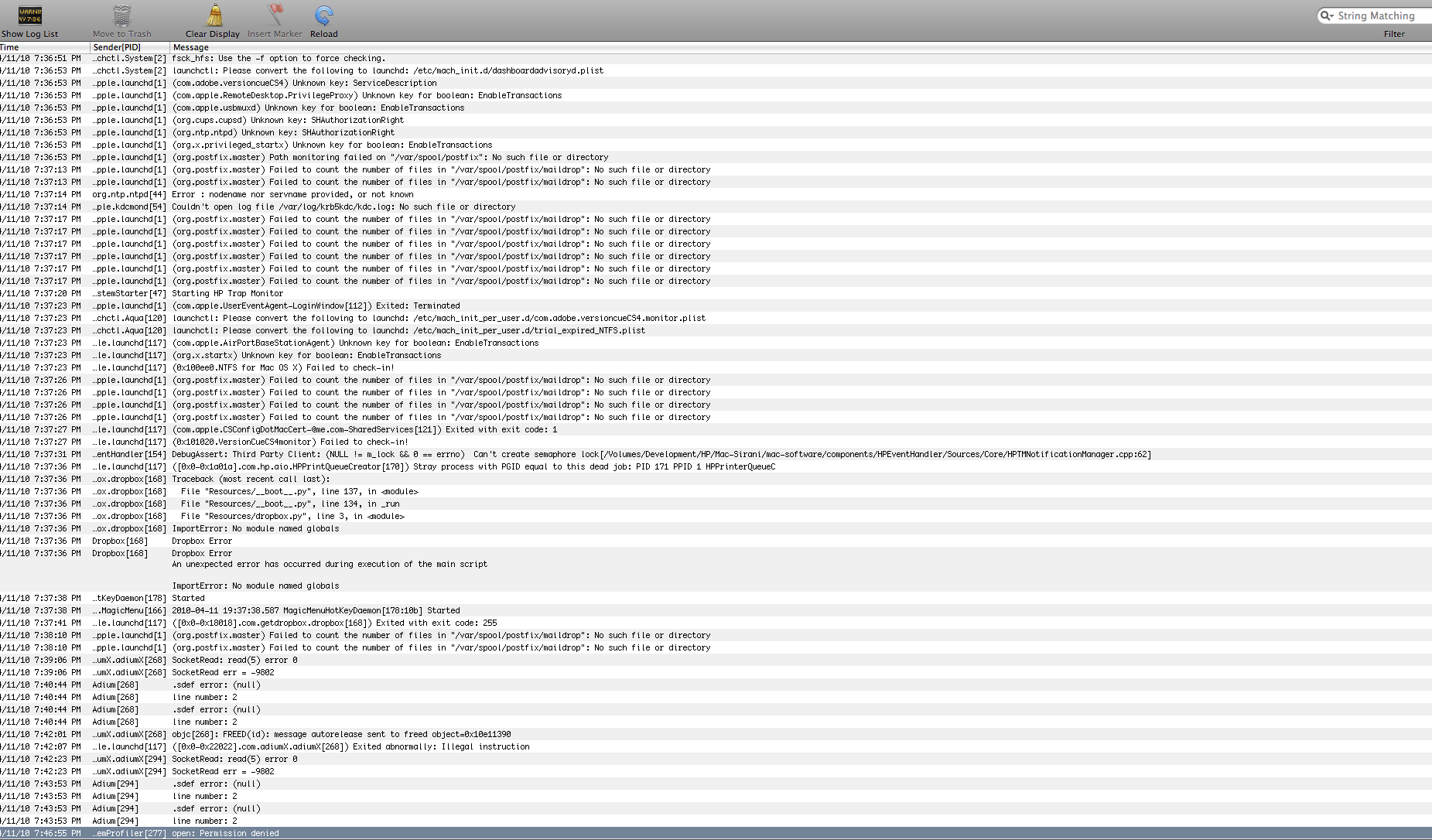

    Open it in Console.app, and post it here. It will have some info on what caused the problem.

  3. Marvin1379 thread starter macrumors 6502

    Joined:
    Jun 25, 2007
    Location:
    New York
    #3
    Thank you.

    Here's the info...

    Thu May 14 14:55:24 2009
    panic(cpu 0 caller 0x001AB0FE): Kernel trap at 0x008956ec, type 14=page fault, registers:
    CR0: 0x8001003b, CR2: 0xffffffa9, CR3: 0x01484000, CR4: 0x00000660
    EAX: 0x24106fff, EBX: 0x0493f352, ECX: 0x00000000, EDX: 0x008956e8
    CR2: 0xffffffa9, EBP: 0x00108ef8, ESI: 0x043fd780, EDI: 0x00000000
    EFL: 0x00010416, EIP: 0x008956ec, CS: 0x00000008, DS: 0x043e0010
    Error code: 0x00000000

    Backtrace (CPU 0), Frame : Return Address (4 potential args on stack)
    0x108cd8 : 0x12b4c6 (0x45ec20 0x108d0c 0x13355c 0x0)
    0x108d28 : 0x1ab0fe (0x468ecc 0x8956ec 0xe 0x468678)
    0x108e08 : 0x1a1703 (0x108e20 0x0 0x108ef8 0x8956ec)
    0x108e18 : 0x8956ec (0xe 0x48 0x10 0xe20010)
    0x108ef8 : 0x43d565 (0x493f300 0x0 0x43fd780 0x0)
    0x108f28 : 0x8e6521 (0x43c9300 0x0 0x43c9300 0x0)
    0x108f58 : 0x753f77 (0x42e1200 0x0 0x42d3600 0x50)
    0x108f78 : 0x74cca7 (0x4269800 0x0 0x42d3600 0x50)
    0x108f98 : 0x44d715 (0x42d3180 0x0 0x42d3100 0x50)
    0x108fd8 : 0x1a18c4 (0x4fffd00 0x0 0x0 0x4f0000)
    No mapping exists for frame pointer
    Backtrace terminated-invalid frame pointer 0xb0125748
    Kernel loadable modules in backtrace (with dependencies):
    com.apple.driver.AirPort.Atheros(319.10.3)@0x855000->0x8e4fff
    dependency: com.apple.iokit.IO80211Family(216.1)@0x836000
    dependency: com.apple.iokit.IOPCIFamily(2.6)@0x5cd000
    dependency: com.apple.iokit.IONetworkingFamily(1.6.1)@0x5de000
    com.apple.driver.AppleAPIC(1.4)@0x8e5000->0x8e7fff
    com.apple.driver.AppleACPIPlatform(1.2.4)@0x74b000->0x788fff
    dependency: com.apple.iokit.IOPCIFamily(2.6)@0x5cd000
    dependency: com.apple.iokit.IOACPIFamily(1.2.0)@0x626000

    BSD process name corresponding to current thread: WindowServer

    Mac OS version:
    9J61

    Kernel version:
    Darwin Kernel Version 9.7.0: Tue Mar 31 22:52:17 PDT 2009; root:xnu-1228.12.14~1/RELEASE_I386
    System model name: MacBookPro3,1 (Mac-F4238BC8)

    System uptime in nanoseconds: 22619449600223
    unloaded kexts:
    com.apple.driver.iTunesPhoneDriver 1.0 - last unloaded 22543867224167
    loaded kexts:
    com.google.kext.SocketCred 1.0.4
    com.google.driver.Gild 1.0.0
    com.google.driver.GDFSNotifications 1.6.0
    com.wdc.driver.USBHP 1.0.1
    com.wdc.driver.1394HP 1.0.5
    com.apple.driver.iPodSBCDriver 1.1.2 - last loaded 22482321362861
    com.apple.driver.iTunesPhoneDriver 1.0
    com.apple.driver.AppleHWSensor 1.9d0
    com.apple.filesystems.autofs 2.0.2
    com.apple.iokit.IOBluetoothSerialManager 2.1.6f8
    com.apple.driver.AppleUpstreamUserClient 2.7.5
    com.apple.driver.AppleHDA 1.6.8a3
    com.apple.iokit.IOFireWireIP 1.7.7
    com.apple.Dont_Steal_Mac_OS_X 6.0.3
    com.apple.kext.AppleSMCLMU 1.4.3d2
    com.apple.driver.SMCMotionSensor 2.1.1d2
    com.apple.driver.AudioIPCDriver 1.0.6
    com.apple.driver.AirPort.Atheros 319.10.3
    com.apple.driver.AppleHDAController 1.6.8a3
    com.apple.driver.AppleIRController 110
    com.apple.driver.ACPI_SMC_PlatformPlugin 3.4.0d10
    com.apple.driver.AppleLPC 1.2.12
    com.apple.driver.AppleBacklight 1.6.0
    com.apple.GeForce 5.4.4
    com.apple.nvidia.nv50hal 5.4.4
    com.apple.driver.CSRUSBBluetoothHCIController 2.1.6f8
    com.apple.driver.AppleUSBTrackpad 1.7.4f1
    com.apple.driver.AppleUSBTCKeyEventDriver 1.7.4f1
    com.apple.driver.AppleUSBTCKeyboard 1.7.4f1
    com.apple.driver.AppleUSBMergeNub 3.4.3
    com.apple.iokit.IOSCSIMultimediaCommandsDevice 2.0.9
    com.apple.iokit.SCSITaskUserClient 2.0.9
    com.apple.driver.XsanFilter 2.7.91
    com.apple.iokit.IOATAPIProtocolTransport 1.5.2
    com.apple.driver.AppleEFINVRAM 1.2.0
    com.apple.iokit.IOAHCIBlockStorage 1.2.1
    com.apple.driver.AppleAHCIPort 1.6.0
    com.apple.driver.AppleIntelPIIXATA 2.0.0
    com.apple.driver.AppleUSBHub 3.4.0
    com.apple.iokit.IOUSBUserClient 3.3.1
    com.apple.driver.AppleFWOHCI 3.8.2
    com.apple.iokit.AppleYukon2 3.1.12b14
    com.apple.driver.AppleUSBEHCI 3.4.3
    com.apple.driver.AppleUSBUHCI 3.3.5
    com.apple.driver.AppleSmartBatteryManager 158.10.0
    com.apple.driver.AppleRTC 1.2.3
    com.apple.driver.AppleHPET 1.4
    com.apple.driver.AppleACPIPCI 1.2.4
    com.apple.driver.AppleACPIButtons 1.2.4
    com.apple.driver.AppleSMBIOS 1.4
    com.apple.driver.AppleACPIEC 1.2.4
    com.apple.driver.AppleAPIC 1.4
    com.apple.security.seatbelt 107.12
    com.apple.nke.applicationfirewall 1.6.77
    com.apple.security.TMSafetyNet 3
    com.apple.driver.AppleIntelCPUPowerManagement 76.0.0
    com.apple.driver.DiskImages 199
    com.apple.BootCache 30.4
    com.apple.iokit.IOSerialFamily 9.4
    com.apple.iokit.IOFireWireSerialBusProtocolTransport 1.5.2
    com.apple.iokit.IOUSBMassStorageClass 2.0.6
    com.apple.iokit.IOFireWireSBP2 1.9.8
    com.apple.driver.DspFuncLib 1.6.8a3
    com.apple.iokit.IOAudioFamily 1.6.9fc3
    com.apple.kext.OSvKernDSPLib 1.1
    com.apple.iokit.IO80211Family 216.1
    com.apple.iokit.IOHDAFamily 1.6.8a3
    com.apple.driver.IOPlatformPluginFamily 3.4.0d10
    com.apple.driver.AppleSMC 2.2.1d2
    com.apple.NVDAResman 5.4.4
    com.apple.iokit.IONDRVSupport 1.7.3
    com.apple.iokit.IOGraphicsFamily 1.7.3
    com.apple.driver.AppleUSBBluetoothHCIController 2.1.6f8
    com.apple.iokit.IOBluetoothFamily 2.1.6f8
    com.apple.iokit.IOUSBHIDDriver 3.2.2
    com.apple.driver.AppleUSBComposite 3.2.0
    com.apple.iokit.IOSCSIBlockCommandsDevice 2.0.9
    com.apple.iokit.IOBDStorageFamily 1.5
    com.apple.iokit.IODVDStorageFamily 1.5
    com.apple.iokit.IOCDStorageFamily 1.5
    com.apple.iokit.IOSCSIArchitectureModelFamily 2.0.9
    com.apple.iokit.IOAHCIFamily 1.5.0
    com.apple.iokit.IOATAFamily 2.0.1
    com.apple.iokit.IOFireWireFamily 3.4.7
    com.apple.iokit.IONetworkingFamily 1.6.1
    com.apple.iokit.IOUSBFamily 3.4.3
    com.apple.driver.AppleEFIRuntime 1.2.0
    com.apple.iokit.IOSMBusFamily 1.1
    com.apple.iokit.IOStorageFamily 1.5.6
    com.apple.iokit.IOHIDFamily 1.5.5
    com.apple.driver.AppleACPIPlatform 1.2.4
    com.apple.iokit.IOACPIFamily 1.2.0
    com.apple.iokit.IOPCIFamily 2.6

  4. wrldwzrd89 macrumors G5

    wrldwzrd89

    Joined:
    Jun 6, 2003
    Location:
    Solon, OH
    #4
    I have analyzed your kernel panic log, and it appears that a buggy driver is the cause.

    These lines right here say it all:
    Code:
    No mapping exists for frame pointer
    Backtrace terminated-invalid frame pointer 0xb0125748
    Kernel loadable modules in backtrace (with dependencies):
    com.apple.driver.AirPort.Atheros(319.10.3)@0x855000->0x8e4fff
    dependency: com.apple.iokit.IO80211Family(216.1)@0x836000
    dependency: com.apple.iokit.IOPCIFamily(2.6)@0x5cd000
    dependency: com.apple.iokit.IONetworkingFamily(1.6.1)@0x5de000
    com.apple.driver.AppleAPIC(1.4)@0x8e5000->0x8e7fff
    com.apple.driver.AppleACPIPlatform(1.2.4)@0x74b000->0x788fff
    dependency: com.apple.iokit.IOPCIFamily(2.6)@0x5cd000
    dependency: com.apple.iokit.IOACPIFamily(1.2.0)@0x626000
    That stuff after the @ is the address range in which the driver was loaded at the time of the crash.

  5. Marvin1379 thread starter macrumors 6502

    Joined:
    Jun 25, 2007
    Location:
    New York
    #5
    Anything to be done on my end or was it just a random crash?

  6. wrldwzrd89 macrumors G5

    wrldwzrd89

    Joined:
    Jun 6, 2003
    Location:
    Solon, OH
    #6
    Verify that you don't have an older version of the AirPort driver. If you do, apply the 10.5.7 Combo Updater to get everything up to date.

  7. JNB macrumors 604

    JNB

    Joined:
    Oct 7, 2004
    Location:
    In a Hell predominately of my own making
    #7
    For future reference, the "
    Code:
    " tag is available to save some space.  :)

    [quote="Marvin1379, post: 7616107"]Thank you.

    Here's the info...
    [code]
    Thu May 14 14:55:24 2009
    panic(cpu 0 caller 0x001AB0FE): Kernel trap at 0x008956ec, type 14=page fault, registers:
    CR0: 0x8001003b, CR2: 0xffffffa9, CR3: 0x01484000, CR4: 0x00000660
    EAX: 0x24106fff, EBX: 0x0493f352, ECX: 0x00000000, EDX: 0x008956e8
    CR2: 0xffffffa9, EBP: 0x00108ef8, ESI: 0x043fd780, EDI: 0x00000000
    EFL: 0x00010416, EIP: 0x008956ec, CS:  0x00000008, DS:  0x043e0010
    Error code: 0x00000000

    Backtrace (CPU 0), Frame : Return Address (4 potential args on stack)
    0x108cd8 : 0x12b4c6 (0x45ec20 0x108d0c 0x13355c 0x0)
    0x108d28 : 0x1ab0fe (0x468ecc 0x8956ec 0xe 0x468678)
    0x108e08 : 0x1a1703 (0x108e20 0x0 0x108ef8 0x8956ec)
    0x108e18 : 0x8956ec (0xe 0x48 0x10 0xe20010)
    0x108ef8 : 0x43d565 (0x493f300 0x0 0x43fd780 0x0)
    0x108f28 : 0x8e6521 (0x43c9300 0x0 0x43c9300 0x0)
    0x108f58 : 0x753f77 (0x42e1200 0x0 0x42d3600 0x50)
    0x108f78 : 0x74cca7 (0x4269800 0x0 0x42d3600 0x50)
    0x108f98 : 0x44d715 (0x42d3180 0x0 0x42d3100 0x50)
    0x108fd8 : 0x1a18c4 (0x4fffd00 0x0 0x0 0x4f0000)
    No mapping exists for frame pointer
    Backtrace terminated-invalid frame pointer 0xb0125748
          Kernel loadable modules in backtrace (with dependencies):
             com.apple.driver.AirPort.Atheros(319.10.3)@0x855000->0x8e4fff
                dependency: com.apple.iokit.IO80211Family(216.1)@0x836000
                dependency: com.apple.iokit.IOPCIFamily(2.6)@0x5cd000
                dependency: com.apple.iokit.IONetworkingFamily(1.6.1)@0x5de000
             com.apple.driver.AppleAPIC(1.4)@0x8e5000->0x8e7fff
             com.apple.driver.AppleACPIPlatform(1.2.4)@0x74b000->0x788fff
                dependency: com.apple.iokit.IOPCIFamily(2.6)@0x5cd000
                dependency: com.apple.iokit.IOACPIFamily(1.2.0)@0x626000

    BSD process name corresponding to current thread: WindowServer

    Mac OS version:
    9J61

    Kernel version:
    Darwin Kernel Version 9.7.0: Tue Mar 31 22:52:17 PDT 2009; root:xnu-1228.12.14~1/RELEASE_I386
    System model name: MacBookPro3,1 (Mac-F4238BC8)

    System uptime in nanoseconds: 22619449600223
    unloaded kexts:
    com.apple.driver.iTunesPhoneDriver	1.0 - last unloaded 22543867224167
    loaded kexts:
    com.google.kext.SocketCred	1.0.4
    com.google.driver.Gild	1.0.0
    com.google.driver.GDFSNotifications	1.6.0
    com.wdc.driver.USBHP	1.0.1
    com.wdc.driver.1394HP	1.0.5
    com.apple.driver.iPodSBCDriver	1.1.2 - last loaded 22482321362861
    com.apple.driver.iTunesPhoneDriver	1.0
    com.apple.driver.AppleHWSensor	1.9d0
    com.apple.filesystems.autofs	2.0.2
    com.apple.iokit.IOBluetoothSerialManager	2.1.6f8
    com.apple.driver.AppleUpstreamUserClient	2.7.5
    com.apple.driver.AppleHDA	1.6.8a3
    com.apple.iokit.IOFireWireIP	1.7.7
    com.apple.Dont_Steal_Mac_OS_X	6.0.3
    com.apple.kext.AppleSMCLMU	1.4.3d2
    com.apple.driver.SMCMotionSensor	2.1.1d2
    com.apple.driver.AudioIPCDriver	1.0.6
    com.apple.driver.AirPort.Atheros	319.10.3
    com.apple.driver.AppleHDAController	1.6.8a3
    com.apple.driver.AppleIRController	110
    com.apple.driver.ACPI_SMC_PlatformPlugin	3.4.0d10
    com.apple.driver.AppleLPC	1.2.12
    com.apple.driver.AppleBacklight	1.6.0
    com.apple.GeForce	5.4.4
    com.apple.nvidia.nv50hal	5.4.4
    com.apple.driver.CSRUSBBluetoothHCIController	2.1.6f8
    com.apple.driver.AppleUSBTrackpad	1.7.4f1
    com.apple.driver.AppleUSBTCKeyEventDriver	1.7.4f1
    com.apple.driver.AppleUSBTCKeyboard	1.7.4f1
    com.apple.driver.AppleUSBMergeNub	3.4.3
    com.apple.iokit.IOSCSIMultimediaCommandsDevice	2.0.9
    com.apple.iokit.SCSITaskUserClient	2.0.9
    com.apple.driver.XsanFilter	2.7.91
    com.apple.iokit.IOATAPIProtocolTransport	1.5.2
    com.apple.driver.AppleEFINVRAM	1.2.0
    com.apple.iokit.IOAHCIBlockStorage	1.2.1
    com.apple.driver.AppleAHCIPort	1.6.0
    com.apple.driver.AppleIntelPIIXATA	2.0.0
    com.apple.driver.AppleUSBHub	3.4.0
    com.apple.iokit.IOUSBUserClient	3.3.1
    com.apple.driver.AppleFWOHCI	3.8.2
    com.apple.iokit.AppleYukon2	3.1.12b14
    com.apple.driver.AppleUSBEHCI	3.4.3
    com.apple.driver.AppleUSBUHCI	3.3.5
    com.apple.driver.AppleSmartBatteryManager	158.10.0
    com.apple.driver.AppleRTC	1.2.3
    com.apple.driver.AppleHPET	1.4
    com.apple.driver.AppleACPIPCI	1.2.4
    com.apple.driver.AppleACPIButtons	1.2.4
    com.apple.driver.AppleSMBIOS	1.4
    com.apple.driver.AppleACPIEC	1.2.4
    com.apple.driver.AppleAPIC	1.4
    com.apple.security.seatbelt	107.12
    com.apple.nke.applicationfirewall	1.6.77
    com.apple.security.TMSafetyNet	3
    com.apple.driver.AppleIntelCPUPowerManagement	76.0.0
    com.apple.driver.DiskImages	199
    com.apple.BootCache	30.4
    com.apple.iokit.IOSerialFamily	9.4
    com.apple.iokit.IOFireWireSerialBusProtocolTransport	1.5.2
    com.apple.iokit.IOUSBMassStorageClass	2.0.6
    com.apple.iokit.IOFireWireSBP2	1.9.8
    com.apple.driver.DspFuncLib	1.6.8a3
    com.apple.iokit.IOAudioFamily	1.6.9fc3
    com.apple.kext.OSvKernDSPLib	1.1
    com.apple.iokit.IO80211Family	216.1
    com.apple.iokit.IOHDAFamily	1.6.8a3
    com.apple.driver.IOPlatformPluginFamily	3.4.0d10
    com.apple.driver.AppleSMC	2.2.1d2
    com.apple.NVDAResman	5.4.4
    com.apple.iokit.IONDRVSupport	1.7.3
    com.apple.iokit.IOGraphicsFamily	1.7.3
    com.apple.driver.AppleUSBBluetoothHCIController	2.1.6f8
    com.apple.iokit.IOBluetoothFamily	2.1.6f8
    com.apple.iokit.IOUSBHIDDriver	3.2.2
    com.apple.driver.AppleUSBComposite	3.2.0
    com.apple.iokit.IOSCSIBlockCommandsDevice	2.0.9
    com.apple.iokit.IOBDStorageFamily	1.5
    com.apple.iokit.IODVDStorageFamily	1.5
    com.apple.iokit.IOCDStorageFamily	1.5
    com.apple.iokit.IOSCSIArchitectureModelFamily	2.0.9
    com.apple.iokit.IOAHCIFamily	1.5.0
    com.apple.iokit.IOATAFamily	2.0.1
    com.apple.iokit.IOFireWireFamily	3.4.7
    com.apple.iokit.IONetworkingFamily	1.6.1
    com.apple.iokit.IOUSBFamily	3.4.3
    com.apple.driver.AppleEFIRuntime	1.2.0
    com.apple.iokit.IOSMBusFamily	1.1
    com.apple.iokit.IOStorageFamily	1.5.6
    com.apple.iokit.IOHIDFamily	1.5.5
    com.apple.driver.AppleACPIPlatform	1.2.4
    com.apple.iokit.IOACPIFamily	1.2.0
    com.apple.iokit.IOPCIFamily	2.6
    [/QUOTE]

  8. Marvin1379 thread starter macrumors 6502

    Joined:
    Jun 25, 2007
    Location:
    New York
    #8
    I actually just did the Combo update for 10.5.7 a couple of days ago. What version should the Airport driver be? Where do I find my current version?


  9. koopa35 macrumors 6502

    Joined:
    Aug 7, 2008
    Location:
    Los Angeles, CA
    #9
    im amazed at u guys. how do u guys know what that kernel panic means?

  10. JNB macrumors 604

    JNB

    Joined:
    Oct 7, 2004
    Location:
    In a Hell predominately of my own making
    #10
    Because we've all seen it at one time or another? :eek:

    Plus, knowing what a kernel panic is, is required to meet Level 1 Geek Certification. ;)

  11. wrldwzrd89 macrumors G5

    wrldwzrd89

    Joined:
    Jun 6, 2003
    Location:
    Solon, OH
    #11
    In that case, you should be fine. If it doesn't recur, consider it a random crash.

  12. Marvin1379 thread starter macrumors 6502

    Joined:
    Jun 25, 2007
    Location:
    New York
    #12
    Thanks to all!! Hopefully it was a freak occurrence. It was the first time it happened since it got my MBP 22 months ago. :D

  13. koopa35 macrumors 6502

    Joined:
    Aug 7, 2008
    Location:
    Los Angeles, CA
    #13
    :confused: I hear about them all the time. Ive never had one but i want to know what they mean if i do get one. I also see people say read what the console say to see what a problem is. where do i sign up for this class to learn this skill so many of you pros have :D. I need my lvl 1 Geek cert asap:p

  14. JNB macrumors 604

    JNB

    Joined:
    Oct 7, 2004
    Location:
    In a Hell predominately of my own making
    #14
    What they "mean" could really be a number of things, but basically the core of the OS just puked for some reason. In most cases it is a nearly unrepeatable sequence of events and/or processes that hit simultaneously. Through the various logs you may find the root cause, but chances are it likely won't happen again on it's own. Unix is a reliable beast, all in all.

    99% of the time, just restart and that's the end of it. Only if they appear in short-term repetition (like two in the same session/day/week/maybe even month) should you need to worry about investigating further.

    Mostly be conscious of what you were doing/what you installed just prior to the panic. Many times that's your best clue. I think I've had two since migrating to OS X going back to 10.0. Maybe only one--I see the same screen shot so many times on the forums I can't remember if it was mine or not. :D

  15. Marvin1379 thread starter macrumors 6502

    Joined:
    Jun 25, 2007
    Location:
    New York
    #15
    Uh oh....it happened again

    Hey all,

    I had my second kernel panic just now. Could someone take a look at the code to discern what this problem was? Thanks!

    Code:
    Interval Since Last Panic Report:  1157094 sec
    Panics Since Last Report:          1
    Anonymous UUID:                    DF9B51B7-C245-4C3B-8ABC-5542903EDF0C

    Sat Jun  6 23:46:34 2009
    panic(cpu 1 caller 0x001AB0FE): Kernel trap at 0x00001e8b, type 14=page fault, registers:
    CR0: 0x8001003b, CR2: 0x00000031, CR3: 0x014b8000, CR4: 0x00000660
    EAX: 0x00000000, EBX: 0x00522b60, ECX: 0x04667b20, EDX: 0x2ea75038
    CR2: 0x00000031, EBP: 0x34af3fc8, ESI: 0x00000000, EDI: 0x04a41c00
    EFL: 0x00010246, EIP: 0x00001e8b, CS:  0x00000008, DS:  0x001a0010
    Error code: 0x00000002

    Backtrace (CPU 1), Frame : Return Address (4 potential args on stack)
    0x34af3d98 : 0x12b4c6 (0x45ec20 0x34af3dcc 0x13355c 0x0)
    0x34af3de8 : 0x1ab0fe (0x468ecc 0x1e8b 0xe 0x468678)
    0x34af3ec8 : 0x1a1703 (0x34af3ee0 0x4 0x34af3fc8 0x1e8b)
    0x34af3ed8 : 0x1e8b (0xe 0x10048 0x10 0x1310010)
    0x34af3fc8 : 0x1a14ec (0x522b60 0x0 0x1a40b5 0x964be40)
    Backtrace terminated-invalid frame pointer 0
             kmod scan stopped due to missing kmod page: 00000000

    BSD process name corresponding to current thread: kernel_task

    Mac OS version:
    9J61

    Kernel version:
    Darwin Kernel Version 9.7.0: Tue Mar 31 22:52:17 PDT 2009; root:xnu-1228.12.14~1/RELEASE_I386
    System model name: MacBookPro3,1 (Mac-F4238BC8)

    System uptime in nanoseconds: 67763633020802
    unloaded kexts:
    com.apple.driver.iTunesPhoneDriver	1.0 - last unloaded 67359390995120
    loaded kexts:
    com.google.kext.SocketCred	1.0.4
    com.google.driver.GDFSNotifications	1.6.0
    com.wdc.driver.USBHP	1.0.2
    com.wdc.driver.1394HP	1.0.5
    com.apple.driver.iTunesPhoneDriver	1.0 - last loaded 67244822752567
    com.apple.driver.LSI_FW_500	2.0.6
    com.apple.driver.Oxford_Semi	2.0.7
    com.apple.driver.StorageLynx	2.0.7
    com.apple.driver.initioFWBridge	2.0.7
    com.apple.driver.IOFireWireSerialBusProtocolSansPhysicalUnit	2.0.7
    com.apple.driver.iPodSBCDriver	1.1.2
    com.apple.driver.AppleHWSensor	1.9d0
    com.apple.filesystems.autofs	2.0.2
    com.apple.driver.AppleUpstreamUserClient	2.7.5
    com.apple.driver.AppleHDA	1.6.8a3
    com.apple.GeForce	5.4.4
    com.apple.driver.AirPort.Atheros	319.10.3
    com.apple.iokit.IOBluetoothSerialManager	2.1.6f8
    com.apple.nvidia.nv50hal	5.4.4
    com.apple.driver.AppleHDAController	1.6.8a3
    com.apple.iokit.IOFireWireIP	1.7.7
    com.apple.driver.AppleIRController	110
    com.apple.kext.AppleSMCLMU	1.4.3d2
    com.apple.Dont_Steal_Mac_OS_X	6.0.3
    com.apple.driver.AudioIPCDriver	1.0.6
    com.apple.driver.ACPI_SMC_PlatformPlugin	3.4.0d10
    com.apple.driver.AppleLPC	1.2.12
    com.apple.driver.AppleBacklight	1.6.0
    com.apple.driver.SMCMotionSensor	2.1.1d2
    com.apple.driver.CSRUSBBluetoothHCIController	2.1.6f8
    com.apple.driver.AppleUSBTrackpad	1.7.4f1
    com.apple.driver.AppleUSBTCKeyEventDriver	1.7.4f1
    com.apple.driver.AppleUSBTCKeyboard	1.7.4f1
    com.apple.driver.AppleUSBMergeNub	3.4.3
    com.apple.iokit.IOSCSIMultimediaCommandsDevice	2.0.9
    com.apple.iokit.SCSITaskUserClient	2.0.9
    com.apple.driver.XsanFilter	2.7.91
    com.apple.driver.AppleFWOHCI	3.8.2
    com.apple.driver.AppleUSBHub	3.4.0
    com.apple.iokit.IOUSBUserClient	3.3.1
    com.apple.iokit.IOATAPIProtocolTransport	1.5.2
    com.apple.driver.AppleUSBEHCI	3.4.3
    com.apple.driver.AppleUSBUHCI	3.3.5
    com.apple.iokit.AppleYukon2	3.1.12b14
    com.apple.iokit.IOAHCIBlockStorage	1.2.1
    com.apple.driver.AppleAHCIPort	1.6.0
    com.apple.driver.AppleIntelPIIXATA	2.0.0
    com.apple.driver.AppleEFINVRAM	1.2.0
    com.apple.driver.AppleSmartBatteryManager	158.10.0
    com.apple.driver.AppleRTC	1.2.3
    com.apple.driver.AppleHPET	1.4
    com.apple.driver.AppleACPIPCI	1.2.4
    com.apple.driver.AppleACPIButtons	1.2.4
    com.apple.driver.AppleSMBIOS	1.4
    com.apple.driver.AppleACPIEC	1.2.4
    com.apple.driver.AppleAPIC	1.4
    com.apple.security.seatbelt	107.12
    com.apple.nke.applicationfirewall	1.6.77
    com.apple.security.TMSafetyNet	3
    com.apple.driver.AppleIntelCPUPowerManagement	76.0.0
    com.apple.driver.DiskImages	199
    com.apple.BootCache	30.4
    com.apple.driver.DspFuncLib	1.6.8a3
    com.apple.iokit.IO80211Family	216.1
    com.apple.iokit.IOSerialFamily	9.4
    com.apple.NVDAResman	5.4.4
    com.apple.iokit.IOHDAFamily	1.6.8a3
    com.apple.iokit.IOAudioFamily	1.6.9fc3
    com.apple.kext.OSvKernDSPLib	1.1
    com.apple.driver.IOPlatformPluginFamily	3.4.0d10
    com.apple.iokit.IONDRVSupport	1.7.3
    com.apple.iokit.IOGraphicsFamily	1.7.3
    com.apple.driver.AppleSMC	2.2.1d2
    com.apple.driver.AppleUSBBluetoothHCIController	2.1.6f8
    com.apple.iokit.IOBluetoothFamily	2.1.6f8
    com.apple.iokit.IOUSBHIDDriver	3.2.2
    com.apple.iokit.IOUSBMassStorageClass	2.0.6
    com.apple.driver.AppleUSBComposite	3.2.0
    com.apple.iokit.IOFireWireSerialBusProtocolTransport	1.5.2
    com.apple.iokit.IOFireWireSBP2	1.9.8
    com.apple.iokit.IOSCSIBlockCommandsDevice	2.0.9
    com.apple.iokit.IOBDStorageFamily	1.5
    com.apple.iokit.IODVDStorageFamily	1.5
    com.apple.iokit.IOCDStorageFamily	1.5
    com.apple.iokit.IOFireWireFamily	3.4.7
    com.apple.iokit.IOSCSIArchitectureModelFamily	2.0.9
    com.apple.iokit.IOUSBFamily	3.4.3
    com.apple.iokit.IOAHCIFamily	1.5.0
    com.apple.iokit.IOATAFamily	2.0.1
    com.apple.iokit.IONetworkingFamily	1.6.1
    com.apple.driver.AppleEFIRuntime	1.2.0
    com.apple.iokit.IOSMBusFamily	1.1
    com.apple.iokit.IOStorageFamily	1.5.6
    com.apple.iokit.IOHIDFamily	1.5.5
    com.apple.driver.AppleACPIPlatform	1.2.4
    com.apple.iokit.IOACPIFamily	1.2.0
    com.apple.iokit.IOPCIFamily	2.6

  16. Marvin1379 thread starter macrumors 6502

    Joined:
    Jun 25, 2007
    Location:
    New York
    #16
    Wow...here's the third one

    I seem to get kernel panics when i am syncing my ipod and apple tv simultaneously with itunes (now v 8.2, but first panic was with immediate previous version). i have all my media on a Western Digital external HD connected via FW800.

    Is this something that i am doing wrong?

    Here's the details of the latest panic:

    Code:
    Interval Since Last Panic Report:  0 sec
    Panics Since Last Report:          1
    Anonymous UUID:                    DF9B51B7-C245-4C3B-8ABC-5542903EDF0C

    Sun Jun  7 00:03:55 2009
    panic(cpu 0 caller 0x001AB0FE): Kernel trap at 0x0088d01b, type 13=general protection, registers:
    CR0: 0x8001003b, CR2: 0x0091ec30, CR3: 0x014bb000, CR4: 0x00000660
    EAX: 0x02000000, EBX: 0x3073b881, ECX: 0x00000009, EDX: 0x02181000
    CR2: 0x0091ec30, EBP: 0x34abb817, ESI: 0xf2900006, EDI: 0x3071ae00
    EFL: 0x00010206, EIP: 0x0088d01b, CS:  0x00000008, DS:  0x00000010
    Error code: 0x0000f990

    Backtrace (CPU 0), Frame : Return Address (4 potential args on stack)
    0x34abb488 : 0x12b4c6 (0x45ec20 0x34abb4bc 0x13355c 0x0)
    0x34abb4d8 : 0x1ab0fe (0x468ecc 0x88d01b 0xd 0x468664)
    0x34abb5b8 : 0x1a1703 (0x34abb5d0 0x0 0x34abb817 0x88d01b)
    0x34abb5c8 : 0x88d01b (0xe 0x34ab0048 0x10 0x10)
    Unaligned frame
    Backtrace terminated-invalid frame pointer 0x34abb817
          Kernel loadable modules in backtrace (with dependencies):
             com.apple.driver.AirPort.Atheros(319.10.3)@0x87a000->0x909fff
                dependency: com.apple.iokit.IO80211Family(216.1)@0x85b000
                dependency: com.apple.iokit.IOPCIFamily(2.6)@0x63d000
                dependency: com.apple.iokit.IONetworkingFamily(1.6.1)@0x64e000

    BSD process name corresponding to current thread: kernel_task

    Mac OS version:
    9J61

    Kernel version:
    Darwin Kernel Version 9.7.0: Tue Mar 31 22:52:17 PDT 2009; root:xnu-1228.12.14~1/RELEASE_I386
    System model name: MacBookPro3,1 (Mac-F4238BC8)

    System uptime in nanoseconds: 776447395762
    unloaded kexts:
    com.apple.driver.LSI_FW_500	2.0.6 - last unloaded 679489611587
    loaded kexts:
    com.wdc.driver.1394HP	1.0.5
    com.google.kext.SocketCred	1.0.4
    com.google.driver.GDFSNotifications	1.6.0
    com.wdc.driver.USBHP	1.0.2
    com.apple.driver.iTunesPhoneDriver	1.0 - last loaded 580104475384
    com.apple.driver.LSI_FW_500	2.0.6
    com.apple.driver.Oxford_Semi	2.0.7
    com.apple.driver.StorageLynx	2.0.7
    com.apple.driver.initioFWBridge	2.0.7
    com.apple.driver.IOFireWireSerialBusProtocolSansPhysicalUnit	2.0.7
    com.apple.driver.AppleHWSensor	1.9d0
    com.apple.filesystems.autofs	2.0.2
    com.apple.driver.AppleUpstreamUserClient	2.7.5
    com.apple.driver.AppleHDA	1.6.8a3
    com.apple.iokit.IOBluetoothSerialManager	2.1.6f8
    com.apple.GeForce	5.4.4
    com.apple.Dont_Steal_Mac_OS_X	6.0.3
    com.apple.driver.AirPort.Atheros	319.10.3
    com.apple.driver.SMCMotionSensor	2.1.1d2
    com.apple.driver.AppleIRController	110
    com.apple.iokit.IOFireWireIP	1.7.7
    com.apple.kext.AppleSMCLMU	1.4.3d2
    com.apple.driver.ACPI_SMC_PlatformPlugin	3.4.0d10
    com.apple.driver.AppleLPC	1.2.12
    com.apple.driver.AppleBacklight	1.6.0
    com.apple.nvidia.nv50hal	5.4.4
    com.apple.driver.AudioIPCDriver	1.0.6
    com.apple.driver.AppleHDAController	1.6.8a3
    com.apple.driver.CSRUSBBluetoothHCIController	2.1.6f8
    com.apple.driver.AppleUSBTrackpad	1.7.4f1
    com.apple.driver.AppleUSBTCKeyEventDriver	1.7.4f1
    com.apple.driver.AppleUSBTCKeyboard	1.7.4f1
    com.apple.driver.iPodSBCDriver	1.1.2
    com.apple.driver.AppleUSBMergeNub	3.4.3
    com.apple.iokit.IOSCSIMultimediaCommandsDevice	2.0.9
    com.apple.iokit.SCSITaskUserClient	2.0.9
    com.apple.driver.XsanFilter	2.7.91
    com.apple.iokit.IOATAPIProtocolTransport	1.5.2
    com.apple.driver.AppleUSBHub	3.4.0
    com.apple.iokit.IOUSBUserClient	3.3.1
    com.apple.driver.AppleFWOHCI	3.8.2
    com.apple.driver.AppleUSBEHCI	3.4.3
    com.apple.iokit.IOAHCIBlockStorage	1.2.1
    com.apple.driver.AppleUSBUHCI	3.3.5
    com.apple.iokit.AppleYukon2	3.1.12b14
    com.apple.driver.AppleAHCIPort	1.6.0
    com.apple.driver.AppleIntelPIIXATA	2.0.0
    com.apple.driver.AppleEFINVRAM	1.2.0
    com.apple.driver.AppleSmartBatteryManager	158.10.0
    com.apple.driver.AppleRTC	1.2.3
    com.apple.driver.AppleHPET	1.4
    com.apple.driver.AppleACPIPCI	1.2.4
    com.apple.driver.AppleACPIButtons	1.2.4
    com.apple.driver.AppleSMBIOS	1.4
    com.apple.driver.AppleACPIEC	1.2.4
    com.apple.driver.AppleAPIC	1.4
    com.apple.security.seatbelt	107.12
    com.apple.nke.applicationfirewall	1.6.77
    com.apple.security.TMSafetyNet	3
    com.apple.driver.AppleIntelCPUPowerManagement	76.0.0
    com.apple.driver.DiskImages	199
    com.apple.BootCache	30.4
    com.apple.iokit.IOFireWireSerialBusProtocolTransport	1.5.2
    com.apple.iokit.IOFireWireSBP2	1.9.8
    com.apple.driver.DspFuncLib	1.6.8a3
    com.apple.iokit.IOSerialFamily	9.4
    com.apple.iokit.IO80211Family	216.1
    com.apple.driver.IOPlatformPluginFamily	3.4.0d10
    com.apple.driver.AppleSMC	2.2.1d2
    com.apple.NVDAResman	5.4.4
    com.apple.iokit.IONDRVSupport	1.7.3
    com.apple.iokit.IOGraphicsFamily	1.7.3
    com.apple.iokit.IOAudioFamily	1.6.9fc3
    com.apple.kext.OSvKernDSPLib	1.1
    com.apple.iokit.IOHDAFamily	1.6.8a3
    com.apple.driver.AppleUSBBluetoothHCIController	2.1.6f8
    com.apple.iokit.IOBluetoothFamily	2.1.6f8
    com.apple.iokit.IOUSBHIDDriver	3.2.2
    com.apple.iokit.IOUSBMassStorageClass	2.0.6
    com.apple.driver.AppleUSBComposite	3.2.0
    com.apple.iokit.IOSCSIBlockCommandsDevice	2.0.9
    com.apple.iokit.IOBDStorageFamily	1.5
    com.apple.iokit.IODVDStorageFamily	1.5
    com.apple.iokit.IOCDStorageFamily	1.5
    com.apple.iokit.IOSCSIArchitectureModelFamily	2.0.9
    com.apple.iokit.IOFireWireFamily	3.4.7
    com.apple.iokit.IOUSBFamily	3.4.3
    com.apple.iokit.IONetworkingFamily	1.6.1
    com.apple.iokit.IOAHCIFamily	1.5.0
    com.apple.iokit.IOATAFamily	2.0.1
    com.apple.driver.AppleEFIRuntime	1.2.0
    com.apple.iokit.IOSMBusFamily	1.1
    com.apple.iokit.IOStorageFamily	1.5.6
    com.apple.iokit.IOHIDFamily	1.5.5
    com.apple.driver.AppleACPIPlatform	1.2.4
    com.apple.iokit.IOACPIFamily	1.2.0
    com.apple.iokit.IOPCIFamily	2.6

  17. wrldwzrd89 macrumors G5

    wrldwzrd89

    Joined:
    Jun 6, 2003
    Location:
    Solon, OH
    #17
    Goodness. This could be an iTunes bug, but the backtrace and list of loaded modules isn't particularly revealing.

  18. Keleko macrumors 68000

    Joined:
    Mar 26, 2008
    #18
    I'm getting a kernel panic, too. It started happening after 10.5.7 was installed as well. I've had 4 since May 23rd. It always happens when my screen has blanked for power save mode. I move the mouse or touch a key to turn the screen back on, and then I get a panic. Here's the log from the last one.

    Sun Jun 7 14:30:37 2009
    panic(cpu 0 caller 0x001AB0FE): Kernel trap at 0x00000001, type 14=page fault, registers:
    CR0: 0x8001003b, CR2: 0x00000001, CR3: 0x01602000, CR4: 0x00000660
    EAX: 0x0acb8280, EBX: 0x0acab400, ECX: 0x12afdbc4, EDX: 0x07cf5a80
    CR2: 0x00000001, EBP: 0x620cfed8, ESI: 0x0000020c, EDI: 0x80000003
    EFL: 0x00010202, EIP: 0x00000001, CS: 0x00000008, DS: 0x12af0010
    Error code: 0x00000010

    Backtrace (CPU 0), Frame : Return Address (4 potential args on stack)
    0x620cfcc8 : 0x12b4c6 (0x45ec20 0x620cfcfc 0x13355c 0x0)
    0x620cfd18 : 0x1ab0fe (0x468ecc 0x1 0xe 0x468678)
    0x620cfdf8 : 0x1a1703 (0x620cfe10 0x3000006 0x620cfed8 0x1)
    0x620cfe08 : 0x1 (0xe 0x48 0x620c0010 0x3f0010)
    0x620cfed8 : 0x41b9c6 (0xacab400 0x3 0xacab400 0xacab400)
    0x620cff48 : 0x41bd5d (0xacab400 0x620cff94 0x1367d3 0x19fec4)
    0x620cff78 : 0x13ebde (0xacab400 0x0 0x1a436f 0x8224e40)
    0x620cffc8 : 0x1a14ec (0x522b60 0x0 0x1a40b5 0x76aa5d0)
    Backtrace terminated-invalid frame pointer 0

    BSD process name corresponding to current thread: kernel_task

    Mac OS version:
    9J61

    Kernel version:
    Darwin Kernel Version 9.7.0: Tue Mar 31 22:52:17 PDT 2009; root:xnu-1228.12.14~1/RELEASE_I386
    System model name: MacBookPro4,1 (Mac-F42C89C8)

    System uptime in nanoseconds: 72682455928835
    unloaded kexts:
    (none)
    loaded kexts:
    com.cisco.nke.ipsec 2.0.1
    com.vmware.kext.vmnet 2.0.4
    com.vmware.kext.vmioplug 2.0.4
    com.vmware.kext.vmci 2.0.4
    com.vmware.kext.vmx86 2.0.4
    com.markspace.iokit.SonyClieMSDriver 199
    com.markspace.iokit.IOMissingSyncMassStorage 199
    com.usboverdrive.driver.hid 10.4.8
    com.apple.driver.iPodSBCDriver 1.1.2 - last loaded 33418058926474
    com.apple.filesystems.msdosfs 1.5.4
    com.apple.filesystems.afpfs 9.0.1
    com.apple.nke.asp_tcp 4.7.1
    com.apple.driver.AppleHWSensor 1.9d0
    com.apple.driver.InternalModemSupport 2.4.0
    com.apple.filesystems.autofs 2.0.2
    com.apple.filesystems.ntfs 2.1
    com.apple.driver.AppleHDAPlatformDriver 1.6.8a3
    com.apple.driver.LSI_FW_500 2.0.6
    com.apple.driver.Oxford_Semi 2.0.7
    com.apple.driver.StorageLynx 2.0.7
    com.apple.driver.initioFWBridge 2.0.7
    com.apple.driver.AppleUpstreamUserClient 2.7.5
    com.apple.driver.MaxTranserSizeOverrideDriver 2.0.7
    com.apple.driver.IOFireWireSerialBusProtocolSansPhysicalUnit 2.0.7
    com.apple.driver.iTunesPhoneDriver 1.0
    com.apple.driver.AppleHDA 1.6.8a3
    com.apple.iokit.IOBluetoothSerialManager 2.1.6f8
    com.apple.Dont_Steal_Mac_OS_X 6.0.3
    com.apple.iokit.CHUDUtils 200
    com.apple.iokit.CHUDProf 207
    com.apple.driver.SMCMotionSensor 2.1.1d2
    com.apple.GeForce 5.4.4
    com.apple.driver.AppleGraphicsControl 2.8.11
    com.apple.driver.AppleHDAController 1.6.8a3
    com.apple.iokit.IOFireWireIP 1.7.7
    com.apple.kext.AppleSMCLMU 1.4.3d2
    com.apple.driver.AppleIRController 110
    com.apple.driver.ACPI_SMC_PlatformPlugin 3.4.0d10
    com.apple.driver.AppleLPC 1.2.12
    com.apple.driver.AppleBacklight 1.6.0
    com.apple.driver.AppleTyMCEDriver 1.0.0d28
    com.apple.nvidia.nv50hal 5.4.4
    com.apple.driver.AudioIPCDriver 1.0.6
    com.apple.driver.BroadcomUSBBluetoothHCIController 2.1.6f8
    com.apple.driver.AppleUSBTCButtons 1.7.4f1
    com.apple.driver.AppleUSBMultitouch 189.32
    com.apple.driver.AppleUSBTCKeyEventDriver 1.7.4f1
    com.apple.driver.AppleUSBTCKeyboard 1.7.4f1
    com.apple.driver.AppleUSBMergeNub 3.4.3
    com.apple.iokit.SCSITaskUserClient 2.0.9
    com.apple.driver.XsanFilter 2.7.91
    com.apple.iokit.IOAHCIBlockStorage 1.2.1
    com.apple.iokit.IOATAPIProtocolTransport 1.5.2
    com.apple.driver.AppleIntelPIIXATA 2.0.0
    com.apple.driver.AppleAHCIPort 1.6.0
    com.apple.driver.AppleUSBHub 3.4.0
    com.apple.iokit.IOUSBUserClient 3.3.1
    com.apple.driver.AppleFileSystemDriver 1.1.0
    com.apple.driver.AirPortBrcm43xx 363.35.0
    com.apple.driver.AppleFWOHCI 3.8.2
    com.apple.iokit.AppleYukon2 3.1.12b14
    com.apple.driver.AppleUSBEHCI 3.4.3
    com.apple.driver.AppleUSBUHCI 3.3.5
    com.apple.driver.AppleEFINVRAM 1.2.0
    com.apple.driver.AppleSmartBatteryManager 158.10.0
    com.apple.driver.AppleRTC 1.2.3
    com.apple.driver.AppleHPET 1.4
    com.apple.driver.AppleACPIPCI 1.2.4
    com.apple.driver.AppleACPIButtons 1.2.4
    com.apple.driver.AppleSMBIOS 1.4
    com.apple.driver.AppleACPIEC 1.2.4
    com.apple.driver.AppleAPIC 1.4
    com.apple.security.seatbelt 107.12
    com.apple.nke.applicationfirewall 1.6.77
    com.apple.security.TMSafetyNet 3
    com.apple.driver.AppleIntelCPUPowerManagement 76.0.0
    com.apple.driver.DiskImages 199
    com.apple.BootCache 30.4
    com.apple.iokit.IOFireWireSerialBusProtocolTransport 1.5.2
    com.apple.iokit.IOFireWireSBP2 1.9.8
    com.apple.driver.DspFuncLib 1.6.8a3
    com.apple.iokit.IOSerialFamily 9.4
    com.apple.iokit.CHUDKernLib 196
    com.apple.driver.IOBluetoothHIDDriver 2.1.6f8
    com.apple.iokit.IOHDAFamily 1.6.8a3
    com.apple.driver.IOPlatformPluginFamily 3.4.0d10
    com.apple.driver.AppleSMC 2.2.1d2
    com.apple.NVDAResman 5.4.4
    com.apple.iokit.IONDRVSupport 1.7.3
    com.apple.iokit.IOGraphicsFamily 1.7.3
    com.apple.iokit.IOAudioFamily 1.6.9fc3
    com.apple.kext.OSvKernDSPLib 1.1
    com.apple.driver.AppleUSBBluetoothHCIController 2.1.6f8
    com.apple.iokit.IOBluetoothFamily 2.1.6f8
    com.apple.iokit.IOUSBMassStorageClass 2.0.6
    com.apple.iokit.IOUSBHIDDriver 3.2.2
    com.apple.driver.AppleUSBComposite 3.2.0
    com.apple.iokit.IOSCSIMultimediaCommandsDevice 2.0.9
    com.apple.iokit.IOSCSIBlockCommandsDevice 2.0.9
    com.apple.iokit.IOBDStorageFamily 1.5
    com.apple.iokit.IODVDStorageFamily 1.5
    com.apple.iokit.IOCDStorageFamily 1.5
    com.apple.iokit.IOSCSIArchitectureModelFamily 2.0.9
    com.apple.iokit.IOATAFamily 2.0.1
    com.apple.iokit.IOAHCIFamily 1.5.0
    com.apple.iokit.IO80211Family 216.1
    com.apple.iokit.IOFireWireFamily 3.4.7
    com.apple.iokit.IONetworkingFamily 1.6.1
    com.apple.iokit.IOUSBFamily 3.4.3
    com.apple.driver.AppleEFIRuntime 1.2.0
    com.apple.iokit.IOSMBusFamily 1.1
    com.apple.iokit.IOStorageFamily 1.5.6
    com.apple.iokit.IOHIDFamily 1.5.5
    com.apple.driver.AppleACPIPlatform 1.2.4
    com.apple.iokit.IOACPIFamily 1.2.0
    com.apple.iokit.IOPCIFamily 2.6

  19. Keleko macrumors 68000

    Joined:
    Mar 26, 2008
    #19
    I'll add that this past week, after the 3rd panic, I cleared my system and user caches, repaired permissions and reinstalled the 10.5.7 combo update.

  20. seethelight macrumors newbie

    Joined:
    Apr 28, 2006
    #20
    Can I join the Kernel Panic gang

    Happening constantly when I just use the battery after about 5 mins..
    Please any ideas..


    Interval Since Last Panic Report: 186235 sec
    Panics Since Last Report: 1
    Anonymous UUID: BA2D15A2-A004-49C1-9E24-6E62B6FD3D3F

    Tue Jul 21 13:31:11 2009
    panic(cpu 0 caller 0x001AB0FE): Kernel trap at 0x00199b26, type 14=page fault, registers:
    CR0: 0x8001003b, CR2: 0x041bf004, CR3: 0x010cf000, CR4: 0x00000660
    EAX: 0x23f653ec, EBX: 0x000013e0, ECX: 0x0000009a, EDX: 0x00000268
    CR2: 0x041bf004, EBP: 0x3a53be68, ESI: 0x041bf004, EDI: 0x23f653ec
    EFL: 0x00010206, EIP: 0x00199b26, CS: 0x00000008, DS: 0x00000010
    Error code: 0x00000000

    Backtrace (CPU 0), Frame : Return Address (4 potential args on stack)
    0x3a53bbf8 : 0x12b4c6 (0x45ec20 0x3a53bc2c 0x13355c 0x0)
    0x3a53bc48 : 0x1ab0fe (0x468ecc 0x199b26 0xe 0x468678)
    0x3a53bd28 : 0x1a1703 (0x3a53bd40 0x50 0x3a53be68 0x199b26)
    0x3a53bd38 : 0x199b26 (0xe 0x3a530048 0x10 0xb90010)
    0x3a53be68 : 0xb993c9 (0x3a53bed0 0x3a53becc 0x3a53bed4 0x3a53bed8)
    0x3a53bef8 : 0x217a8f (0x0 0x484ea04 0x2 0x3a53bf74)
    0x3a53bf68 : 0x217e96 (0x0 0x3026f500 0x0 0x440cdac)
    0x3a53bfc8 : 0x1a14ec (0x440cd84 0x0 0x1a40b5 0x3f2ea78)
    Backtrace terminated-invalid frame pointer 0
    Kernel loadable modules in backtrace (with dependencies):
    com.cisco.nke.ipsec(2.0.1)@0xb97000->0xc05fff

    BSD process name corresponding to current thread: kernel_task

    Mac OS version:
    9J61

    Kernel version:
    Darwin Kernel Version 9.7.0: Tue Mar 31 22:52:17 PDT 2009; root:xnu-1228.12.14~1/RELEASE_I386
    System model name: MacBookPro2,1 (Mac-F42189C8)

    System uptime in nanoseconds: 8009562057060
    unloaded kexts:
    (none)
    loaded kexts:
    com.microsoft.driver.MicrosoftMouseBluetooth 6.3
    com.microsoft.driver.MicrosoftMouse 6.3
    com.cisco.nke.ipsec 2.0.1
    com.vmware.kext.vmnet 2.0.0
    com.vmware.kext.vmioplug 2.0.0
    com.vmware.kext.vmci 2.0.0
    com.vmware.kext.vmx86 2.0.0
    net.pocketmac.driver.BlackberryUSB 3.1.3
    net.pocketmac.driver.BlackberryUSBDev 3.1.3
    com.atPurpose.driver.atMonitorSensor 1.0
    com.apple.filesystems.smbfs 1.4.6 - last loaded 116872537317
    com.apple.driver.AppleBluetoothHIDMouse 1.2.3f1
    com.apple.driver.iTunesPhoneDriver 1.0
    com.apple.iokit.IOUSBMassStorageClass 2.0.6
    com.apple.filesystems.ntfs 2.1
    com.apple.driver.InternalModemSupport 2.4.0
    com.apple.filesystems.autofs 2.0.2
    com.apple.driver.AppleHDAPlatformDriver 1.6.8a3
    com.apple.driver.AppleHWSensor 1.9d0
    com.apple.driver.AppleUpstreamUserClient 2.7.5
    com.apple.iokit.IOBluetoothSerialManager 2.1.6f8
    com.apple.Dont_Steal_Mac_OS_X 6.0.3
    com.apple.driver.AppleHDA 1.6.8a3
    com.apple.iokit.CHUDUtils 200
    com.apple.kext.ATY_Wormy 5.4.4
    com.apple.iokit.CHUDProf 207
    com.apple.driver.AppleACPILPC 1.0.6
    com.apple.ATIRadeonX1000 5.4.4
    com.apple.driver.AppleGraphicsControl 2.8.11
    com.apple.driver.AudioIPCDriver 1.0.6
    com.apple.driver.AirPort.Atheros 319.10.3
    com.apple.driver.SMCMotionSensor 2.1.1d2
    com.apple.iokit.IOFireWireIP 1.7.7
    com.apple.driver.AppleIRController 110
    com.apple.kext.AppleSMCLMU 1.4.3d2
    com.apple.driver.ACPI_SMC_PlatformPlugin 3.4.0d10
    com.apple.driver.AppleLPC 1.2.12
    com.apple.driver.AppleBacklight 1.6.0
    com.apple.driver.AppleTyMCEDriver 1.0.0d28
    com.apple.driver.AppleHDAController 1.6.8a3
    com.apple.driver.CSRUSBBluetoothHCIController 2.1.6f8
    com.apple.driver.AppleUSBMergeNub 3.4.3
    com.apple.driver.AppleUSBTrackpad 1.7.4f1
    com.apple.driver.AppleUSBTCKeyEventDriver 1.7.4f1
    com.apple.driver.CSRHIDTransitionDriver 2.1.6f8
    com.apple.driver.AppleUSBTCKeyboard 1.7.4f1
    com.apple.driver.XsanFilter 2.7.91
    com.apple.iokit.IOAHCIBlockStorage 1.2.1
    com.apple.driver.USBCameraFirmwareLoader 1.0.9
    com.apple.iokit.IOSCSIMultimediaCommandsDevice 2.0.9
    com.apple.iokit.SCSITaskUserClient 2.0.9
    com.apple.driver.AppleFileSystemDriver 1.1.0
    com.apple.iokit.IOATAPIProtocolTransport 1.5.2
    com.apple.iokit.AppleYukon2 3.1.12b14
    com.apple.driver.AppleUSBHub 3.4.0
    com.apple.iokit.IOUSBUserClient 3.3.1
    com.apple.driver.AppleFWOHCI 3.8.2
    com.apple.driver.AppleAHCIPort 1.6.0
    com.apple.driver.AppleIntelPIIXATA 2.0.0
    com.apple.driver.AppleUSBEHCI 3.4.3
    com.apple.driver.AppleUSBUHCI 3.3.5
    com.apple.driver.AppleEFINVRAM 1.2.0
    com.apple.driver.AppleSmartBatteryManager 158.10.0
    com.apple.driver.AppleRTC 1.2.3
    com.apple.driver.AppleHPET 1.4
    com.apple.driver.AppleACPIPCI 1.2.4
    com.apple.driver.AppleACPIButtons 1.2.4
    com.apple.driver.AppleSMBIOS 1.4
    com.apple.driver.AppleACPIEC 1.2.4
    com.apple.driver.AppleAPIC 1.4
    com.apple.security.seatbelt 107.12
    com.apple.nke.applicationfirewall 1.6.77
    com.apple.security.TMSafetyNet 3
    com.apple.driver.AppleIntelCPUPowerManagement 76.0.0
    com.apple.driver.DiskImages 199
    com.apple.BootCache 30.4
    com.apple.driver.AppleHIDMouse 1.2.3f1
    com.apple.driver.IOBluetoothHIDDriver 2.1.6f8
    com.apple.iokit.IOSerialFamily 9.4
    com.apple.driver.DspFuncLib 1.6.8a3
    com.apple.iokit.CHUDKernLib 196
    com.apple.iokit.IOAudioFamily 1.6.9fc3
    com.apple.kext.OSvKernDSPLib 1.1
    com.apple.iokit.IO80211Family 216.1
    com.apple.driver.IOPlatformPluginFamily 3.4.0d10
    com.apple.driver.AppleSMC 2.2.1d2
    com.apple.iokit.IONDRVSupport 1.7.3
    com.apple.iokit.IOGraphicsFamily 1.7.3
    com.apple.iokit.IOHDAFamily 1.6.8a3
    com.apple.driver.AppleUSBBluetoothHCIController 2.1.6f8
    com.apple.iokit.IOBluetoothFamily 2.1.6f8
    com.apple.iokit.IOUSBHIDDriver 3.2.2
    com.apple.driver.AppleUSBComposite 3.2.0
    com.apple.iokit.IOSCSIBlockCommandsDevice 2.0.9
    com.apple.iokit.IOBDStorageFamily 1.5
    com.apple.iokit.IODVDStorageFamily 1.5
    com.apple.iokit.IOCDStorageFamily 1.5
    com.apple.iokit.IOSCSIArchitectureModelFamily 2.0.9
    com.apple.iokit.IONetworkingFamily 1.6.1
    com.apple.iokit.IOFireWireFamily 3.4.7
    com.apple.iokit.IOAHCIFamily 1.5.0
    com.apple.iokit.IOATAFamily 2.0.1
    com.apple.iokit.IOUSBFamily 3.4.3
    com.apple.driver.AppleEFIRuntime 1.2.0
    com.apple.iokit.IOSMBusFamily 1.1
    com.apple.iokit.IOStorageFamily 1.5.6
    com.apple.iokit.IOHIDFamily 1.5.5
    com.apple.driver.AppleACPIPlatform 1.2.4
    com.apple.iokit.IOACPIFamily 1.2.0
    com.apple.iokit.IOPCIFamily 2.6

  21. mrchinchilla macrumors 6502

    mrchinchilla

    Joined:
    Mar 6, 2009
    #21
    Maybe reinstall Leopard, repair permissions, 're'install update etc. Like the above user.

  22. seethelight macrumors newbie

    Joined:
    Apr 28, 2006
    #22
    kernel panic

    I'm running the latest software patches.
    could this be the start of a hard drive failure

  23. mrchinchilla macrumors 6502

    mrchinchilla

    Joined:
    Mar 6, 2009
    #23
    No. You'd hear rattling and clunking noises coming from your HDD. And have problems booting etc.

  24. noah123 macrumors newbie

    Joined:
    Sep 2, 2009
    #24
    Cisco VPN client, IPv6 and virtual machine software is unsupported

    There's an issues with Cisco's kernel extension when you're connected to a VPN on a computer that also has virtual machine software (VMware/Parallels) and active IPv6.
    See here for more information:
    http://eternalmedia.se/2009/09/02/cisco-vpn-causes-kernel-panic-on-mac-os-x/

    The workaround is to either turn off IPv6 or to uninstall the virtual machine software whenever you need to connect to the VPN.

  25. devilzek macrumors newbie

    Joined:
    Apr 11, 2010
    #25
    hi guys... i have a kernal error for a log time... i need some help, hope you guys help me...


    this is the error log:

    Code:
    Interval Since Last Panic Report:  988814 sec
    Panics Since Last Report:          1
    Anonymous UUID:                    149F7C05-421E-451C-83EE-A45AB4FC239D

    Sun Apr 11 19:37:14 2010
    panic(cpu 0 caller 0x001AB0FE): Kernel trap at 0x0019cd30, type 14=page fault, registers:
    CR0: 0x8001003b, CR2: 0x0000000a, CR3: 0x0150e000, CR4: 0x00000660
    EAX: 0x0000000a, EBX: 0x00000001, ECX: 0x00000001, EDX: 0x0000000a
    CR2: 0x0000000a, EBP: 0x47e57eb8, ESI: 0x00000008, EDI: 0x00000000
    EFL: 0x00010002, EIP: 0x0019cd30, CS:  0x00000008, DS:  0x00000010
    Error code: 0x00000000

    Backtrace (CPU 0), Frame : Return Address (4 potential args on stack)
    0x47e57cb8 : 0x12b4c6 (0x45f91c 0x47e57cec 0x13355c 0x0)
    0x47e57d08 : 0x1ab0fe (0x469a98 0x19cd30 0xe 0x469248)
    0x47e57de8 : 0x1a1713 (0x47e57e00 0x178cab03 0x47e57eb8 0x19cd30)
    0x47e57df8 : 0x19cd30 (0xe 0x48 0x10 0x520010)
    0x47e57eb8 : 0x1a04e8 (0x5486c0 0x2034836f 0xb1200000 0x522740)
    0x47e57ef8 : 0x17cf20 (0x8 0x5475d0 0x47e57f18 0x4f9158)
    0x47e57f98 : 0x17d87c (0x35 0x50fef8 0x638c99c 0x0)
    0x47e57fc8 : 0x1a14fc (0x0 0x0 0x10 0x11e309e0)
    Backtrace terminated-invalid frame pointer 0

    BSD process name corresponding to current thread: kernel_task

    Mac OS version:
    9L31a

    Kernel version:
    Darwin Kernel Version 9.8.0: Wed Jul 15 16:55:01 PDT 2009; root:xnu-1228.15.4~1/RELEASE_I386
    System model name: iMac6,1 (Mac-F4218FC8)

    System uptime in nanoseconds: 14710648333776
    unloaded kexts:
    com.apple.driver.AppleUSBEthernetHost	2.0.1 - last unloaded 14548277983099
    loaded kexts:
    com.iospirit.driver.rbiokithelper	1.7.2
    com.apple.driver.AppleUSBEthernetHost	2.0.1 - last loaded 14370024285839
    com.apple.iokit.IOUSBMassStorageClass	2.0.8
    com.apple.driver.AppleHWSensor	1.9d0
    com.apple.filesystems.autofs	2.0.2
    com.apple.iokit.IOBluetoothSerialManager	2.1.9f10
    com.apple.driver.AppleUpstreamUserClient	2.7.5
    com.apple.GeForce	5.4.8
    com.apple.driver.AppleHDA	1.7.1a2
    com.apple.Dont_Steal_Mac_OS_X	6.0.3
    com.apple.nvidia.nv40hal	5.4.8
    com.apple.iokit.IOFireWireIP	1.7.7
    com.apple.driver.AudioIPCDriver	1.0.6
    com.apple.driver.ACPI_SMC_PlatformPlugin	3.4.0a17
    com.apple.driver.AppleLPC	1.3.1
    com.apple.driver.AppleBacklight	1.6.0
    com.apple.driver.AppleHDAController	1.7.1a2
    com.apple.driver.CSRUSBBluetoothHCIController	2.1.9f10
    com.apple.driver.AppleUSBHIDMouse	1.2.4b3
    com.apple.driver.AppleUSBMergeNub	3.5.2
    com.apple.iokit.IOSCSIMultimediaCommandsDevice	2.1.1
    com.apple.iokit.SCSITaskUserClient	2.1.1
    com.apple.driver.XsanFilter	2.7.91
    com.apple.iokit.IOATAPIProtocolTransport	1.5.3
    com.apple.driver.AirPortBrcm43xx	366.91.21
    com.apple.driver.AppleUSBHub	3.4.9
    com.apple.iokit.IOUSBUserClient	3.5.2
    com.apple.iokit.IOAHCIBlockStorage	1.2.2
    com.apple.driver.AppleAHCIPort	1.7.0
    com.apple.driver.AppleIntelPIIXATA	2.0.1
    com.apple.driver.AppleFWOHCI	3.9.7
    com.apple.iokit.AppleYukon2	3.1.13b2
    com.apple.driver.AppleUSBEHCI	3.4.6
    com.apple.driver.AppleUSBUHCI	3.5.2
    com.apple.driver.AppleEFINVRAM	1.2.0
    com.apple.driver.AppleRTC	1.2.3
    com.apple.driver.AppleHPET	1.4
    com.apple.driver.AppleACPIPCI	1.2.5
    com.apple.driver.AppleACPIButtons	1.2.5
    com.apple.driver.AppleSMBIOS	1.4
    com.apple.driver.AppleACPIEC	1.2.5
    com.apple.driver.AppleAPIC	1.4
    com.apple.security.seatbelt	107.12
    com.apple.nke.applicationfirewall	1.6.77
    com.apple.security.TMSafetyNet	3
    com.apple.driver.AppleIntelCPUPowerManagement	76.2.0
    com.apple.driver.DiskImages	199
    com.apple.BootCache	30.4
    com.apple.iokit.IOSerialFamily	9.4
    com.apple.driver.DspFuncLib	1.7.1a2
    com.apple.NVDAResman	5.4.8
    com.apple.iokit.IOAudioFamily	1.6.9fc5
    com.apple.kext.OSvKernDSPLib	1.1
    com.apple.driver.IOPlatformPluginFamily	3.4.0a17
    com.apple.driver.AppleSMC	2.3.1d1
    com.apple.iokit.IONDRVSupport	1.7.3
    com.apple.iokit.IOGraphicsFamily	1.7.3
    com.apple.iokit.IOHDAFamily	1.7.1a2
    com.apple.driver.AppleUSBBluetoothHCIController	2.1.9f10
    com.apple.iokit.IOBluetoothFamily	2.1.9f10
    com.apple.driver.AppleHIDMouse	1.2.4b3
    com.apple.iokit.IOUSBHIDDriver	3.4.6
    com.apple.driver.AppleUSBComposite	3.2.0
    com.apple.iokit.IOSCSIBlockCommandsDevice	2.1.1
    com.apple.iokit.IOBDStorageFamily	1.5
    com.apple.iokit.IODVDStorageFamily	1.5
    com.apple.iokit.IOCDStorageFamily	1.5
    com.apple.iokit.IOSCSIArchitectureModelFamily	2.1.1
    com.apple.iokit.IO80211Family	216.1
    com.apple.iokit.IOAHCIFamily	1.5.0
    com.apple.iokit.IOATAFamily	2.0.1
    com.apple.iokit.IOFireWireFamily	3.4.9
    com.apple.iokit.IOUSBFamily	3.5.2
    com.apple.iokit.IONetworkingFamily	1.6.1
    com.apple.driver.AppleEFIRuntime	1.2.0
    com.apple.iokit.IOSMBusFamily	1.1
    com.apple.iokit.IOStorageFamily	1.5.6
    com.apple.iokit.IOHIDFamily	1.5.5
    com.apple.driver.AppleACPIPlatform	1.2.5
    com.apple.iokit.IOACPIFamily	1.2.0
    com.apple.iokit.IOPCIFamily	2.6


    This is a print of the erros console:

    [​IMG]

    a picture of the error:
    [​IMG]


Share This Page
