OWC Mercury Extreme Pro 6G Showdown

[MaxPower72]

I'd like to compare benchmarks and speed tests for the OWC Mercury Extreme Pro 6G and also see what kind of tool you guys use to measure the SSD performance and if I can improve it.
This is my configuration:

Macbook Pro Mid 2012 13.3"
i7 2.9 Ghz.
RAM 16 GB 1600 Mhz DDR3
SSD 240 GB OWC Mercury Extreme Pro 6G
Mac OS X Lion 10.7.4 (11E2620)



[derbothaus]

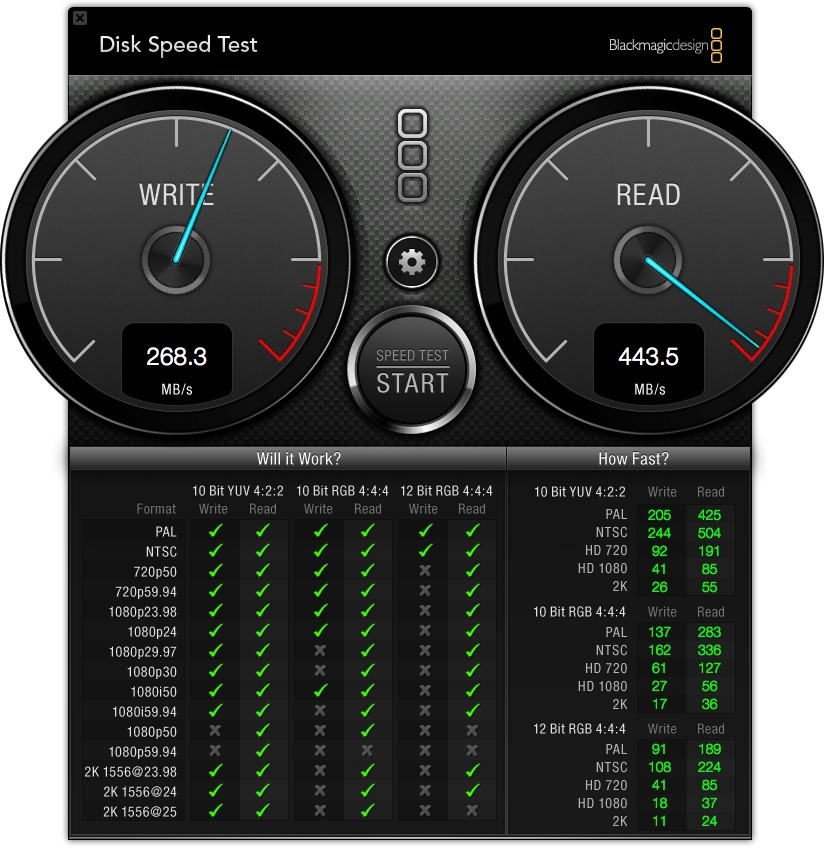

Not a good test. BM writes non-compressed data. Sandforce is not good with this data compared to Samsung and Marvel based controllers. You're going to be frustrated with your numbers. Run AJA and you'll peg 500+ read / 500+ write. But you need to create a blank partition to do it as Apple has screwed up the permissions on the volumes to allow a concise speed test from AJA.



[jcampbell1070]

this is mine. spec's in signature. had the owc ssd for about a year and had no slowdowns or problems



[Orlandoech]

Not a good test. BM writes non-compressed data. Sandforce is not good with this data compared to Samsung and Marvel based controllers. You're going to be frustrated with your numbers. Run AJA and you'll peg 500+ read / 500+ write. But you need to create a blank partition to do it as Apple has screwed up the permissions on the volumes to allow a concise speed test from AJA.

I can't find AJA for MAC anywhere. You have a link?

Found this; http://www.aja.com/ajashare/AJA_KONA_System_Test_v2.app.tar but it doesnt work on my rMBP internal SSD, just any external SSD/HDD I plug in.



[derbothaus]

I can't find AJA for MAC anywhere. You have a link?

http://www.aja.com/en/products/software/
You want the "System Test" for Mac.
Here is just the DL link:
http://www.aja.com/ajashare/AJASystemTest.zip



[MaxPower72]

I can't find AJA for MAC anywhere. You have a link?

Found this; http://www.aja.com/ajashare/AJA_KONA_System_Test_v2.app.tar but it doesnt work on my rMBP internal SSD, just any external SSD/HDD I plug in.

here is the link : http://www.aja.com/en/products/software/
scroll down to AJA System Test
under that you'll find the link for the download



[tninety]

Not a good test. BM writes non-compressed data. Sandforce is not good with this data compared to Samsung and Marvel based controllers. You're going to be frustrated with your numbers. Run AJA and you'll peg 500+ read / 500+ write. But you need to create a blank partition to do it as Apple has screwed up the permissions on the volumes to allow a concise speed test from AJA.

You mean non-compressible data...



[derbothaus]

You mean non-compressible data...

Yes. Of course. Police are out in full force it seems



[MaxPower72]

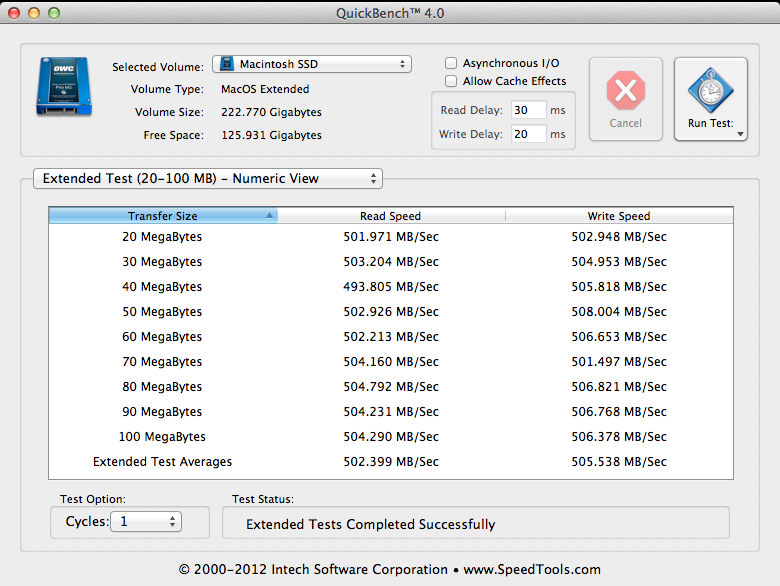

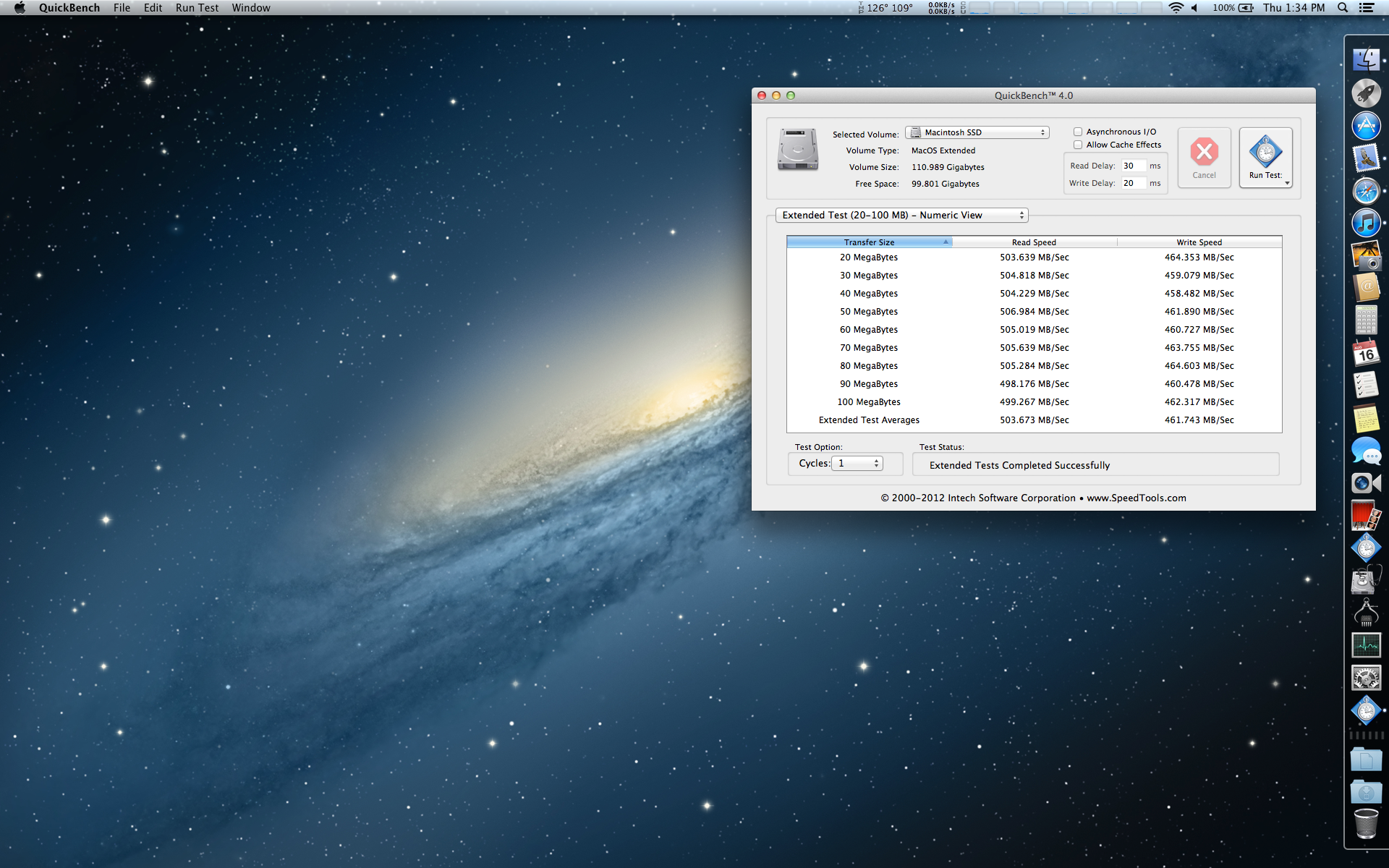

Here are the results with QuickBench 4.0



[Orlandoech]

Here are the results with QuickBench 4.0

Where did you download QB4.0?



[MaxPower72]

Where did you download QB4.0?

I downloaded it from http://www.intechusa.com/QuickBench.html

a couple of days ago, it was just $15



[jcampbell1070]

Where did you download QB4.0?

http://www.speedtools.com/TestSuite.html



[derbothaus]

Hey, isn't that the company in "Office Space"?



[alphaod]

Hey, isn't that the company in "Office Space"?

No, the company in Office Space is called "Initech."



[katmeef]

Not a good test. BM writes non-compressed data. Sandforce is not good with this data compared to Samsung and Marvel based controllers. You're going to be frustrated with your numbers. Run AJA and you'll peg 500+ read / 500+ write. But you need to create a blank partition to do it as Apple has screwed up the permissions on the volumes to allow a concise speed test from AJA.

You don't need to create a separate partition if you launch Aja as super user.



[derbothaus]

You don't need to create a separate partition if you launch Aja as super user.

So, get root in a shell and use 'open' command and it'll work? Thanks for info if it does. Can't test right now. On 10.6.8 desktop where everything still works.



[katmeef]

So, get root in a shell and use 'open' command and it'll work? Thanks for info if it does. Can't test right now. On 10.6.8 desktop where everything still works.

I opened it in Terminal, navigated into the the Aja system test folder in Applications and ran the executable with 'su ./' in front of the file name. Can't remember the exact file name ATM as not at the Mac to check



[derbothaus]

I opened it in Terminal, navigated into the the Aja system test folder in Applications and ran the executable with 'su ./' in front of the file name. Can't remember the exact file name ATM as not at the Mac to check

Navigate to directory and:

sudo AJA\ System\ Test.app/Contents/MacOS/AJA\ System\ Test &

does it. Thanks.
500.1 Read
507.2 Write
70% full OWC 6G Original 311ABBF0 FW
