Painting your Spigen Apple Watch stand!

Discussion in 'Apple Watch Accessories' started by fischersd, May 30, 2015.

  1. fischersd, May 30, 2015
    Last edited: Jun 19, 2015

    fischersd macrumors 68040

    fischersd

    Joined:
    Oct 23, 2014
    Location:
    Kitchener, Ontario, Canada
    #1

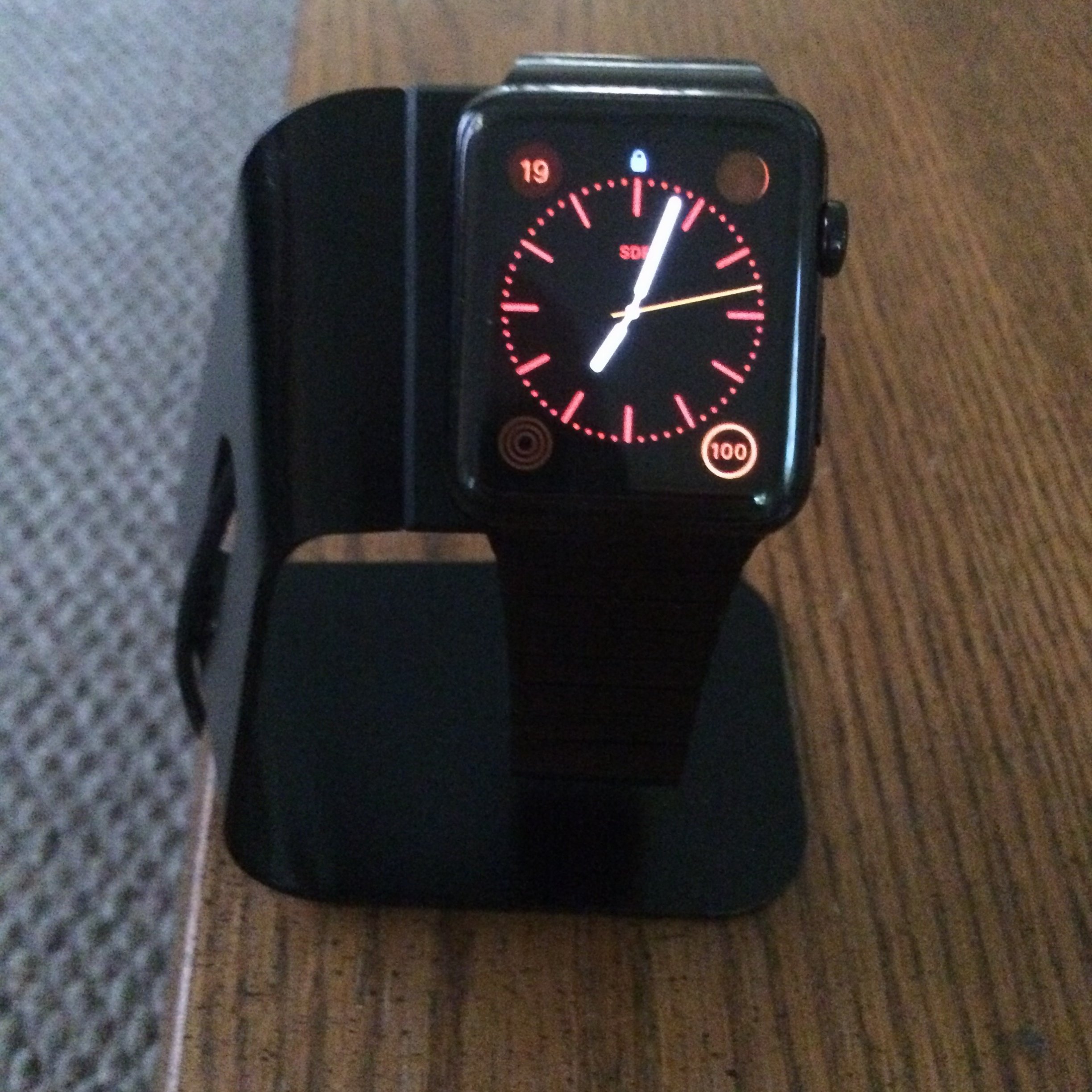

    Here's the "after" pic:



    The Bill of Materials (removing pricing as people seem fixated on that):

    Spigen 330 Apple Watch Stand
    Rust-Oleum Self-Etching Primer
    Dupli-Color Perfect Match Premium Automotive Universal Black
    Dupli-Color Perfect Match Premium Automotive Protective Clear
    1M Apple Watch charging cord
    Double-sided Carpet Tape
    Plasti-Dip Black (Spray Rubber)
    Meguiar's Ultimate Polish

    Removed from BoM (from first attempt):
    Rust-Oleum Hammered Black (which really isn't Black) :(
    Rust-Oleum Painter's Touch Flat Black
    Rust-Oleum Painter's Touch Semi-Gloss Clear

  2. fischersd, May 30, 2015
    Last edited: May 30, 2015

    fischersd thread starter macrumors 68040

    fischersd

    Joined:
    Oct 23, 2014
    Location:
    Kitchener, Ontario, Canada
    #2
    Some pics showing progress:

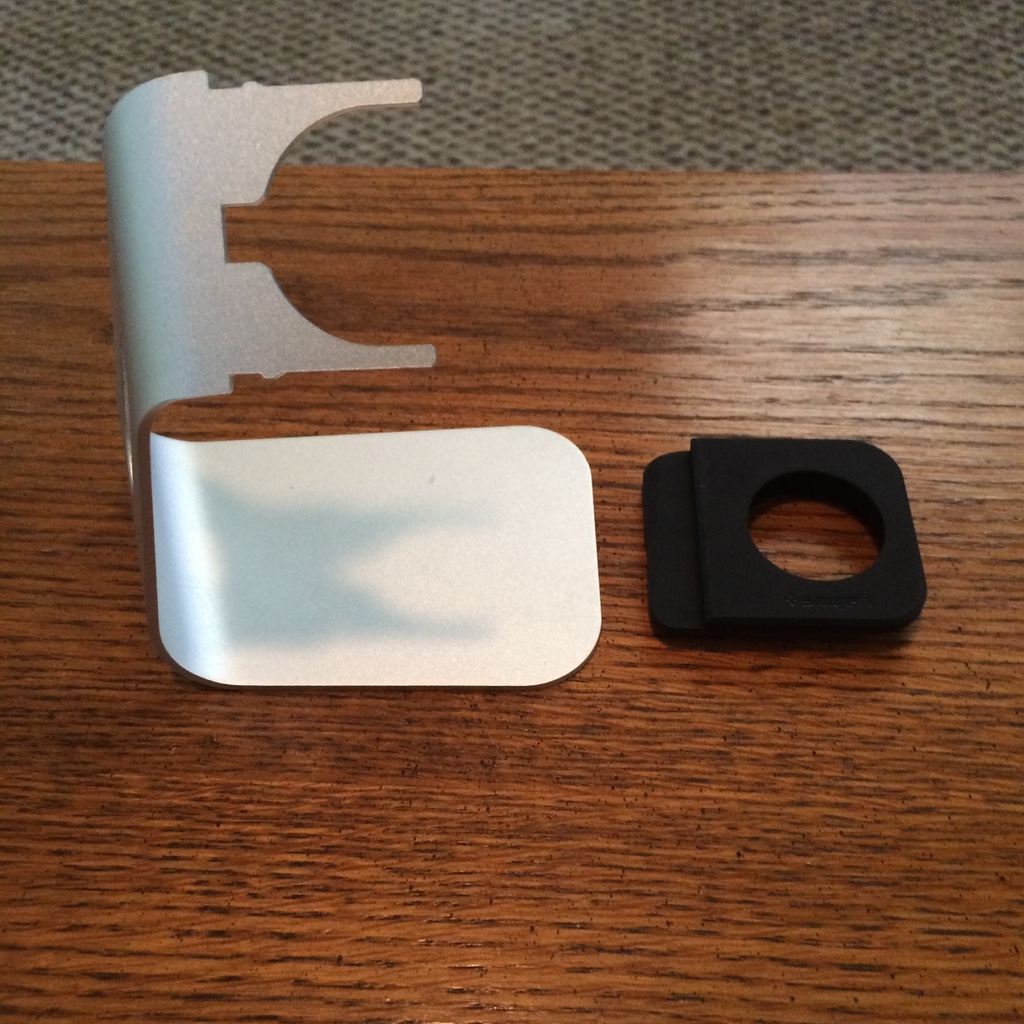

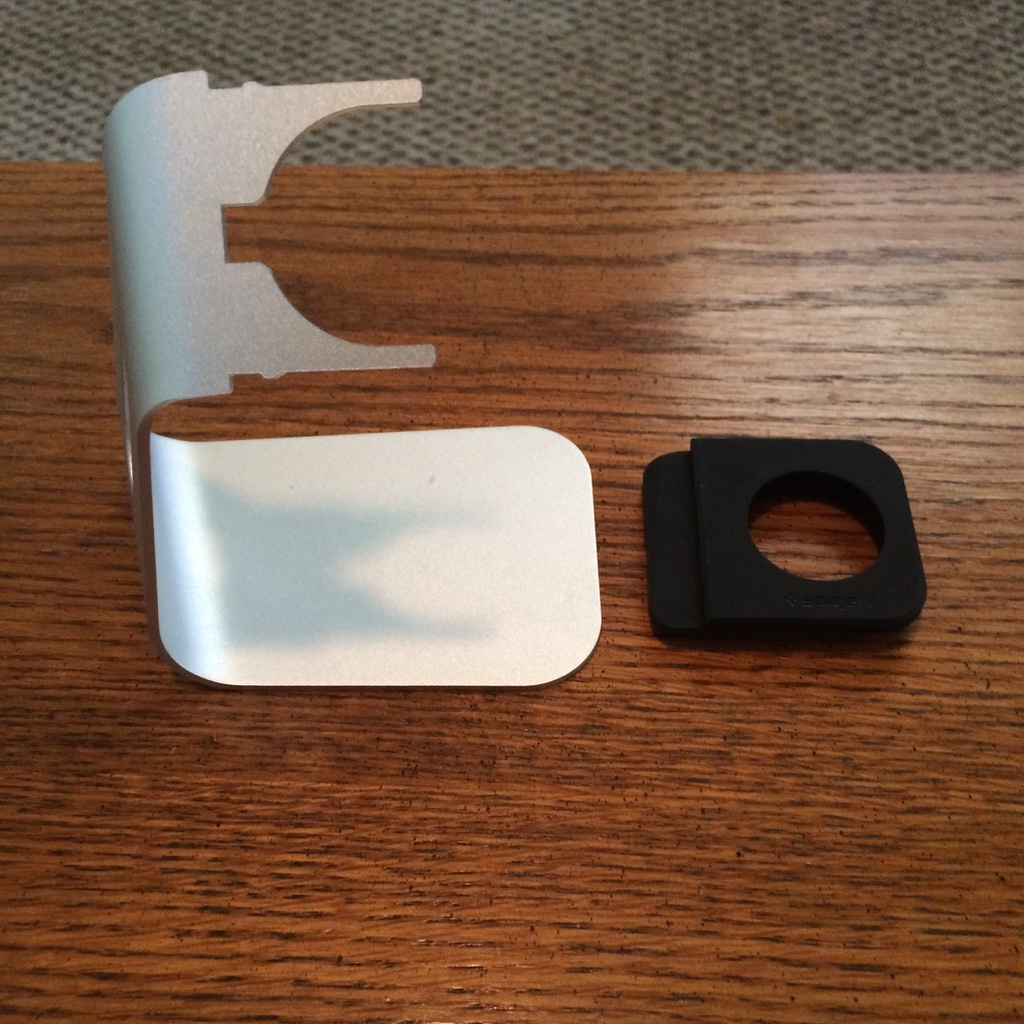

    The rubber top pulls straight off:

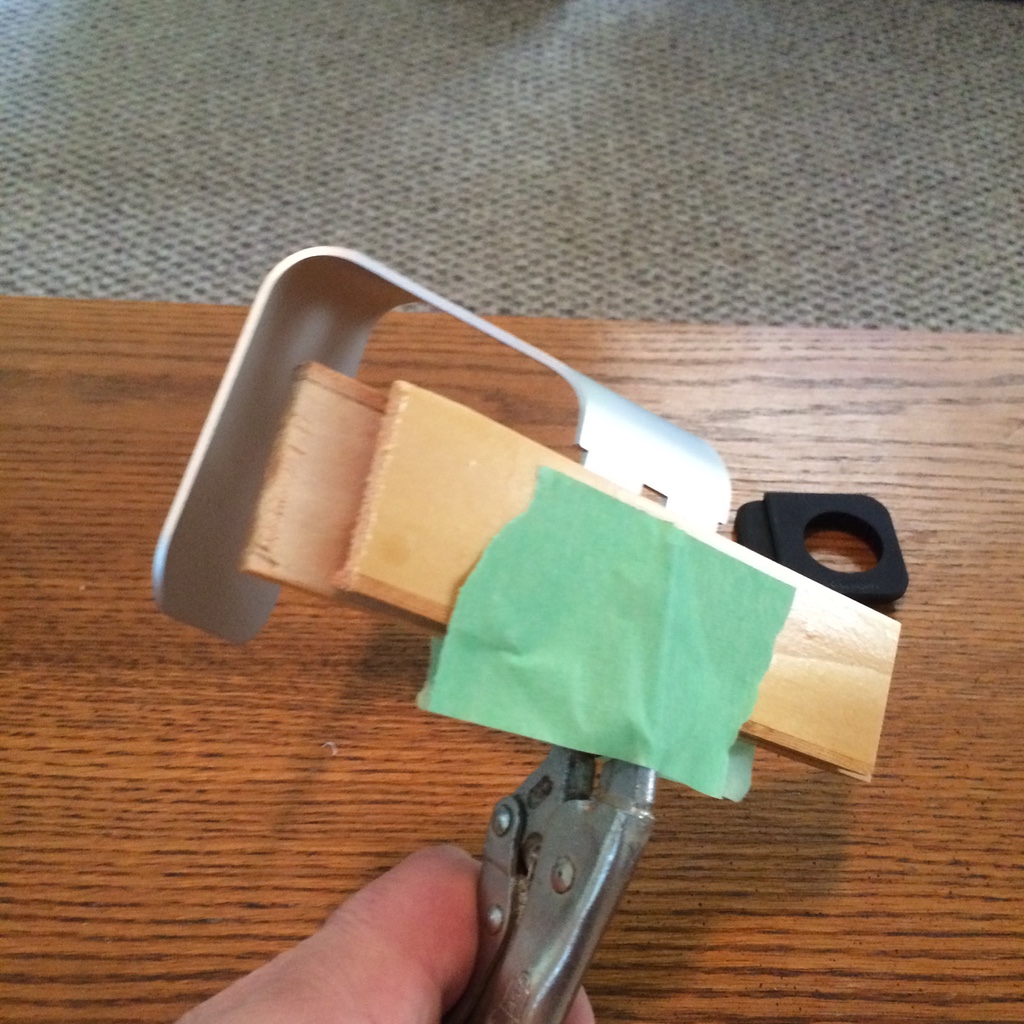

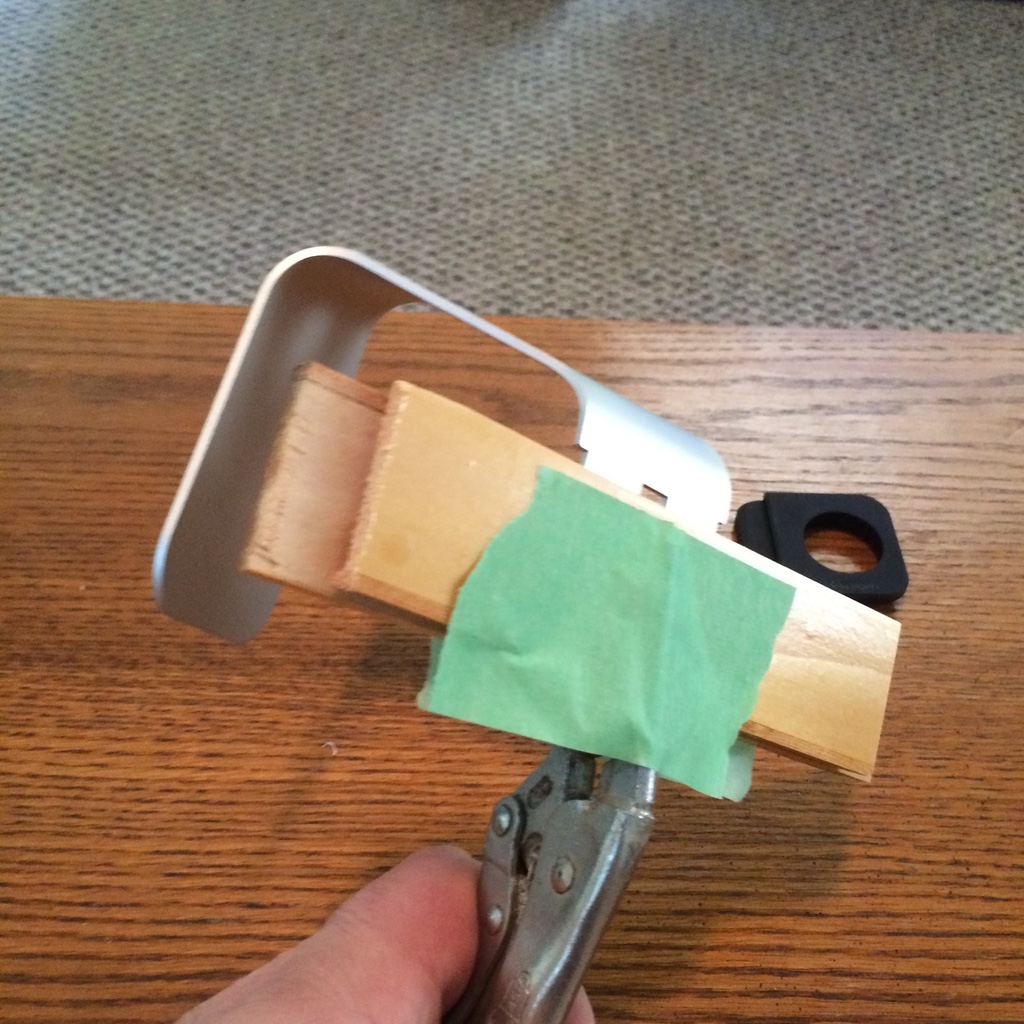

    Putting strapping top/bottom protects the aluminum - vice grips in the middle
    You want to paint some of what's covered by the rubber so you don't see any bare aluminum

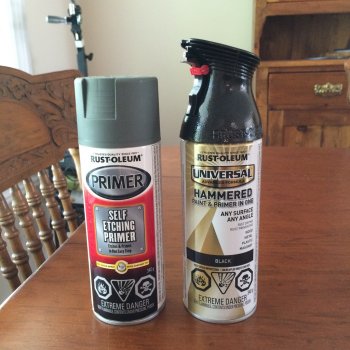

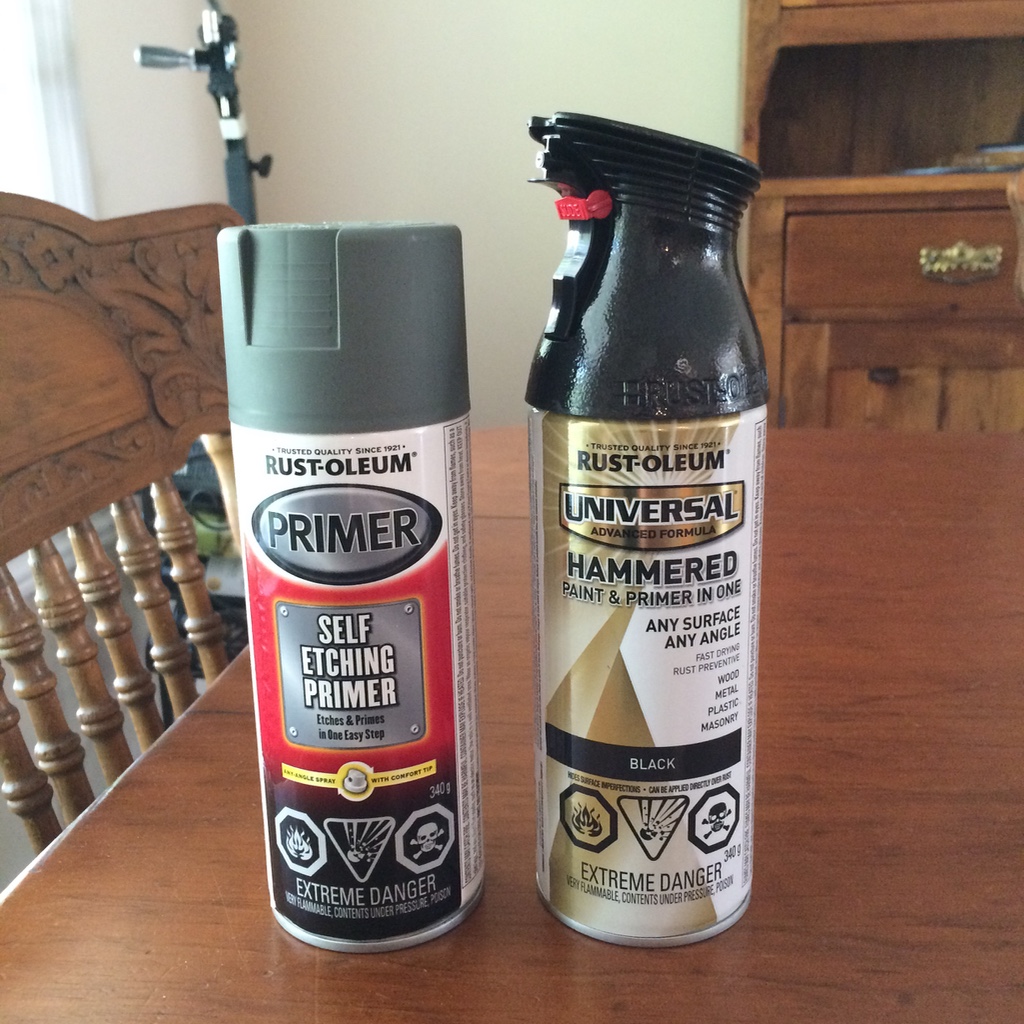

    It's important to use a self etching primer on the aluminum first

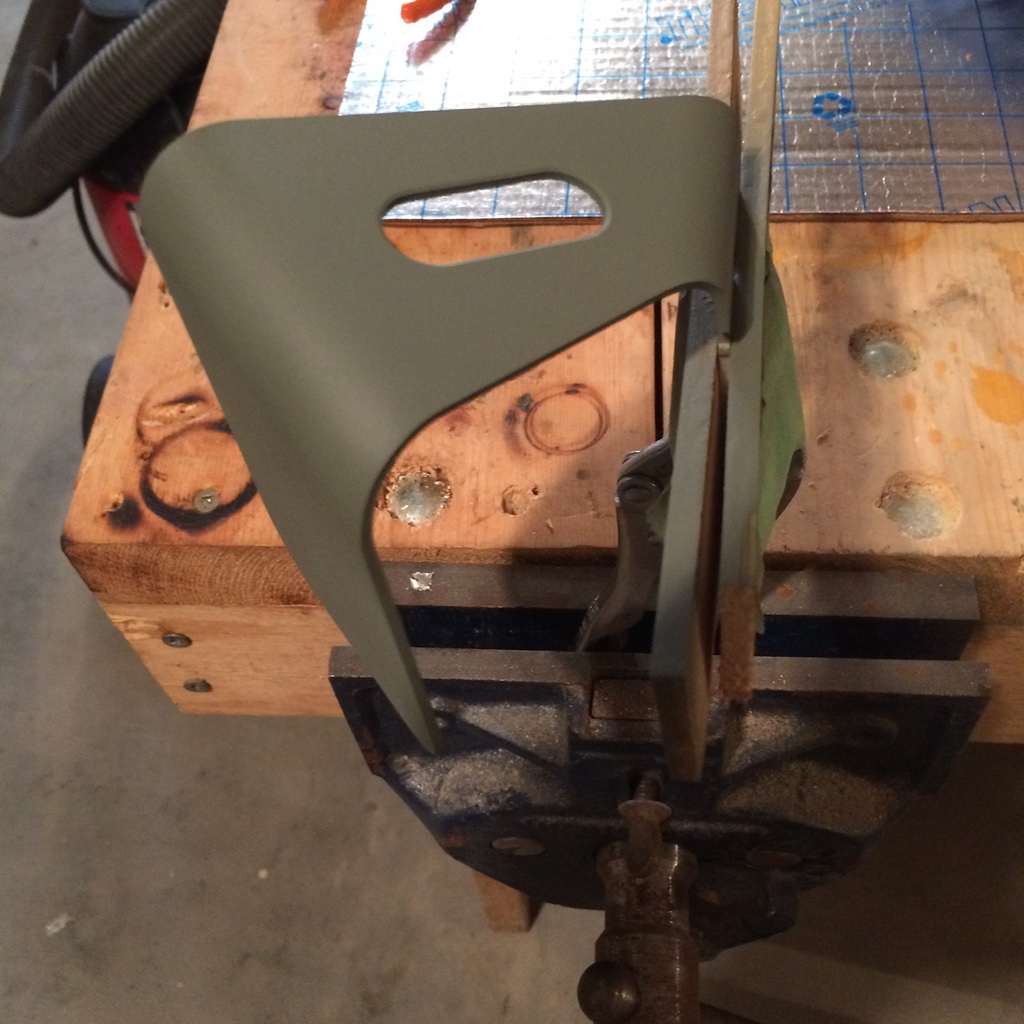

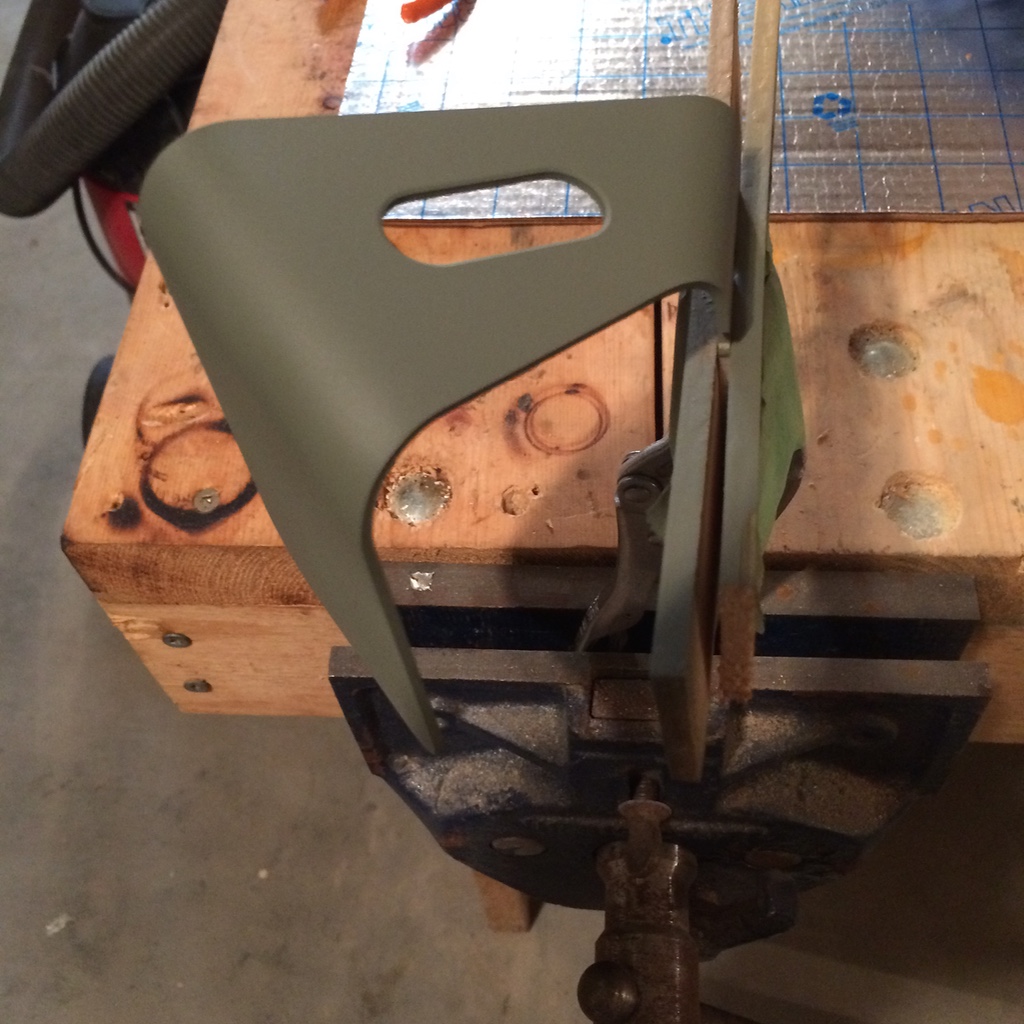

    Primed:

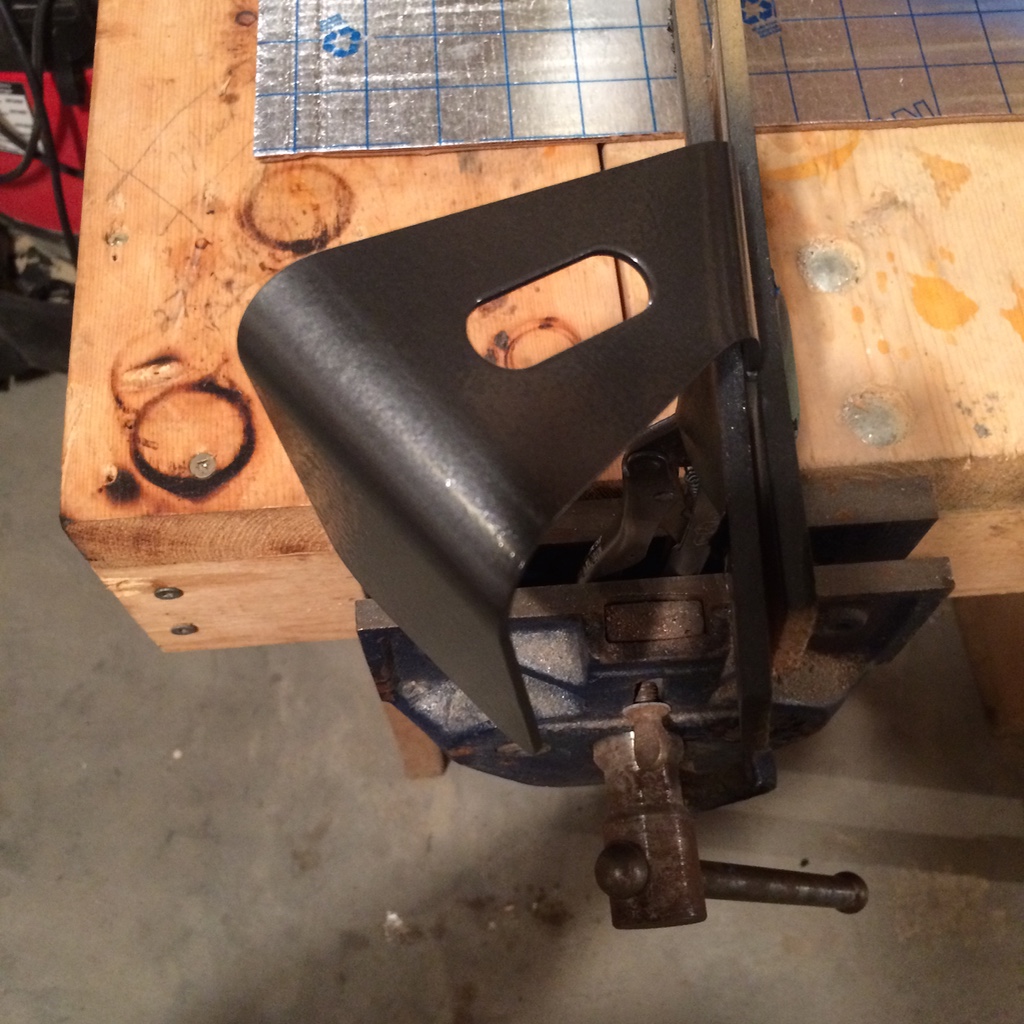

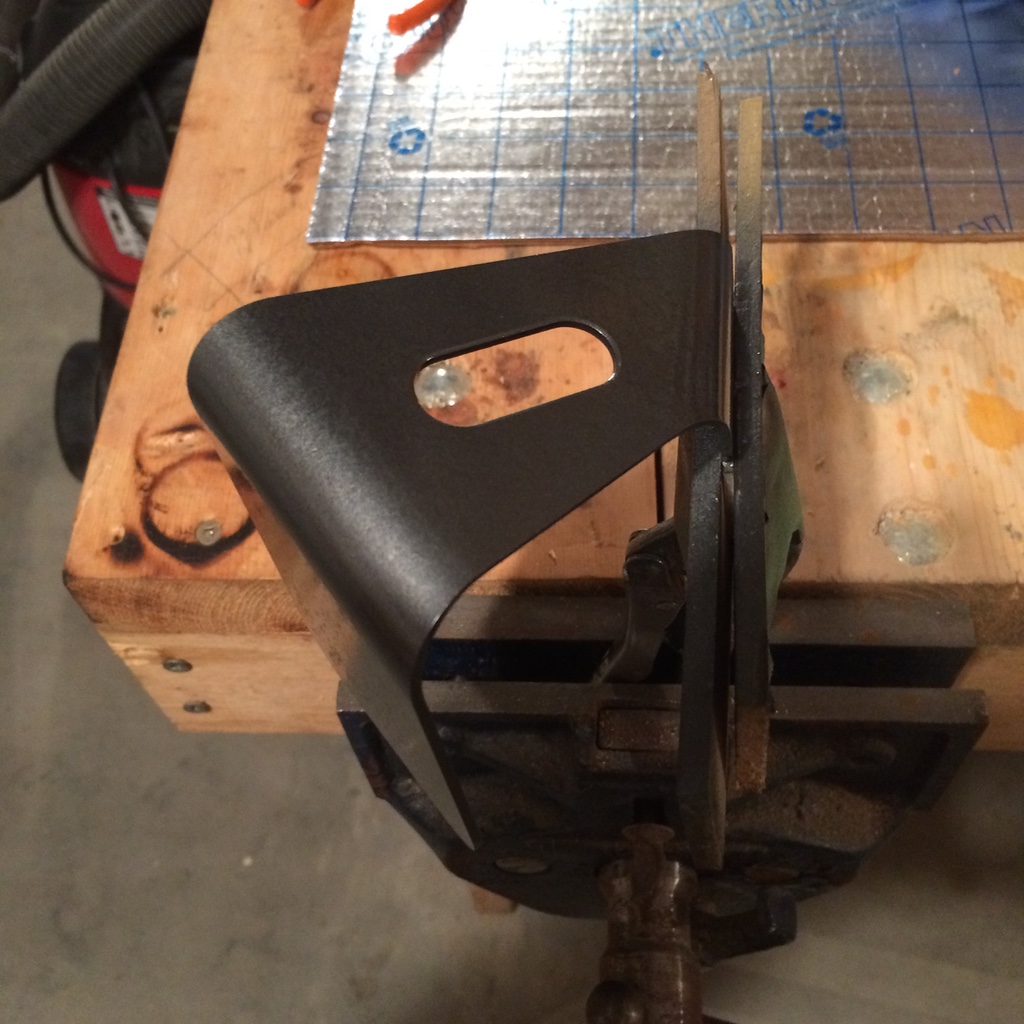

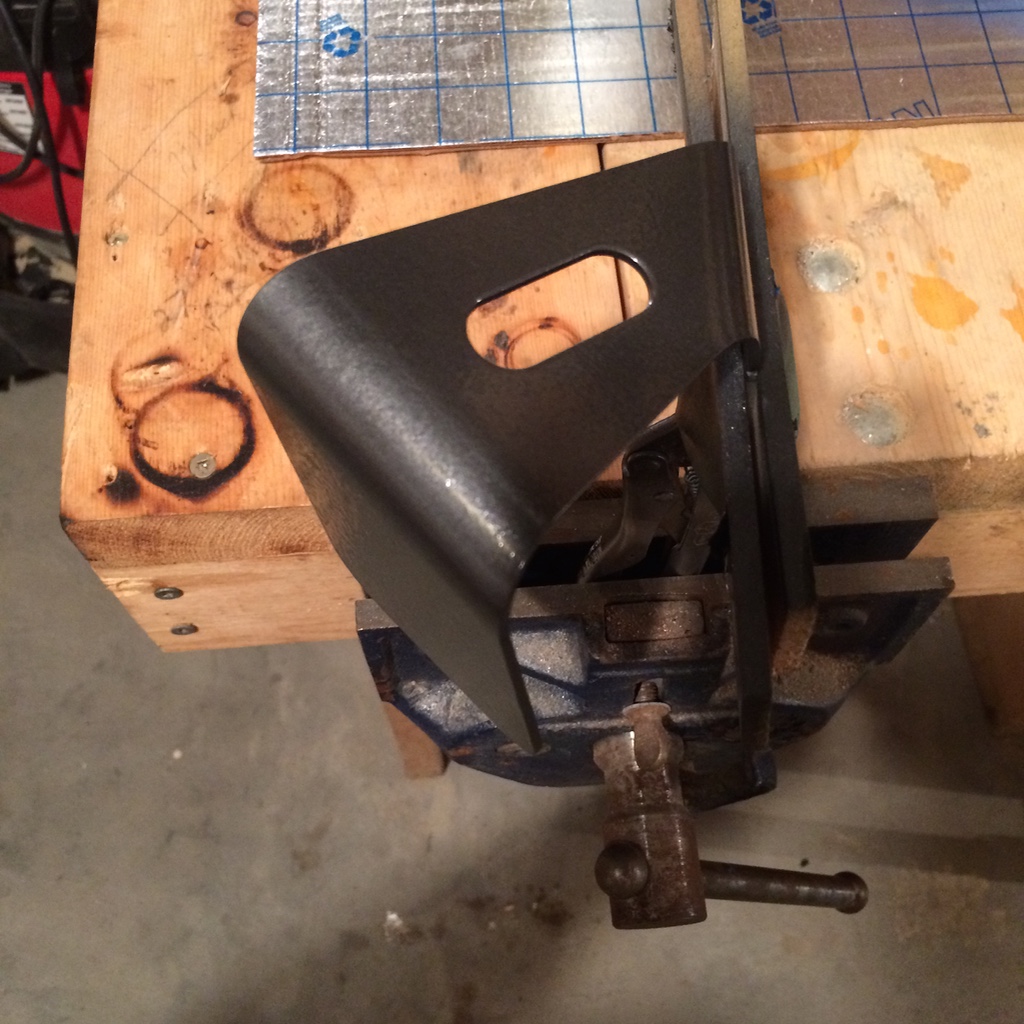

    First coat of paint:

  3. fischersd, May 30, 2015
    Last edited: May 30, 2015

    fischersd thread starter macrumors 68040

    fischersd

    Joined:
    Oct 23, 2014
    Location:
    Kitchener, Ontario, Canada
    #3

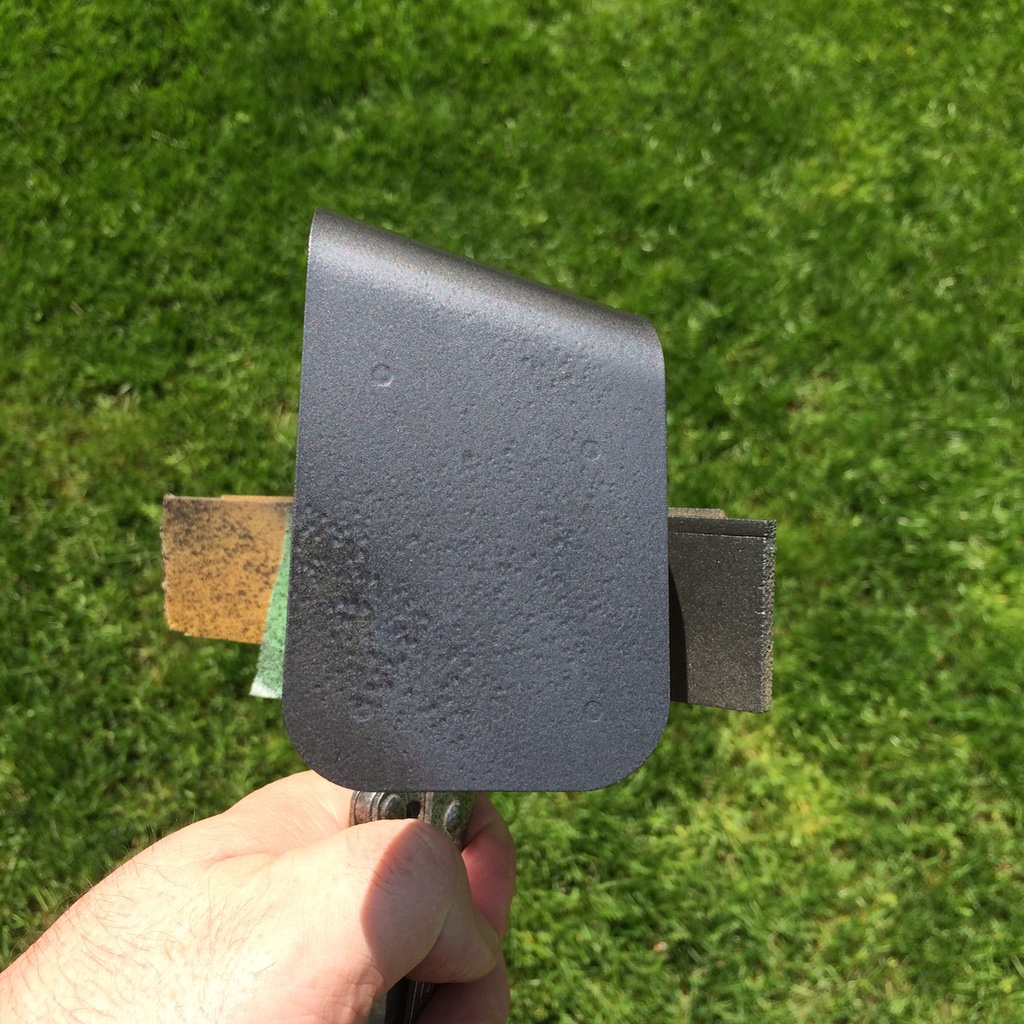

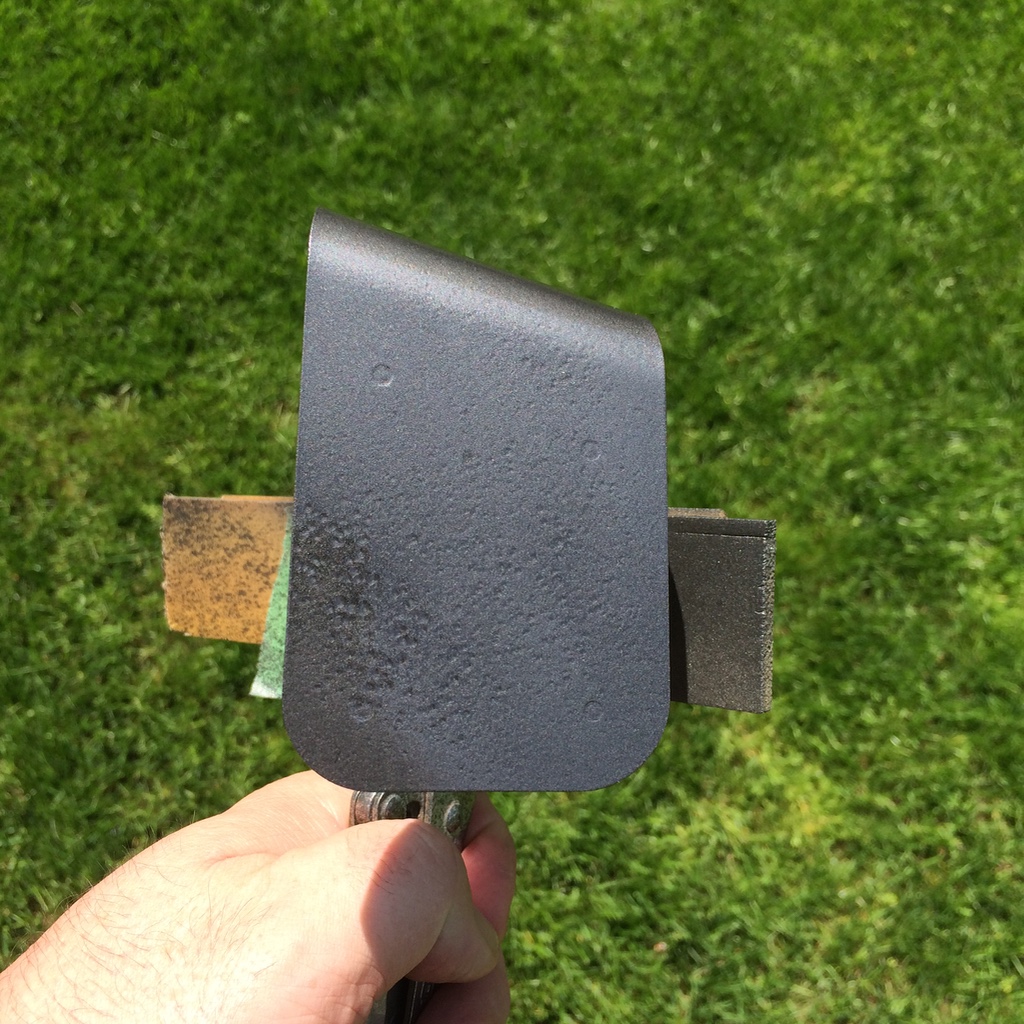

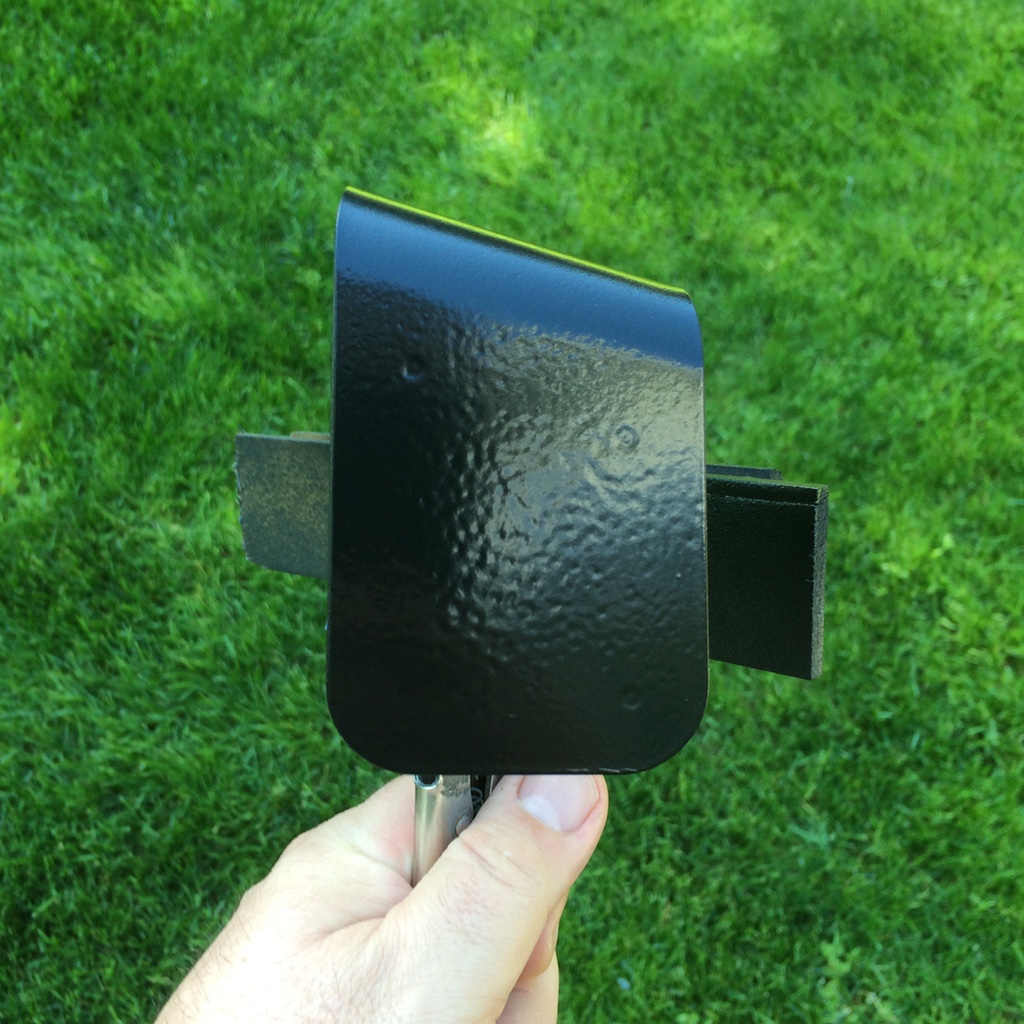

    As you can see from an outside shot, the paint hasn't darkened enough

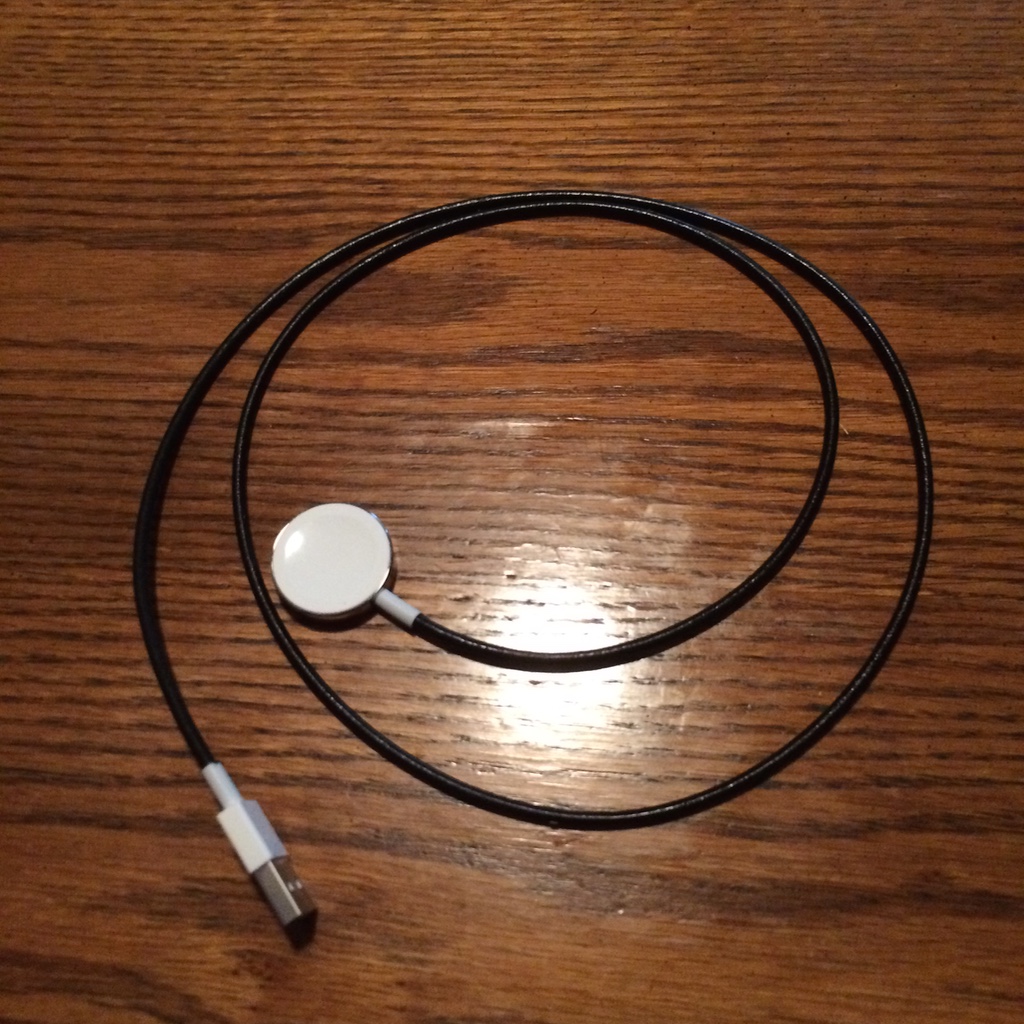

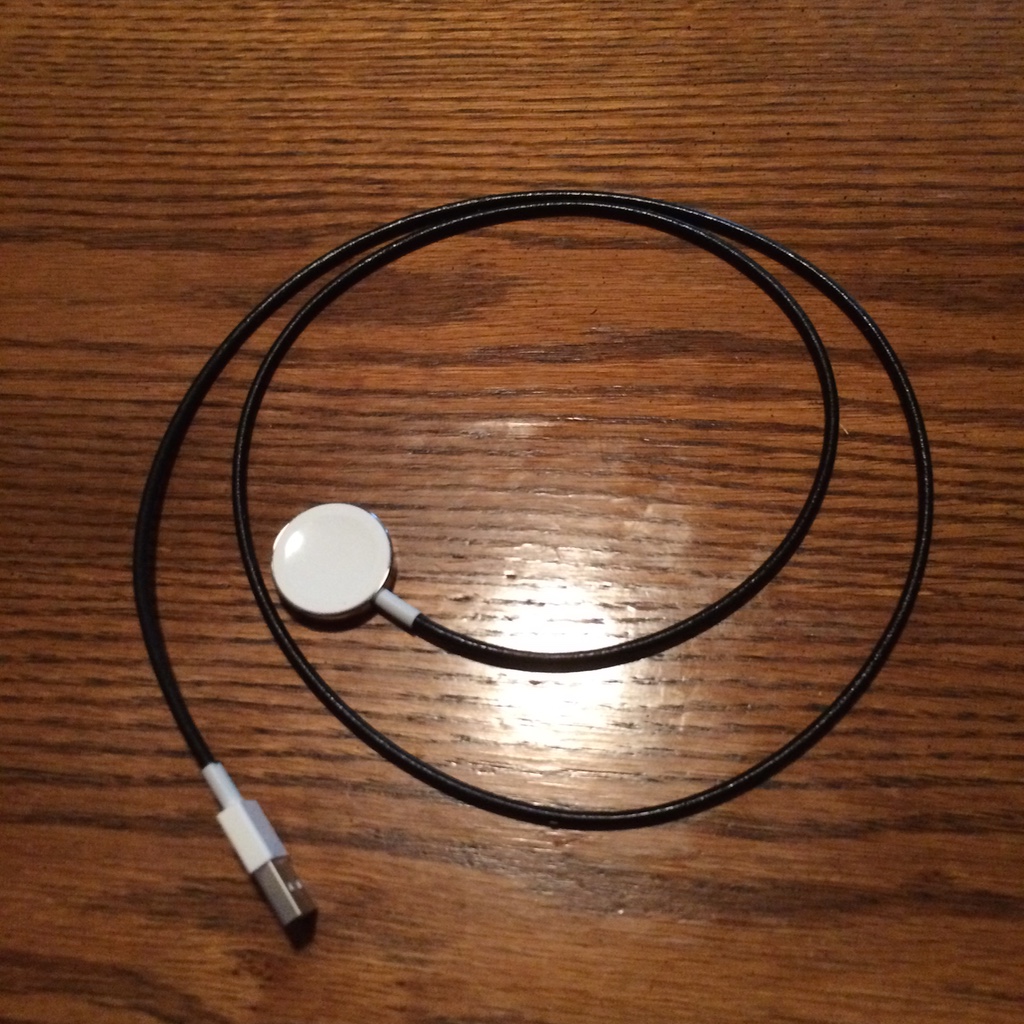

    The Plasti-Dip does an excellent job at making our charging cord black!! :)

    Showing the second coat - doesn't appeared to have darkened at all. :(

    Looks like I'll need to do some more painting - this certainly isn't dark enough!

    Notes on the Plati-Dip/making your cable black.
    - I left the tabs at the end white as I figure they're prone to a lot of contact (in the case of the puck end, it's going to be hidden by the rubber Spigen top anyways)
    - Doing a good job on taping is, as always when you're painting, key to having a good clean result
    - Have a paring knife handy to protect the rubber on the cable as you're removing the tape
    - You need to lay the coating on thick - really soak it to get a really good shiny look
    - If the final product isn't shiny enough for your liking, give it a coat of armour all (also gives it more of a plastic feel)
    - The cables have a natural curve / way they want to lay - by using that, you can spray one side, let it dry (10 minutes or so), then flip over and paint the other side. USE a new surface for painting the other side! The rubber will stick to the oversprayed portion from the first side!
    - After doing both sides, I just had a little touching up to do (a couple thin spots)

    Oh...and not sure why Plati-Dip is SO much cheaper in the US...only $5.98 at Home Depot:
    http://www.homedepot.com/p/Plasti-Dip-11-oz-Black-Rubber-Coating-Spray-11203-6/100131010

  4. Glene, May 30, 2015
    Last edited: May 30, 2015

    Glene macrumors 6502

    Joined:
    Sep 13, 2014
    Location:
    Ft Lauderdale
    #4
    Very nice.....I paint a lot of car pieces for the interior and it's easy with thin light coats....if you want to polish the optional clearcoat after you're done, to a black lacquer piano type shine, just do about 200 strokes of meguires 205 finishing polish with a microfiber towel.

    I've got two spiegens, I'll do one in base black Mettallic and clear next month....stay tuned...great idea on the black PD cord.....

  5. NAYo2002 macrumors 6502

    Joined:
    Apr 16, 2011
    #5
    You paid that much for a spigen stand? It was only $19.99 U.S. When I got it a couple of weeks ago?

  6. fischersd, May 30, 2015
    Last edited: May 30, 2015

    fischersd thread starter macrumors 68040

    fischersd

    Joined:
    Oct 23, 2014
    Location:
    Kitchener, Ontario, Canada
    #6
    Thanks for the tip on the clear coat! :) I have some of that - was debating if I'll use it - now I think I might just try your Meguire's trick and see how it comes out. :)

    Edit: The colour of this paint is definitely a "gun metal grey", not black as advertised on the can / can top - the can top is CONSIDERABLY darker / more black. Either I got a dud or they've misrepresented the colour of this paint. After looking at several pics of available black metallic as well as considering Glene's suggestion on creating a piano-like finish, I'm going to cover the current colour with a flat black, then a couple coats of clear-coat to shine it up. If I can find the Meguier's polish, I'll also use it to give it that extra richness. :)

    Stay tuned....

  7. maflynn Moderator

    maflynn

    Staff Member

    Joined:
    May 3, 2009
    Location:
    Boston
    #7
    [MOD NOTE]
    Please stay on topic. Off topic posts were removed.

  8. Joe1602 macrumors regular

    Joined:
    Sep 24, 2012
    #8
    Impressive! Unfortunately I have neither the time nor tools nor expertise for a project like that.

  9. fischersd thread starter macrumors 68040

    fischersd

    Joined:
    Oct 23, 2014
    Location:
    Kitchener, Ontario, Canada
    #9
    Time, ok. Tools or expertise? You'd be surprised. Don't sell yourself short!! :) The greatest tool in doing this sort of thing is patience. :)

  10. Xcellere macrumors member

    Joined:
    Apr 30, 2015
  11. fischersd thread starter macrumors 68040

    fischersd

    Joined:
    Oct 23, 2014
    Location:
    Kitchener, Ontario, Canada
    #11

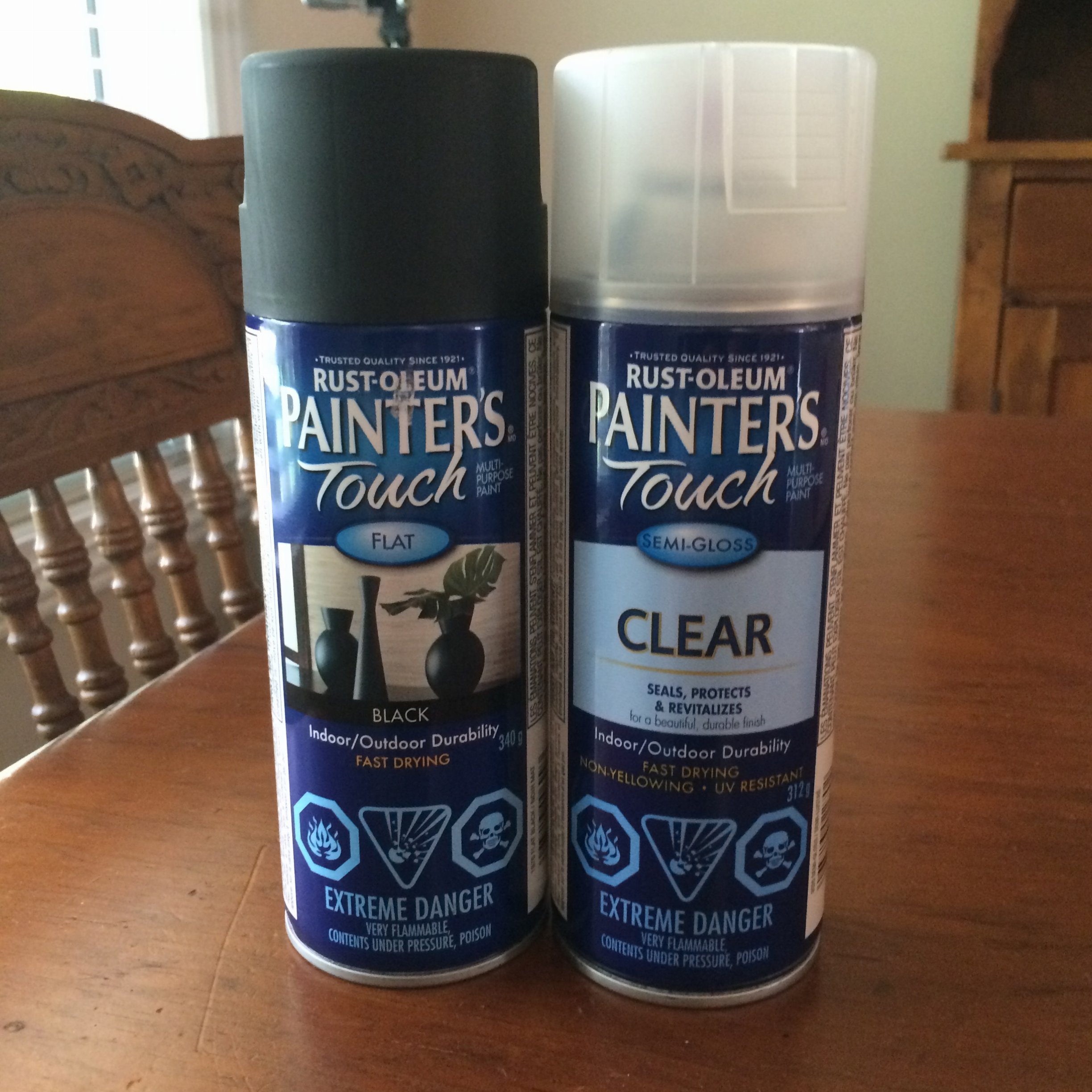

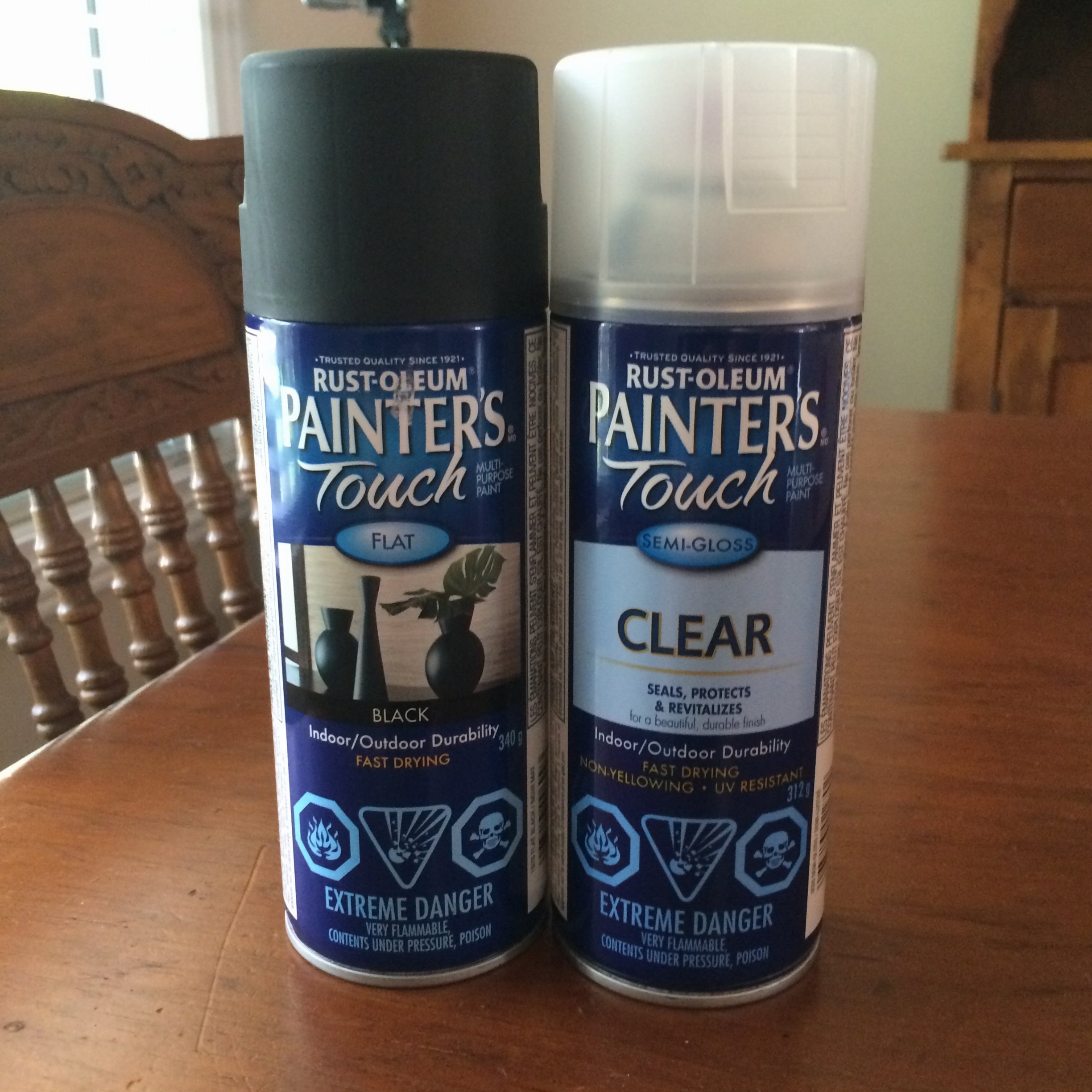

    Had these handy (didn't use them for a prior project)

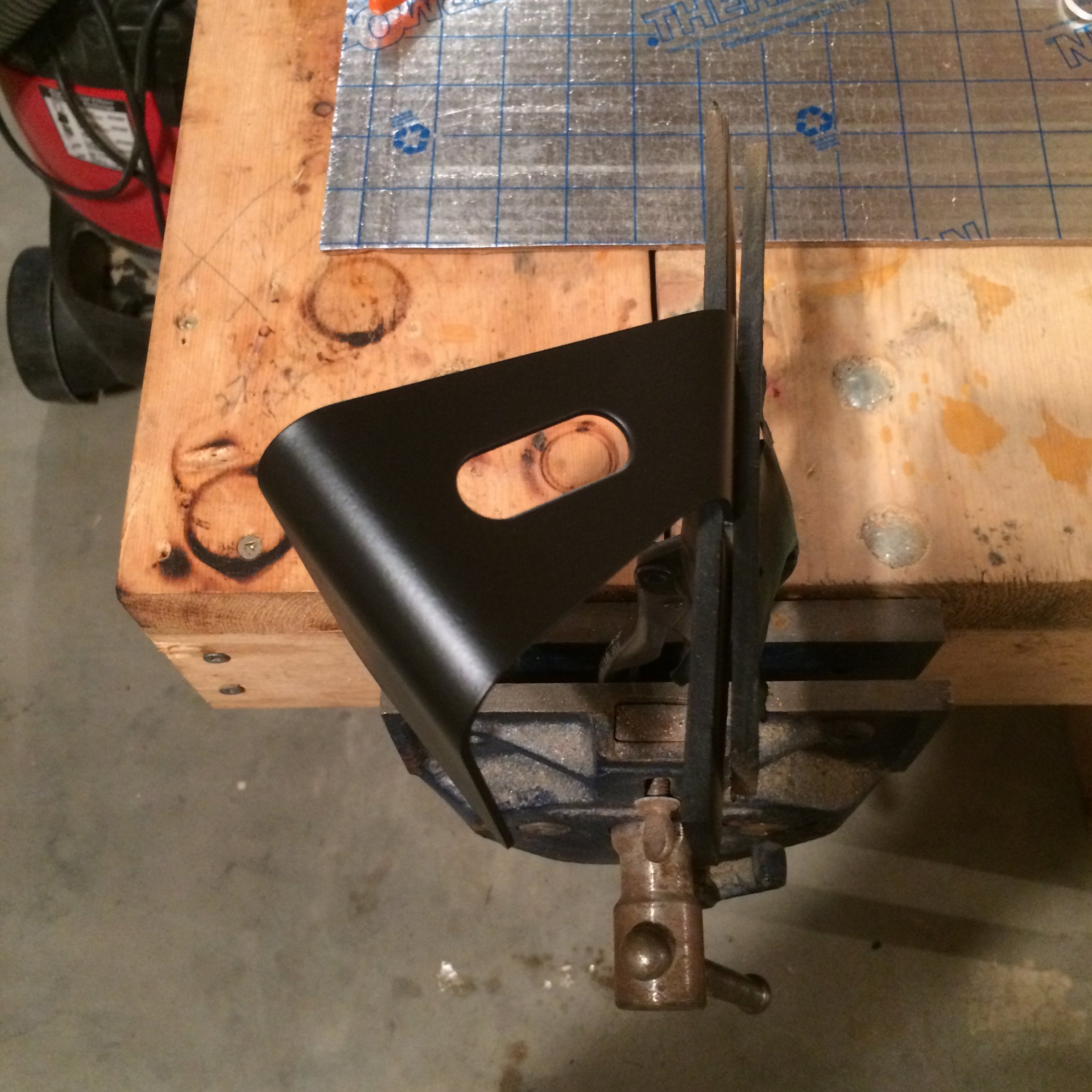

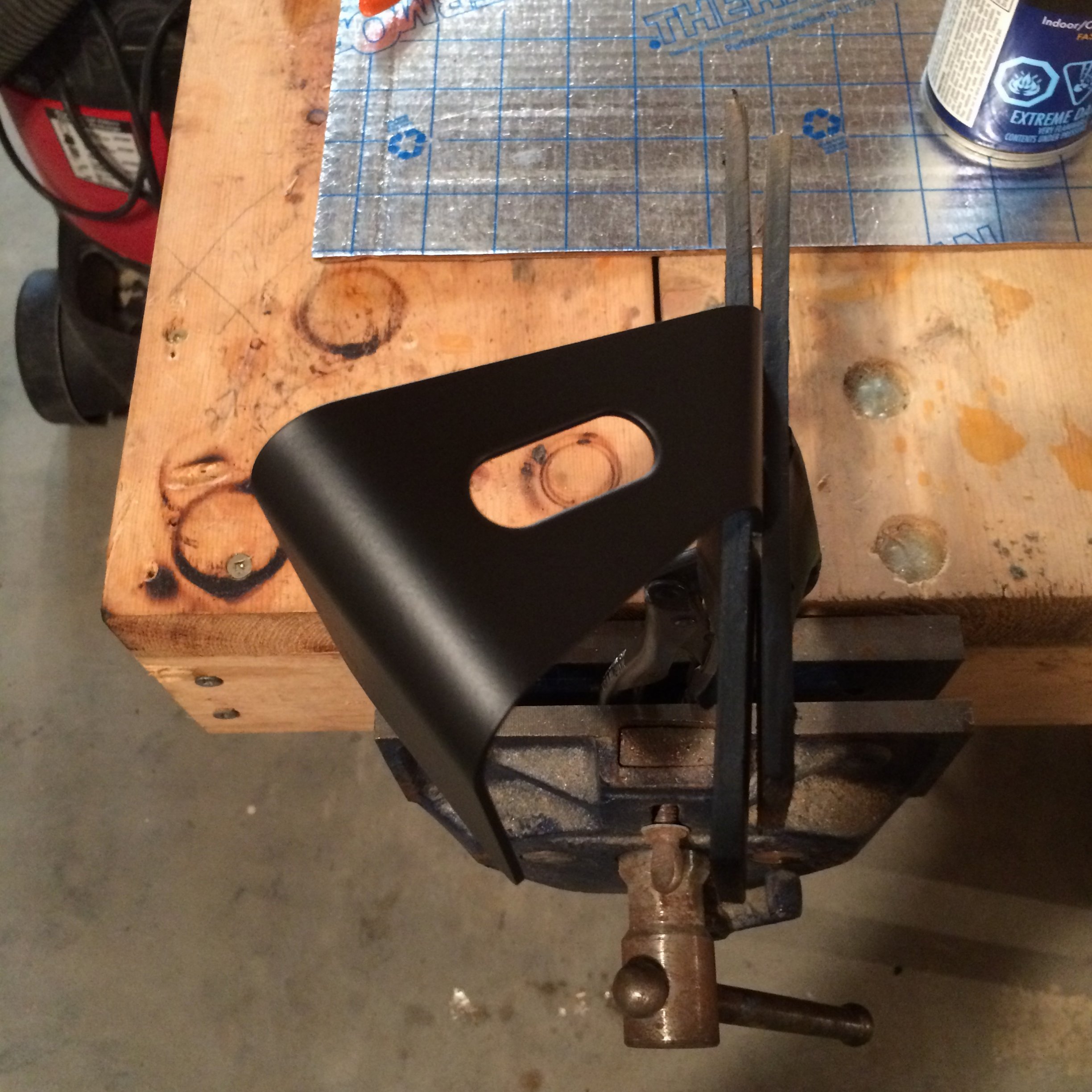

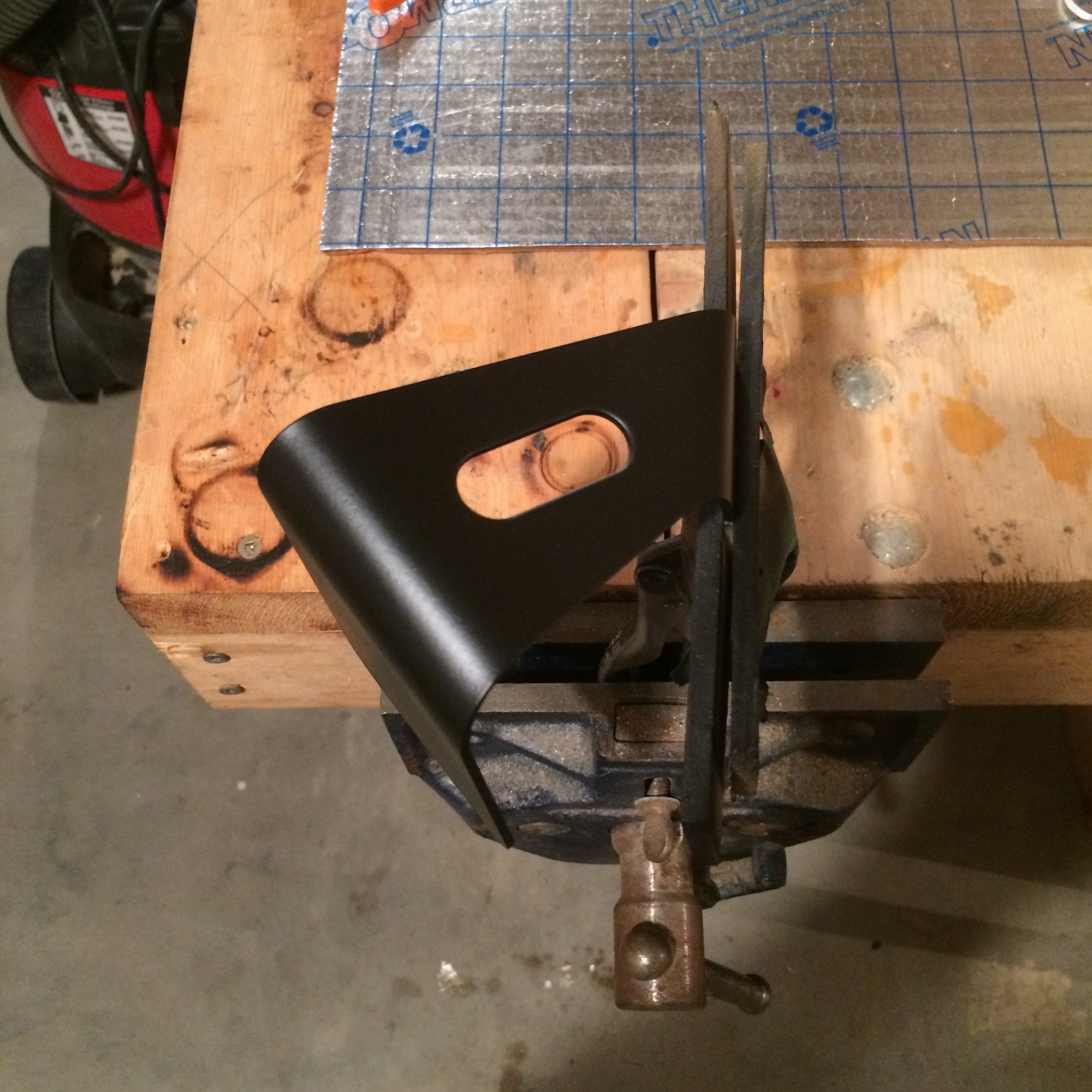

    First coat of black:

    I'll be adding another coat of black to make sure the colour's perfect, then a coat or two of clear.

    May be another day or two (I do my painting outside - rain delays) :(

  12. mikegoldnj macrumors regular

    Joined:
    Apr 27, 2005
  13. fischersd, Jun 2, 2015
    Last edited: Jun 2, 2015

    fischersd thread starter macrumors 68040

    fischersd

    Joined:
    Oct 23, 2014
    Location:
    Kitchener, Ontario, Canada
    #13

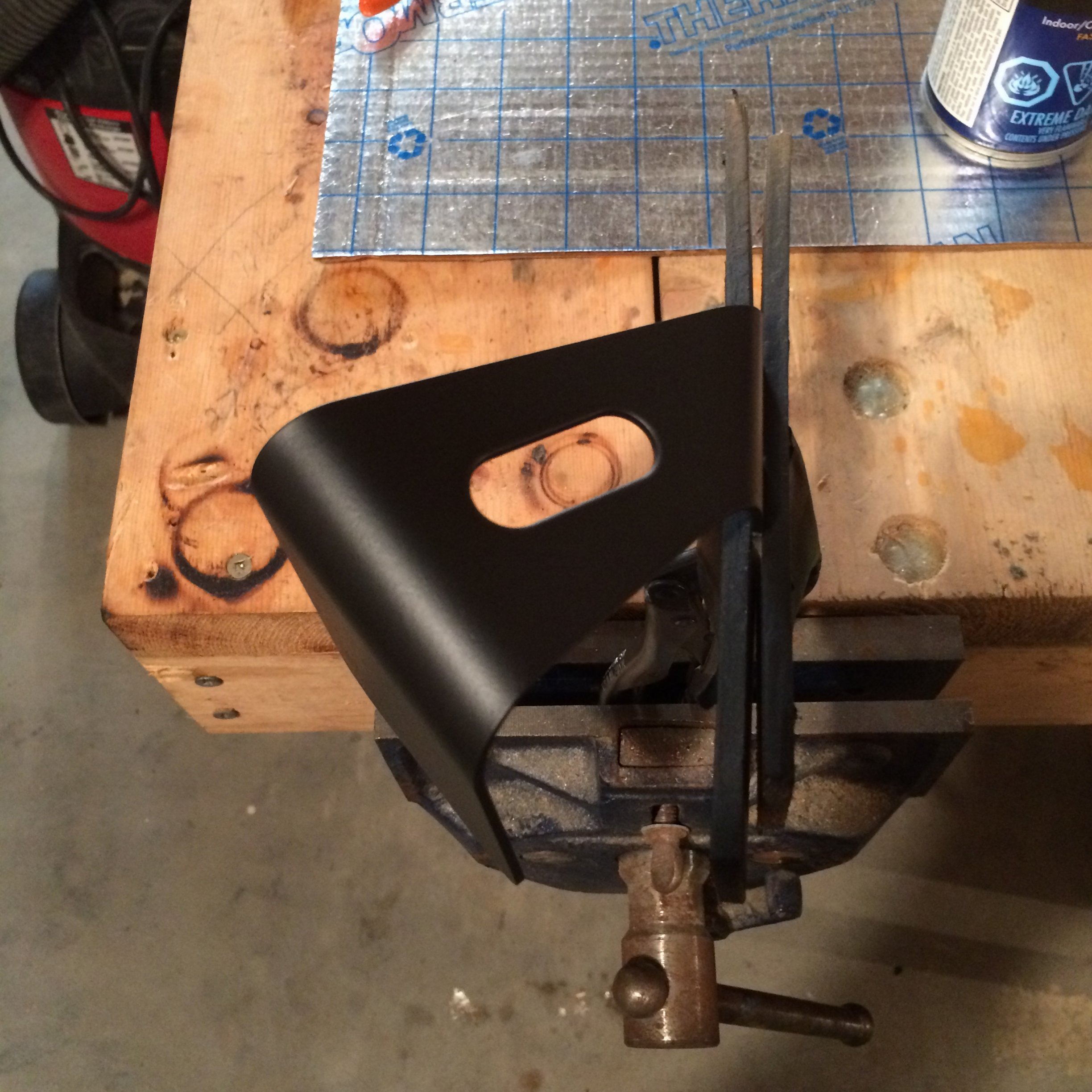

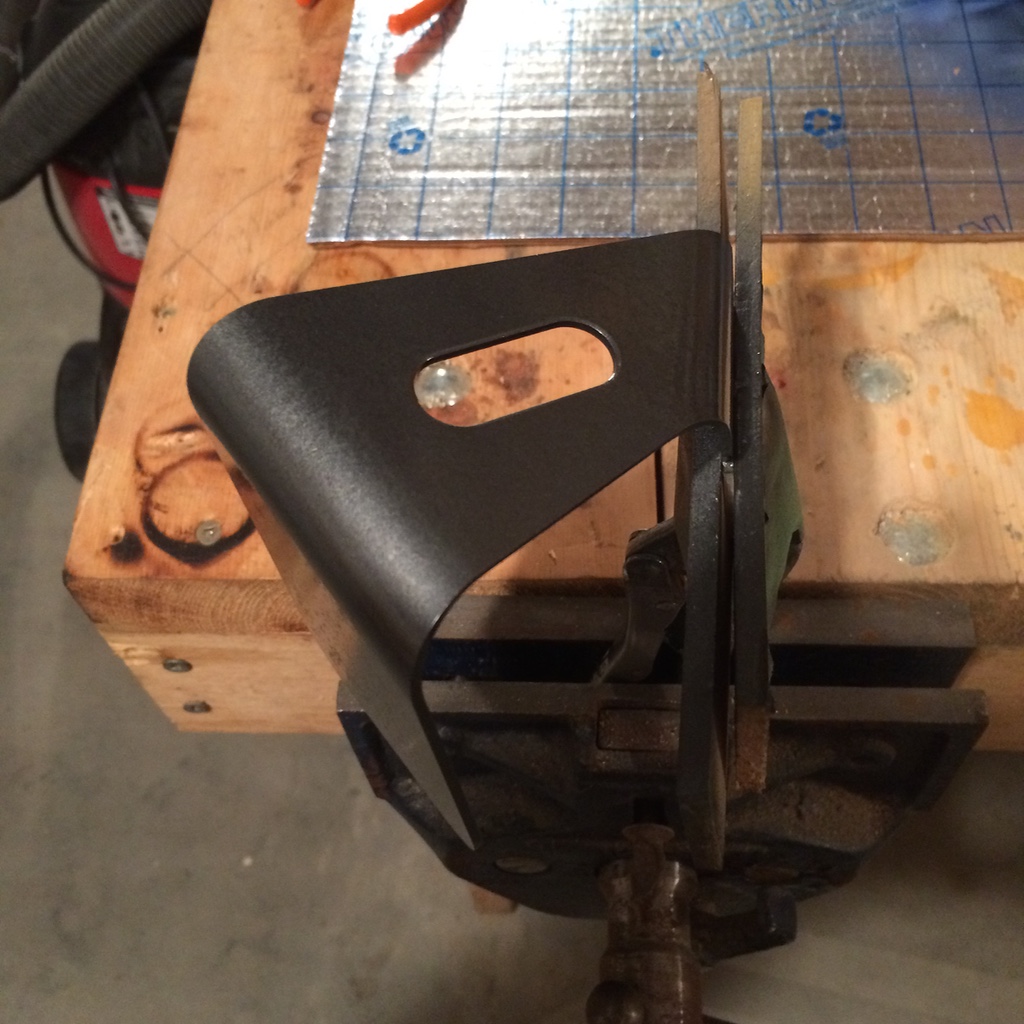

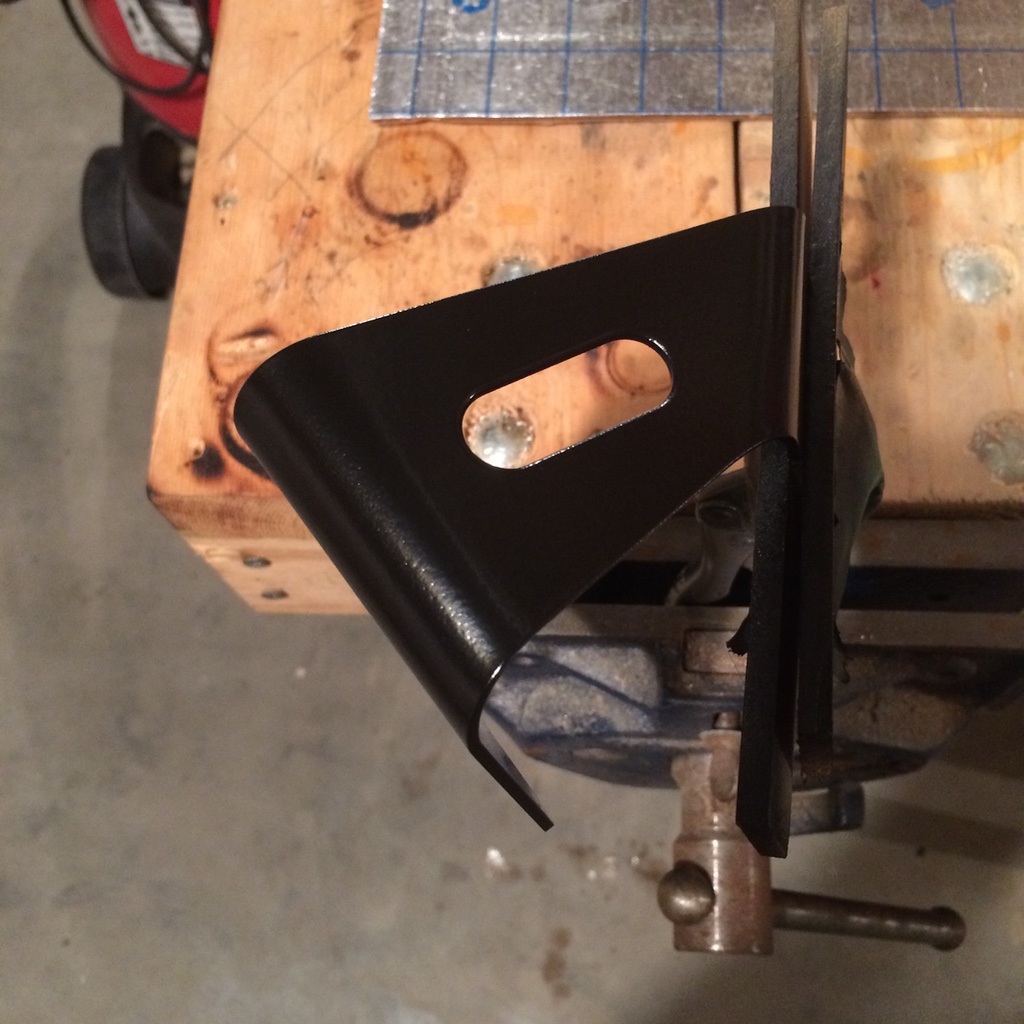

    Second coat of black:

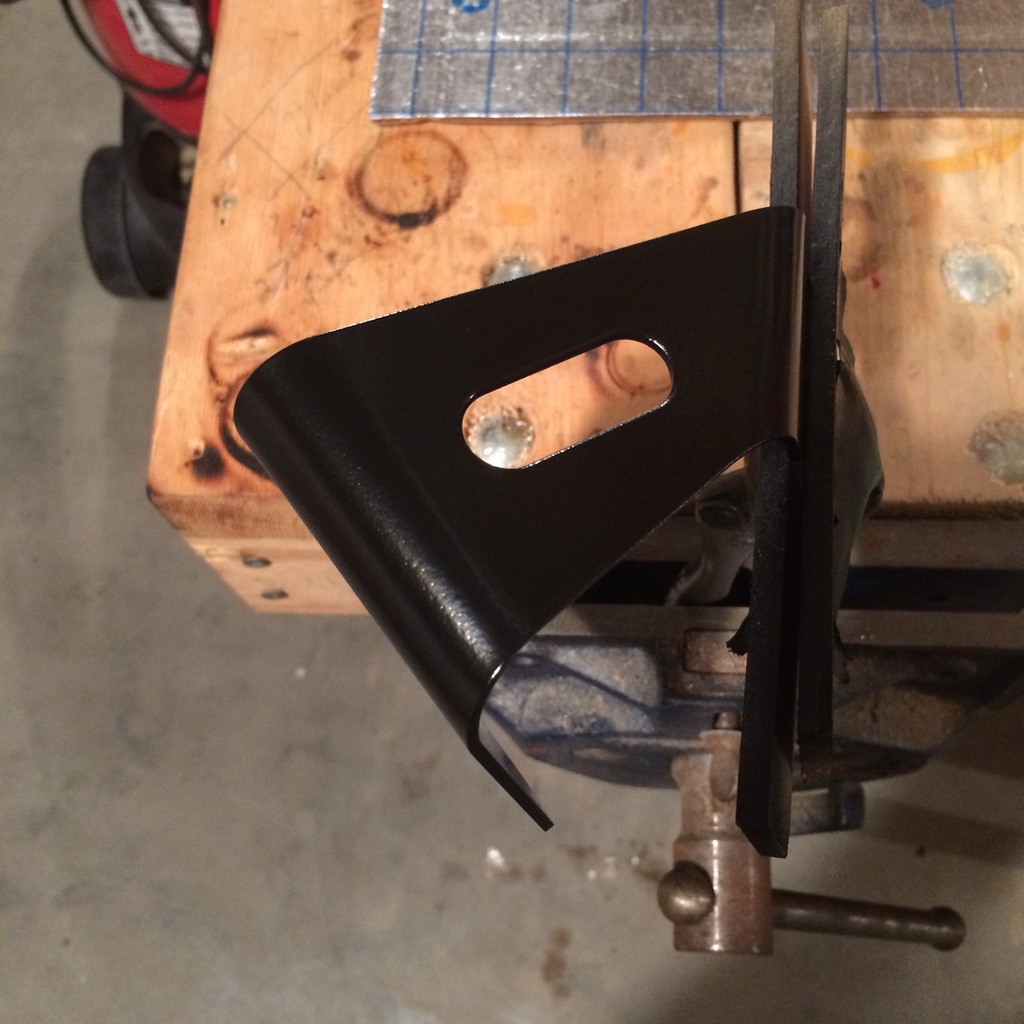

    3 coats of clear:
    Once this last coat of clear has cured, I'll debate whether I use an automotive polisher/cutter to give it more sheen or not. I like the Meguiar's suggestion I got from Glene, but at $45 a bottle, that's a little pricey when I don't have another project in mind to use it for. :)

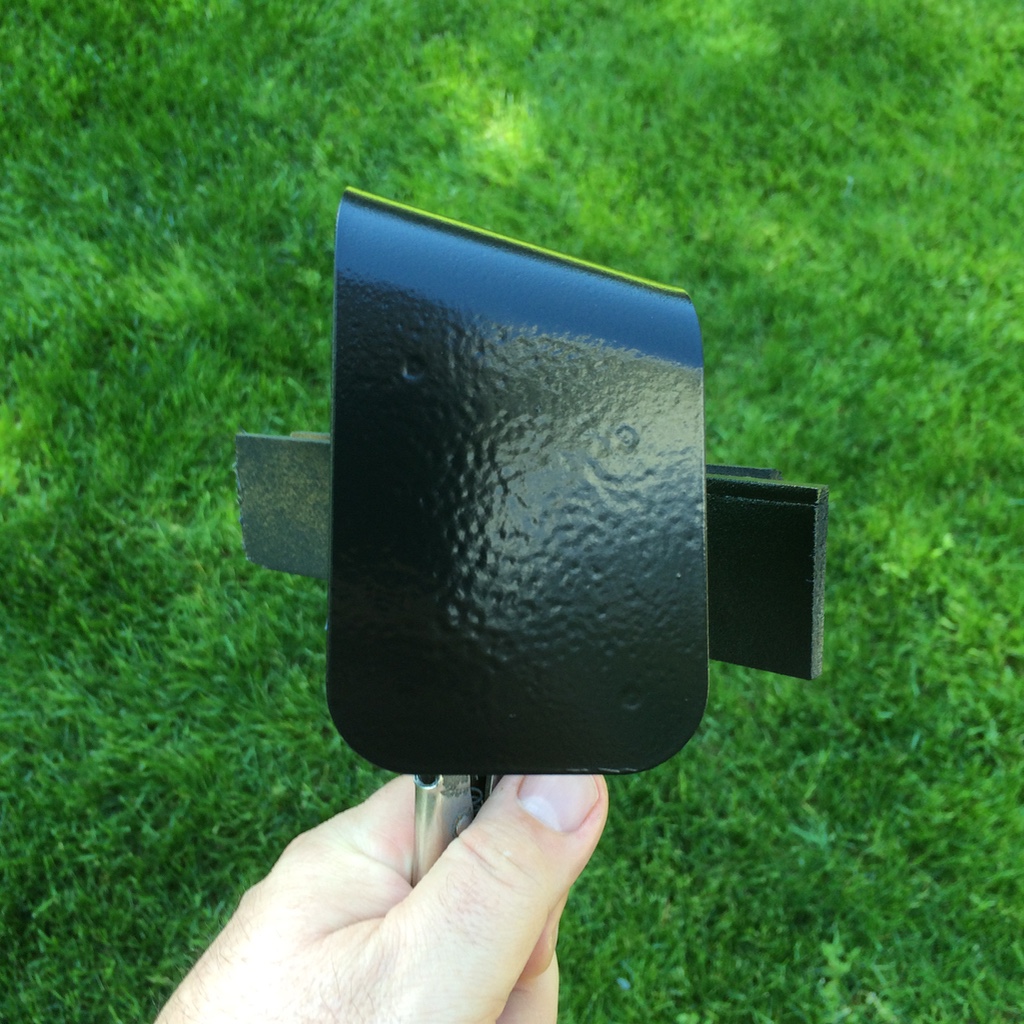

    Oh, and I decided to grab another outside shot, so you can see how much blacker it is than the "hammered black" I tried first. As you can see, it still keeps that "hammered" texturing in some spots. I think it gives it a little character....if I decide to change it, I'll have to sand this all out. :eek:


    Stay tuned!! Next should be assembly with our nice black charging cable! :)

  14. Glene macrumors 6502

    Joined:
    Sep 13, 2014
    Location:
    Ft Lauderdale
    #14
  15. fischersd, Jun 2, 2015
    Last edited: Jun 2, 2015

    fischersd thread starter macrumors 68040

    fischersd

    Joined:
    Oct 23, 2014
    Location:
    Kitchener, Ontario, Canada
    #15
    You mean $ or coats of clear before I use it? :)
    Up here they've rebranded it as Meguiar's M105 (they assured me it's the same thing). Same size bottle as the US, but it's $45 up here. (lots of things that aren't a straight exchange rate, unfortunately).

    Edit: I was approximating. We pay $41US for it up here ($51 Canadian).
    Here's the current link (Canadian distributor for Meguiar's): http://www.garage16.ca/ProductDetails.asp?ProductCode=M10532

  16. Glene, Jun 2, 2015
    Last edited: Jun 2, 2015

    Glene macrumors 6502

    Joined:
    Sep 13, 2014
    Location:
    Ft Lauderdale
    #16
    105 IS NOT the same thing and far more abrasive, stay away from that person that told you that he's an idiot.

    Meg's 205 ultra finishing polish is $10 USD on Amazon.

    But this stuff is not magical, find a local auto parts store and pick up any finishing polish, that will work.

  17. BeyondtheTech macrumors 68020

    BeyondtheTech

    Joined:
    Jun 20, 2007
    #17
    Very cool work! Out of curiosity, couldn't you have used the Plasti-Dip on the stand itself? I also want to try that on all my cables!

  18. fischersd, Jun 3, 2015
    Last edited: Jun 19, 2015

    fischersd thread starter macrumors 68040

    fischersd

    Joined:
    Oct 23, 2014
    Location:
    Kitchener, Ontario, Canada
    #18
    Heh...it was Brandon, at Meguiar's support that told me that the 105 is the same. :)
    Thanks Glene! After watching a few youtube videos, I might get brave and buy some 205 to spruce up the finish on my car! :)

    @BeyondtheTech Yes, you could potentially cover the stand in the Plasti-Dip. If you did, I'd give it a good coat of Armour-All (otherwise, it may be a little difficult to keep clean). I did that with the cable as well, just to give it less of a rubber and more of a plastic feel. It won't have the appearance of a painted finish though. If you didn't prime it, it may also flake and peel off. Paint is more durable and produces better results for hard surfaces.

    I may still end up putting Plasti-Dip on the top of the base if I find my link bracelet rubs against it when I get it (another member mentioned that). Even though mine will have the DLC coating, repeated wear will eventually damage the finish.

    I'll likely polish the stand today. Need to make sure the clear coat is fully cured first.

  19. fischersd thread starter macrumors 68040

    fischersd

    Joined:
    Oct 23, 2014
    Location:
    Kitchener, Ontario, Canada
    #19
    It's still giving off paint fumes, so I'm going to let it cure another day before polishing it up.

    I'm planning on "tacking" the cord to the back, left, inside edge of the stand with gorilla glue to make it stealthy - the design of the stand should hide that for the most part.

    Here's some "eye candy" until I come back with it polished (and possibly assembled) :)

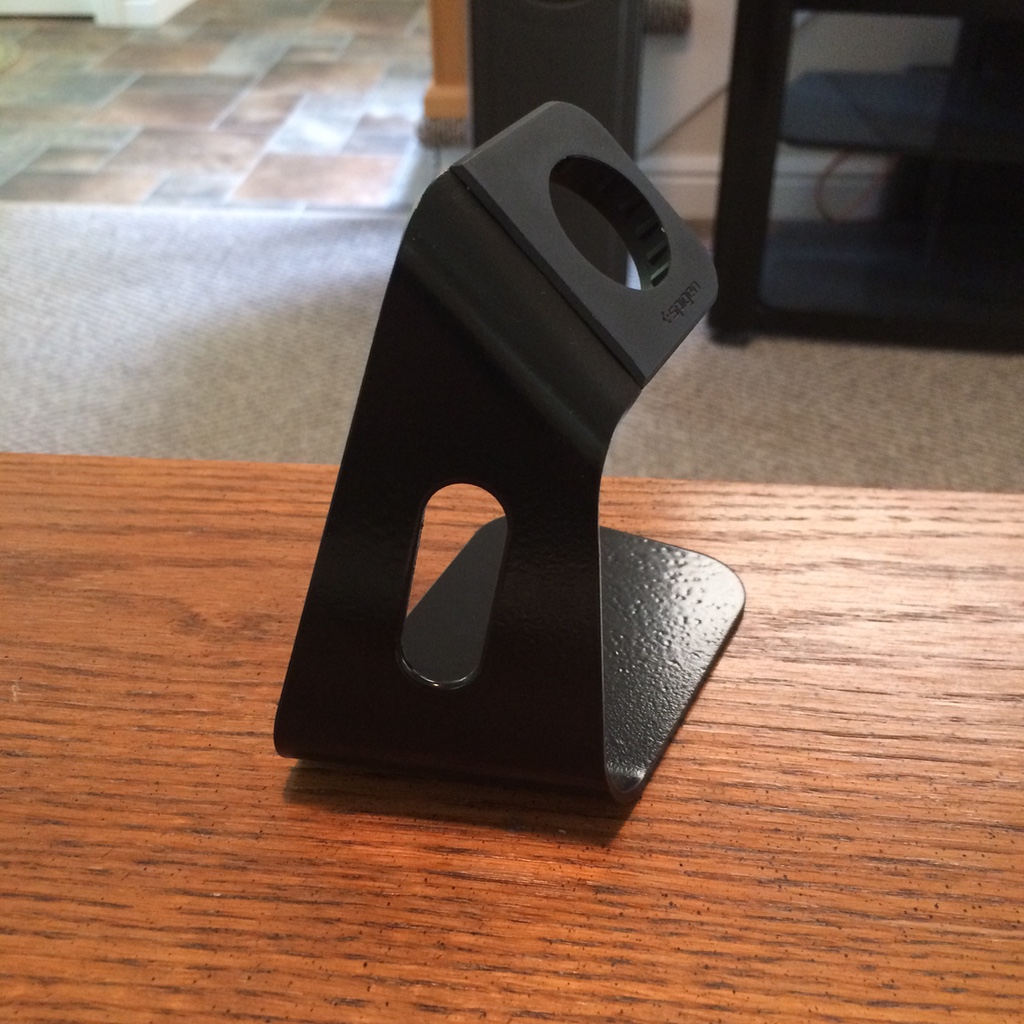

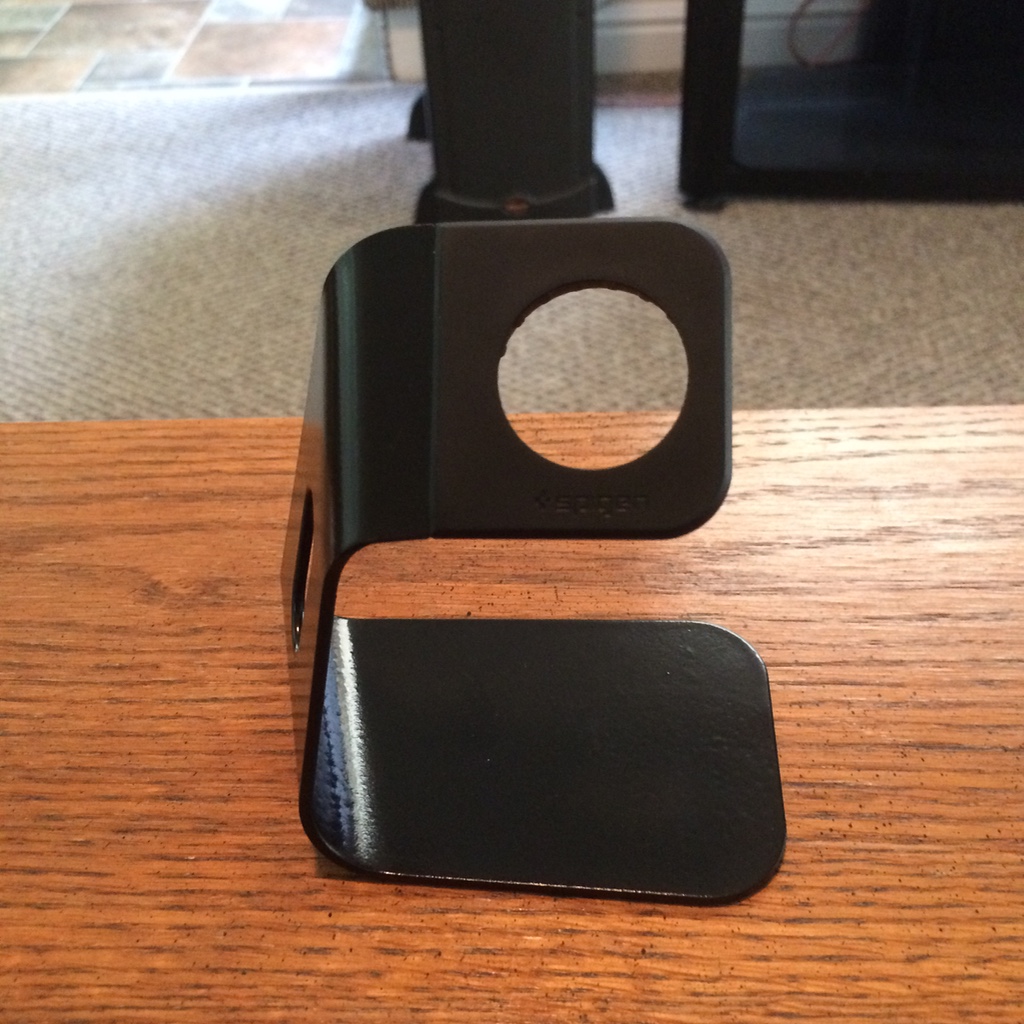

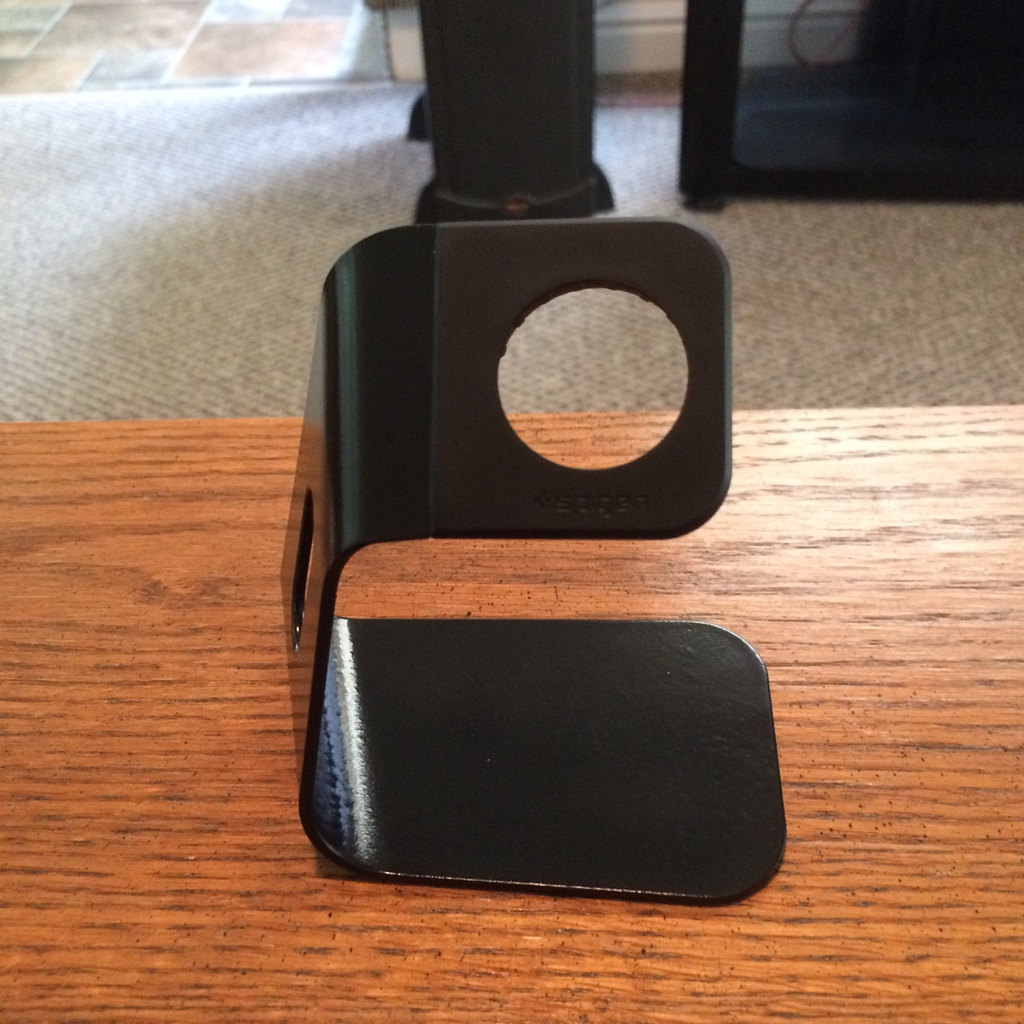

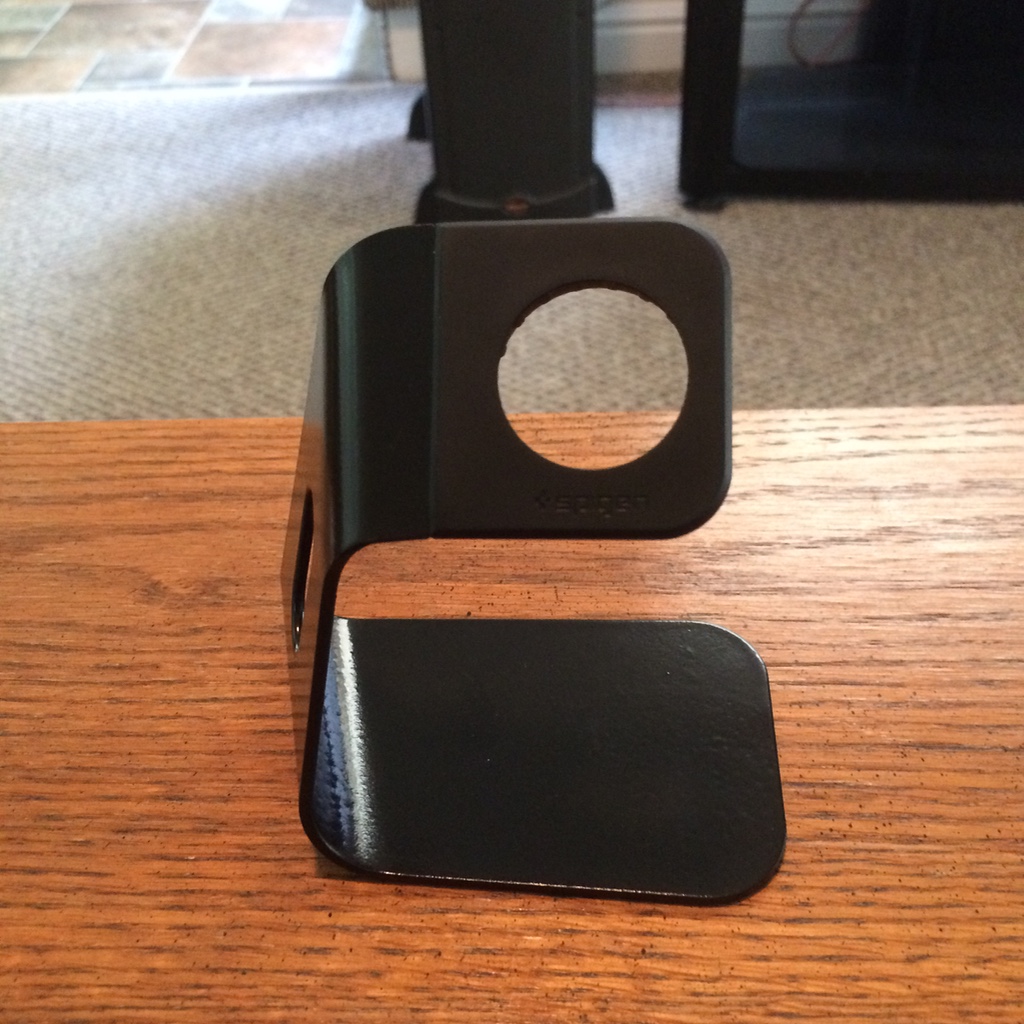

    Front:

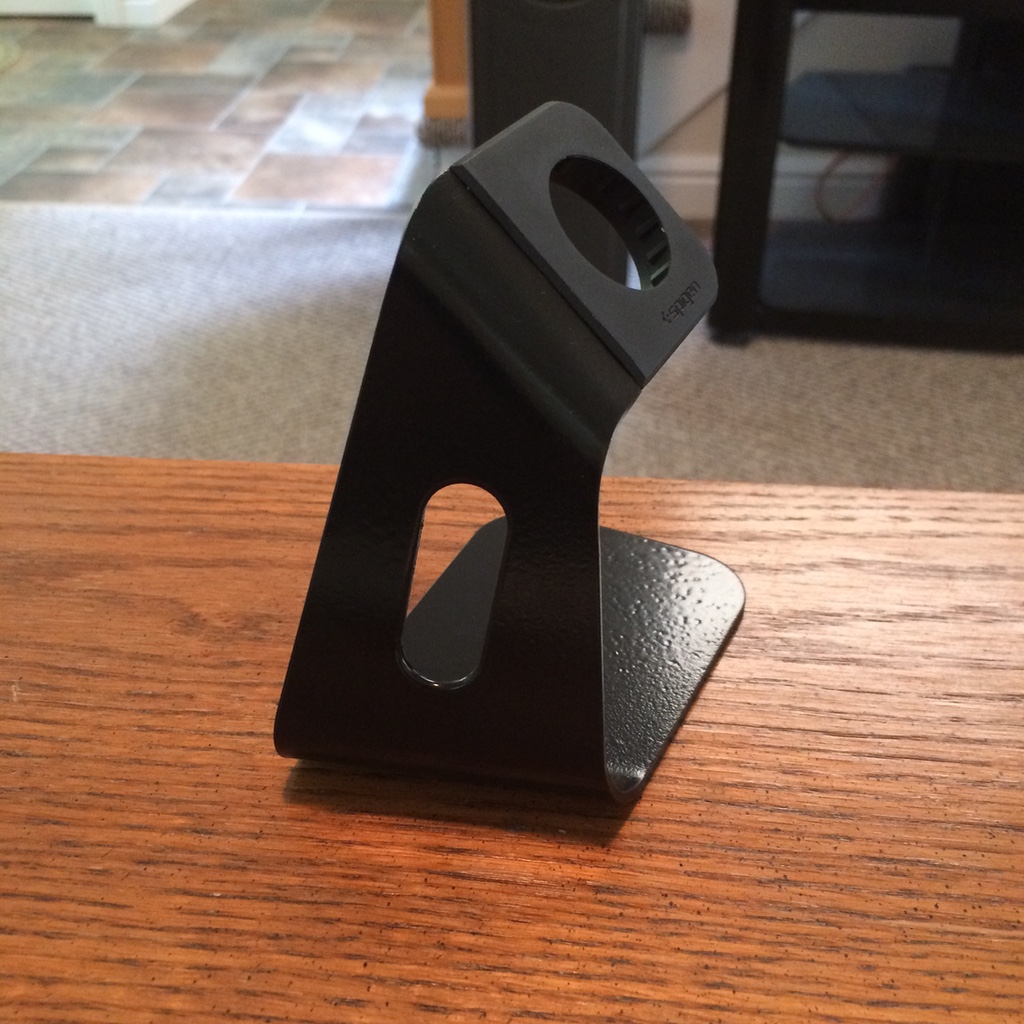

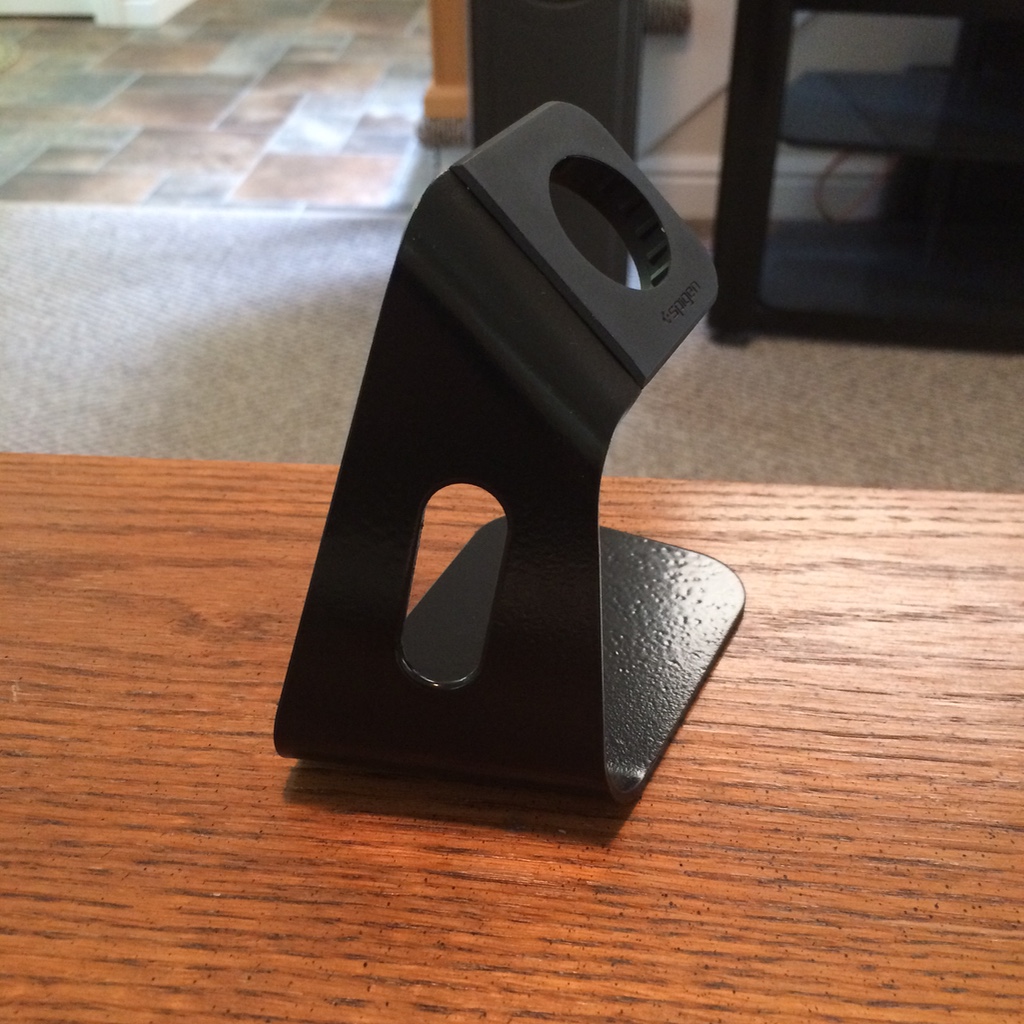

    Side:

  20. IllusionEntity macrumors 6502

    IllusionEntity

    Joined:
    Jun 23, 2013
    Location:
    Kent, UK
    #20
    No offence. But that isn't a very good spray job. It's not very flat. Looks like you've tried to apply too much all at once.

  21. boshii macrumors 68040

    boshii

    Joined:
    Jul 6, 2008
    Location:
    Atlanta, GA
    #21
    He said he had to polish it.

  22. fischersd thread starter macrumors 68040

    fischersd

    Joined:
    Oct 23, 2014
    Location:
    Kitchener, Ontario, Canada
    #22
    Heh. If you actually read the thread, you'll see that I started with a "hammered black". That leaves a texturing to the finish. I put a darker black over it. I could have sanded the texture out first, but I think (as I said earlier), it adds character.

  23. IllusionEntity macrumors 6502

    IllusionEntity

    Joined:
    Jun 23, 2013
    Location:
    Kent, UK
    #23
    Not the way I spray but ok. Doesn't add character. Looks shocking.

  24. fischersd thread starter macrumors 68040

    fischersd

    Joined:
    Oct 23, 2014
    Location:
    Kitchener, Ontario, Canada
    #24
    Well, I was on the fence about it. Just talked with Glene about it (who paints all the time) - the problem with a textured surface like that is that your polishing won't work (you'll get build-up of residue in the crannies, thin spots in your clear coat on the highs. So, I'm going to have to do what I thought in the first place and take it back down to the aluminum.
    Heh. On my way out to grab some airplane paint remover. :) Thanks Glene!

  25. IllusionEntity macrumors 6502

    IllusionEntity

    Joined:
    Jun 23, 2013
    Location:
    Kent, UK
    #25
    I would have sanded the stand before spraying. Better for the overall finish.
