I hope you can help me here please.
2.8 GHz Quad-Core Intel Xeon,16 GB 1066 MHz DDR3 ECC,ATI Radeon HD 5770 1024 MB and Mac OS X Lion 10.7.5 It getting so often now that screen going gray and it says that i need to restart the computer and i have checked the problem it say that its Panic attack.My questions is what couse this panic attack or what i should do to stop this.Thank you very much for your help.


muzzy63

macrumors newbie
Original poster
Jun 22, 2016
14
1
https://support.apple.com/en-us/HT201753

http://support.apple.com/kb/TS3742

Here is some information from Apple that may help you.

Look in this folder for a crash report from the date and time of the last crash and post the contents of that log here so we can take a look.

Code:
/Library/Logs/DiagnosticReports
Thank you Weaselboy, Sorry I'm not tech person at all but i have screen shoot here from report file as its massive and i have only part of it and i hope this will explain.Thanks again


Attachments

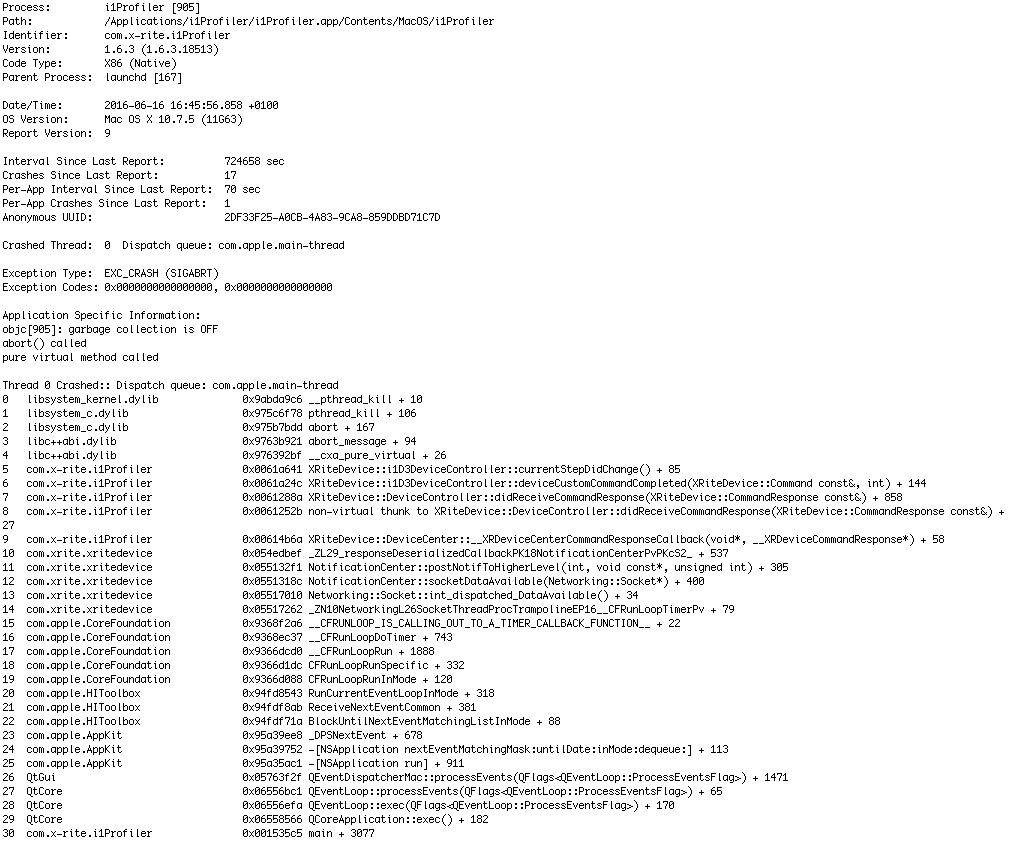

  • Screen Shot 2016-06-23 at 16.14.26.png
    Screen Shot 2016-06-23 at 16.14.26.png
    65.4 KB · Views: 190
Comment

Weaselboy

Moderator
Staff member
Jan 23, 2005
31,569
11,242
California
That is not a kernel panic crash report, that is a crash report for the app iProfiler. You need to find the kernel panic crash report.

You can click here on the forums and post the whole report inside code tags.

Screen Shot 2016-06-23 at 8.21.20 AM.png

Comment

muzzy63

macrumors newbie
Original poster
Jun 22, 2016
14
1
Ok i find it now but how should copy the code as its not copying or how do you insert the code in post as whole.

Comment

Weaselboy

Moderator
Staff member
Jan 23, 2005
31,569
11,242
California
Ok i find it now but how should copy the code as its not copying or how do you insert the code in post as whole.
Open the crash report then click in it and hit command-a to select all, then command-c to copy.

Then on the forum click that code button I showed you and you will get this box where you can command-v paste the text.

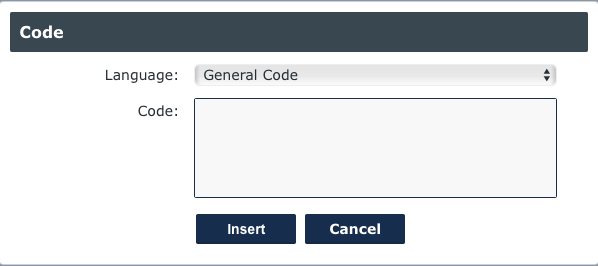

Screen Shot 2016-06-23 at 8.44.35 AM.png

Comment

muzzy63

macrumors newbie
Original poster
Jun 22, 2016
14
1
Code:
Interval Since Last Panic Report:  91674 sec
Panics Since Last Report:          1
Anonymous UUID:                    2DF33F25-A0CB-4A83-9CA8-859DDBD71C7D

Wed May 18 13:59:01 2016
Machine-check capabilities (cpu 0) 0x0000000000001c09:
family: 6 model: 26 stepping: 5 microcode: 17
Intel(R) Xeon(R) CPU           W3530  @ 2.80GHz
9 error-reporting banks
threshold-based error status present
extended corrected memory error handling present
Machine-check status 0x0000000000000004:
machine-check in progress
MCA error-reporting registers:
IA32_MC0_STATUS(0x401): 0x0000000000000800 invalid
IA32_MC1_STATUS(0x405): 0x0000000000000800 invalid
IA32_MC2_STATUS(0x409): 0x0000000000000000 invalid
IA32_MC3_STATUS(0x40d): 0x0000000000000000 invalid
IA32_MC4_STATUS(0x411): 0x0000000000000000 invalid
IA32_MC5_STATUS(0x415): 0x0000000000000000 invalid
IA32_MC6_STATUS(0x419): 0x0000000000000000 invalid
IA32_MC7_STATUS(0x41d): 0x0000000000000000 invalid
Package 0 logged:
IA32_MC8_STATUS(0x421): 0xfe0000c00001009f valid
  Channel number:         15 (unknown)
  Memory Operation:       read
  Machine-specific error: Read ECC
  COR_ERR_CNT:            3
  Status bits:
   Processor context corrupt
   ADDR register valid
   MISC register valid
   Error enabled
   Uncorrected error
   Error overflow
IA32_MC8_ADDR(0x422): 0x000000023ea13000
IA32_MC8_MISC(0x423): 0xff7c28a000001080
  RTID:     128
  DIMM:     0
  Channel:  0
  Syndrome: 0xff7c28a0
panic(cpu 0 caller 0xffffff80002c4dd5): "Machine Check at 0xffffff80002af81b, registers:\n" "CR0: 0x0000000080010033, CR2: 0x00000001e6580000, CR3: 0x00000001270a9000, CR4: 0x0000000000000660\n" "RAX: 0x0000000000000000, RBX: 0xffffff800c8b85d8, RCX: 0x0000000000000190, RDX: 0x0000000000002000\n" "RSP: 0xffffff81d0f4bd78, RBP: 0xffffff81d0f4bdc0, RSI: 0x0000000000001000, RDI: 0xfffffe823ea13380\n" "R8:  0x0000000000000001, R9:  0xffffff81d0f4bef8, R10: 0x00000001e667f000, R11: 0x0000000000000000\n" "R12: 0xffffff800c8b85d8, R13: 0x0000000000000000, R14: 0xffffff802360d000, R15: 0x0000000000002000\n" "RFL: 0x0000000000010206, RIP: 0xffffff80002af81b, CS:  0x0000000000000008, SS:  0x0000000000000000\n" "Error code: 0x0000000000000000\n"@/SourceCache/xnu/xnu-1699.32.7/osfmk/i386/trap_native.c:278
Backtrace (CPU 0), Frame : Return Address
0xffffff800081bd20 : 0xffffff8000220792
0xffffff800081bda0 : 0xffffff80002c4dd5
0xffffff800081bf00 : 0xffffff80002daf2f
0xffffff81d0f4bdc0 : 0xffffff800026d446
0xffffff81d0f4bf40 : 0xffffff80002c3fbb
0xffffff81d0f4bfb0 : 0xffffff80002da481

BSD process name corresponding to current thread: WebProcess

Mac OS version:
11G63

Kernel version:
Darwin Kernel Version 11.4.2: Thu Aug 23 16:25:48 PDT 2012; root:xnu-1699.32.7~1/RELEASE_X86_64
Kernel UUID: FF3BB088-60A4-349C-92EA-CA649C698CE5
System model name: MacPro5,1 (Mac-F221BEC8)

System uptime in nanoseconds: 10436129645607
last loaded kext at 8786888097: com.aladdin.kext.aksfridge    1.0.2 (addr 0xffffff7f810ee000, size 180224)
last unloaded kext at 139785420101: com.apple.driver.AppleIntel8254XEthernet    2.1.3b1 (addr 0xffffff7f80c92000, size 110592)
loaded kexts:
com.aladdin.kext.aksfridge    1.0.2
com.apple.driver.AppleHWSensor    1.9.5d0
com.apple.filesystems.autofs    3.0
com.apple.driver.AppleBluetoothMultitouch    70.12
com.apple.driver.AudioAUUC    1.59
com.apple.driver.AppleMikeyHIDDriver    122
com.apple.driver.AppleUpstreamUserClient    3.5.9
com.apple.driver.AppleMCCSControl    1.0.33
com.apple.iokit.IOUserEthernet    1.0.0d1
com.apple.kext.ATIFramebuffer    7.3.2
com.apple.iokit.IOBluetoothSerialManager    4.0.8f17
com.apple.Dont_Steal_Mac_OS_X    7.0.0
com.apple.driver.AudioIPCDriver    1.2.3
com.apple.driver.AppleMikeyDriver    2.2.5a5
com.apple.driver.AppleHDA    2.2.5a5
com.apple.driver.AppleTyMCEDriver    1.0.2d2
com.apple.ATIRadeonX3000    7.3.2
com.apple.driver.AGPM    100.12.75
com.apple.driver.ApplePolicyControl    3.1.33
com.apple.driver.ACPI_SMC_PlatformPlugin    5.0.0d8
com.apple.driver.AppleLPC    1.6.0
com.apple.driver.BroadcomUSBBluetoothHCIController    4.0.8f17
com.apple.driver.XsanFilter    404
com.apple.iokit.IOAHCIBlockStorage    2.1.0
com.apple.iokit.SCSITaskUserClient    3.2.1
com.apple.AppleFSCompression.AppleFSCompressionTypeDataless    1.0.0d1
com.apple.AppleFSCompression.AppleFSCompressionTypeZlib    1.0.0d1
com.apple.BootCache    33
com.apple.iokit.IOAHCISerialATAPI    2.0.3
com.apple.driver.AppleFWOHCI    4.9.0
com.apple.driver.AppleUSBHub    5.1.0
com.apple.driver.AirPort.Brcm4331    561.7.22
com.apple.driver.Intel82574L    2.2.0b3
com.apple.driver.AppleAHCIPort    2.3.1
com.apple.driver.AppleUSBEHCI    5.1.0
com.apple.driver.AppleUSBUHCI    5.1.0
com.apple.driver.AppleEFINVRAM    1.6.1
com.apple.driver.AppleRTC    1.5
com.apple.driver.AppleHPET    1.7
com.apple.driver.AppleACPIButtons    1.5
com.apple.driver.AppleSMBIOS    1.9
com.apple.driver.AppleACPIEC    1.5
com.apple.driver.AppleAPIC    1.6
com.apple.driver.AppleIntelCPUPowerManagementClient    195.0.0
com.apple.nke.applicationfirewall    3.2.30
com.apple.security.quarantine    1.4
com.apple.security.TMSafetyNet    8
com.apple.driver.AppleIntelCPUPowerManagement    195.0.0
com.apple.kext.triggers    1.0
com.apple.driver.AppleMultitouchDriver    231.4
com.apple.driver.IOBluetoothHIDDriver    4.0.8f17
com.apple.iokit.IOSurface    80.0.2
com.apple.iokit.IOSerialFamily    10.0.5
com.apple.driver.DspFuncLib    2.2.5a5
com.apple.iokit.IOAudioFamily    1.8.6fc18
com.apple.kext.OSvKernDSPLib    1.3
com.apple.driver.AppleSMBusController    1.0.10d0
com.apple.kext.ATI5000Controller    7.3.2
com.apple.kext.ATISupport    7.3.2
com.apple.iokit.IOFireWireIP    2.2.5
com.apple.driver.AppleHDAController    2.2.5a5
com.apple.iokit.IOHDAFamily    2.2.5a5
com.apple.driver.AppleGraphicsControl    3.1.33
com.apple.iokit.IONDRVSupport    2.3.4
com.apple.iokit.IOGraphicsFamily    2.3.4
com.apple.driver.AppleSMC    3.1.3d10
com.apple.driver.IOPlatformPluginLegacy    5.0.0d8
com.apple.driver.AppleSMBusPCI    1.0.10d0
com.apple.driver.IOPlatformPluginFamily    5.1.1d6
com.apple.driver.AppleUSBBluetoothHCIController    4.0.8f17
com.apple.iokit.IOBluetoothFamily    4.0.8f17
com.apple.driver.AppleUSBHIDMouse    175.9
com.apple.driver.AppleHIDMouse    175.9
com.apple.driver.AppleUSBHIDKeyboard    160.7
com.apple.driver.AppleHIDKeyboard    160.7
com.apple.iokit.IOUSBHIDDriver    5.0.0
com.apple.iokit.IOFireWireSerialBusProtocolTransport    2.1.0
com.apple.driver.AppleUSBMergeNub    5.1.0
com.apple.driver.AppleUSBComposite    5.0.0
com.apple.iokit.IOFireWireSBP2    4.2.0
com.apple.iokit.IOSCSIBlockCommandsDevice    3.2.1
com.apple.iokit.IOSCSIMultimediaCommandsDevice    3.2.1
com.apple.iokit.IOBDStorageFamily    1.7
com.apple.iokit.IODVDStorageFamily    1.7.1
com.apple.iokit.IOCDStorageFamily    1.7.1
com.apple.iokit.IOSCSIArchitectureModelFamily    3.2.1
com.apple.iokit.IOFireWireFamily    4.4.8
com.apple.iokit.IOUSBUserClient    5.0.0
com.apple.iokit.IO80211Family    420.3
com.apple.iokit.IONetworkingFamily    2.1
com.apple.iokit.IOAHCIFamily    2.0.8
com.apple.iokit.IOUSBFamily    5.1.0
com.apple.driver.AppleEFIRuntime    1.6.1
com.apple.iokit.IOHIDFamily    1.7.1
com.apple.iokit.IOSMBusFamily    1.1
com.apple.security.sandbox    177.11
com.apple.kext.AppleMatch    1.0.0d1
com.apple.driver.DiskImages    331.7
com.apple.iokit.IOStorageFamily    1.7.2
com.apple.driver.AppleKeyStore    28.18
com.apple.driver.AppleACPIPlatform    1.5
com.apple.iokit.IOPCIFamily    2.7
com.apple.iokit.IOACPIFamily    1.4
System Profile:
Model: MacPro5,1, BootROM MP51.007F.B03, 4 processors, Quad-Core Intel Xeon, 2.8 GHz, 16 GB, SMC 1.39f11
Graphics: ATI Radeon HD 5770, ATI Radeon HD 5770, PCIe, 1024 MB
Memory Module: DIMM 1, 8 GB, DDR3 ECC, 1066 MHz, 0x014F, 0x545331474B52373256334E20202020202020
Memory Module: DIMM 3, 8 GB, DDR3 ECC, 1066 MHz, 0x014F, 0x545331474B52373256334E20202020202020
AirPort: spairport_wireless_card_type_airport_extreme (0x14E4, 0x8E), Broadcom BCM43xx 1.0 (5.106.198.19.22)
Bluetooth: Version 4.0.8f17, 2 service, 18 devices, 1 incoming serial ports
Network Service: Wi-Fi, AirPort, en2
PCI Card: ATI Radeon HD 5770, sppci_displaycontroller, Slot-1
Serial ATA Device: HL-DT-ST DVD-RW GH61N
Serial ATA Device: Samsung SSD 850 EVO 500GB, 500.11 GB
Serial ATA Device: WDC WD20EARX-00PASB0, 2 TB
Serial ATA Device: ST3000DM001-1CH166, 3 TB
Serial ATA Device: ST31000528AS, 1 TB
USB Device: Keyboard Hub, apple_vendor_id, 0x1006, 0xfa200000 / 2
USB Device: Apple Optical USB Mouse, apple_vendor_id, 0x0304, 0xfa230000 / 4
USB Device: Apple Keyboard, apple_vendor_id, 0x0250, 0xfa220000 / 3
USB Device: iPhone, apple_vendor_id, 0x12a8, 0xfd500000 / 3
USB Device: G-DRIVE mobile USB, 0x4971, 0x8014, 0xfd300000 / 2
USB Device: BRCM2046 Hub, 0x0a5c  (Broadcom Corp.), 0x4500, 0x5a100000 / 2
USB Device: Bluetooth USB Host Controller, apple_vendor_id, 0x8215, 0x5a110000 / 5
FireWire Device: built-in_hub, 800mbit_speed
FireWire Device: My Book 1112, WD, 800mbit_speed
[doublepost=1466697791][/doublepost]Is this ok as its not selecting other files for some reason.Im really sorry but I know I'm useless.

Comment

Weaselboy

Moderator
Staff member
Jan 23, 2005
31,569
11,242
California
[doublepost=1466697791][/doublepost]Is this ok as its not selecting other files for some reason.Im really sorry but I know I'm useless.

This is fine. :)

Often that last loaded kext is a clue to what caused this. I'm not familiar with that kext, but from searching a little it appears to be related to Alladin software licensing, perhaps tied to an Adobe product?

Try looking in /System/Library/Extensions/ for that kext file and drag it to the desktop then restart and see if that fixes it.

last loaded kext at 8786888097: com.aladdin.kext.aksfridge

Comment

LightBulbFun

macrumors 68020
Nov 17, 2013
2,446
2,469
London UK
Looks like your Panic is Memory (RAM) related I got very similar Kernel panics on my Mac Pro when I had bad ram that went away once i flagged down the bad ram and removed it. check your ram in System profiler and check the diagnostic page in system profiler too see if it fails post due to bad ram (my Mac pro would mention that) if it was a kext causing the panic you should kernel extensions in back trace mentioned.

Comment

muzzy63

macrumors newbie
Original poster
Jun 22, 2016
14
1
Thank you. i just fund a video on you tube and its really good.I think i'm going update all my software in fact I'm thinking to upgrade to El Capitan.Would this be a good idea and also shall i just get new set of Ram's.
[doublepost=1466699614][/doublepost]
Looks like your Panic is Memory (RAM) related I got very similar Kernel panics on my Mac Pro when I had bad ram that went away once i flagged down the bad ram and removed it. check your ram in System profiler and check the diagnostic page in system profiler too see if it fails post due to bad ram (my Mac pro would mention that) if it was a kext causing the panic you should kernel extensions in back trace mentioned.
I notice that my computer only reconize 8gb of ram sometimes which i should have 16gb installed.

  • Like
Reactions: LightBulbFun
Comment

muzzy63

macrumors newbie
Original poster
Jun 22, 2016
14
1

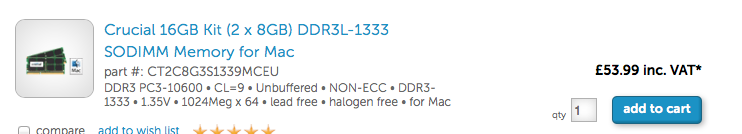

After checking Kernel panic reports and its seems i need new set of Rams.What type of RAM should i buy as there are lots different ones.Apple saying that i should buy PC3-10600E, 1333 MHz, DDR3 SDRAM UDIMMs and RDIMMs and there not many on market.Searching in the geoogle gave me lots options but its little bit confusion and also i have checked curical but they all say non-ecc and is that make any different.

Comment

h9826790

macrumors P6
Apr 3, 2014
15,199
7,517
Hong Kong

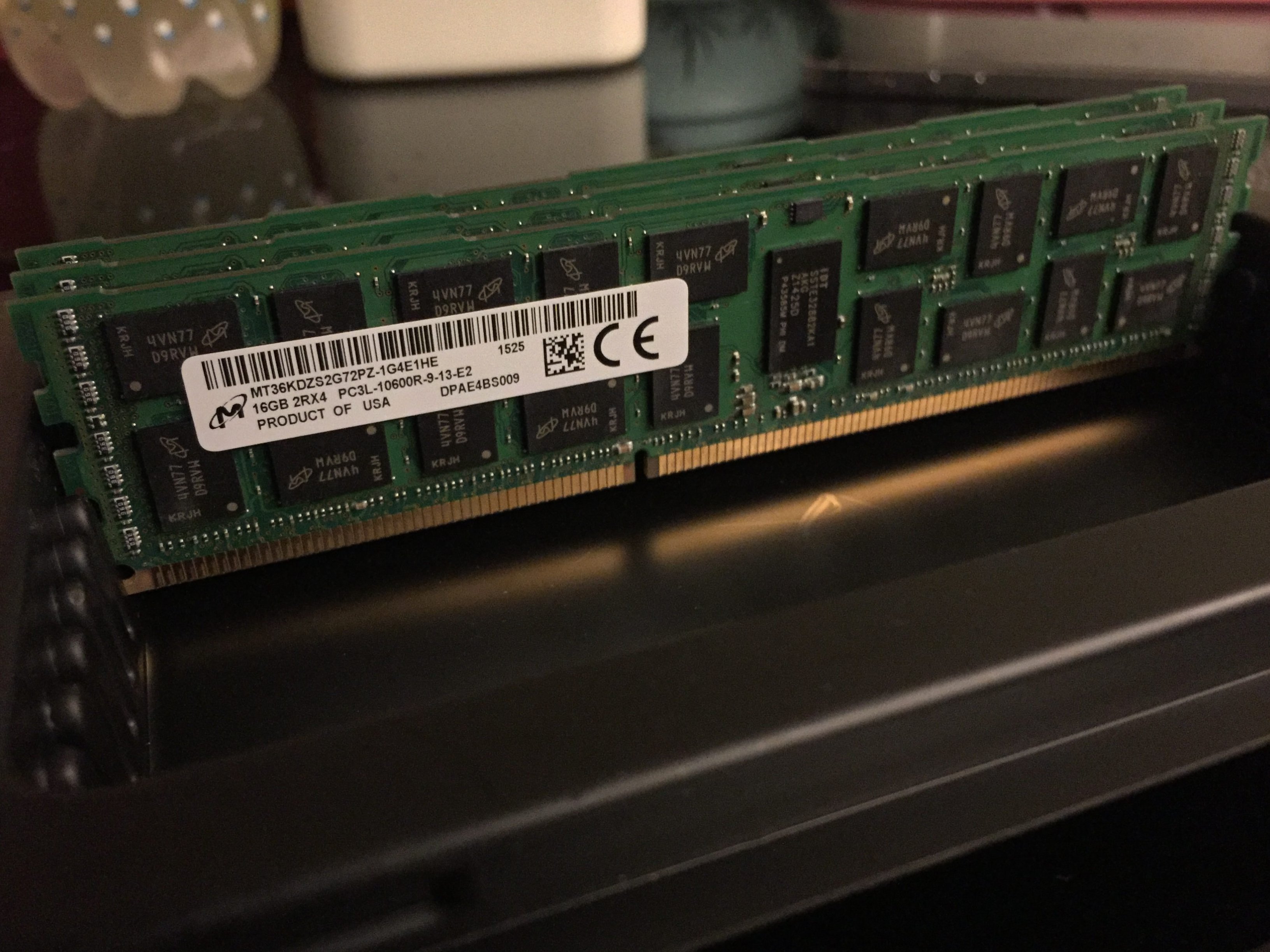

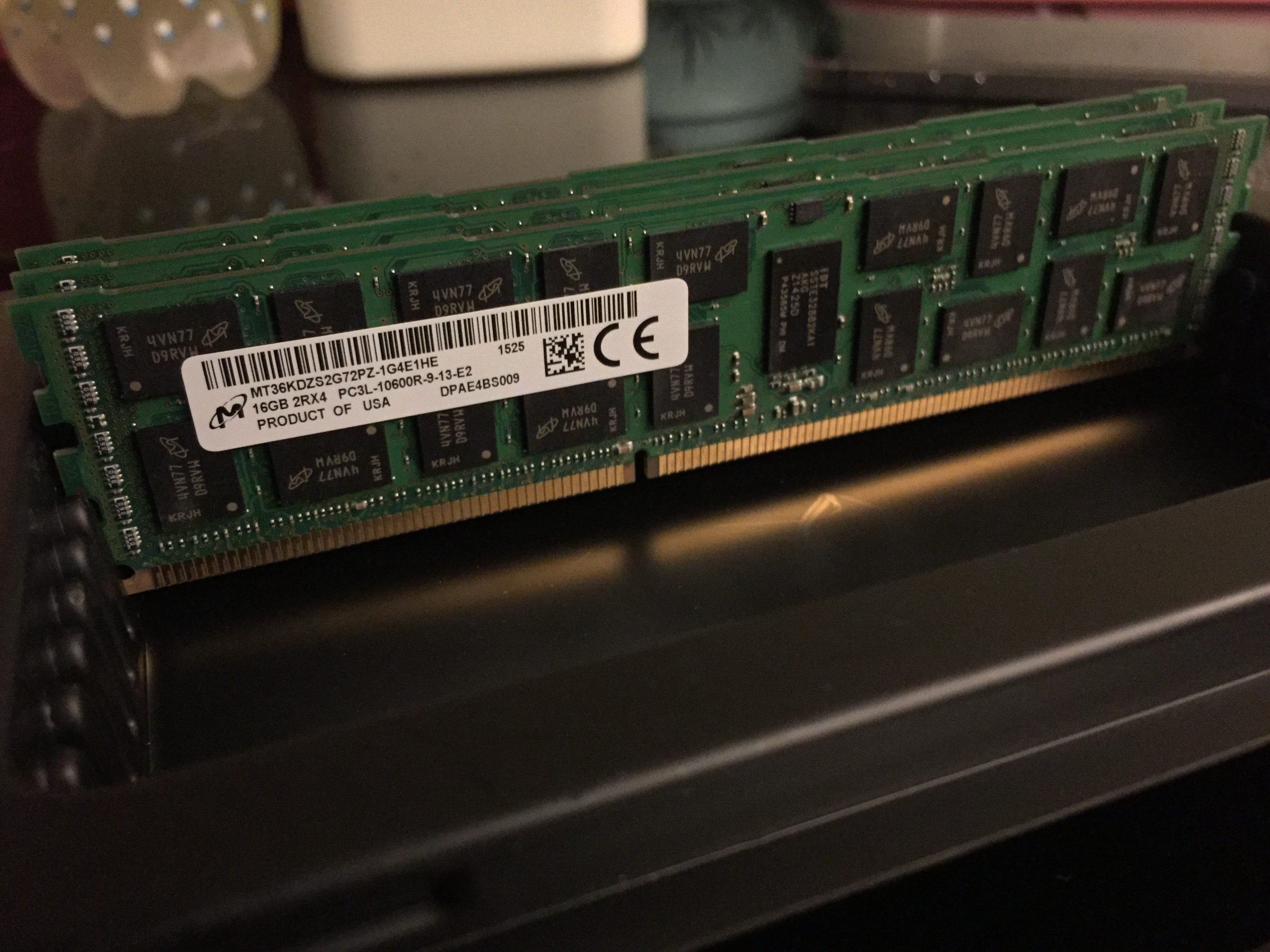

No need to be that exact, almost all similar spec server memory works on the 5,1.

PC3 (1.5V) will work, PC3L (support both 1.5V and 1.35V) also works. It doesn't need to be PC3-10600E, you can use the stick which is PC3L-10600R.

End with E or R or nothing doesn't really matter. However, they cannot be mixed, e.g. RDIMM cannot mix use with UDIMM, otherwise, no boot. But both pure RDIMM or pure UDIMM are OK for the 5,1.

10600 is not a must, any RAM with higher speed will automatically down clock to 1333MHz. Any stick with lower speed will automatically run at their max speed (e.g. 1066MHz). Of course, 10600 is ideal, faster RAM should be more expensive, slower RAM cannot fully utilise the system.

An easy miss spec which is not on the Apple's manual is the ranking. You better look for 2Rx4 stick, some sticks are 4Rx4, which may not able to run at full speed, or even cause other trouble on the 5,1.

Anyway, this is the RAM stick I am now using. From the sticker, you can tell it's not PC3-10600E, but it works fine.

Non ECC RAM (normal DDR3 RAM for PC) also work, but IMO, unless it's much much cheaper than the ECC RAM that you can get, there is no point to go for non ECC RAM.


Last edited:
  • Like
Reactions: muzzy63
Comment

muzzy63

macrumors newbie
Original poster
Jun 22, 2016
14
1
No need to be that exact, almost all similar spec server memory works on the 5,1.

PC3 (1.5V) will work, PC3L (support both 1.5V and 1.35V) also works. It doesn't need to be PC3-10600E, you can use the stick which is PC3L-10600R.

End with E or R or nothing doesn't really matter. However, they cannot be mixed, e.g. RDIMM cannot mix use with UDIMM, otherwise, no boot. But both pure RDIMM or pure UDIMM are OK for the 5,1.

10600 is not a must, any RAM with higher speed will automatically down clock to 1333MHz. Any stick with lower speed will automatically run at their max speed (e.g. 1066MHz). Of course, 10600 is ideal, faster RAM should be more expensive, slower RAM cannot fully utilise the system.

An easy miss spec which is not on the Apple's manual is the ranking. You better look for 2Rx4 stick, some sticks are 4Rx4, which may not able to run at full speed, or even cause other trouble on the 5,1.

Anyway, this is the RAM stick I am now using. From the sticker, you can tell it's not PC3-10600E, but it works fine.

Non ECC RAM (normal DDR3 RAM for PC) also work, but IMO, unless it's much much cheaper than the ECC RAM that you can get, there is no point to go for non ECC RAM.

View attachment 637584
Thank you very much for your time.Here is screen shoot of ram that i found.Do you think those ones ok and if its ok i'm going to get 4 8gb so i can get rid off old ones.


Attachments

  • Screen Shot 2016-06-23 at 23.47.14.png
    Screen Shot 2016-06-23 at 23.47.14.png
    48 KB · Views: 179
Comment

drewsof07

macrumors 68020
Oct 30, 2006
2,008
419
Ohio
Thank you very much for your time.Here is screen shoot of ram that i found.Do you think those ones ok and if its ok i'm going to get 4 8gb so i can get rid off old ones.
These are short SODIMM modules for a laptop, you want RDIMM or UDIMM full size memory sticks.

  • Like
Reactions: muzzy63
Comment

h9826790

macrumors P6
Apr 3, 2014
15,199
7,517
Hong Kong
Thank you very much for your time.Here is screen shoot of ram that i found.Do you think those ones ok and if its ok i'm going to get 4 8gb so i can get rid off old ones.

As drewsof07 said, you need the desktop memory, not notebook memory. you need something like this.

http://www.ebay.com/itm/32GB-4x8GB-...182673?hash=item1eb1cf7791:g:ms0AAOSwIUNXFc1Y

P.S. This sure can work on your Mac, but most likely not the cheapest. I've just spend 30s on Google to get this result. You should able to get better deal. Anyway, the idea is try to get the "server memory" but NOT "memory for Mac".

  • Like
Reactions: muzzy63
Comment

giovannylago

macrumors newbie
Jun 2, 2016
13
3
Los Angeles
  • Like
Reactions: muzzy63
Comment
Register on MacRumors! This sidebar will go away, and you'll see fewer ads.
