Partitioning problems

Discussion in 'OS X Yosemite (10.10)' started by Huerz, Apr 20, 2015.

  1. Huerz macrumors member

    Joined:
    Jul 30, 2014
    #1
    I am attempting to sort my 2011 MBP for resale. Before I reformatted my hard drive I used boot camp assistant to remove my bootcamp partition. It completed with an error message, deleted windows but an invisible partition remained.

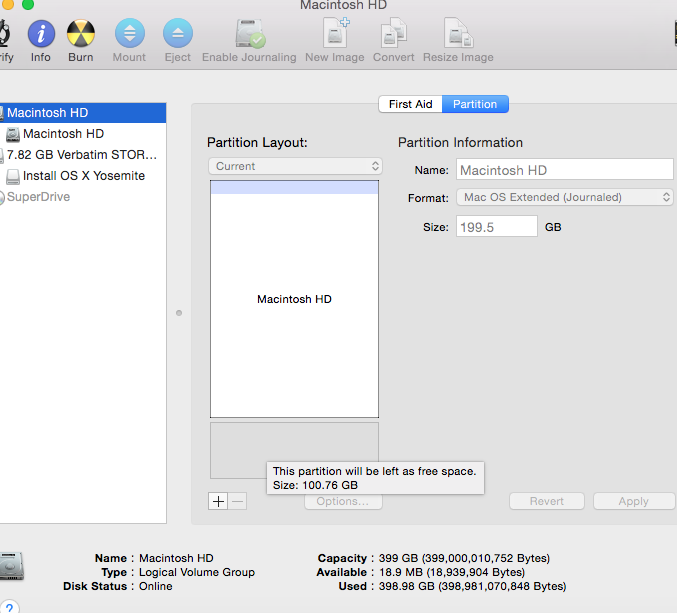

    When I reformatted the hard drive and reinstalled yosemite, i was left with a partition listed as free space (as per imagine).

    I cannot partition the space through disk utility (by clicking the + and then 'apply'). I does nothing.

    Filevault is not running.

    Any suggestions on how I can remove this? I would like to merge the 'lost' 100 gig with the remainder of my 400 gig hard drive.


    Attached Files:

  2. satcomer, Apr 20, 2015
    Last edited: Apr 23, 2015

    satcomer macrumors 603

    satcomer

    Joined:
    Feb 19, 2008
    Location:
    The Finger Lakes Region
    #2
    Boot to the Recovery Mode to use Disk Utility from that mode. See if that helps.

  3. chabig macrumors 68040

    Joined:
    Sep 6, 2002
    #3
    I think you need to delete the logical volume titled "Macintosh HD". It has to be done from Terminal. Disk Utility can't do this (yet). This thread might help: http://forums.macrumors.com/showthread.php?t=1740900&page=2 Check out post #30 and perhaps search the internet for additional help if you need it. I think you'll need to be booted from a disk other than the one you want to partition. If you don't have another disk, perhaps you can boot from Internet Recovery and do it.

  4. Weaselboy Moderator

    Weaselboy

    Staff Member

    Joined:
    Jan 23, 2005
    Location:
    California
    #4
    That volume is setup as a core storage volume and cannot be resized.

    Do a command-r boot to recovery and from the Utilities menu start Terminal. Then enter the line below just like I have it including the quotes. That will remove the volume and leave a blank drive.

    Code:
    diskutil cs delete "Macintosh HD"
    Now quit Terminal and start Disk util the erase the volume to Mac OS Extended (Journaled). Then quit Disk Util and click reinstall OS.

    This will of course wipe any data on the drive.

  5. Huerz thread starter macrumors member

    Joined:
    Jul 30, 2014
    #5
    Thank you for the replies everyone, the help is much appreciated. I'll run through the suggestions and report back.

  6. PowerBook-G5 macrumors 65816

    PowerBook-G5

    Joined:
    Jul 30, 2013
    Location:
    The United States of America
    #6
    I had this problem a few months ago. The only solution that worked for me was to erase my whole SSD and then restore from a backup.

  7. Huerz, Apr 22, 2015
    Last edited: Apr 22, 2015

    Huerz thread starter macrumors member

    Joined:
    Jul 30, 2014
    #7

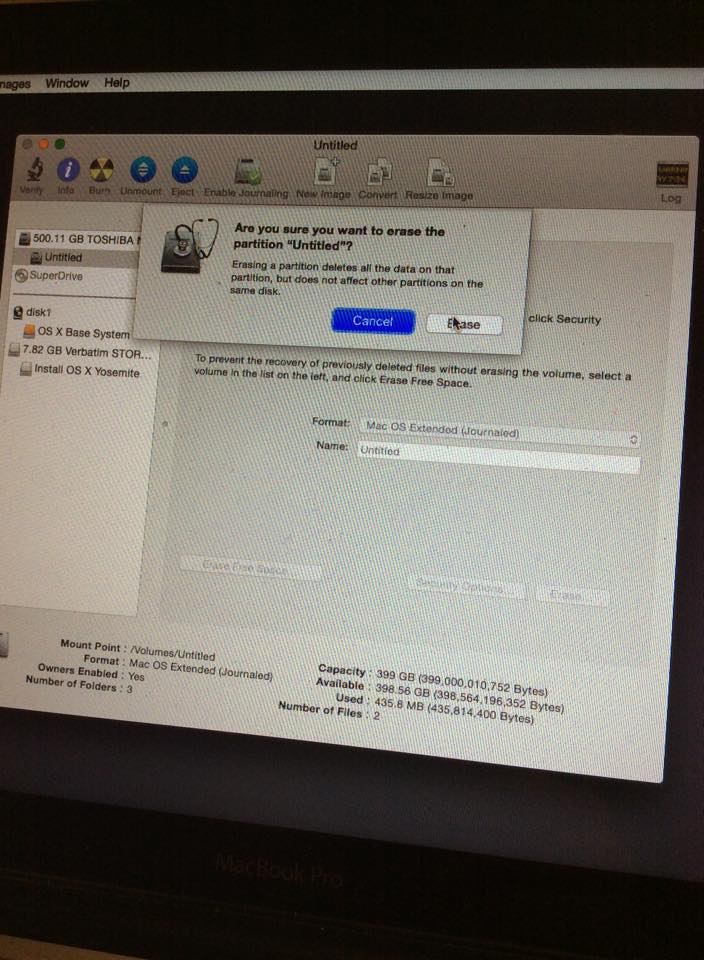

    Thanks for the comment. I followed your instructions but unfortunately I didn't succeed. I've attached the end report from the terminal command as well as an image of the disk utiling screen following the erasure. I'm just trying the erase free space option now and then will attempt again to reinstall OS X. Any further suggestions or have I perhaps followed the instructions incorrectly?

    Apologies for the poor quality images

    Cheers,
    Huerz


    Attached Files:

  8. Weaselboy Moderator

    Weaselboy

    Staff Member

    Joined:
    Jan 23, 2005
    Location:
    California
    #8
    I don't see anything you attached from Terminal, but from the looks of Disk Util there you successfully got rid of the core storage volume and you should be able to format. Are you able to format by clicking the erase button there?

  9. Huerz thread starter macrumors member

    Joined:
    Jul 30, 2014
    #9
    Sorry for the late response. My second image appears to have uploaded now (I did so as an edit).

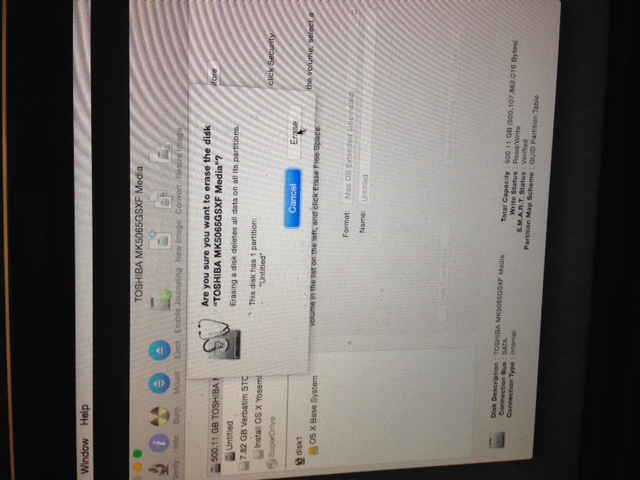

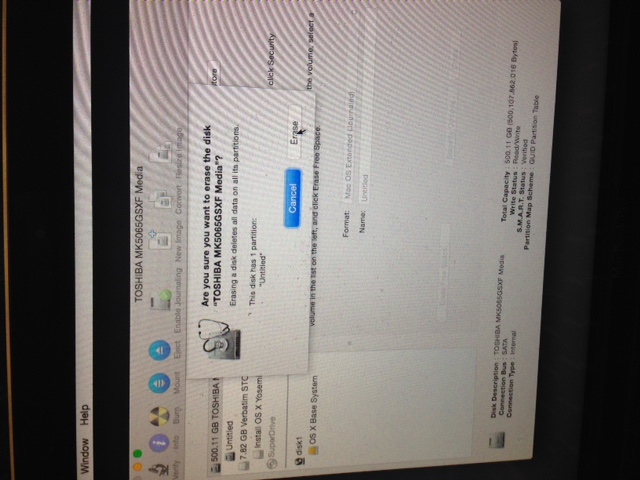

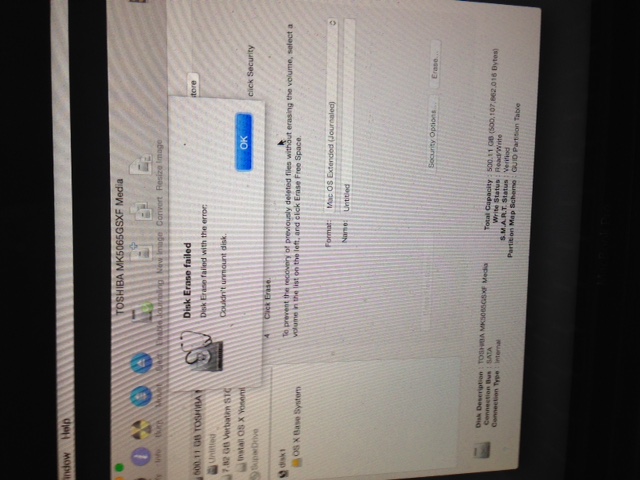

    When I attempt to erase the drive labelled 'toshiba', I receive the "couldn't unmount disk" message. When I erase the 'untitled' partition, it completes the erase but does nothing, leaving me with the same 400gig partition (pictures attached).


    Attached Files:

  10. Weaselboy Moderator

    Weaselboy

    Staff Member

    Joined:
    Jan 23, 2005
    Location:
    California
    #10
    It looks like you have the drive itself selected to erase instead of just the untitled volume. Drop down there one on the list and select untitled then try to erase.
