MP 7,1 Pcie Question on Mac Pro 2019

ldstern10

macrumors member
Original poster
Dec 15, 2019
42
7
Does any one know what the unlock button when inserting a pcie card does? I inadvertently installed a card without unlocking the button. All works fine nonetheless.


Snow Tiger

macrumors 6502
Dec 18, 2019
357
217
Physically secures the card in the slot . You want the locking position open before card installation or removal . You want it in the locking position closed after you are done installing a card ( or simply desiring the slot unpopulated ) .

Here's the official PCIe card installation instructions from Apple :

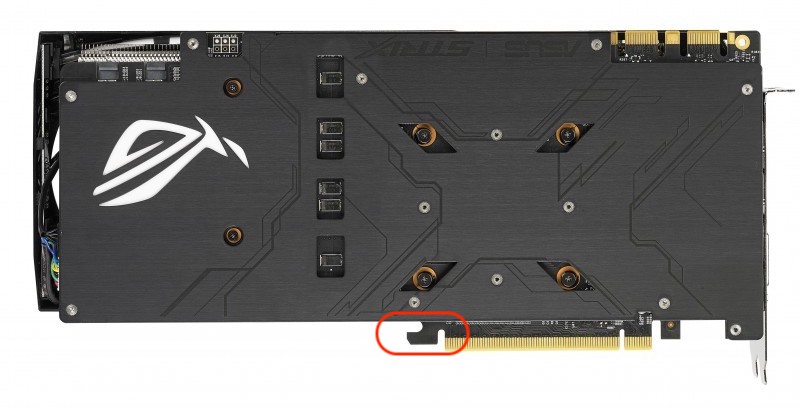

This is the part of the PCIe card you are securing with the Chassis' locking mechanism :

GX412AS_162114_800x800 copy.jpg

Last edited:

Virtuoso

macrumors regular
Feb 21, 2008
152
14
Seattle

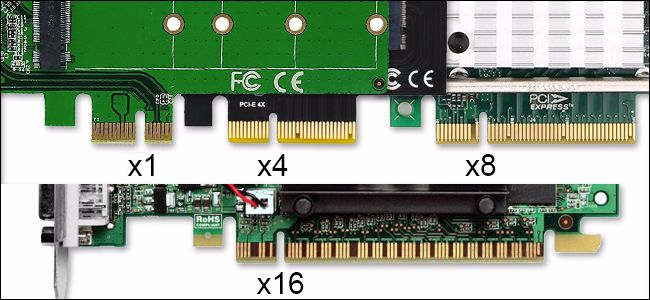

Some longer cards have an L-shaped hook at the end and the switch just slides a little clip that anchors longer cards in place. If you installed a x4 card it may not have the hook so you won't have done any damage.


ldstern10

macrumors member
Original poster
Dec 15, 2019
42
7
Some longer cards have an L-shaped hook at the end and the switch just slides a little clip that anchors longer cards in place. If you installed a x4 card it may not have the hook so you won't have done any damage.
Thanks. It was x4 card. Is the hook toward the front on the Mac as opposed to the rear?
