Performa 5200 screen acting up

Discussion in 'PowerPC Macs' started by ldefoe, Nov 13, 2015.

  1. ldefoe macrumors newbie

    ldefoe

    Joined:
    Sep 17, 2015
    #1

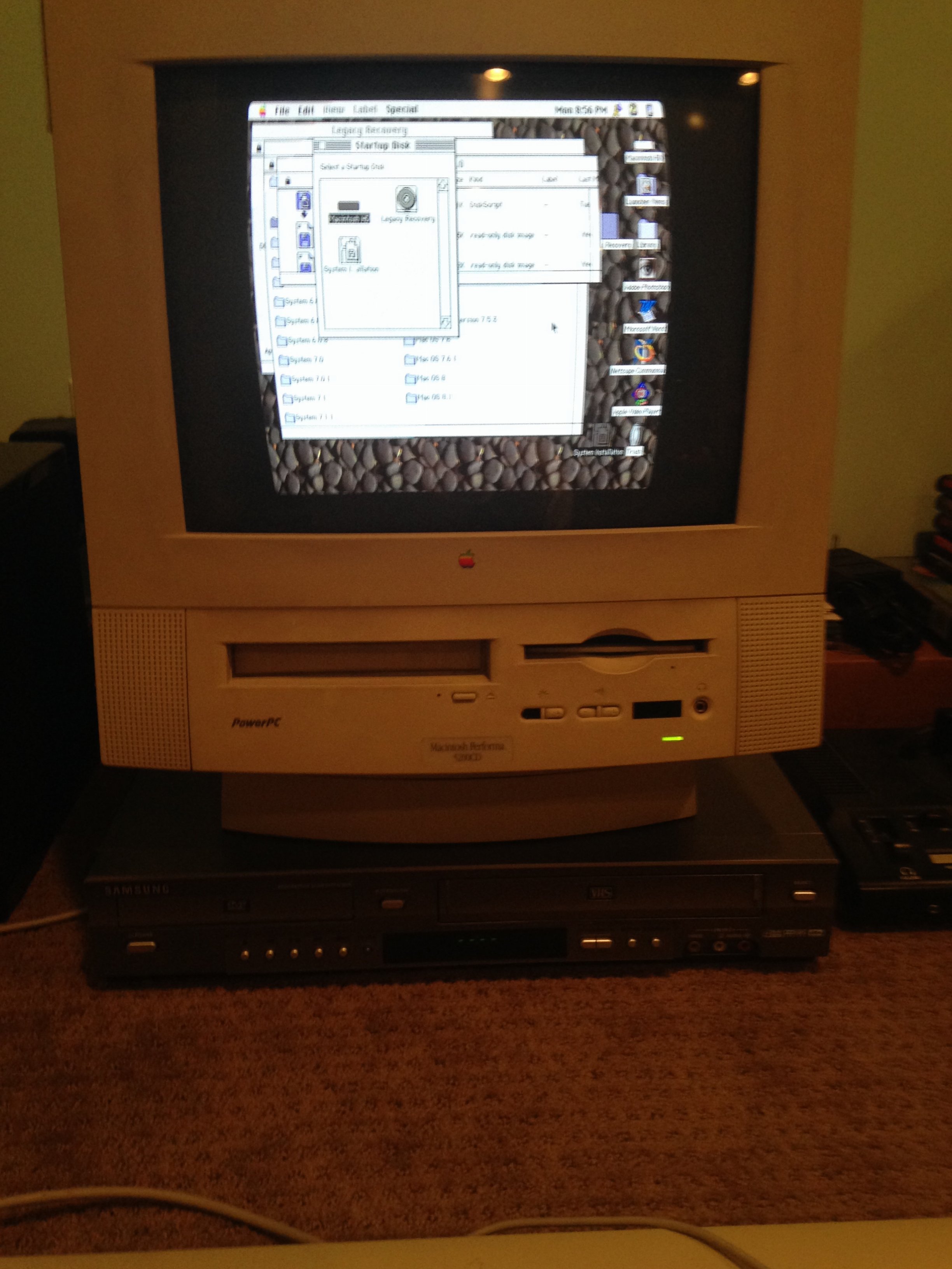

    image.jpeg as you can see in the picture, the screen is no longer filled with the image, it has shrunk and now it is curved at the sides, what is going on?!

  2. Intell macrumors P6

    Intell

    Joined:
    Jan 24, 2010
    Location:
    Inside
    #2
    The CRT is starting to fail, I forget which part exactly (flyback transformer?).

  3. LightBulbFun macrumors 6502a

    LightBulbFun

    Joined:
    Nov 17, 2013
    Location:
    London UK
    #3
    Defo looks like the EHT/analog board is failing try checking for Bad capacitors or out of spec passive parts (like resistors etc) worse come to worse you will need a new flyback transformer

  4. ldefoe thread starter macrumors newbie

    ldefoe

    Joined:
    Sep 17, 2015
    #4
    Ok thanks, I read somewhere that a sign of a failing CRT was a green hue starting to appear in one of the corners and unclear images while warming up - which I've noticed prior to the shrunken image.

  5. ldefoe thread starter macrumors newbie

    ldefoe

    Joined:
    Sep 17, 2015
    #5
    Thanks, I'll look into all this and see what I need to do.
