Philips BDM4065UC + nMP?

Discussion in 'Mac Pro' started by cgmaster, May 8, 2015.

  1. cgmaster macrumors newbie

    cgmaster

    Joined:
    Jul 17, 2002
    #1
    Is anyone successfully using a new mac pro (late 2013) with the Philips BDM4065UC via minidp/thunderbolt?

    Mine sorta works via HDMI (wake from sleep issues), but not tbolt....D700s..

  2. cgmaster thread starter macrumors newbie

    cgmaster

    Joined:
    Jul 17, 2002
    #2
    Not looking good...guess I'm on the edge. Philips was no help either. Quickly exhausted the troubleshooting at the call center, and supposedly an engineer was to call me....never happened.

  3. Pieterr macrumors regular

    Joined:
    Mar 22, 2015
    Location:
    The Netherlands
    #3
    Did you select DP1.2 via the menu of the monitor?

    http://nl.hardware.info/reviews/5945/3/philips-bdm4065uc-monitor-review-echt-groot-beeld-aansluitingen

  4. cgmaster thread starter macrumors newbie

    cgmaster

    Joined:
    Jul 17, 2002
    #4
    Thanks for the reply Pieterr. Yes, I attached both the HDMI and Thunderbolt (miniDP) cables to the computer. Then, while in HDMI mode, went to the Setup->DisplayPort menu and set it to 1.2. Then I select Input->miniDP and it says "No video input [MiniDP]" :(


  5. cgmaster thread starter macrumors newbie

    cgmaster

    Joined:
    Jul 17, 2002
    #5
    Finally heard from the Philips engineer. Supposedly Apple's Thunderbolt cable isn't backwards compatible with miniDP so I need an adapter cable. Thunderbolt to miniDP or DP will do. Just ordered one, so I'll know in a couple of days.

  6. cgmaster thread starter macrumors newbie

    cgmaster

    Joined:
    Jul 17, 2002
    #6
    Received a miniDP to DP cable and all is good...running UHD @ 60Hz.

  7. Fjan macrumors newbie

    Joined:
    May 7, 2007
    #7
    It works for me too, but I regularly (almost always) have problems waking it from sleep. Power cycling the monitor works to re-establish the connection but it's a pain.

    Does it wake up reliably for you?

  8. cgmaster thread starter macrumors newbie

    cgmaster

    Joined:
    Jul 17, 2002
    #8
    It seems to wake properly (though slowly) about 90% of the time -- only had to force it one or two times so far. I've only been using for 1 day now, however, so that's kind of a guess.

    Another thing I noticed is that as soon as I hook my 30" Apple Cinema Display into one of the other Thunderbolt ports/busses, the Philips auto switches, and stays in 30Hz mode :-( In other words, it only seems to want to run in 60Hz if it's the only display....

  9. nigelbb macrumors 6502a

    Joined:
    Dec 22, 2012
    #9
    How do you guys find using a 40" 4K display? My 30" 2560x1600 monitor is starting to fail & rather than replace it with a smaller 27" with fewer pixels or a slightly larger 32" 4K with more pixels I wonder whether a 40" would be a better replacement/upgrade for me. It would be physically quite a bit larger but give me more screen real estate & still a higher pixel density than my existing screen. I have been using a 30" as my main screen for >7 years so am not frightened of mammoth monitors (the 30" looks quite normal now:).

  10. cgmaster thread starter macrumors newbie

    cgmaster

    Joined:
    Jul 17, 2002
    #10
    Pretty much the same situation with me. I've used my 30" since they first arrived years ago (has it been 7 years...probably so!). We outfitted a lab with nMPs and Dell UP3214Qs (31"). The text is so small on the 31s at UHD you quickly suffer eye strain. At this point I'm happy with the Philips 40" because it seems like a better balance between resolution and GUI size.

  11. tphuff macrumors newbie

    tphuff

    Joined:
    Jun 24, 2015
    Location:
    Hamilton, Ohio
    #11
    cgmaster - Can you link the exact adapter you bought? 4k @ 60Hz: The struggle is real.

  12. cgmaster thread starter macrumors newbie

    cgmaster

    Joined:
    Jul 17, 2002
    #12
  13. Lemi1 macrumors newbie

    Joined:
    Jun 29, 2015
    #13
    Ok I've ordered one if these adapters too so thank you for the recommendation.

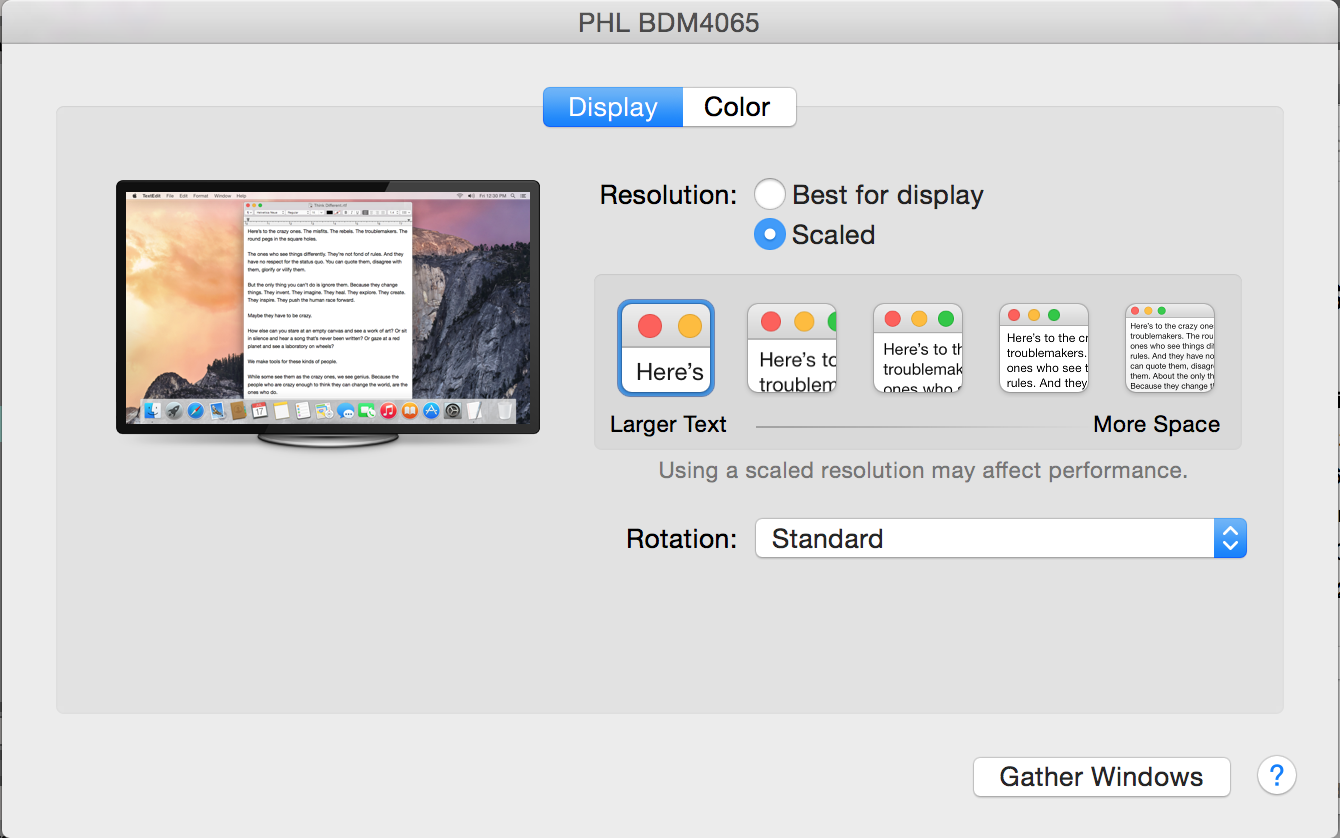

    I'm using a Macbook Pro Retina, 15-inch, late 2013 model with the Philips BDM4065UC and really loving the resolution, colours, and Realestate. I currently have only tried using the basic HDMI option but am experiencing a sluggish and unacceptable amount of Mouse Lag! ahhh help!!!!. The only way I've managed to avoid the Lag so far is by going in to System Preferences/Displays and changing the Philips BDM4065UC Display settings to "Scaled" and selecting the "Larger Text" option... the issue here being that I don't really want to work with this setting as everything becomes too big/zoomed in and I feel like after forking out $1K I shouldn't have to succumb to this being my only option...

    Any advice/insight appreciated :)


    Attached Files:

  14. tphuff macrumors newbie

    tphuff

    Joined:
    Jun 24, 2015
    Location:
    Hamilton, Ohio
    #14
    Well I purchased the cable (4 cables total lol) and it is still running at 30hz.... I guess I need to wipe the machine and do a fresh install because I can't figure this out. Any pro tips before I do a clean install?

  15. cgmaster thread starter macrumors newbie

    cgmaster

    Joined:
    Jul 17, 2002
    #15
    You have to turn on DP 1.2 in the Setup menu before selecting DisplayPort in the Input menu. You might need to have both an HDMI cable and the DP cable hooked up at the same time (can't recall now). HTH.
