Please help locate A1278 Logic Board SMD

Discussion in 'MacBook Pro' started by sparkyuiop, Mar 28, 2013.

  1. sparkyuiop macrumors newbie

    Joined:
    Mar 28, 2013
    #1
    Hello.
    I wonder if anyone can help identify the missing component from this A1278 logic board?
    I have read other post's on this well informed website but was unable to see clearly in any of the photographs the number of this thing which I believe is a double diode or transistor. In one picture I think I can possibly see 'KHP....' or maybe the K is an 'X', I really can't be sure.
    This board was in a pretty bad way but I think I have recovered it enough to give this a shot if any of you kind folk can help?

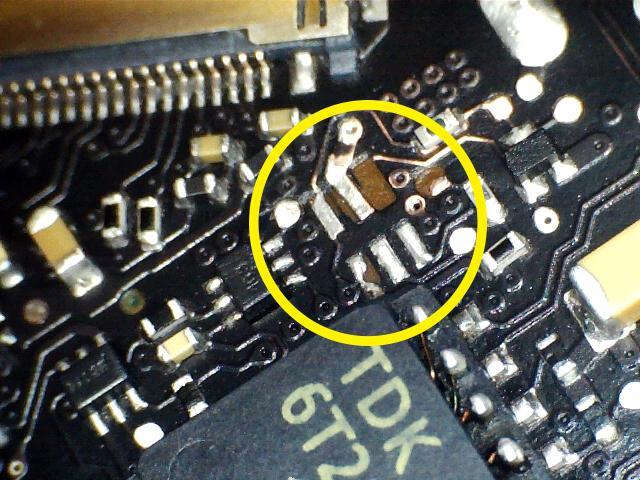

    I enclose a picture to show the one I'm referring to.
    Many thanks in advance.

    Phill Thorne.

    [​IMG]

  2. xinuxnt macrumors newbie

    Joined:
    Jan 10, 2014
    #2
    SMD diode or transistor Macbooc pro A1278

    may be it is late but I have your data needed, I have the same board (and I looking for another pick away SMD component) and I found your question. The thing say KNP and vertically Y1 I can`t find what is it but I have the schematic and may be you have more skills to find it.
    Actually I am looking for this SMD diode or transistor component in A1278

    [​IMG]

  3. peterlundh, Dec 17, 2017
    Last edited: Dec 17, 2017

    peterlundh macrumors newbie

    Joined:
    Oct 6, 2009
    #3
    --- Post Merged, Dec 17, 2017 ---

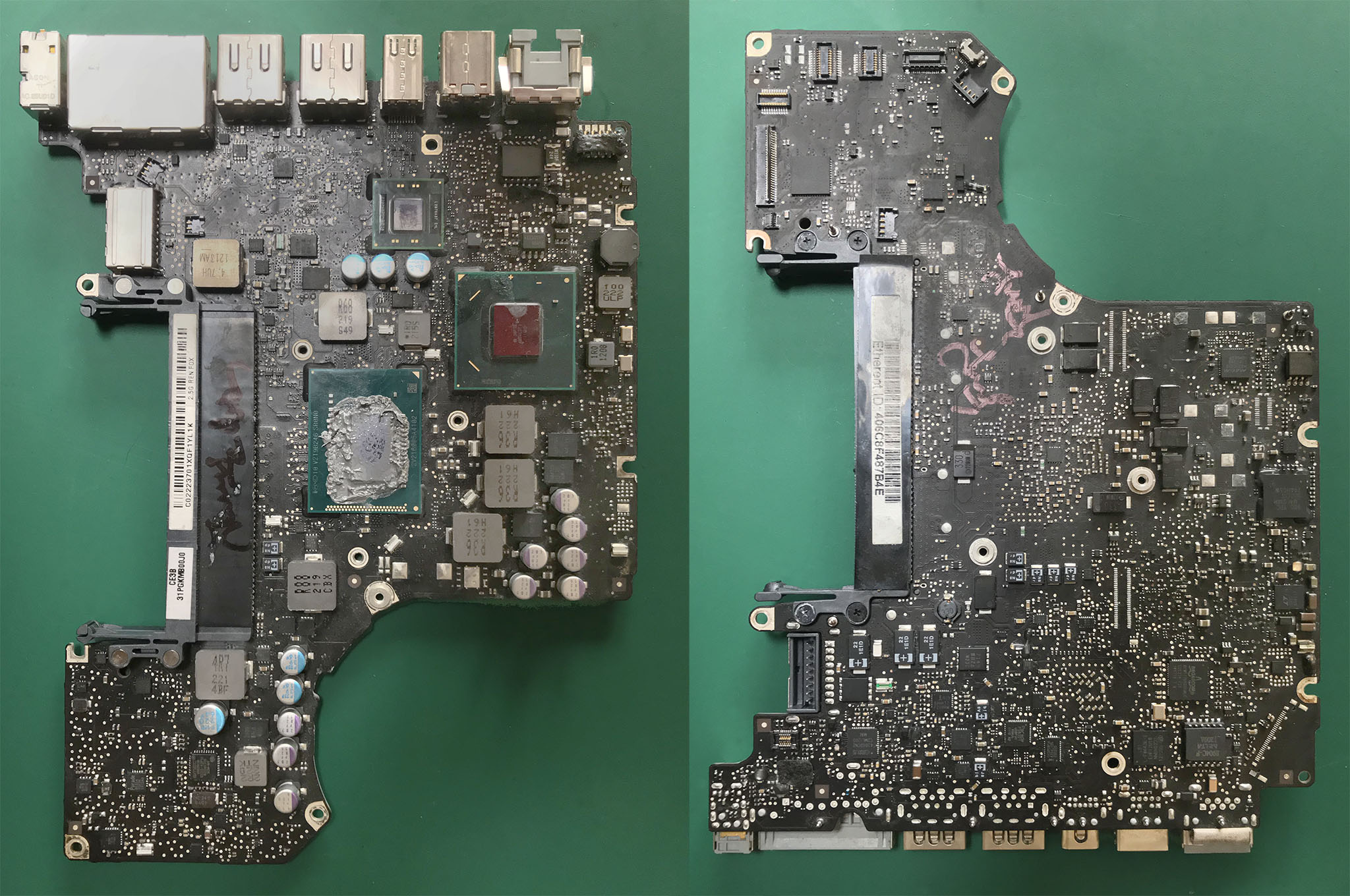

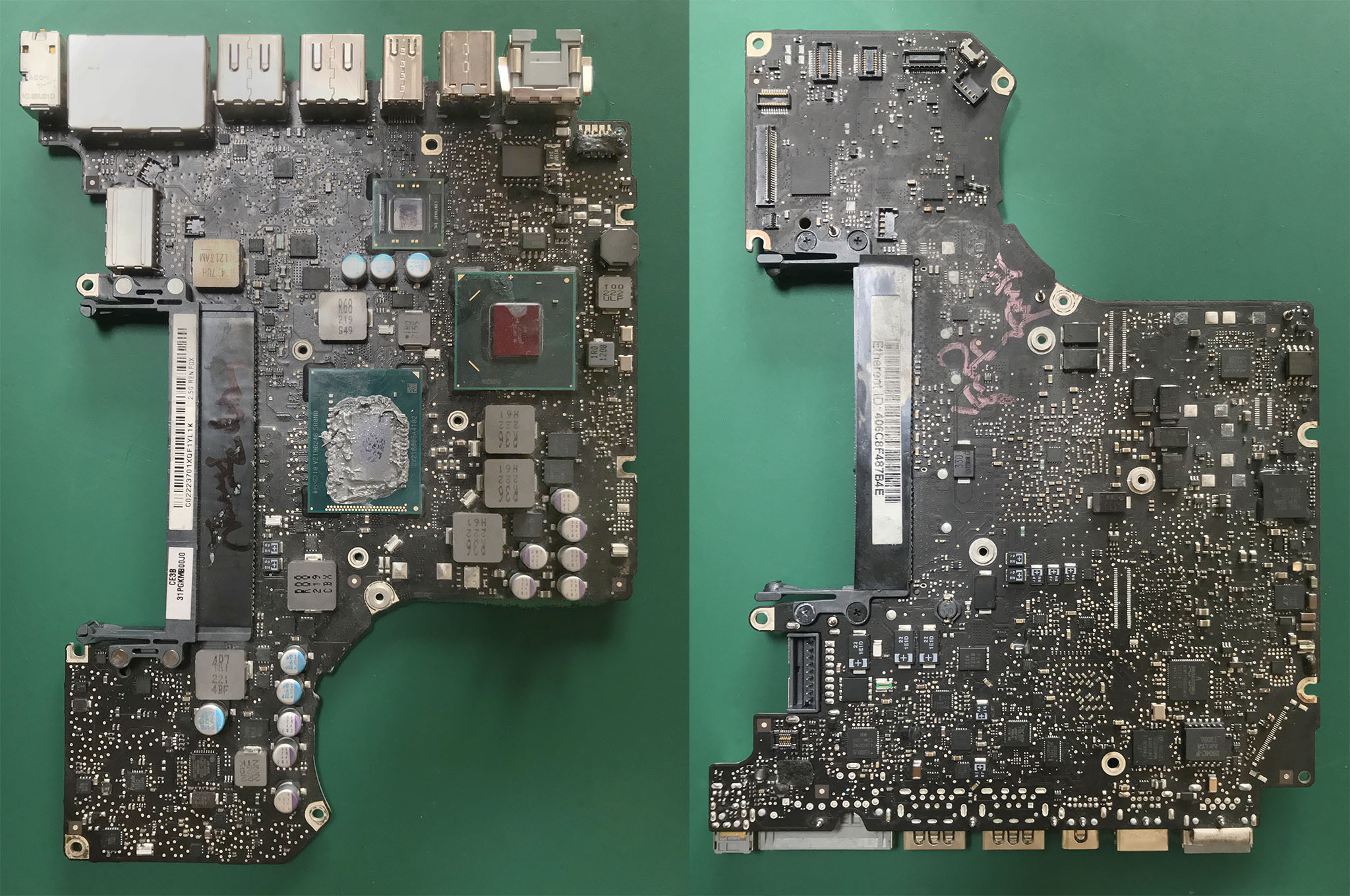

    Hi- Attached is a figure with the back and front of a A1278 (2012) logic-board. Grateful if someone could please help me locate the SMC chip (U4900) and, if possible, the Thermal Sensor (T29). My fan is constantly running flat-out (>6000RPM) but temperature, are fine. Many thanks and a Merry xMas.

    -Peter
