Please post Sys Profile of nMP 512 & 1TB SSD

Discussion in 'Mac Pro' started by dysert, Jan 23, 2014.

  1. dysert macrumors regular

    Joined:
    Sep 4, 2006
    #1

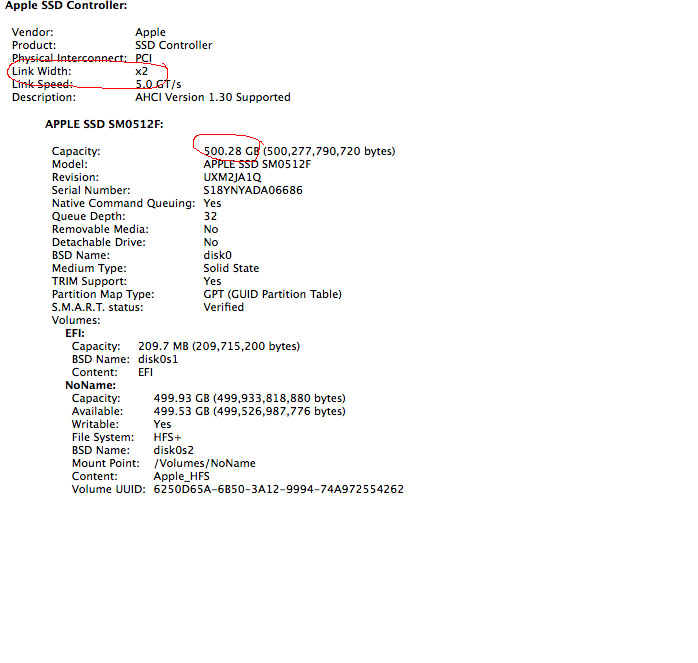

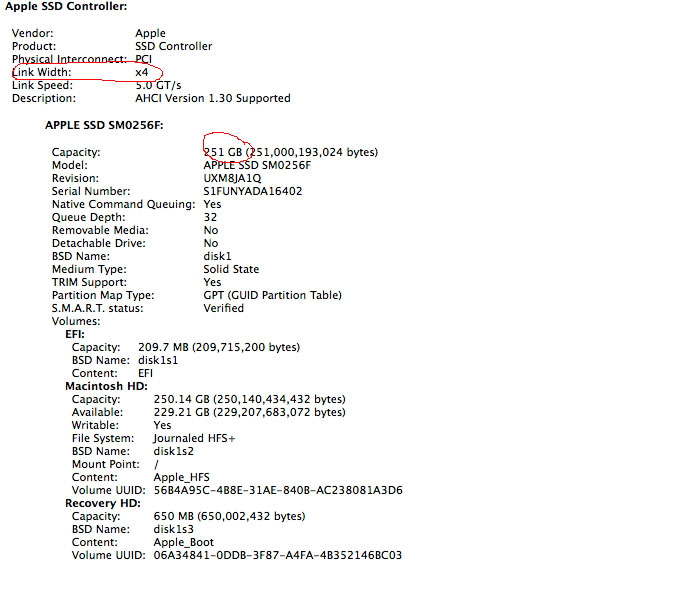

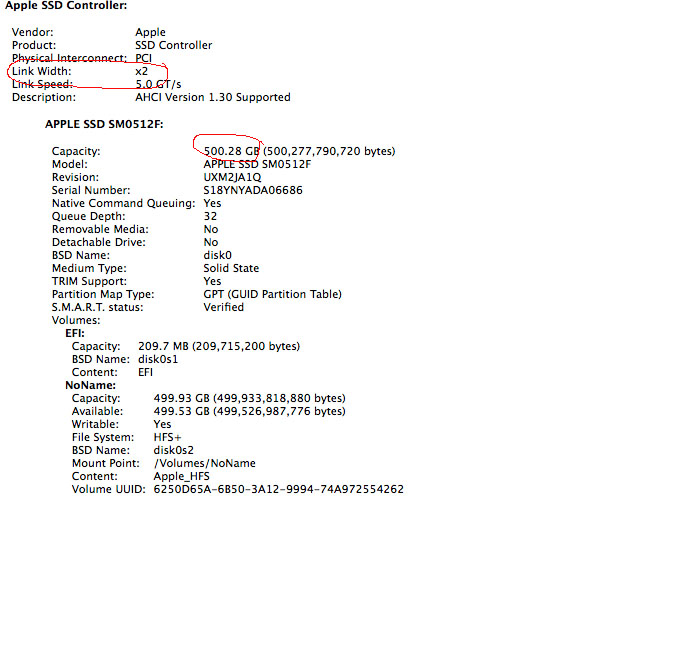

    I have attached a profile of my 256 SSD that came with my nMP as well as a 512 module I purchased. The 512 appears to be a 2 lane module. Have I properly interpreted the System Profiler results?


    Attached Files:

  2. OrangeSVTguy macrumors 601

    OrangeSVTguy

    Joined:
    Sep 16, 2007
    Location:
    Northeastern Ohio
    #2

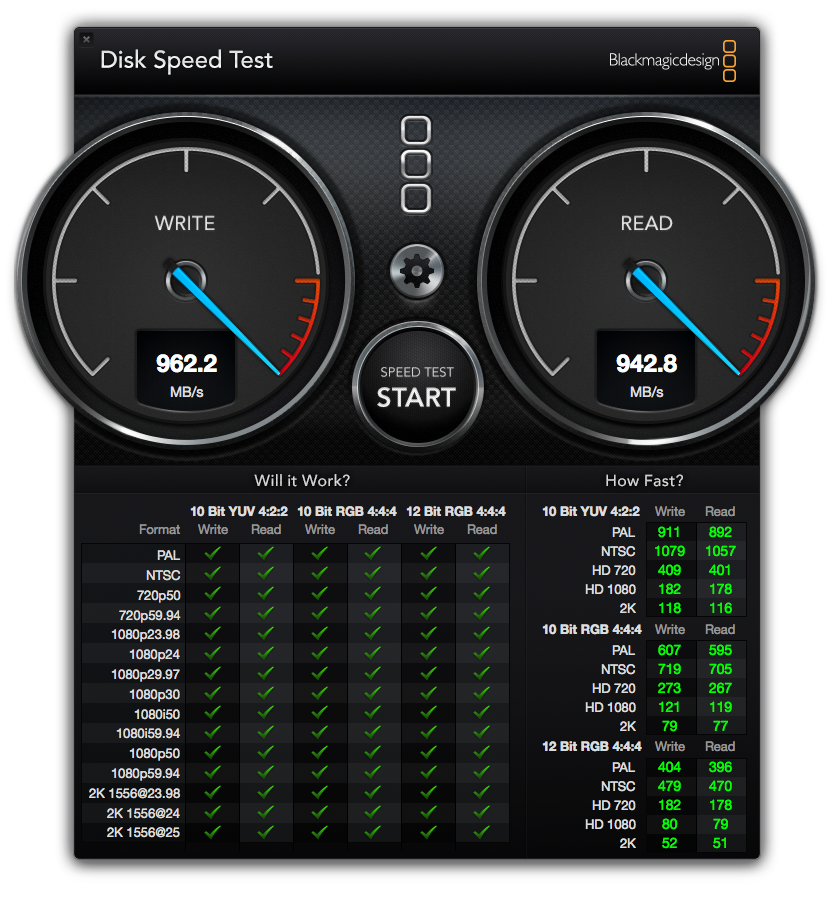

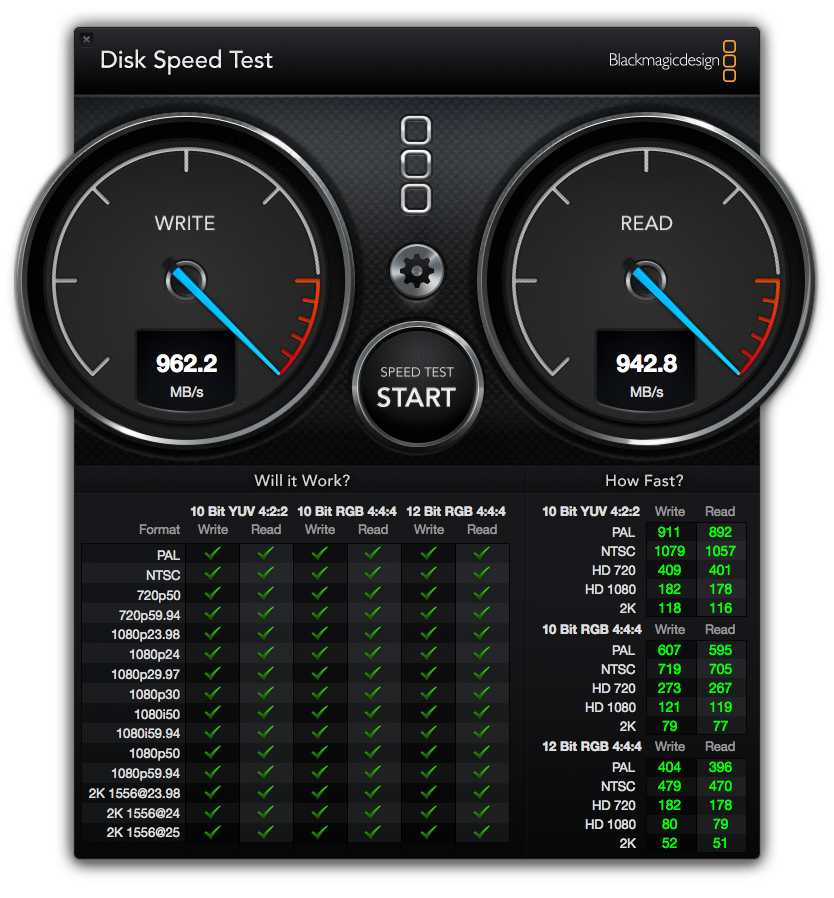

    Have you tried to ran a benchmark like Black Magic? Thinking the 4 lane might be faster no?

  3. kfscoll macrumors 65816

    kfscoll

    Joined:
    Nov 3, 2009
    #3

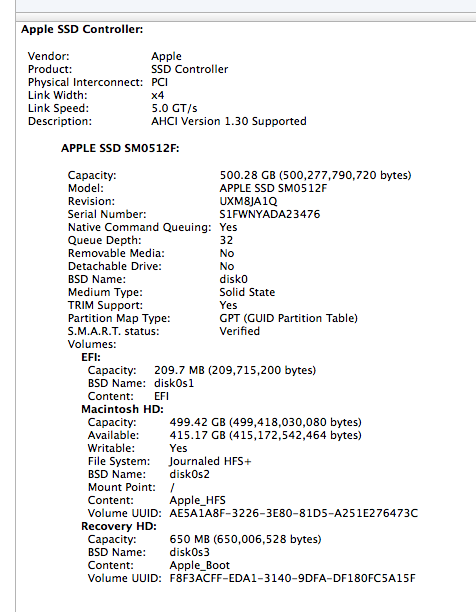

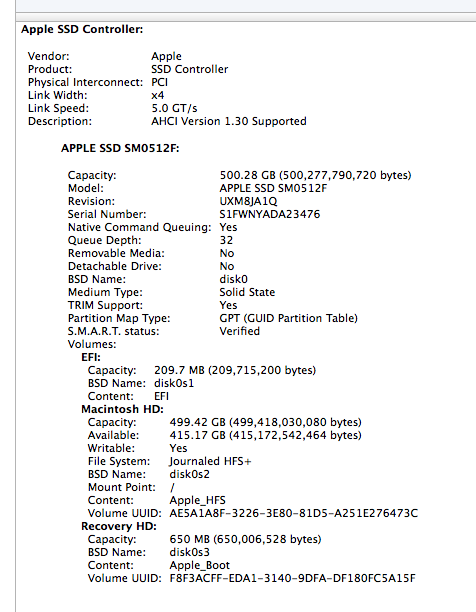

    Here's my 512GB SSD. Stupid question, but would the link speed have anything to do with the video cards? I have D700s FWIW.


    Attached Files:

  4. rw3 macrumors 6502a

    rw3

    Joined:
    May 13, 2008
    Location:
    DFW, TX
    #4
    The difference is in the Revision of the SSDs. I have a loaded Late 2013 27" iMac with a 512GB PCIe SSD. It has the same revision as your 512GB, UXM2EA1Q. The 256GB that came with your nMP is UXM8JA1Q.

    My best educated guess is that there is a firmware block that keeps some PCIe SSDs from linking at x4.

    EDIT: This would also explain why each SSD from each particular model (MacBook Air, rMBP, iMac, nMP) all have different part numbers even if the capacity is the same.


    Attached Files:

  5. VirtualRain macrumors 603

    VirtualRain

    Joined:
    Aug 1, 2008
    Location:
    Vancouver, BC
    #5
    Anand clearly indicated in his nMP review that the nMP comes with a x4 SSD unlike the MacBooks...

    FWIW, my stock 1TB SSD in the nMP is x4


    Attached Files:

  6. rw3 macrumors 6502a

    rw3

    Joined:
    May 13, 2008
    Location:
    DFW, TX
    #6
    The Late 2013 rMBP 15" has a x4 1TB PCIe SSD.....I've tested one from a customer.

  7. VirtualRain macrumors 603

    VirtualRain

    Joined:
    Aug 1, 2008
    Location:
    Vancouver, BC
    #7
    Right... In re-reading his statement, it implies the nMP only comes with x4 whereas I suppose the MacBooks were offered with both x2 or x4 SSDs.
