Plotter ink?

Discussion in 'Apple Collectors' started by thg, Sep 1, 2011.

  1. thg macrumors newbie

    Joined:
    Sep 1, 2011
    #1
    I have bunch of what I believe are plotter ink cartridges.

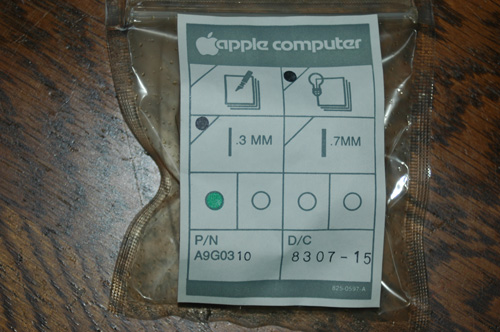

    Image one:
    [​IMG]

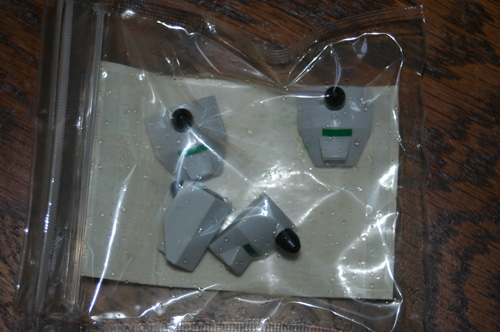

    Image two:
    [​IMG]

    They have been stored for many years in a storage building that is unheated and often is below freezing. But, I took the black tip off one of the cartridges and it still prints.

    Can anyone tell me anything about these?


    Thanks

  2. MacTech68 macrumors 68000

    MacTech68

    Joined:
    Mar 16, 2008
    Location:
    Australia, Perth
  3. thg thread starter macrumors newbie

    Joined:
    Sep 1, 2011
    #3
    Did I do something wrong, or are images disabled?

  4. MacTech68 macrumors 68000

    MacTech68

    Joined:
    Mar 16, 2008
    Location:
    Australia, Perth
    #4
    If the images work for you, try logging out of picassa to see what others will see.

    Alternatively, upload the images using the "Attach Files" option when posting. It's below the text box, under "Additional Options".

  5. thg thread starter macrumors newbie

    Joined:
    Sep 1, 2011
    #5
    Like this?


    Attached Files:

  6. MacTech68, Sep 2, 2011
    Last edited: Sep 2, 2011

    MacTech68 macrumors 68000

    MacTech68

    Joined:
    Mar 16, 2008
    Location:
    Australia, Perth
    #6
    Exactly like that.

    Searching the old parts DB come up with nothing.

    But yes, my guess would be the "Apple Color Plotter" for Apple II's.

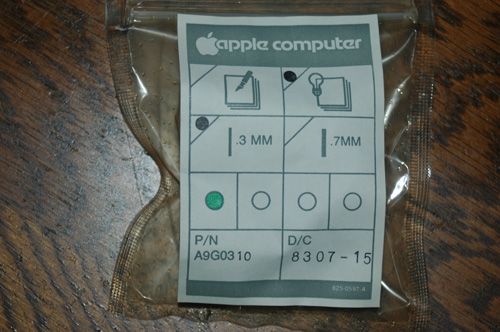

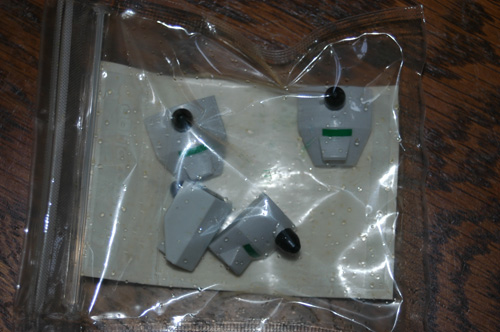

    Looking at it, it's 4 green 1.3mm pens but I'm not sure what the light-bulb designation means.

    Some docs:

    http://support.apple.com/kb/TA41064?viewlocale=en_US

    http://docs.info.apple.com/article.html?artnum=1991&coll=ap

    http://www.macworld.com/article/144740/2009/12/apple_color_plotter__apple_scribe_1984.html

    I'm trying to find any images that confirm what these are for. They are unusually chunky for a plotter, and the old part number doesn't show up in my old parts DB.

  7. thg thread starter macrumors newbie

    Joined:
    Sep 1, 2011
    #7
    I have about 100 packages of these in various colors sizes and designations. They are in a cardboard Apple box with drawers. It would appear to me that they were stored this way for sale.

    Anyway, thanks for the help getting the images posted.

  8. MacTech68 macrumors 68000

    MacTech68

    Joined:
    Mar 16, 2008
    Location:
    Australia, Perth
    #8
  9. 4JNA macrumors 68000

    4JNA

    Joined:
    Feb 8, 2006
    Location:
    looking for trash files
    #9
    i also thought ACP, as (one) of the colleges i went to had one for CAD, and i remember seeing the ink around the lab.

    if i remember, and i probably don't, the 'pen vs bulb' was for text vs photo quality ink. the text one was better for text, calligraphy, specialty fonts and stuff. the photo ink was better for pics, illustrations and so on.

    cool find. best of luck.
