Power supply ADP-240 AF B for imac 24" mi-2007

C

chrischris74

macrumors newbie
Original poster
Nov 29, 2012
7
0

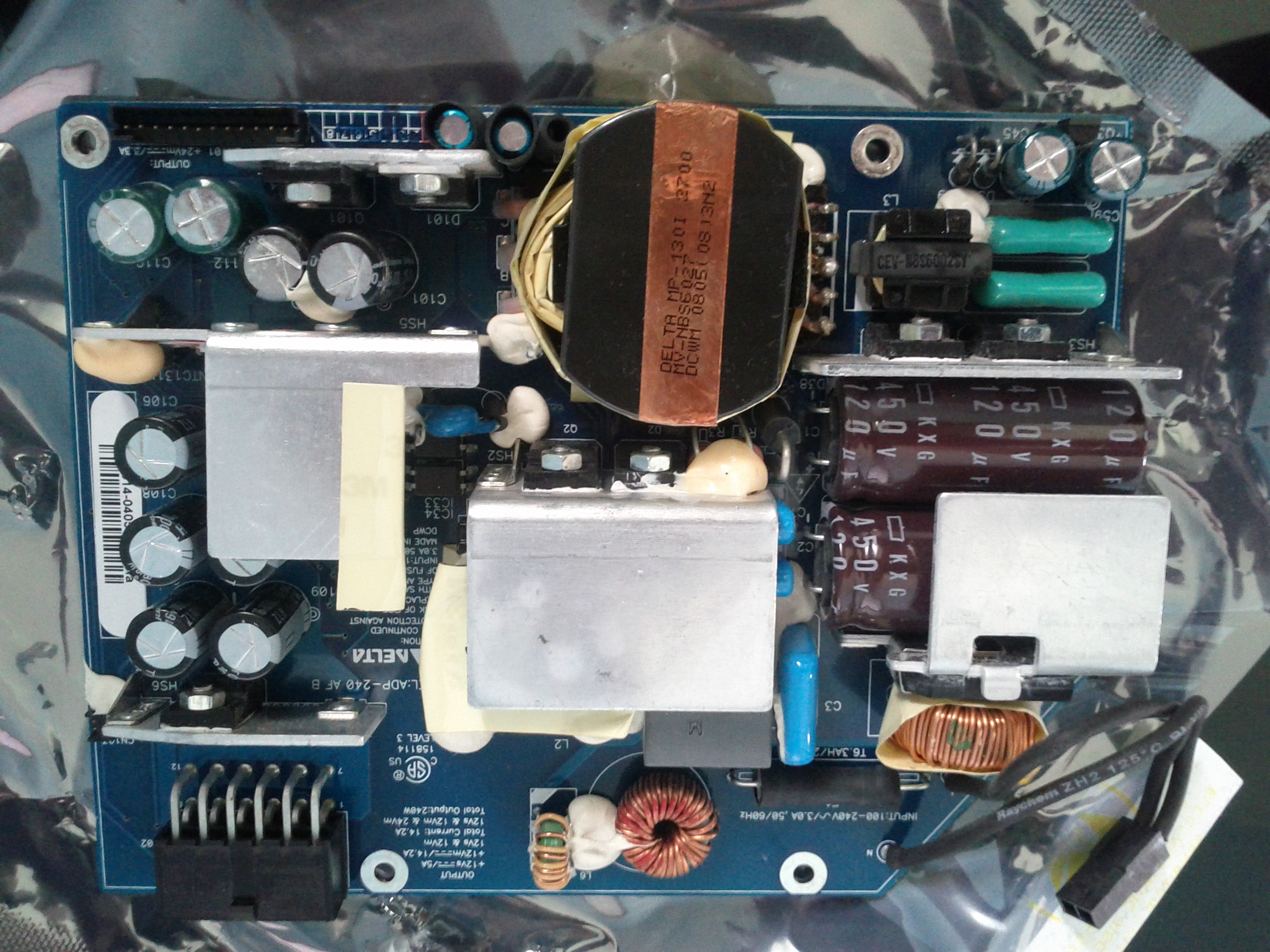

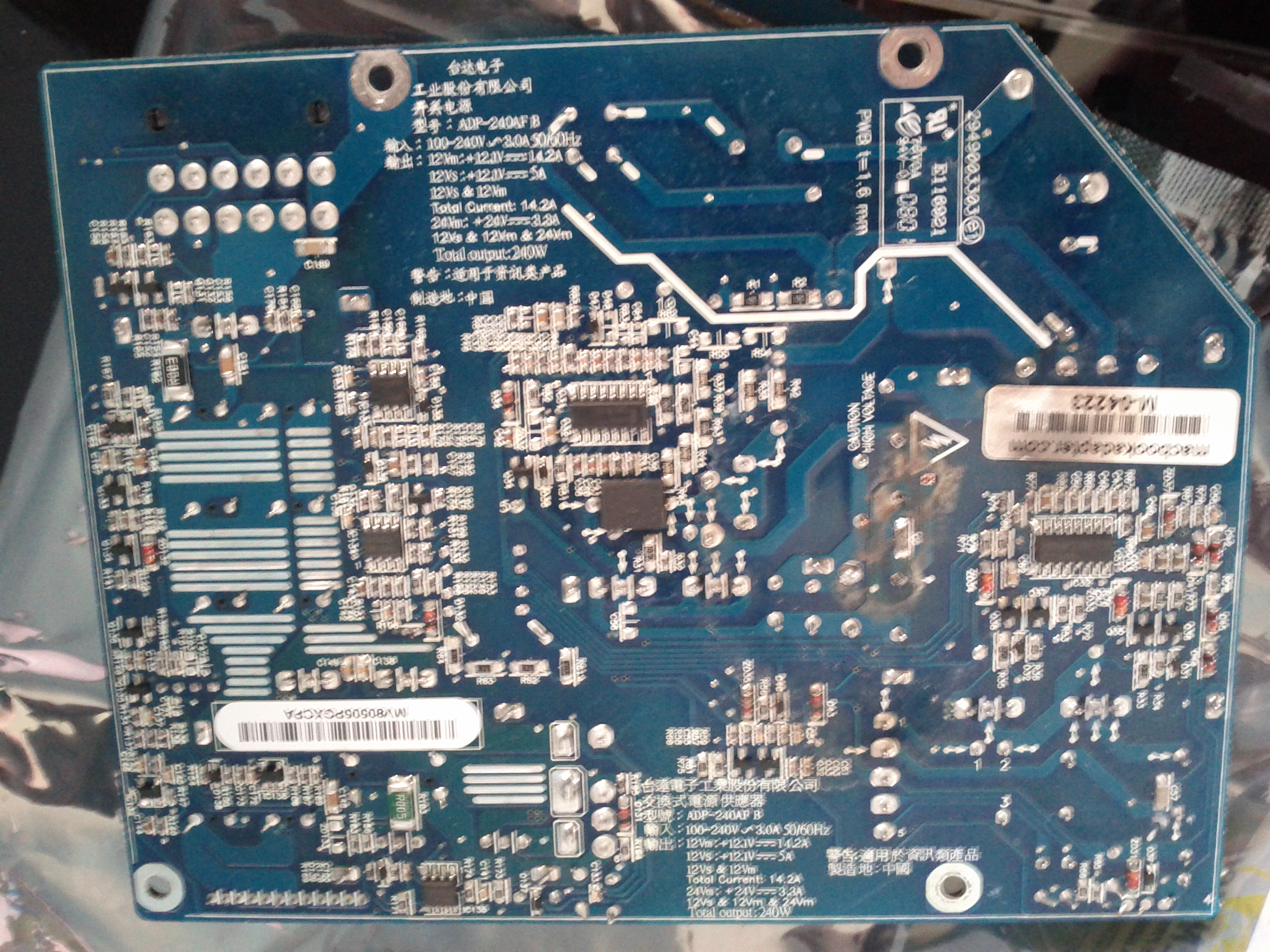

I have changed my power supply on my imac. They 'have sent a card different from my original map. I would like to troubleshoot the card ADP-240 AF B. Capacitor C8 death between primary capacitors. Do you have a reference or schema of this card? Thank you.


Attachments

  • IMG_20130330_163852.jpg
    1.6 MB · Views: 3,466
  • IMG_20130330_163830.jpg
    1.9 MB · Views: 3,610
Adp-240

Hello,
nobody has advice on power imac alu 24 "or 20"?
Changing the card completely and discard that which is out of service?
I would like bases for repair.
Thank you.

chrischris74 said:
I have changed my power supply on my imac. They 'have sent a card different from my original map. I would like to troubleshoot the card ADP-240 AF B. Capacitor C8 death between primary capacitors. Do you have a reference or schema of this card? Thank you.
Click to expand...

C8 cap is not important, check that Fuse and Rectifier on the board, I have same problem, I fixed it
