PPC Benchmarking Wiki

DearthnVader · Jun 9, 2024

I'm throwing down the gauntlet, let's see those PPC benchmarks!

Any Mac, any HW, any benchmark as long as it's any version of the Mac OS and it's PPC.

DearthnVader · Jun 9, 2024

I'll get us started.

Quickbench X single drive performance:

Code:

QuickBench(TM) 4.0 Test Results
�2000-2007 Intech Software Corp.
Test file created on Sunday, June 9, 2024 at 11:26:51 AM
Test Volume Name: SAS2
Test Volume Type: MacOS Extended
Test Volume Size: 223.445 Gigabytes
Test Volume Free Space: 215.416 Gigabytes
Allow Disk Cache Effects: Disabled
All reads and writes performed sychronously

Standard Test Results:
Test Cycles: 1

Transfer Size   Sequential Read   Sequential Write    Random Read      Random Write

   4 KBytes      22.903 MB/Sec     13.465 MB/Sec     11.811 MB/Sec     14.278 MB/Sec
   8 KBytes      38.806 MB/Sec     17.103 MB/Sec     27.235 MB/Sec     20.544 MB/Sec
  16 KBytes      69.600 MB/Sec     39.778 MB/Sec     31.153 MB/Sec     45.632 MB/Sec
  32 KBytes      89.292 MB/Sec     68.230 MB/Sec     52.291 MB/Sec     66.675 MB/Sec
  64 KBytes      102.582 MB/Sec    81.646 MB/Sec     74.672 MB/Sec     92.866 MB/Sec
 128 KBytes      145.838 MB/Sec    95.193 MB/Sec     92.866 MB/Sec     106.303 MB/Sec
 256 KBytes      120.098 MB/Sec    134.444 MB/Sec    117.336 MB/Sec    120.036 MB/Sec
 512 KBytes      144.590 MB/Sec    127.068 MB/Sec    142.767 MB/Sec    123.116 MB/Sec
1024 KBytes      157.068 MB/Sec    131.973 MB/Sec    162.777 MB/Sec    134.935 MB/Sec

Standard Ave     98.975 MB/Sec     78.767 MB/Sec     79.212 MB/Sec     80.487 MB/Sec


Large Test Results:
Test Cycles: 1

Transfer Size         Large Read         Large Write

  2 MBytes           176.924 MB/Sec     138.673 MB/Sec
  3 MBytes           183.886 MB/Sec     134.700 MB/Sec
  4 MBytes           187.616 MB/Sec     152.530 MB/Sec
  5 MBytes           148.410 MB/Sec     146.517 MB/Sec
  6 MBytes           183.238 MB/Sec     139.305 MB/Sec
  7 MBytes           188.210 MB/Sec     140.010 MB/Sec
  8 MBytes           189.264 MB/Sec     150.525 MB/Sec
  9 MBytes           171.884 MB/Sec     141.944 MB/Sec
 10 MBytes           189.079 MB/Sec     159.565 MB/Sec

 Large Ave           179.835 MB/Sec     144.863 MB/Sec


Extended Test Results:
Test Cycles: 1

Transfer Size        Extended Read      Extended Write

 20 MBytes           190.006 MB/Sec     163.112 MB/Sec
 30 MBytes           187.915 MB/Sec     163.123 MB/Sec
 40 MBytes           192.955 MB/Sec     148.241 MB/Sec
 50 MBytes           191.385 MB/Sec     148.565 MB/Sec
 60 MBytes           192.765 MB/Sec     146.736 MB/Sec
 70 MBytes           191.935 MB/Sec     147.386 MB/Sec
 80 MBytes           192.290 MB/Sec     146.618 MB/Sec
 90 MBytes           190.708 MB/Sec     148.041 MB/Sec
100 MBytes           190.230 MB/Sec     150.856 MB/Sec

Extended Ave         191.132 MB/Sec     151.409 MB/Sec


Custom Test Results:
Transfer Size: 200 Megabytes
Transfer Count: 10
Test Cycles: 2
Contiguous File Only: No

Maximum Measured Read Speed: 193.291 MB/Sec
Average Measured Read Speed: 192.015 MB/Sec
Minimum Measured Read Speed: 184.828 MB/Sec
Maximum Measured Write Speed: 151.308 MB/Sec
Average Measured Write Speed: 144.751 MB/Sec
Minimum Measured Write Speed: 143.392 MB/Sec


QuickBench(TM) 4.0 Test Results
�2000-2007 Intech Software Corp.
Test file created on Sunday, June 9, 2024 at 11:30:27 AM
Test Volume Name: SAS2
Test Volume Type: MacOS Extended
Test Volume Size: 223.445 Gigabytes
Test Volume Free Space: 215.416 Gigabytes
Allow Disk Cache Effects: Enabled
Read Cache Delay:      30 milliseconds
Write Cache Delay:     20 milliseconds
All reads and writes performed asychronously

Standard Test Results:
Test Cycles: 1

Transfer Size   Sequential Read   Sequential Write    Random Read      Random Write

   4 KBytes      16.717 MB/Sec     19.187 MB/Sec     12.650 MB/Sec     18.170 MB/Sec
   8 KBytes      30.341 MB/Sec     27.069 MB/Sec     14.931 MB/Sec     30.315 MB/Sec
  16 KBytes      52.909 MB/Sec     52.026 MB/Sec     36.154 MB/Sec     52.202 MB/Sec
  32 KBytes      78.058 MB/Sec     72.463 MB/Sec     48.662 MB/Sec     64.379 MB/Sec
  64 KBytes      108.965 MB/Sec    100.631 MB/Sec    63.346 MB/Sec     92.167 MB/Sec
 128 KBytes      117.846 MB/Sec    118.286 MB/Sec    88.286 MB/Sec     114.862 MB/Sec
 256 KBytes      98.221 MB/Sec     132.246 MB/Sec    115.317 MB/Sec    131.484 MB/Sec
 512 KBytes      154.434 MB/Sec    130.711 MB/Sec    138.622 MB/Sec    143.153 MB/Sec
1024 KBytes      166.448 MB/Sec    127.209 MB/Sec    161.858 MB/Sec    147.509 MB/Sec

Standard Ave     91.549 MB/Sec     86.648 MB/Sec     75.536 MB/Sec     88.249 MB/Sec


Large Test Results:
Test Cycles: 1

Transfer Size         Large Read         Large Write

  2 MBytes           167.999 MB/Sec     153.907 MB/Sec
  3 MBytes           180.932 MB/Sec     157.760 MB/Sec
  4 MBytes           186.127 MB/Sec     155.911 MB/Sec
  5 MBytes           184.240 MB/Sec     160.417 MB/Sec
  6 MBytes           186.862 MB/Sec     160.744 MB/Sec
  7 MBytes           186.256 MB/Sec     161.276 MB/Sec
  8 MBytes           188.333 MB/Sec     161.440 MB/Sec
  9 MBytes           186.387 MB/Sec     162.110 MB/Sec
 10 MBytes           187.910 MB/Sec     109.449 MB/Sec

 Large Ave           183.894 MB/Sec     153.668 MB/Sec


Extended Test Results:
Test Cycles: 1

Transfer Size        Extended Read      Extended Write

 20 MBytes           192.055 MB/Sec     163.206 MB/Sec
 30 MBytes           193.083 MB/Sec     163.504 MB/Sec
 40 MBytes           188.495 MB/Sec     163.114 MB/Sec
 50 MBytes           184.001 MB/Sec     163.963 MB/Sec
 60 MBytes           193.655 MB/Sec     159.127 MB/Sec
 70 MBytes           193.415 MB/Sec     162.800 MB/Sec
 80 MBytes           181.958 MB/Sec     164.064 MB/Sec
 90 MBytes           192.816 MB/Sec     163.981 MB/Sec
100 MBytes           191.920 MB/Sec     163.693 MB/Sec

Extended Ave         190.155 MB/Sec     163.050 MB/Sec


Custom Test Results:
Transfer Size: 200 Megabytes
Transfer Count: 10
Test Cycles: 2
Contiguous File Only: No

Maximum Measured Read Speed: 193.692 MB/Sec
Average Measured Read Speed: 192.655 MB/Sec
Minimum Measured Read Speed: 190.020 MB/Sec
Maximum Measured Write Speed: 164.229 MB/Sec
Average Measured Write Speed: 163.789 MB/Sec
Minimum Measured Write Speed: 161.111 MB/Sec

Top that if you can, I think I can do better if you want to go RAID.

ervus · Jun 9, 2024

[FAQ] PowerPC-Mac Benchmark link list/index

Hi, why this, can't I/people google? Every now and then, when we talk about benchmarks here or I want to know look up something, I have to search what I need, again. Google? Well, let's say I only google barefeats benchmarks. For some reason it doesn't find what I was aiming for. Merely I get...

forums.macrumors.com

DearthnVader · Jun 9, 2024

DearthnVader said:

I'll get us started.

Quickbench X single drive performance:

Code:

QuickBench(TM) 4.0 Test Results
�2000-2007 Intech Software Corp.
Test file created on Sunday, June 9, 2024 at 11:26:51 AM
Test Volume Name: SAS2
Test Volume Type: MacOS Extended
Test Volume Size: 223.445 Gigabytes
Test Volume Free Space: 215.416 Gigabytes
Allow Disk Cache Effects: Disabled
All reads and writes performed sychronously

Standard Test Results:
Test Cycles: 1

Transfer Size   Sequential Read   Sequential Write    Random Read      Random Write

   4 KBytes      22.903 MB/Sec     13.465 MB/Sec     11.811 MB/Sec     14.278 MB/Sec
   8 KBytes      38.806 MB/Sec     17.103 MB/Sec     27.235 MB/Sec     20.544 MB/Sec
  16 KBytes      69.600 MB/Sec     39.778 MB/Sec     31.153 MB/Sec     45.632 MB/Sec
  32 KBytes      89.292 MB/Sec     68.230 MB/Sec     52.291 MB/Sec     66.675 MB/Sec
  64 KBytes      102.582 MB/Sec    81.646 MB/Sec     74.672 MB/Sec     92.866 MB/Sec
 128 KBytes      145.838 MB/Sec    95.193 MB/Sec     92.866 MB/Sec     106.303 MB/Sec
 256 KBytes      120.098 MB/Sec    134.444 MB/Sec    117.336 MB/Sec    120.036 MB/Sec
 512 KBytes      144.590 MB/Sec    127.068 MB/Sec    142.767 MB/Sec    123.116 MB/Sec
1024 KBytes      157.068 MB/Sec    131.973 MB/Sec    162.777 MB/Sec    134.935 MB/Sec

Standard Ave     98.975 MB/Sec     78.767 MB/Sec     79.212 MB/Sec     80.487 MB/Sec


Large Test Results:
Test Cycles: 1

Transfer Size         Large Read         Large Write

  2 MBytes           176.924 MB/Sec     138.673 MB/Sec
  3 MBytes           183.886 MB/Sec     134.700 MB/Sec
  4 MBytes           187.616 MB/Sec     152.530 MB/Sec
  5 MBytes           148.410 MB/Sec     146.517 MB/Sec
  6 MBytes           183.238 MB/Sec     139.305 MB/Sec
  7 MBytes           188.210 MB/Sec     140.010 MB/Sec
  8 MBytes           189.264 MB/Sec     150.525 MB/Sec
  9 MBytes           171.884 MB/Sec     141.944 MB/Sec
 10 MBytes           189.079 MB/Sec     159.565 MB/Sec

 Large Ave           179.835 MB/Sec     144.863 MB/Sec


Extended Test Results:
Test Cycles: 1

Transfer Size        Extended Read      Extended Write

 20 MBytes           190.006 MB/Sec     163.112 MB/Sec
 30 MBytes           187.915 MB/Sec     163.123 MB/Sec
 40 MBytes           192.955 MB/Sec     148.241 MB/Sec
 50 MBytes           191.385 MB/Sec     148.565 MB/Sec
 60 MBytes           192.765 MB/Sec     146.736 MB/Sec
 70 MBytes           191.935 MB/Sec     147.386 MB/Sec
 80 MBytes           192.290 MB/Sec     146.618 MB/Sec
 90 MBytes           190.708 MB/Sec     148.041 MB/Sec
100 MBytes           190.230 MB/Sec     150.856 MB/Sec

Extended Ave         191.132 MB/Sec     151.409 MB/Sec


Custom Test Results:
Transfer Size: 200 Megabytes
Transfer Count: 10
Test Cycles: 2
Contiguous File Only: No

Maximum Measured Read Speed: 193.291 MB/Sec
Average Measured Read Speed: 192.015 MB/Sec
Minimum Measured Read Speed: 184.828 MB/Sec
Maximum Measured Write Speed: 151.308 MB/Sec
Average Measured Write Speed: 144.751 MB/Sec
Minimum Measured Write Speed: 143.392 MB/Sec


QuickBench(TM) 4.0 Test Results
�2000-2007 Intech Software Corp.
Test file created on Sunday, June 9, 2024 at 11:30:27 AM
Test Volume Name: SAS2
Test Volume Type: MacOS Extended
Test Volume Size: 223.445 Gigabytes
Test Volume Free Space: 215.416 Gigabytes
Allow Disk Cache Effects: Enabled
Read Cache Delay:      30 milliseconds
Write Cache Delay:     20 milliseconds
All reads and writes performed asychronously

Standard Test Results:
Test Cycles: 1

Transfer Size   Sequential Read   Sequential Write    Random Read      Random Write

   4 KBytes      16.717 MB/Sec     19.187 MB/Sec     12.650 MB/Sec     18.170 MB/Sec
   8 KBytes      30.341 MB/Sec     27.069 MB/Sec     14.931 MB/Sec     30.315 MB/Sec
  16 KBytes      52.909 MB/Sec     52.026 MB/Sec     36.154 MB/Sec     52.202 MB/Sec
  32 KBytes      78.058 MB/Sec     72.463 MB/Sec     48.662 MB/Sec     64.379 MB/Sec
  64 KBytes      108.965 MB/Sec    100.631 MB/Sec    63.346 MB/Sec     92.167 MB/Sec
 128 KBytes      117.846 MB/Sec    118.286 MB/Sec    88.286 MB/Sec     114.862 MB/Sec
 256 KBytes      98.221 MB/Sec     132.246 MB/Sec    115.317 MB/Sec    131.484 MB/Sec
 512 KBytes      154.434 MB/Sec    130.711 MB/Sec    138.622 MB/Sec    143.153 MB/Sec
1024 KBytes      166.448 MB/Sec    127.209 MB/Sec    161.858 MB/Sec    147.509 MB/Sec

Standard Ave     91.549 MB/Sec     86.648 MB/Sec     75.536 MB/Sec     88.249 MB/Sec


Large Test Results:
Test Cycles: 1

Transfer Size         Large Read         Large Write

  2 MBytes           167.999 MB/Sec     153.907 MB/Sec
  3 MBytes           180.932 MB/Sec     157.760 MB/Sec
  4 MBytes           186.127 MB/Sec     155.911 MB/Sec
  5 MBytes           184.240 MB/Sec     160.417 MB/Sec
  6 MBytes           186.862 MB/Sec     160.744 MB/Sec
  7 MBytes           186.256 MB/Sec     161.276 MB/Sec
  8 MBytes           188.333 MB/Sec     161.440 MB/Sec
  9 MBytes           186.387 MB/Sec     162.110 MB/Sec
 10 MBytes           187.910 MB/Sec     109.449 MB/Sec

 Large Ave           183.894 MB/Sec     153.668 MB/Sec


Extended Test Results:
Test Cycles: 1

Transfer Size        Extended Read      Extended Write

 20 MBytes           192.055 MB/Sec     163.206 MB/Sec
 30 MBytes           193.083 MB/Sec     163.504 MB/Sec
 40 MBytes           188.495 MB/Sec     163.114 MB/Sec
 50 MBytes           184.001 MB/Sec     163.963 MB/Sec
 60 MBytes           193.655 MB/Sec     159.127 MB/Sec
 70 MBytes           193.415 MB/Sec     162.800 MB/Sec
 80 MBytes           181.958 MB/Sec     164.064 MB/Sec
 90 MBytes           192.816 MB/Sec     163.981 MB/Sec
100 MBytes           191.920 MB/Sec     163.693 MB/Sec

Extended Ave         190.155 MB/Sec     163.050 MB/Sec


Custom Test Results:
Transfer Size: 200 Megabytes
Transfer Count: 10
Test Cycles: 2
Contiguous File Only: No

Maximum Measured Read Speed: 193.692 MB/Sec
Average Measured Read Speed: 192.655 MB/Sec
Minimum Measured Read Speed: 190.020 MB/Sec
Maximum Measured Write Speed: 164.229 MB/Sec
Average Measured Write Speed: 163.789 MB/Sec
Minimum Measured Write Speed: 161.111 MB/Sec

Top that if you can, I think I can do better if you want to go RAID.

Nobody?

Code:

QuickBench(TM) 4.0 Test Results
�2000-2007 Intech Software Corp.
Test file created on Sunday, June 9, 2024 at 2:11:27 PM
Test Volume Name: SAS RAID Set 1
Test Volume Type: MacOS Extended
Test Volume Size: 446.892 Gigabytes
Test Volume Free Space: 438.947 Gigabytes
Allow Disk Cache Effects: Disabled
All reads and writes performed sychronously

Standard Test Results:
Test Cycles: 1

Transfer Size   Sequential Read   Sequential Write    Random Read      Random Write

   4 KBytes      23.398 MB/Sec     14.829 MB/Sec     9.583 MB/Sec      14.292 MB/Sec
   8 KBytes      28.691 MB/Sec     24.107 MB/Sec     27.844 MB/Sec     23.342 MB/Sec
  16 KBytes      46.396 MB/Sec     49.215 MB/Sec     46.137 MB/Sec     46.525 MB/Sec
  32 KBytes      70.811 MB/Sec     75.818 MB/Sec     61.062 MB/Sec     69.669 MB/Sec
  64 KBytes      123.298 MB/Sec    99.272 MB/Sec     87.129 MB/Sec     91.763 MB/Sec
 128 KBytes      171.533 MB/Sec    117.641 MB/Sec    108.750 MB/Sec    111.651 MB/Sec
 256 KBytes      151.664 MB/Sec    130.665 MB/Sec    127.241 MB/Sec    119.916 MB/Sec
 512 KBytes      148.901 MB/Sec    140.878 MB/Sec    150.927 MB/Sec    123.173 MB/Sec
1024 KBytes      185.684 MB/Sec    133.134 MB/Sec    171.669 MB/Sec    126.293 MB/Sec

Standard Ave     105.597 MB/Sec    87.284 MB/Sec     87.816 MB/Sec     80.736 MB/Sec


Large Test Results:
Test Cycles: 1

Transfer Size         Large Read         Large Write

  2 MBytes           203.718 MB/Sec     138.369 MB/Sec
  3 MBytes           205.974 MB/Sec     146.907 MB/Sec
  4 MBytes           206.525 MB/Sec     143.662 MB/Sec
  5 MBytes           211.116 MB/Sec     147.384 MB/Sec
  6 MBytes           211.331 MB/Sec     159.059 MB/Sec
  7 MBytes           212.023 MB/Sec     147.614 MB/Sec
  8 MBytes           212.781 MB/Sec     148.546 MB/Sec
  9 MBytes           167.285 MB/Sec     158.480 MB/Sec
 10 MBytes           214.645 MB/Sec     150.441 MB/Sec

 Large Ave           205.044 MB/Sec     148.940 MB/Sec


Extended Test Results:
Test Cycles: 1

Transfer Size        Extended Read      Extended Write

 20 MBytes           217.030 MB/Sec     177.789 MB/Sec
 30 MBytes           218.011 MB/Sec     166.857 MB/Sec
 40 MBytes           217.806 MB/Sec     153.244 MB/Sec
 50 MBytes           218.652 MB/Sec     152.652 MB/Sec
 60 MBytes           218.384 MB/Sec     153.283 MB/Sec
 70 MBytes           219.075 MB/Sec     153.842 MB/Sec
 80 MBytes           218.667 MB/Sec     153.653 MB/Sec
 90 MBytes           218.694 MB/Sec     151.426 MB/Sec
100 MBytes           218.637 MB/Sec     153.702 MB/Sec

Extended Ave         218.329 MB/Sec     157.383 MB/Sec


Custom Test Results:
Transfer Size: 200 Megabytes
Transfer Count: 10
Test Cycles: 2
Contiguous File Only: No

Maximum Measured Read Speed: 220.565 MB/Sec
Average Measured Read Speed: 220.012 MB/Sec
Minimum Measured Read Speed: 215.267 MB/Sec
Maximum Measured Write Speed: 160.545 MB/Sec
Average Measured Write Speed: 153.428 MB/Sec
Minimum Measured Write Speed: 152.125 MB/Sec


QuickBench(TM) 4.0 Test Results
�2000-2007 Intech Software Corp.
Test file created on Sunday, June 9, 2024 at 2:13:22 PM
Test Volume Name: SAS RAID Set 1
Test Volume Type: MacOS Extended
Test Volume Size: 446.892 Gigabytes
Test Volume Free Space: 438.947 Gigabytes
Allow Disk Cache Effects: Enabled
Read Cache Delay:      30 milliseconds
Write Cache Delay:     20 milliseconds
All reads and writes performed asychronously

Standard Test Results:
Test Cycles: 1

Transfer Size   Sequential Read   Sequential Write    Random Read      Random Write

   4 KBytes      17.812 MB/Sec     16.741 MB/Sec     12.244 MB/Sec     15.847 MB/Sec
   8 KBytes      23.510 MB/Sec     27.491 MB/Sec     22.183 MB/Sec     27.941 MB/Sec
  16 KBytes      35.612 MB/Sec     49.572 MB/Sec     25.824 MB/Sec     49.417 MB/Sec
  32 KBytes      45.775 MB/Sec     72.117 MB/Sec     50.682 MB/Sec     76.460 MB/Sec
  64 KBytes      104.390 MB/Sec    103.915 MB/Sec    80.113 MB/Sec     104.098 MB/Sec
 128 KBytes      115.218 MB/Sec    122.385 MB/Sec    108.115 MB/Sec    125.221 MB/Sec
 256 KBytes      153.737 MB/Sec    141.088 MB/Sec    120.244 MB/Sec    144.757 MB/Sec
 512 KBytes      153.275 MB/Sec    151.811 MB/Sec    149.409 MB/Sec    158.436 MB/Sec
1024 KBytes      181.234 MB/Sec    157.443 MB/Sec    169.380 MB/Sec    165.760 MB/Sec

Standard Ave     92.285 MB/Sec     93.618 MB/Sec     82.022 MB/Sec     96.438 MB/Sec


Large Test Results:
Test Cycles: 1

Transfer Size         Large Read         Large Write

  2 MBytes           197.602 MB/Sec     166.589 MB/Sec
  3 MBytes           201.909 MB/Sec     131.510 MB/Sec
  4 MBytes           205.397 MB/Sec     171.948 MB/Sec
  5 MBytes           208.614 MB/Sec     166.898 MB/Sec
  6 MBytes           210.918 MB/Sec     174.246 MB/Sec
  7 MBytes           211.265 MB/Sec     176.287 MB/Sec
  8 MBytes           212.074 MB/Sec     176.477 MB/Sec
  9 MBytes           213.661 MB/Sec     176.930 MB/Sec
 10 MBytes           212.059 MB/Sec     177.226 MB/Sec

 Large Ave           208.167 MB/Sec     168.679 MB/Sec


Extended Test Results:
Test Cycles: 1

Transfer Size        Extended Read      Extended Write

 20 MBytes           216.955 MB/Sec     177.617 MB/Sec
 30 MBytes           217.445 MB/Sec     179.122 MB/Sec
 40 MBytes           219.563 MB/Sec     173.236 MB/Sec
 50 MBytes           219.529 MB/Sec     178.069 MB/Sec
 60 MBytes           219.477 MB/Sec     179.602 MB/Sec
 70 MBytes           220.151 MB/Sec     179.584 MB/Sec
 80 MBytes           220.333 MB/Sec     179.672 MB/Sec
 90 MBytes           216.838 MB/Sec     179.725 MB/Sec
100 MBytes           220.355 MB/Sec     179.737 MB/Sec

Extended Ave         218.961 MB/Sec     178.485 MB/Sec


Custom Test Results:
Transfer Size: 200 Megabytes
Transfer Count: 10
Test Cycles: 2
Contiguous File Only: No

Maximum Measured Read Speed: 220.783 MB/Sec
Average Measured Read Speed: 220.166 MB/Sec
Minimum Measured Read Speed: 216.569 MB/Sec
Maximum Measured Write Speed: 179.937 MB/Sec
Average Measured Write Speed: 179.820 MB/Sec
Minimum Measured Write Speed: 178.292 MB/Sec

220MB/s can anyone top that?

Amethyst1 · Jun 9, 2024

DearthnVader said:
220MB/s can anyone top that?

800 MB/s.

joevt · Jun 9, 2024

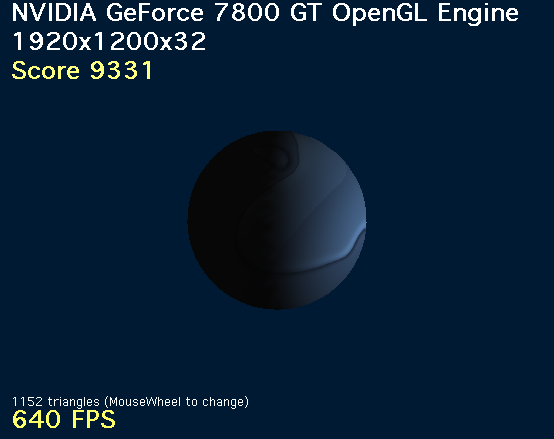

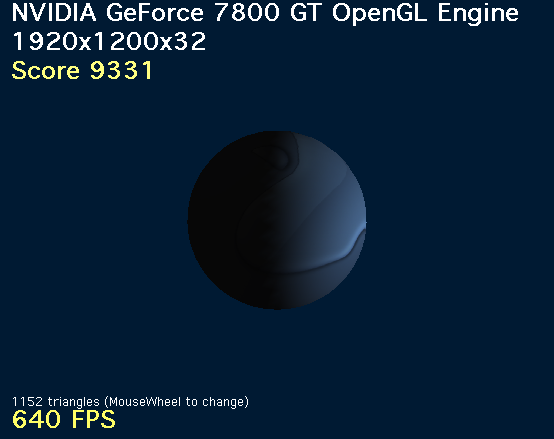

OpenMark benchmarks:
https://forums.macrumors.com/threads/some-ppc-openmark-benchmarks.1848060/

I recently tested a 7800GT Mac Edition in a B&W G3:
https://forums.macrumors.com/thread...eige-power-macintosh-g3.2303689/post-33188527

DearthnVader · Jun 10, 2024

Amethyst1 said:
800 MB/s.

That's pretty impressive, you got me beat. Best I could do would be 266MB/s in theory over 64bit PCI 33mhz.

I'll have to get one of your setups and see if I can make it bootable.

Amethyst1 · Jun 10, 2024

DearthnVader said:
I'll have to get one of your setups and see if I can make it bootable.

The setup I linked to is not mine. I use my AHCI blades with Intel Macs.

DearthnVader · Jun 10, 2024

Amethyst1 said:
The setup I linked to is not mine. I use my AHCI blades with Intel Macs.

What was the max size they sold AHCI blades in?

They quit making them in favor of NVMe pretty early on didn't they?

Amethyst1 · Jun 10, 2024

DearthnVader said:
What was the max size they sold AHCI blades in?

1 TB AFAIK.

DearthnVader · Jun 10, 2024

Amethyst1 said:
1 TB AFAIK.

I take it they can be used in those 4x M.2 PCI-E carrier cards with the PCI-E switch chip?

joevt · Jun 10, 2024

Should be able to beat the PCIe gen 1 x4 limit of Quad G5 Mac with a PCIe bridge like the one used in the Netstor NA255A. It should allow up to PCIe gen 1 x16 speed.

I don't have an AHCI NVMe to test that. Does Linux for Quad G5 Mac have NVMe driver? There was a NVMe driver made for Mac but it wasn't open source and was made for Sierra or later. The NVMe website has documentation and sample code so anyone could recreate a driver for Mac OS X.

The Netsor NA255A can connect to non-PCIe Macs using a PCI to PCIe bridge, but the best such bridge is limited to PCIe gen 1 x4 and usually only the PCIe gen 1 x1 bridges can be found and those are usually limited to 32 bit 33MHz. Review the "PCI Adapters" and "PCI Speeds" sections at
https://forums.macrumors.com/thread...eige-power-macintosh-g3.2303689/post-30082400

DearthnVader · Jun 10, 2024

joevt said:
Does Linux for Quad G5 Mac have NVMe driver?

Yes, it should work with any of the latest kernels.

Certificate of Excellence · Jun 13, 2024

System Info
Xbench Version 1.3
System Version 10.5.8 (9L31a)
Physical RAM 1536 MB
Model PowerMac3,5
Processor PowerPC G4x2 @ 1.00 GHz
Version 7455 (Apollo) v2.1
L1 Cache 32K (instruction), 32K (data)
L2 Cache 256K @ 1.00 GHz
L3 Cache 2048K @ 250 MHz
Bus Frequency 134 MHz
Video Card ATY,RV250
Drive Type Netac SSD 120GB Netac SSD 120GB

Disk Test 97.65
Sequential 64.59
Uncached Write 83.21 51.09 MB/sec [4K blocks]
Uncached Write 84.26 47.67 MB/sec [256K blocks]
Uncached Read 53.45 15.64 MB/sec [4K blocks]
Uncached Read 51.74 26.00 MB/sec [256K blocks]
Random 199.96
Uncached Write 256.59 27.16 MB/sec [4K blocks]
Uncached Write 141.00 45.14 MB/sec [256K blocks]
Uncached Read 1404.68 9.95 MB/sec [4K blocks]
Uncached Read 120.44 22.35 MB/sec [256K blocks]

Certificate of Excellence · Jun 13, 2024

System Info
Xbench Version 1.3
System Version 10.5.9 (9L31b)
Physical RAM 12288 MB
Model PowerMac11,2
Processor PowerPC G5x2 @ 2.00 GHz
L1 Cache 64K (instruction), 32K (data)
L2 Cache 1024K @ 2.00 GHz
Bus Frequency 1 GHz
Drive Type Netac SSD 120GB Netac SSD 120GB

Disk Test 275.24
Sequential 184.62
Uncached Write 210.52 129.26 MB/sec [4K blocks]
Uncached Write 207.25 117.26 MB/sec [256K blocks]
Uncached Read 122.34 35.80 MB/sec [4K blocks]
Uncached Read 255.35 128.34 MB/sec [256K blocks]
Random 540.54
Uncached Write 384.53 40.71 MB/sec [4K blocks]
Uncached Write 368.69 118.03 MB/sec [256K blocks]
Uncached Read 3138.34 22.24 MB/sec [4K blocks]
Uncached Read 565.46 104.92 MB/sec [256K blocks]

davisdelo · Jun 14, 2024

Don't rely on these, i've had a few:

DearthnVader · Jun 14, 2024

davisdelo said:
Don't rely on these, i've had a few:

Impressive !

DearthnVader · Jun 23, 2024

joevt said:
I booted into Mac OS X 10.4.11 and did some OpenMark benchmarks (see attached). A Quad G5 has score 9331 for 1920x1080 while the B&W G4 has a score of 7372 and the Radeon 9200 is 1179.

I'm assuming you are using the StarTech 64bit PCI-X to PCI-E bridge?

For me, 10.4.11 flashed R580+ [Radeon X1950 XT], 66MHz mode in the PCI to PCI-E Bridge PowerMac G5 Dual 2.0GHz: Score 11751 @1920x1080.

PCI-X 100MHz slot.

What CPU is in the B&W?

joevt · Jun 23, 2024

DearthnVader said:
I'm assuming you are using the StarTech 64bit PCI-X to PCI-E bridge?

For me, 10.4.11 flashed R580+ [Radeon X1950 XT], 66MHz mode in the PCI to PCI-E Bridge PowerMac G5 Dual 2.0GHz: Score 11751 @1920x1080.

PCI-X 100MHz slot.

What CPU is in the B&W?

No, I have a Startech 32-bit PCI to PCIe bridge. The StarTech PCI-X to PCIe bridge is hard to get and expensive.
My Blue & White G3 has a Sonnet 1GHz G4 (66 MHz bus speed instead of 100MHz).

PPC Benchmarking Wiki

Suspended

Suspended

macrumors 6502

Suspended

macrumors G3

macrumors 604

Suspended

macrumors G3

Suspended

macrumors G3

Suspended

macrumors 604

Suspended

macrumors 6502a

macrumors 6502a

macrumors regular

Attachments

Suspended

Suspended

macrumors 604

Our Staff
