PPC Graphics Card Collections

Discussion in 'PowerPC Macs' started by bunnspecial, Aug 13, 2015.

  1. bunnspecial macrumors 603

    bunnspecial

    Joined:
    May 3, 2014
    Location:
    Kentucky
    #1
    Many of us who collect/use PPC Macs have-out of necessity or the desire to chase the last little bit of performance out of our machines-become collectors or hoarders of GPUs(depending on how you want to define it). Some of these cards are actually sort of rare, so I though it would be interesting to see what cards other members have. Here's my list. All are OEM/retail Mac cards unless otherwise noted. I also have multiple examples of several of these cards, particular the low end ones as I often remove them to make way for a better card.

    PCI
    Rage 128 Pro
    Radeon 7000
    Radeon 9200
    GEForce 5200(flashed, 256mb VRAM)

    AGP
    Rage 128(Sawtooth version w/VGA+DVI)
    Rage 128(ADC+VGA)
    Radeon 7500
    GEForce 2MX
    GEForce 2MX Twin-View
    GEForce 4MX
    GEForce 4Ti
    Radeon 8500
    Radeon 9000
    GEForce 5200
    Radeon 9600XT
    Radeon 9600 Pro(PC&Mac Retail)
    Radeon 9650
    GEForce 6800 GT Ultra
    Radeon X800XT(flashed from ATI FireGl X3)

    PCIe
    GEForce 6600
    GEForce 6600 LE
    GEForce 7800GT

  2. 128keaton macrumors 68020

    128keaton

    Joined:
    Jan 13, 2013
  3. eyoungren macrumors P6

    eyoungren

    Joined:
    Aug 31, 2011
    Location:
    Phoenix • 85037
    #3
    If your thread is only about cards that are not installed my list is limited.

    AGP:
    FireGL X3 (PC/Flashed)
    FireGL X3 (PC/Seller flashed)

    PCI:
    ATI Rage 128
    PNY NVIDIA GeForce FX 5200 256MB (Stole the heat sink from this for my Radeon 9800 Pro because the fan connections on the Pro are burned out). I have never been able to successfully flash this card and now with no heat sink it's unused.

    I also have an odd assortment of AGP/PCI cards that are either broken/repairable or missing heatsinks. Most of those are G5 cards and as I own no PowerMac G5 not worth my effort in trying to get any of them working properly.

  4. bunnspecial thread starter macrumors 603

    bunnspecial

    Joined:
    May 3, 2014
    Location:
    Kentucky
    #4
    I'm including cards installed-in fact most of the above are installed.

    Yes. The standard version uses the same faceplate as the Rage 128, so you can swap faceplates. The twin-view uses a different faceplate.

  5. 128keaton macrumors 68020

    128keaton

    Joined:
    Jan 13, 2013
    #5
    Ah, I might be checking Ebay soon.

  6. LightBulbFun macrumors 6502a

    LightBulbFun

    Joined:
    Nov 17, 2013
    Location:
    London UK
    #6
  7. eyoungren macrumors P6

    eyoungren

    Joined:
    Aug 31, 2011
    Location:
    Phoenix • 85037
    #7
    OK then.

    AGP: ATI Radeon 9800 Pro 128MB

    PCI: ATI Radeon 9200 64MB
    ATI Radeon 7000 (PC/Flashed)

  8. flyrod macrumors 6502

    flyrod

    Joined:
    Jan 12, 2015
    #8
    What happened to the powermac collection thread?

  9. harrymatic macrumors 6502

    Joined:
    Dec 30, 2013
    Location:
    United Kingdom
    #9
    I've got rather a lot - I'm currently using the X800XT.

    ATI Rage 128, 16MB (PCI)
    ATI Radeon, 32MB
    ATI Radeon 9600 Pro Mac / PC Edition, 256MB
    ATI Radeon 9800XT, 256MB (flashed)
    ATI Radeon X800XT, 256MB (flashed)
    nVidia GeForce 3 Ti200, 64MB (flashed)
    nVidia GeForce 4MX, 32MB
    nVidia GeForce 6800GT, 256MB (flashed)

    Unfortunately I can't use the 6800GT as they famously don't work with the MDD logic boards. It always causes a kernel panic when OS X starts up. (unless you're running in safe mode, which negates the card entirely as the system can't use hardware acceleration) Shame too, as it's a *really* good card.

  10. JaguarGod macrumors 6502

    JaguarGod

    Joined:
    Mar 27, 2010
    #10
    I guess I never thought about it but you're right! I have a bunch of video cards from over the past 20-some years just sitting around!

  11. 128keaton macrumors 68020

    128keaton

    Joined:
    Jan 13, 2013
    #11
    Ok, I have:
    2xATI Rage 128,
    2xGeforce 4MX (one in USPS transit),
    GeForce 6800 GT DDL.

    Not much at all really.

  12. Mnowell69, Aug 13, 2015
    Last edited: Aug 13, 2015

    Mnowell69 macrumors regular

    Mnowell69

    Joined:
    Jul 4, 2013
    Location:
    Bedford, UK
  13. CapnCrunch53 macrumors member

    CapnCrunch53

    Joined:
    Sep 9, 2012
    Location:
    Indiana
    #13
    Here's what I've got, in rough order of least-to-most powerful.

    ATI Rage 128GL 16MB (PCI)
    ATI Rage 128 16MB (PCI)
    3Dfx Voodoo2 12MB (PCI) (PC card, but not flashed)
    Nvidia GeForce4 MX 32MB (AGP)
    Nvidia GeForce4 Ti-4600 128MB (AGP)
    Nvidia GeForce 6600 (PCIE) (I'm not 100% sure this isn't a 6600LE)
    ATI Radeon 9800 Pro 128MB (AGP) (Flashed)
    ATI Radeon X1950XT 256MB (PCIE) (Flashed)

  14. Gamer9430 macrumors 68020

    Gamer9430

    Joined:
    Apr 22, 2014
    Location:
    Central New Jersey, USA
    #14
    Nothing, this is just specifically for GPUs for PPC macs. That thread is specifically for what PPC computers you own

  15. MagicBoy macrumors 68040

    MagicBoy

    Joined:
    May 28, 2006
    Location:
    Manchester, UK
    #15
    I've got a 3dfx Voodoo 3 PCI somewhere.

    Flashed it with a mac ROM and used it in my PowerMac 7200 for a couple of years. Sold the Mac, kept the graphics card. No idea why!

  16. val1984 macrumors member

    Joined:
    Jan 26, 2015
    #16
    So far:
    AGP
    - Mobility Radeon 9700 w/ 64 MB (in a PowerBook)
    PCIe
    - Geforce 6600 w/ 256 MB (Mac version)
    - Quadro FX 4500 w/ 512 MB (Mac version)

    If I remember well, you didn't have to flash it to use it on a Mac, right?

  17. MagicBoy macrumors 68040

    MagicBoy

    Joined:
    May 28, 2006
    Location:
    Manchester, UK
    #17
    Probably not. The Voodoo I/II were 3D only so didn't require boot support. The normal graphics output was passed through the 3Dfx card which switched the signal over with the click of a relay on the card. Most games used the proprietary Glide API, some like GLQuake used a cut down version of OpenGL IIRC.

    They ever work under OS X? Think I've still got an Orchid Righteous somewhere which I could try in the G5...

  18. val1984 macrumors member

    Joined:
    Jan 26, 2015
    #18
    To my knowledge, there has never been support for any 3dfx Voodoo card under OS X.

  19. CapnCrunch53 macrumors member

    CapnCrunch53

    Joined:
    Sep 9, 2012
    Location:
    Indiana
    #19
    Correct. I'm not certain it was always that way, but at least the newer drivers work fine with PC cards.

    This particular card was actually a spare I had leftover after I built my Voodoo2 SLI PC (had originally bought one card, then found a deal on two, so I had an extra). It is somewhat faulty with 2D textures, which I suspect is due to a missing surface mount component on the card where it must have been damaged, but otherwise it works fine. In Diablo II all it amounts to is a slightly glitchy-looking menu background; in Unreal Tournament, a mildly distorted HUD.

    Funnily enough, the Rage 128GL it is paired with was also originally bought for my SLI PC; I didn't realize until too late that it was a Mac card. But, I later bought a G3 B&W that was missing its OEM card, so it all worked out in the end!

  20. MacsRgr8, Aug 14, 2015
    Last edited: Aug 14, 2015

    MacsRgr8 macrumors 604

    MacsRgr8

    Joined:
    Sep 8, 2002
    Location:
    The Netherlands
    #20
    • All of these in use, all Apple PPC supported:

    PCI:
    3Dfx Voodoo 5500 Mac Edition (G3 B&W 400 Mhz)
    ATi Rage 7000 (G3 B&W 350 MHz)
    ATi Rage 128 (G3 B&W 300 Mhz)

    AGP:
    ATi Radeon 9000 (ADC, G4 Digital Audio)
    ATi Radeon 9800 Pro (G4 MDD)
    nVidia GeForce 2MX (ADC, G4 Cube)
    nVidia GeForce 2MX 64 MB VRAM Twin View (G4 QuickSilver)
    nVidia GeForce 4 Ti (Mac Edition) (G4 MDD >> can't find that card now... but I definitely must have it somewhere)
    nVidia GeForce 6800 Ultra DDL (G5 Dual 1.8 GHz - spare)

    PCIe:
    nVidia GeForce 7800 (G5 Quad)

  21. MacsRgr8 macrumors 604

    MacsRgr8

    Joined:
    Sep 8, 2002
    Location:
    The Netherlands
    #21
    That is correct.
    OS X will boot, but no 2D and/or 3D acceleration.

  22. flyproductions macrumors newbie

    flyproductions

    Joined:
    Jan 17, 2014
    #22

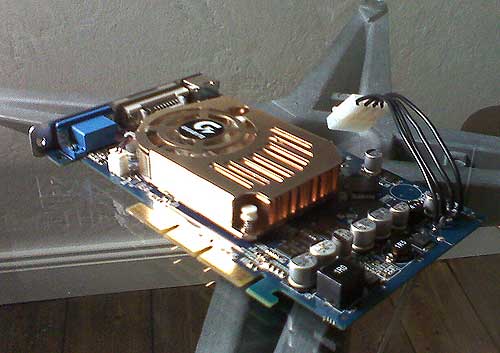

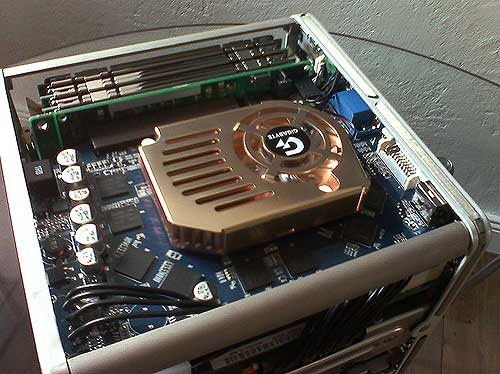

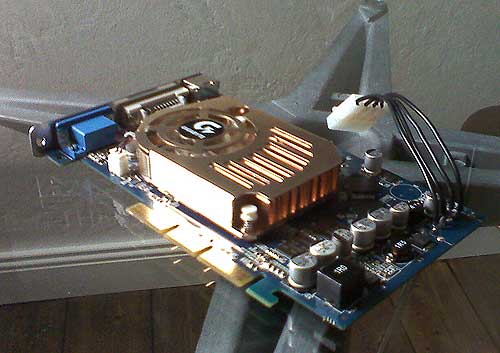

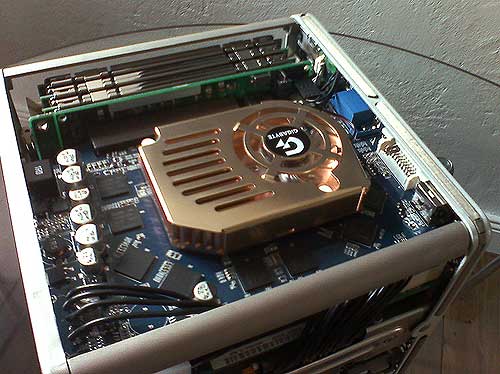

    Well, i can add the meanest thing i ever got to run in a cube to this collection. It's the one from my avatar pic. A flashed GeForce 6800XT.



    Sadly a Giga-C VRM is needed just to get it to run and there was no way to keep temperatures in a safe range inside the outer case. So this is not exactly what i would call a cube card.

    ;)

  23. 128keaton macrumors 68020

    128keaton

    Joined:
    Jan 13, 2013
    #23
    Its pretty slick though. I've wanted to trick out a cube for some time now.

  24. flyproductions macrumors newbie

    flyproductions

    Joined:
    Jan 17, 2014
    #24
    Yes, would have been a nice one. In most tasks faster than a Radeon 9800 Pro.

  25. flyproductions macrumors newbie

    flyproductions

    Joined:
    Jan 17, 2014
    #25
    So maybe i have some other little exotic pieces to add to the collection of PPC graphic boards.

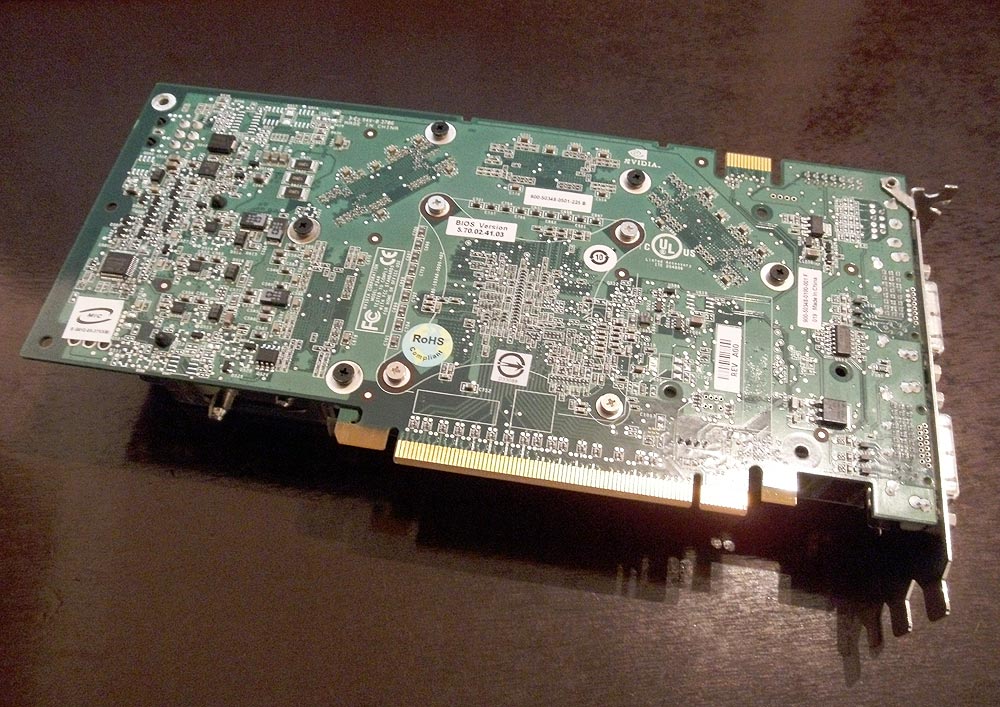

    Next one with a pic of the backside, to prove it is the Quadro with RAM-chips only on the frontside. It's a flashed PC-card and yes, it is PPC ready. :)


    I have seen discussion around this topic in some of the other threads. So if anyone still has one of these around and likes to use it in a G5, now there is an "unofficial" ROM-file for this one too.
