Pro 580 vs M395X - chalk and cheese"

Discussion in 'Mac and PC Games' started by imacken, Mar 28, 2018.

  1. imacken macrumors 65816

    Joined:
    Feb 28, 2010
    #1
    A couple of days ago, I upgraded from a late 2015 iMac 27" 4GHz i7 32Gb M395X to a 2017 27" 4.2GHz i7 24Gb Pro 580, and, wow, what a difference in terms of the GPU performance!

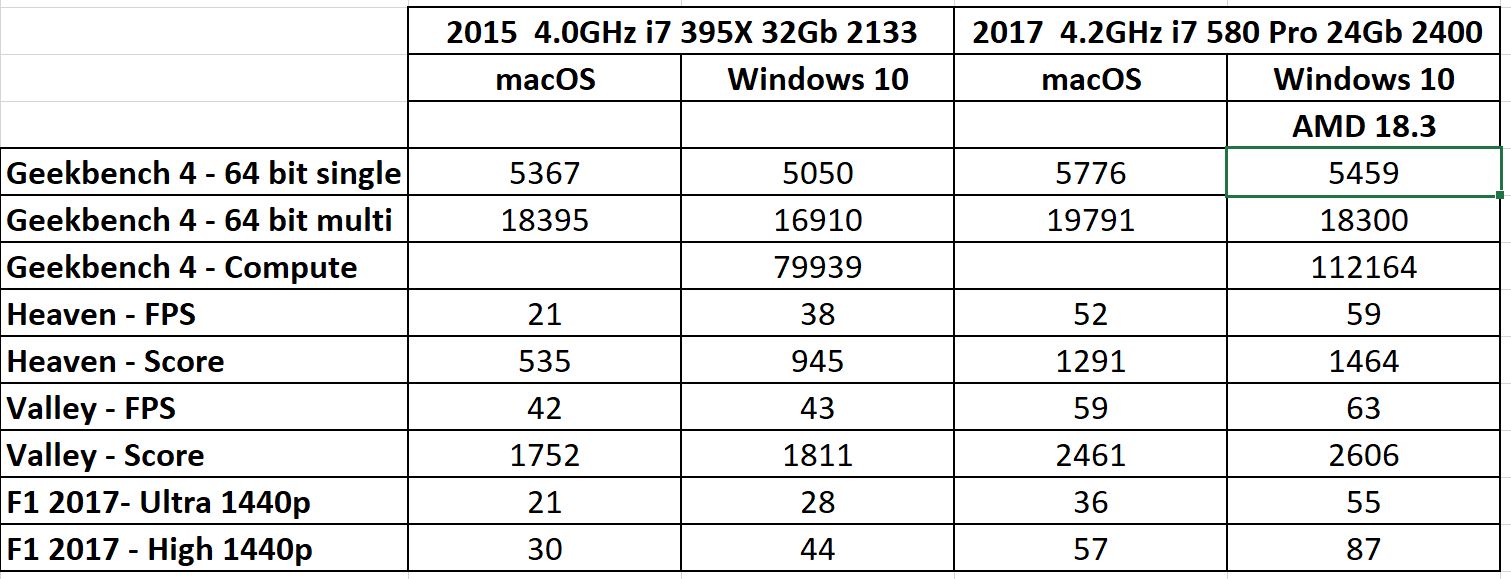

    See attached for some benchmarks.
    Geekbench 4 - unsurprisingly, not a huge difference given the CPUs involved, but still significant.
    Look at the others though, 50-100% improvement in frame rates. Amazing! (all @ 1440p)
    That table doesn't tell the whole story either. I'm seeing the same level of improvement in Hitman, Dishonored 2 and (most importantly for me) DCS. (I couldn't see any benchmarking facility in these.)
    I was hoping for a 30% improvement, so I am very pleased and impressed.
    Unfortunately, the one thing that stands out, is that macOS is still way behind Windows in terms of performance. I know these BMs don't use Metal, but Hitman does I think, and the difference is the same in that. Plus Deus Ex: HD showed a similar pattern for me. sn.JPG

  2. jeanlain macrumors 65816

    Joined:
    Mar 14, 2009
    #2
    Metal games by Feral are within 80% of Windows performance on my 580 iMac (tested on Hitman, DiRT Rally and Deus EX MD with Windows 10 Fall creator and latest drivers installed from bootcampdrivers). I haven't tested hitman recently, but it used to show the smallest performance delta, and it ran just as well as on Windows at high resolution (4k).
    I don't know about F1 2017, but I've found that performance in DiRT (which also uses the EGO engine on Metal) is much worse if MSAA is enabled, as there appears to be a MSAA bug in Metal right now.

  3. imacken thread starter macrumors 65816

    Joined:
    Feb 28, 2010
    #3
    We’ve had this discussion before in another thread. Strange that on my 2 different iMacs we see different - and yet similar pattern - Windows vs macOS performance gaps.
    What CPU and RAM do you have? Could you run Valley and Heaven and post results?
    However, the main point of my post was to demonstrate the huge improvement the 580 is over the 395X.

  4. jeanlain macrumors 65816

    Joined:
    Mar 14, 2009
    #4
    I can post results after updating to 10.13.4. I can also report on Deus Ex and Hitman.
    But I need to know the settings you use.
    I have 24GB ram and a core i5.

  5. imacken thread starter macrumors 65816

    Joined:
    Feb 28, 2010
    #5
    For Heaven and Valley, I just use default 1440p settings.
    Interesting that we have different CPUs. I believe that the i7 gives much better results in some games when the multi threading kicks in.

  6. jeanlain macrumors 65816

    Joined:
    Mar 14, 2009
    #6
    The unigine results are pretty good, so I don't think we'll see any difference with my system.

  7. imacken thread starter macrumors 65816

    Joined:
    Feb 28, 2010
    #7
    It'll be interesting to see the effect of the different CPUs though.

  8. jeanlain macrumors 65816

    Joined:
    Mar 14, 2009
  9. imacken thread starter macrumors 65816

    Joined:
    Feb 28, 2010
    #9
    I wasn't talking about Unigine in that context, more games/sims like DCS. Still be interested to see your results.

  10. jeanlain macrumors 65816

    Joined:
    Mar 14, 2009
    #10
    I'm not sure what these are. The settings that appear upon launching the app may well be those used of some previous tests. Because in Heaven, I'm getting only 32 fps.

  11. imacken thread starter macrumors 65816

    Joined:
    Feb 28, 2010
    #11
    DX11, Quality High, Tessellatio, Stereo, 3D Multi Monitor disabled, anti-aliasing off, fuull screen, 1440p.

  12. jeanlain macrumors 65816

    Joined:
    Mar 14, 2009
    #12
    On macOS as well (except DX11)?
    What is the tessellation level and the Valley settings?

  13. imacken thread starter macrumors 65816

    Joined:
    Feb 28, 2010
    #13
    As above Tessellation disabled. I need to review this as the Mac default appears to be Medium Quality and System resolution.
    I need to rerun these tests making sure the settings are EXACTLY the same on both platforms.
    Same with Valley.
    Run them both with Quality High, everything else off or disabled and at 'system' resolution.

  14. jeanlain macrumors 65816

    Joined:
    Mar 14, 2009
    #14
    I'm getting lower numbers than yours on macOS, and I remember seing larges differences between openGL and DX11 for the unigine test in general. I suspect your macOS tests used lower-quality settings.

  15. imacken thread starter macrumors 65816

    Joined:
    Feb 28, 2010
    #15
    Yes, I think you're right. I didn't notice that the default settings for Win and Mac were different!
    Anyway, I've just rerun Mac version and am now getting 47/1951 and 38/957 in Valley and Heaven in High Quality.
    I'll retry Windows.
    --- Post Merged, Mar 30, 2018 ---
    So, the Windows results I initially posted are still valid. Pity, as this makes the situation with the Mac even worse.
    On a level playing field @2560x1440 and high quality, the results are:
    Valley - Mac 47/1951 Win 63/2606
    Heaven - Mac 38/957 Win 59/1464
    Hmm...

  16. jeanlain, Mar 30, 2018
    Last edited: Mar 30, 2018

    jeanlain macrumors 65816

    Joined:
    Mar 14, 2009
    #16
    Yeah. Unigine on macOS is pretty bad, mainly due to the openGL implementation. I'm more curious about the Metal results. But I can't test F1 2017 as I don't have it...
    EDIT: I'm getting 37 and 45 fps in Heaven and Valley.

  17. imacken thread starter macrumors 65816

    Joined:
    Feb 28, 2010
    #17
    So, what were your results on Balley and Heaven?

  18. jeanlain macrumors 65816

    Joined:
    Mar 14, 2009
  19. imacken thread starter macrumors 65816

    Joined:
    Feb 28, 2010
    #19
    Hmmm.. yes, I agree these tests are not ideal on Mac. What were your results on Windows?

  20. jeanlain, Mar 30, 2018
    Last edited: Mar 31, 2018

    jeanlain macrumors 65816

    Joined:
    Mar 14, 2009
    #20
    Not tested yet, but I expect similar results to yours.

    EDIT: on Heaven, I get 57.9 fps in DX11, 47 in openGL
    On Valley: 61.9, 54.2.

  21. imacken thread starter macrumors 65816

    Joined:
    Feb 28, 2010
    #21
    Hmmm.. interesting, I guess these tests are almost 100% GPU based as we have almost the same results.
    Would be good to do a game comparison. Do you use DCS?
