Problem after Dual 4.1 upgrade only one cpu!

Discussion in 'Mac Pro' started by Powermange, Jan 13, 2015.

  1. Powermange, Jan 13, 2015
    Last edited: Jan 13, 2015

    Powermange macrumors member

    Powermange

    Joined:
    Oct 1, 2013
    Location:
    Sweden
    #1
    Hi sat down to upgrade my 2009 Mac Pro (5.1 flashed) with eBay X5677's (with IHS) today. I used washers (unsure why they do not make contact with studs) and thermal cleaning and paste and pad strips. I unhooked the fan connector and plugged them in manually before mounting cpu heatsink. All that seemed good.



    I took my time and all went well imo. Held my thumbs and booted up, looked good, much faster boot time and general responsiveness. But system is showing only 1 CPU 4 Cores and it should be 2 (and 8). No other faults reported. Memory is showing 3 out of 6 installed (initially it showed 1066mhz speed but a Pram reset fixed that).

    Is there a way to figure out which cpu is at fault? I can see no lights on the cpu board.

    Any other good advice?

    Is this normal? can the system run on 1 CPU? Can the dual cpu system be used with only one CPU?

    All help much appreciated?

    Daniel (SWEDEN)


    Attached Files:

  2. Powermange thread starter macrumors member

    Powermange

    Joined:
    Oct 1, 2013
    Location:
    Sweden
    #2
    Whoo, oops!

    Note to self, fault find a little before asking for help ;-/

    To others doing this upgrade (and possibly same mistake).

    The heatsink wasn't tight enough! Took CPU board out retorque'd and voila!

    I originally torque'd very carefully and evenly until my fingertip-nerve-endings told my ape-brain (behind the-thick-skull) that it was just tight enough but then I had the problem with second cpu so I went for lunch, came back, took tray out and the heatsink screws were a lot looser than I had left them.

    So apparently they loosen a bit. Maybe thermal paste thinning out, with a little cpu heat perhaps.

    Maybe I'll take the tray out again in a few hours (before thermal paste cures completely) and tighten them again?! Maybe I'm being too careful?!

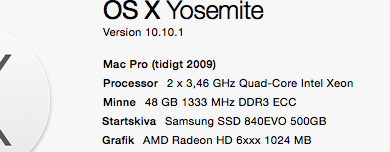

    BTW:1- I was about to post screen dump with serial, but mostly i see people blurring that. What exactly is the risk with the serial number?

    BTW:2 -So these CPU's have the AES instruction set. So I should be able to use whole disc encryption without much performance penalty. Would doing this complicate my move to a RAID 0 set for boot volume? Setting it up and moving volume around I mean?

    BTW:3 -How much thermal paste is "too much", mine is coming out the sides, but not so much as to "fall down" the sides. Just a "ring" around the edge so to speak?


    Attached Files:

  3. apphotography macrumors regular

    Joined:
    Nov 19, 2014
    #3
    Some idiot might use it for false claims and registrations.
