QNAP M.2 SSD carrier board with 10GB NIC

Discussion in 'Mac Pro' started by ShawnF, Jun 13, 2017.

Tags:
  1. ShawnF macrumors regular

    Joined:
    May 10, 2014
    #1

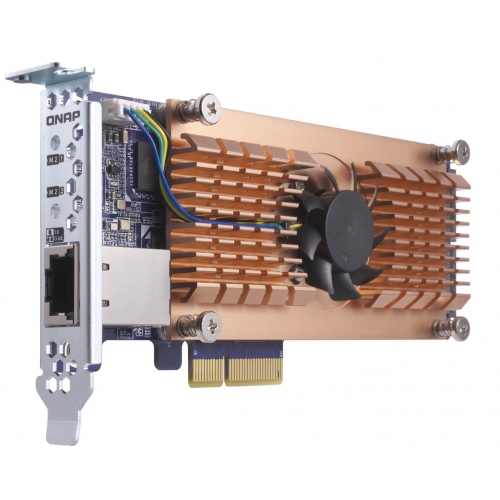

    Not sure if anyone has seen this interesting piece of hardware from QNAP. It is the QM2-2P10G1T. [​IMG]
    The carrier holds 2 M.2 SSDs and QNAP sells separate models for NVME SSDs and SATA SSDs.

    Doesn't work except in QNAP NAS devices - but would be awesome if someone could hack it to work with Macs.
    --- Post Merged, Jun 13, 2017 ---
    And here is a video with the device:


  2. William_si macrumors regular

    William_si

    Joined:
    Apr 4, 2016
    Location:
    Croatia
    #2
    That is a x4 3.0 link - in a cMP even at full x4 2.0 the total speed is capped to 20GT/s, which means effectively only 900MB/s or less than half of normal for the SSD if the 10G port is fully used.

    ---

    EDIT: even worse, this is dual M.2 *and* only 2.0 native, even in a QNAP device it will have massive performance loss at 10G usage...

    ---

    Chipset support for 10G on macOS is fairly bad - Chelsio (newer only), Intel cards (with firmware hack to change pci id), Myricom (with driver from them, as Chelsion) - QNAP traditionally should be Broadcom which has pretty much zero driver/support.

  3. ShawnF thread starter macrumors regular

    Joined:
    May 10, 2014
    #3
    Thanks. Do you know which Chelsio cards support 10Gbe connection using Cat-6 or Cat-7 cable? The ones I saw all require additional transceiver.

  4. William_si, Jun 13, 2017
    Last edited: Jun 13, 2017

    William_si macrumors regular

    William_si

    Joined:
    Apr 4, 2016
    Location:
    Croatia
    #4
  5. Squuiid macrumors 6502a

    Squuiid

    Joined:
    Oct 31, 2006
    #5
    If you don't want to modify the firmware on Intel cards as per my post then you can just buy the cards ready to go from Small Tree direct. They're the official Intel 10GbE NIC reseller for Mac and their macOS driver support is excellent.
    https://www.small-tree.com/categories/10gb-ethernet-cards/
    Intel 10GbE is the best IMO.

  6. ShawnF thread starter macrumors regular

    Joined:
    May 10, 2014
    #6
    Yeah but oh so pricey. I am aiming at this Akitio 10Gbe NIC using Tehuti chipset and comes with Mac drivers for Yosemite and higher. Lowest I could find and cheaper than the Startech one which also uses Tehuti.

    [​IMG]

  7. Squuiid macrumors 6502a

    Squuiid

    Joined:
    Oct 31, 2006
    #7
    Personally I'd pay the extra $45 and get an Intel card. Worth it for the Small Tree macOS drivers alone, ignoring the superior chipset and build quality. Admittedly you would have to modify the firmware but it is very simple to do and I've listed commands for this exact card on the post.
    Intel Ethernet Converged Network Adapter X540T1

  8. William_si macrumors regular

    William_si

    Joined:
    Apr 4, 2016
    Location:
    Croatia
    #8
    Myricom is generally more enterprise than Intel....

  9. Squuiid macrumors 6502a

    Squuiid

    Joined:
    Oct 31, 2006
    #9
    You've mis-read my post. OP is talking about getting a cheap Akitio or StarTech card with Tehuti chipset.
    My reply is clearly in reference to those cards.
