R9 280X to drive two P2715Q 4k monitors?

[AndreeOnline]

Has anyone tried to drive two 4k screens with a 280X?

I have a 5.1 with a non-flashed MSI R9 280X 3GB. It has two MiniDisplay ports.

The Dell P2715Q is a $699 UHD monitor that checks these boxes:

• 60Hz
• IPS technology
• SST panel
• 99% sRGB and around 75% Adobe

I'd probably default to a higher end monitor, but the price/performance ratio seems good here. And most reviews are positive. Nice way to save some money with a two monitor setup.



[AndreeOnline]

Is anyone using the R9 280X to drive ONE of these new monitors?

If so, it would be great to hear if it works.



[ilikewhey]

i dont see why not, 280x supports 4k



[Mic-M4c]

Hi !
I will receive my ATI R9 280X tomorrow and will connect it to a 4K Dell UltraSharp UP3214Q.
ATI R9 280X is natively supported by Apple Yosemite 10.10, a good point, but at the moment, and with no kext modifications and any web drivers, Apple limit the 4K @30Hz on "old" Mac Pro, except on Mac Pro (Late 2013).


Note : I have a Mac Pro 5,1 (mid-2010)
Infos :
http://9to5mac.com/2014/12/23/mac-p...c-MacAllDay+(9+to+5+Mac+-+Apple+Intelligence)
http://support.apple.com/en-us/HT202856



[Mic-M4c]

i dont see why not, 280x supports 4k

Hi. Can you post a screen shot of your System preferences > Monitors to see if you are in 4K@60Hz, please ?



[kennyman]

Has anyone tried to drive two 4k screens with a 280X?

I have a 5.1 with a non-flashed MSI R9 280X 3GB. It has two MiniDisplay ports.

The Dell P2715Q is a $699 UHD monitor that checks these boxes:

• 60Hz
• IPS technology
• SST panel
• 99% sRGB and around 75% Adobe

I'd probably default to a higher end monitor, but the price/performance ratio seems good here. And most reviews are positive. Nice way to save some money with a two monitor setup.

I have just pulled the trigger and bought a Dell P2415Q for $585. Now I also have a 280X flashed. Could you please confirm whether the Dell is compatible with the 280X @60 Hz. Any artifacts or image/window tearing?



[MacMutsch]

I’m currently using a Dell UP3214Q (UHD/3840x2160) and a LG 31MU97 (4K/4096x2160) with my (flashed) GigaByte R9 280X.
Although OS X 10.10.3 provides better graphics drivers I still have to use SwitchResX or Display Menu to get all the useful HiDPI Resolutions – with System Preferences I can only select the native UHD/4K resolution but none of the HiDPI.

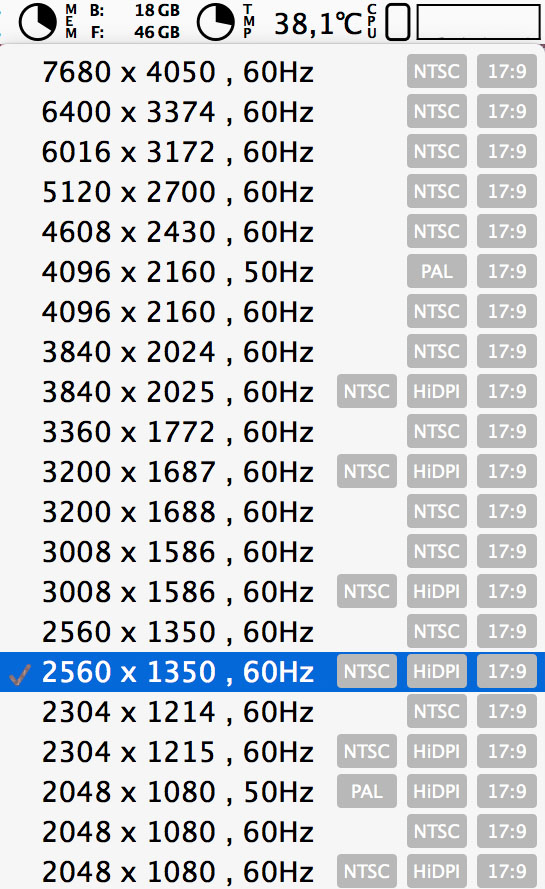

Attached a screesnhot of the most useful resolutions I can use with my LG 31MU97 (before 10.10.3 only 50 Hz were possible with this 4K Display), I could also use the corresponding UHD resolutions @ 60 Hz with the Dell UP3214Q.

I haven’t figured out yet if I can use both UHD/4K displays @ 60 Hz at the same time with the two (mini)display ports of my single 280X – I haven’t tested this configuration in detail but up to now I only get black screens (which is why one of those displays is currently connected to HDMI, which gives you only 30 Hz of course.
No problem at all with my nMP / D500 though, with the nMP and 10.10.3 all useful HiDPI resolutions can be seleceted with the OS X System Preferences).

I’m curious what you have to report with your Monitors, R9 280X and OS X versions ;O)



[kennyman]

I’m currently using a Dell UP3214Q (UHD/3840x2160) and a LG 31MU97 (4K/4096x2160) with my (flashed) GigaByte R9 280X.
Although OS X 10.10.3 provides better graphics drivers I still have to use SwitchResX or Display Menu to get all the useful HiDPI Resolutions – with System Preferences I can only select the native UHD/4K resolution but none of the HiDPI.

Attached a screesnhot of the most useful resolutions I can use with my LG 31MU97 (before 10.10.3 only 50 Hz were possible with this 4K Display), I could also use the corresponding UHD resolutions @ 60 Hz with the Dell UP3214Q.

I haven’t figured out yet if I can use both UHD/4K displays @ 60 Hz at the same time with the two (mini)display ports of my single 280X – I haven’t tested this configuration in detail but up to now I only get black screens (which is why one of those displays is currently connected to HDMI, which gives you only 30 Hz of course.
No problem at all with my nMP / D500 though, with the nMP and 10.10.3 all useful HiDPI resolutions can be seleceted with the OS X System Preferences).

I’m curious what you have to report with your Monitors, R9 280X and OS X versions ;O)

Thanks, mine is a Dell P2415Q. From some reports online, looks like it will work at @30 Hz...I will give it a try and return it if is does not work at 60 Hz. Is there any settings on the Dell monitor itself to select SST or MST mode?



[MacMutsch]

Thanks, mine is a Dell P2715Q. From some reports online, looks like it will work at @30 Hz...I will give it a try and return it if is does not work at 60 Hz. Is there any settings on the Dell monitor itself to select SST or MST mode?

I’m sorry that I can’t provide first hand experience with the P2715Q but with my UP3214Q (as well as the LG 31MU97) I just had to enable „Display Port 1.2“
(OSD -> Menu -> Display Settings -> Display Port 1.2) in order to get the full 60 Hz.

I wish you success!



[kennyman]

I’m sorry that I can’t provide first hand experience with the P2715Q but with my UP3214Q (as well as the LG 31MU97) I just had to enable „Display Port 1.2“
(OSD -> Menu -> Display Settings -> Display Port 1.2) in order to get the full 60 Hz.

I wish you success!

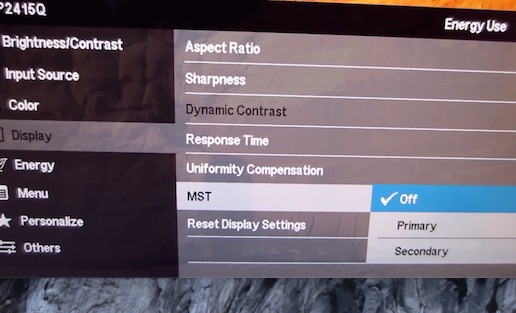

Thanks, I have received my monitor, it is P2415Q (not the 27 inch). Unboxed and connected it to 280X, mDP to DP on the monitor. First impression, looks gorgeous and solid, booting went fine, but resolution went crazy with some retina resolution. I am still at 30Hz. I did not have enough time to play around with it. However, I cannot see the settings you mentioned. My menu has no display port, any idea? I am on Yosemite 10.10.2

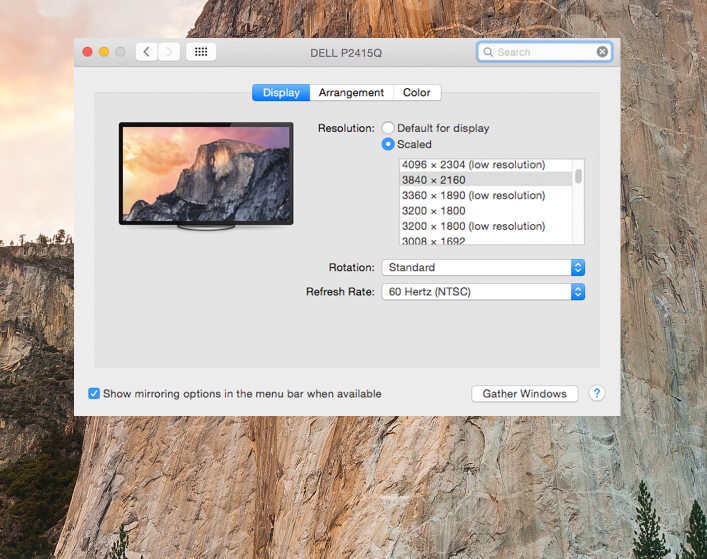

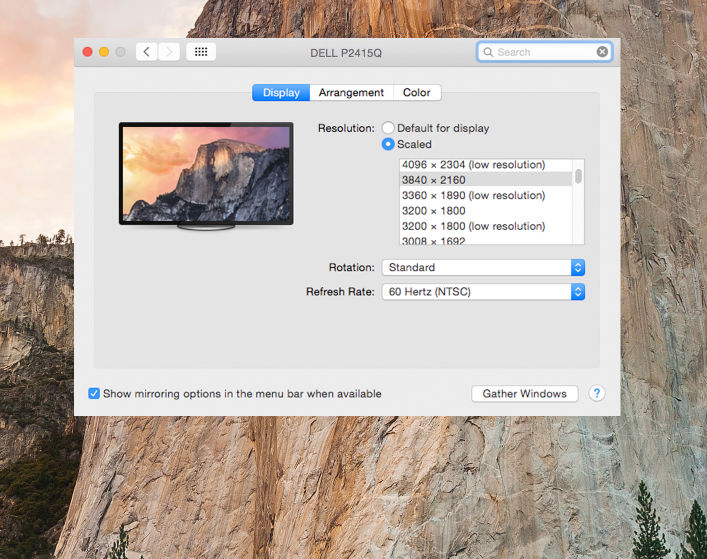

UPDATE: Ok, I downloaded SwitchResX and I can set 60Hz now, thanks, all good.



[kennyman]

Dell P2415Q works fine with 280X @60Hz with mDP. After messing around with SwitchResX, I have decided to permanently mod my pref file for retina mode (only Apple retina mode works right now) and have done some resolution adjustment following this

I need some more time to play around, to delete and add some custom resolutions, so far, looks insanely insane...
